WashFX 2000 IP65 CRMX

Main information:

» Product from category:

Moving Devices / Moving Heads WASH

» Product series:

ART

Product codes:

» Product code:

F7100779

» EAN: 5906893864765

Check series

MOTORIZED ZOOM /upload/product/tags/logo_41-r100x100.webp
MOTORIZED ZOOM
XLR 3-pin /upload/product/tags/logo_78-r100x100.webp
XLR 3-pin
TrueCon IP65 /upload/product/tags/logo_73-r100x100.webp
TrueCon IP65
TILT /upload/product/tags/logo_59-r100x100.webp
TILT
16 BIT DIMMING /upload/product/tags/logo_38-r100x100.webp
16 BIT DIMMING
PAN /upload/product/tags/logo_58-r100x100.webp
PAN
MASTER-SLAVE /upload/product/tags/logo_67-r100x100.webp
MASTER-SLAVE
VARIABLE BEAM ANGLE /upload/product/tags/logo_46-r100x100.webp
VARIABLE BEAM ANGLE
DMX512 /upload/product/tags/logo_19-r100x100.webp
DMX512
BLACK /upload/product/tags/logo_91-r100x100.webp
BLACK
CTO SMOOTH /upload/product/tags/logo_52-r100x100.webp
CTO SMOOTH
ACTIVE COOLING /upload/product/tags/logo_94-r100x100.webp
ACTIVE COOLING
AUTO CONTROL /upload/product/tags/logo_66-r100x100.webp
AUTO CONTROL
W-DMX /upload/product/tags/logo_63-r100x100.webp
W-DMX
CRMX /upload/product/tags/logo_134-r100x100.webp
CRMX
XLR IP65 3-pin /upload/product/tags/logo_79-r100x100.webp
XLR IP65 3-pin
ALUMINUM /upload/product/tags/logo_86-r100x100.webp
ALUMINUM
XLR IP65 5-pin /upload/product/tags/logo_80-r100x100.webp
XLR IP65 5-pin
LED (RGBW) /upload/product/tags/logo_112-r100x100.webp
LED (RGBW)

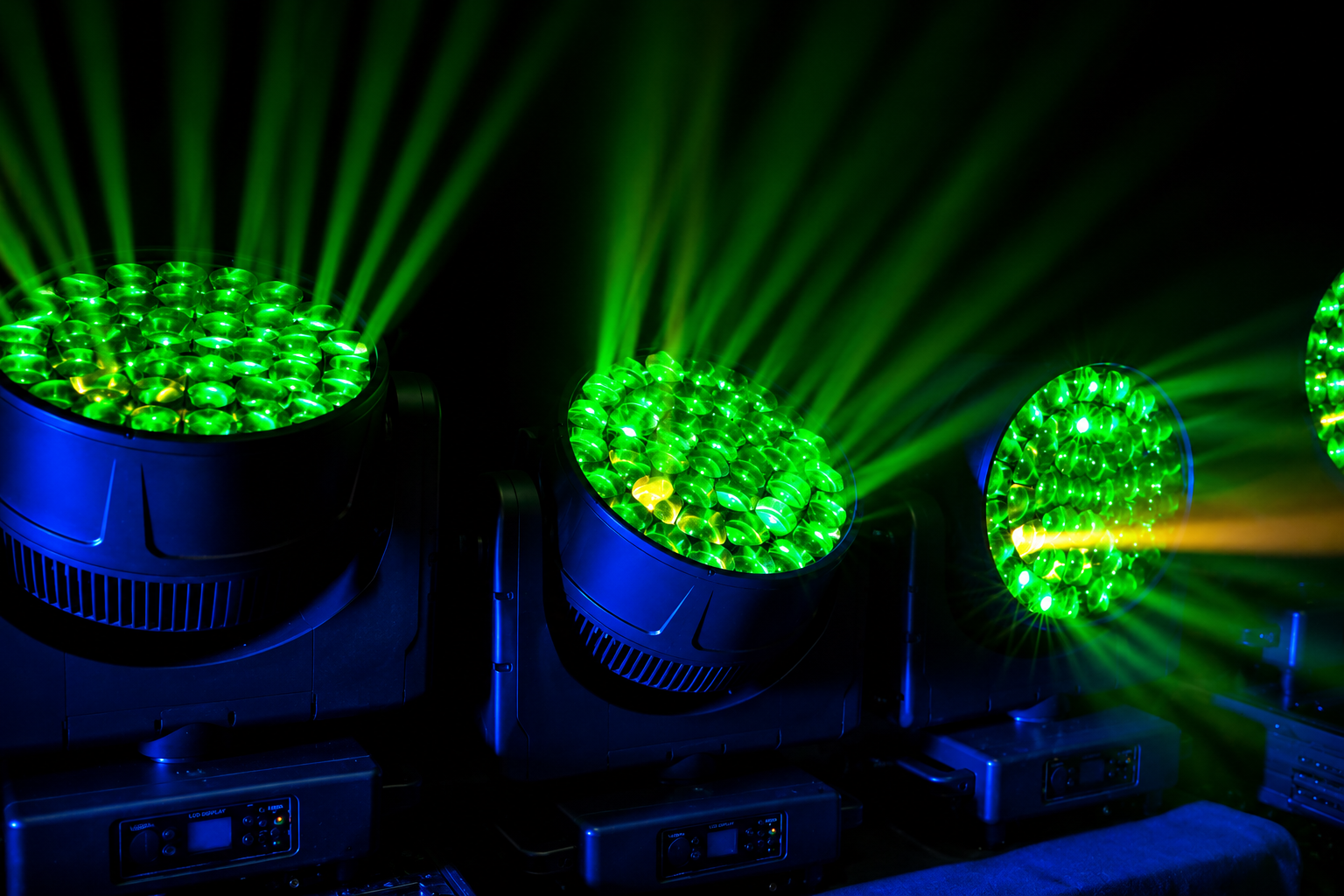

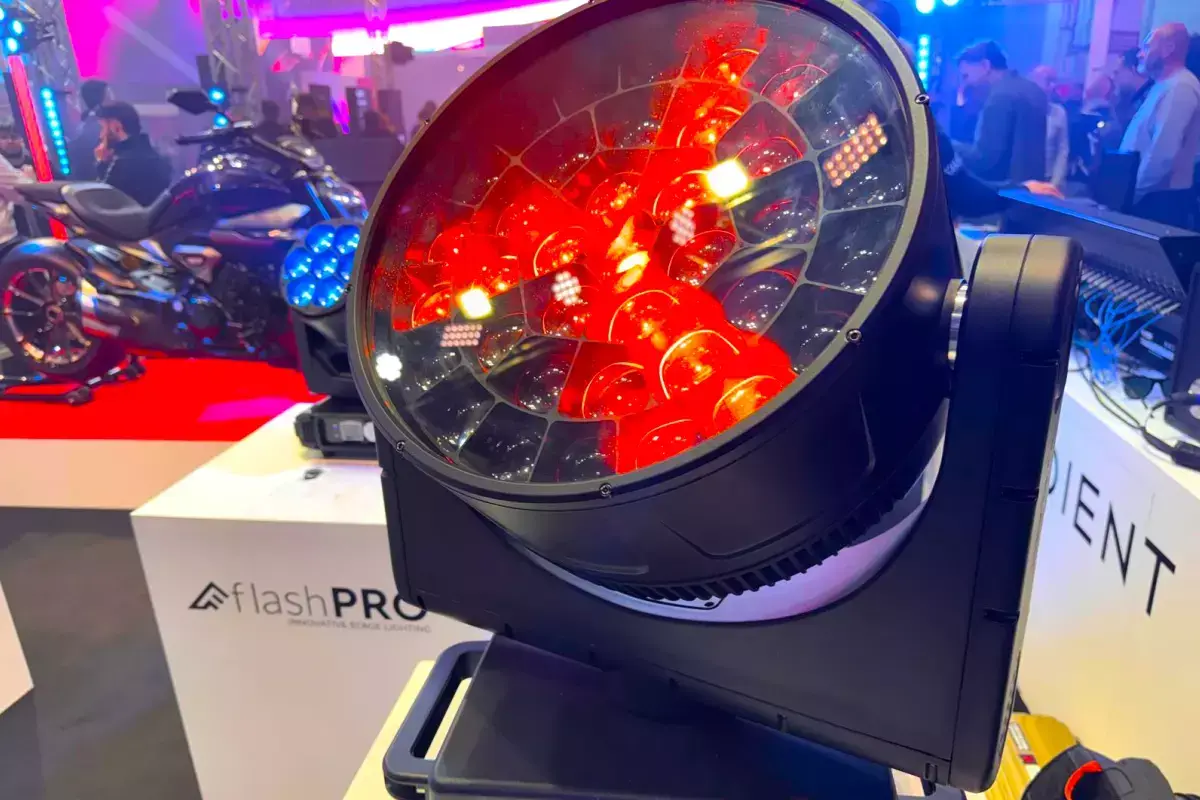

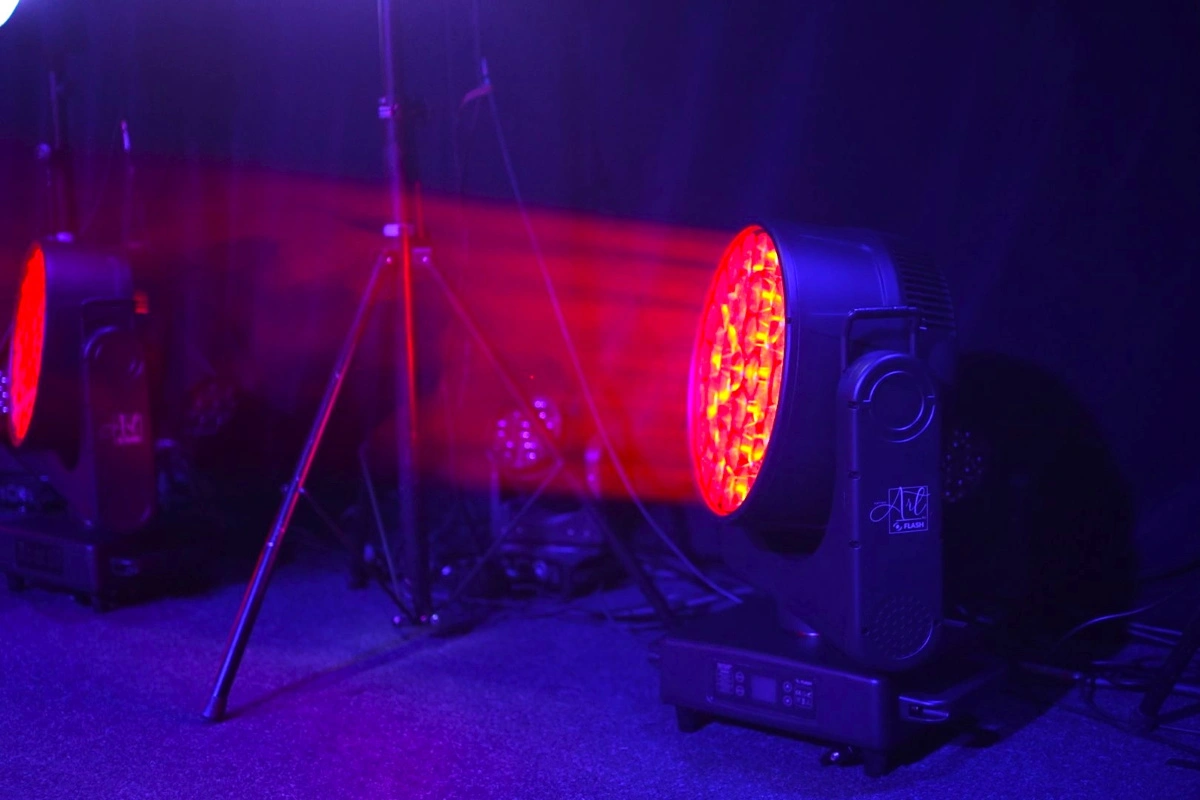

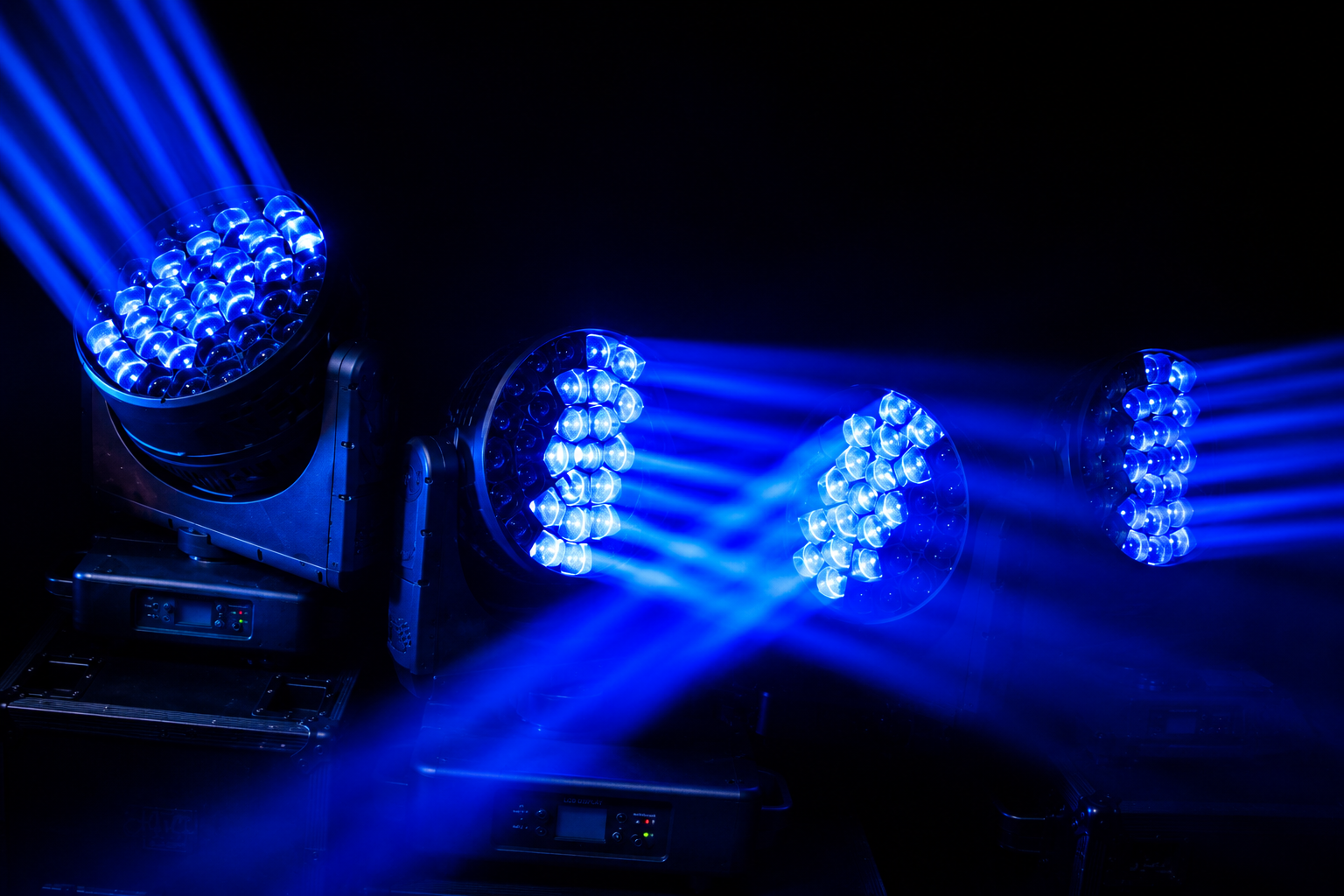

Product description WashFX 2000 IP65 CRMX

WashFX 2000 IP65 CRMX – maximum power, even greater possibilities

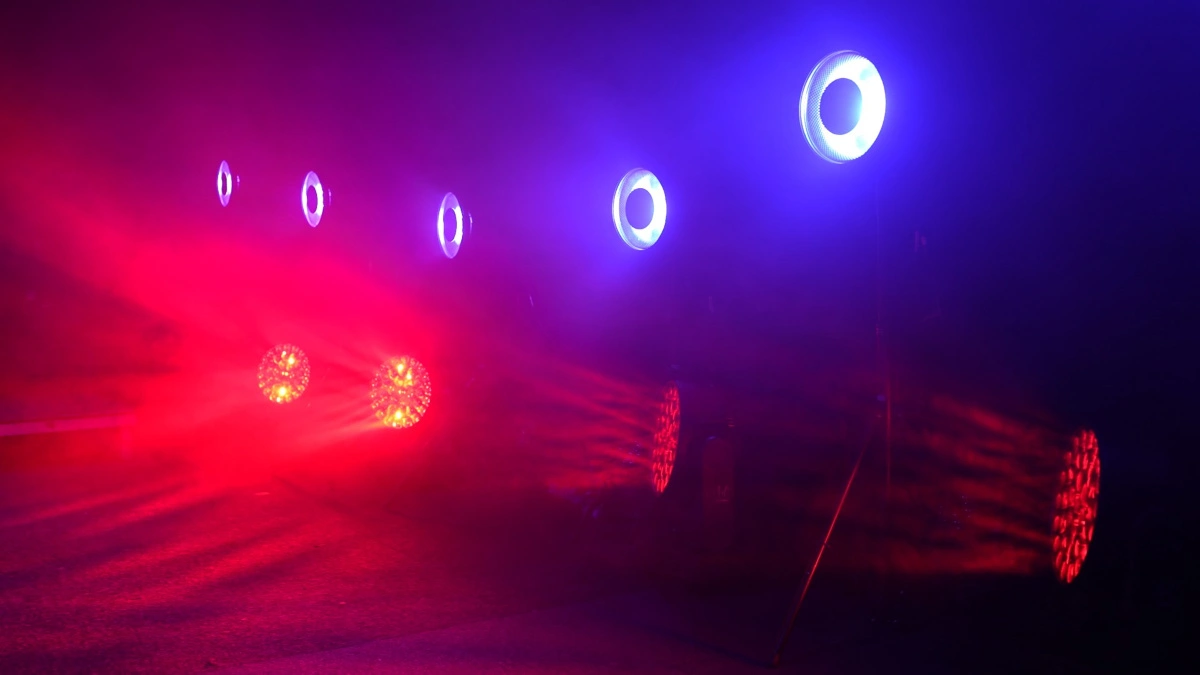

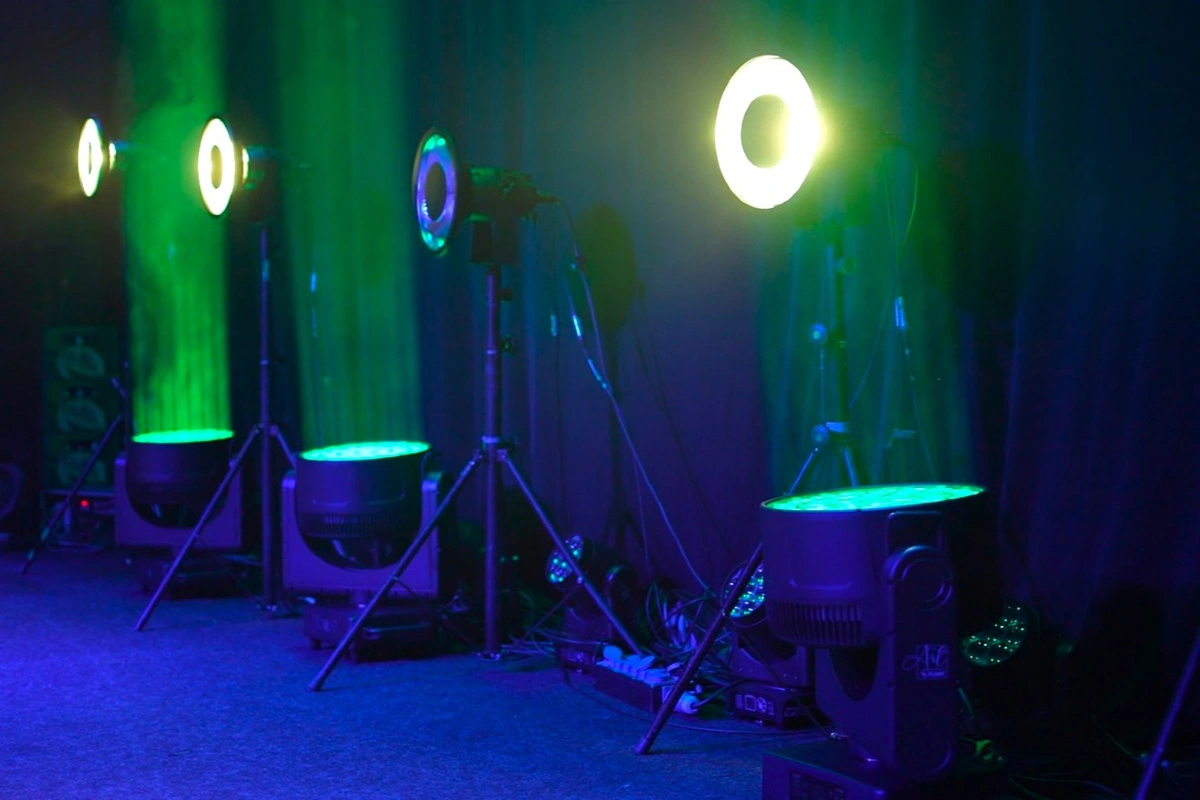

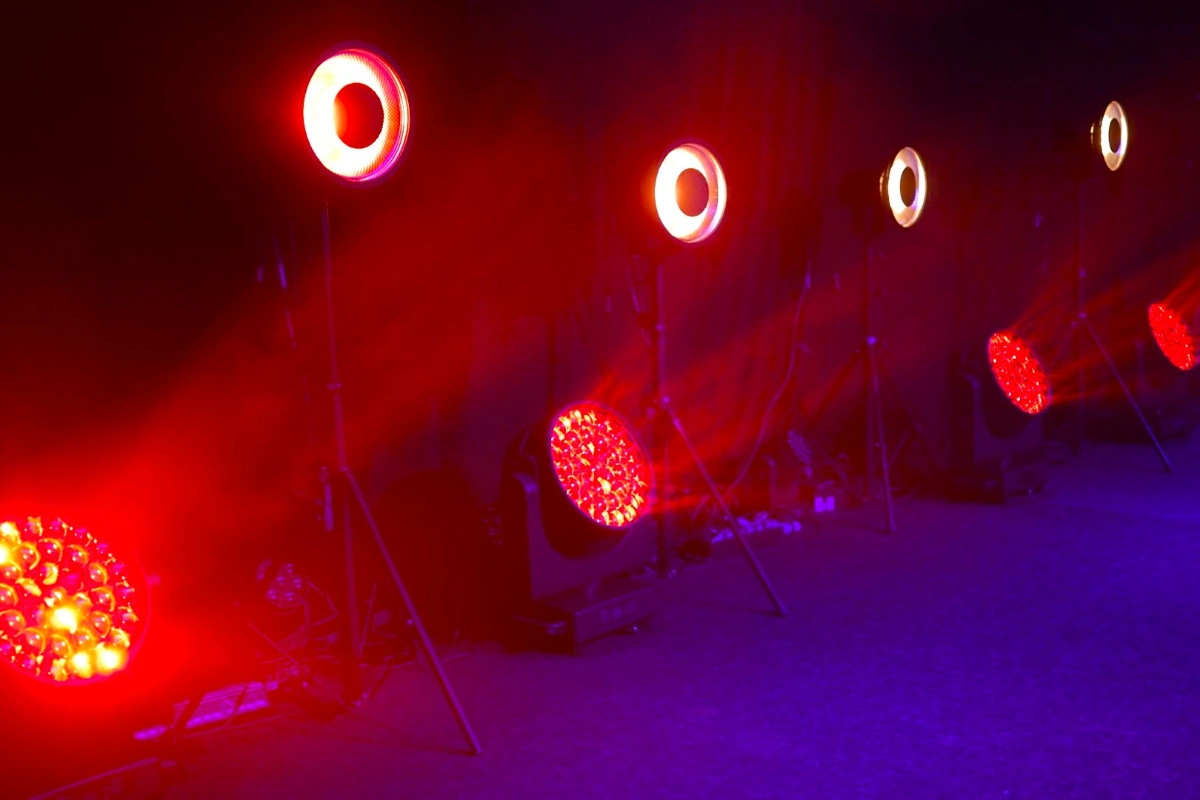

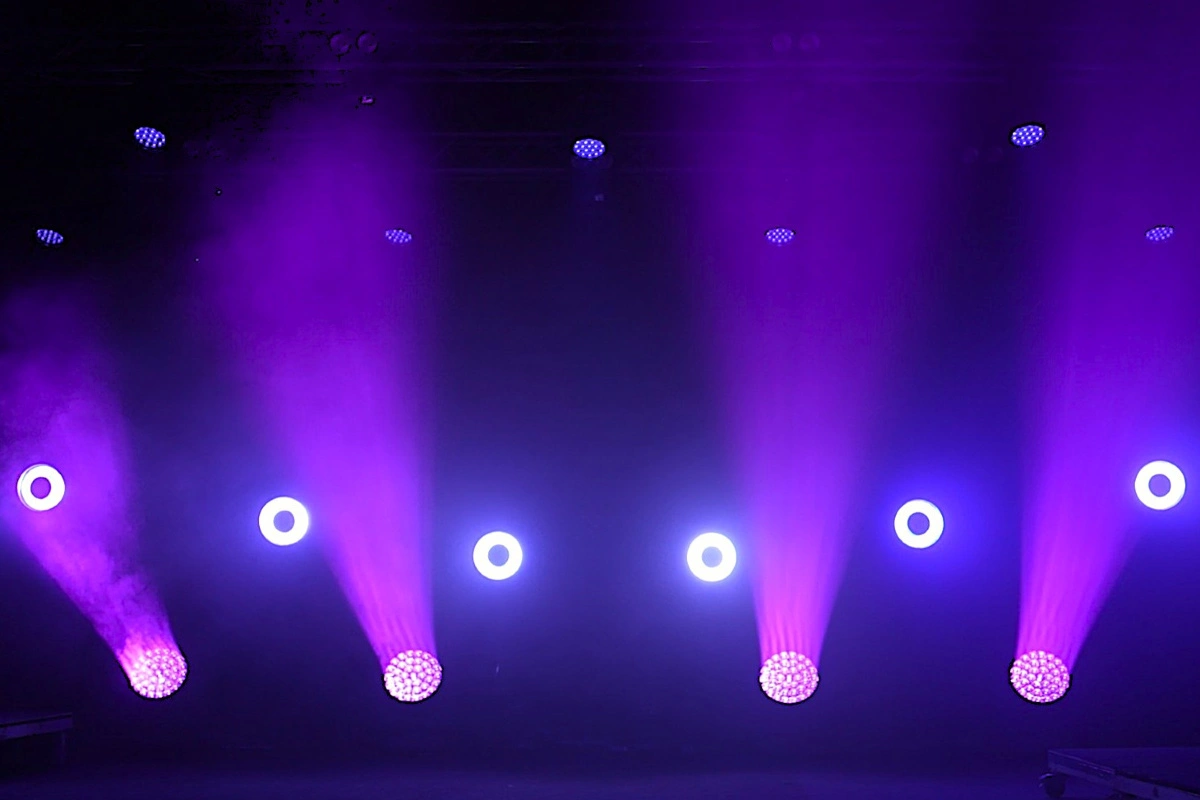

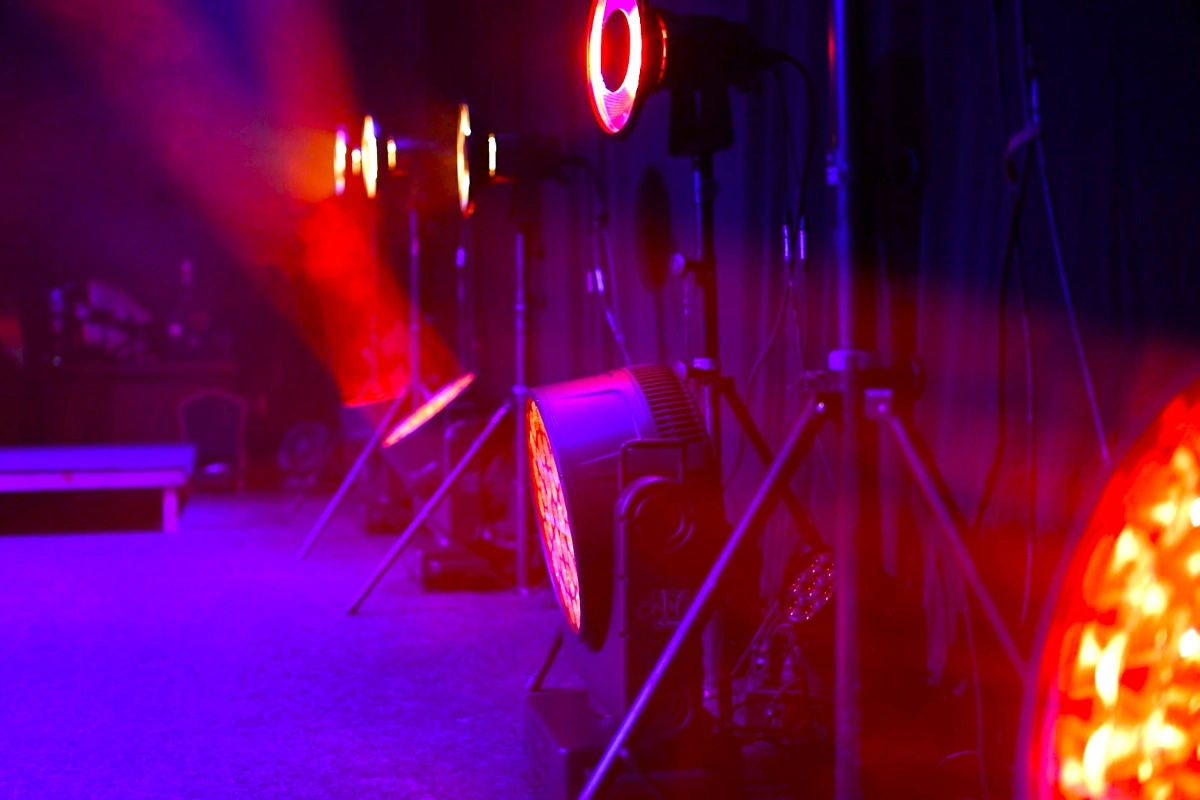

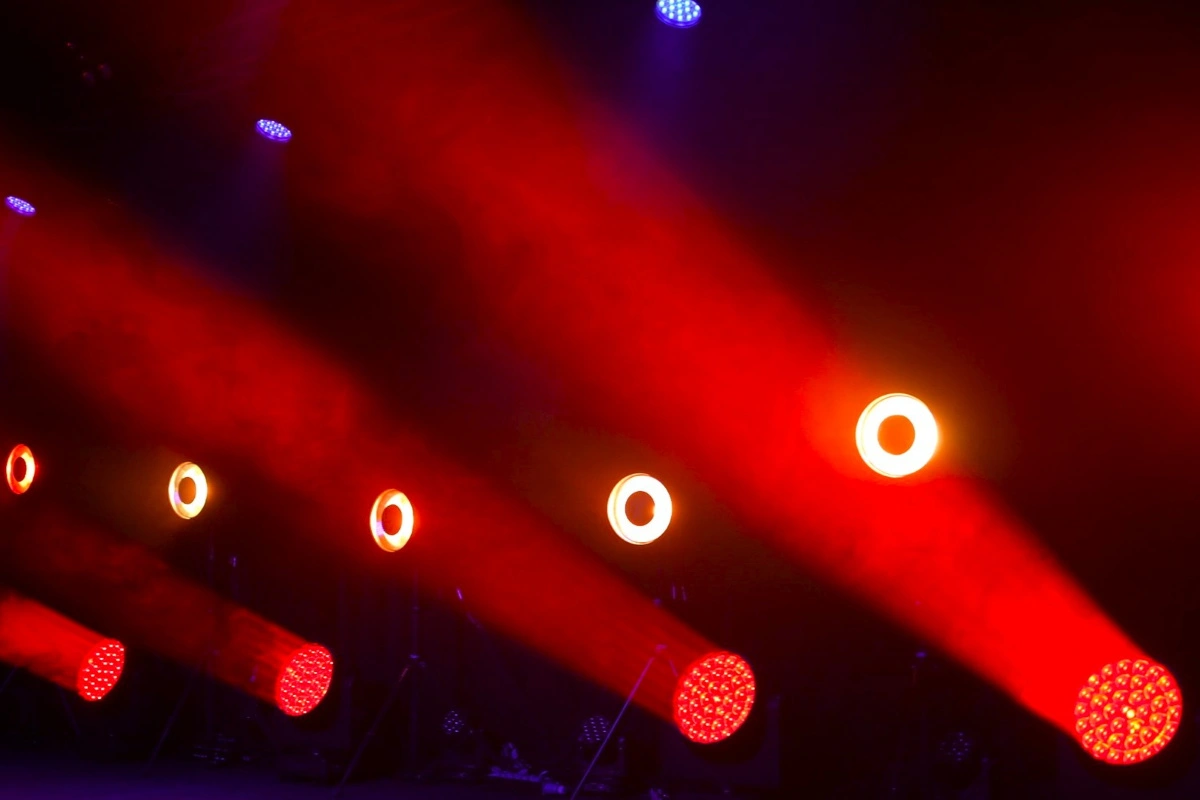

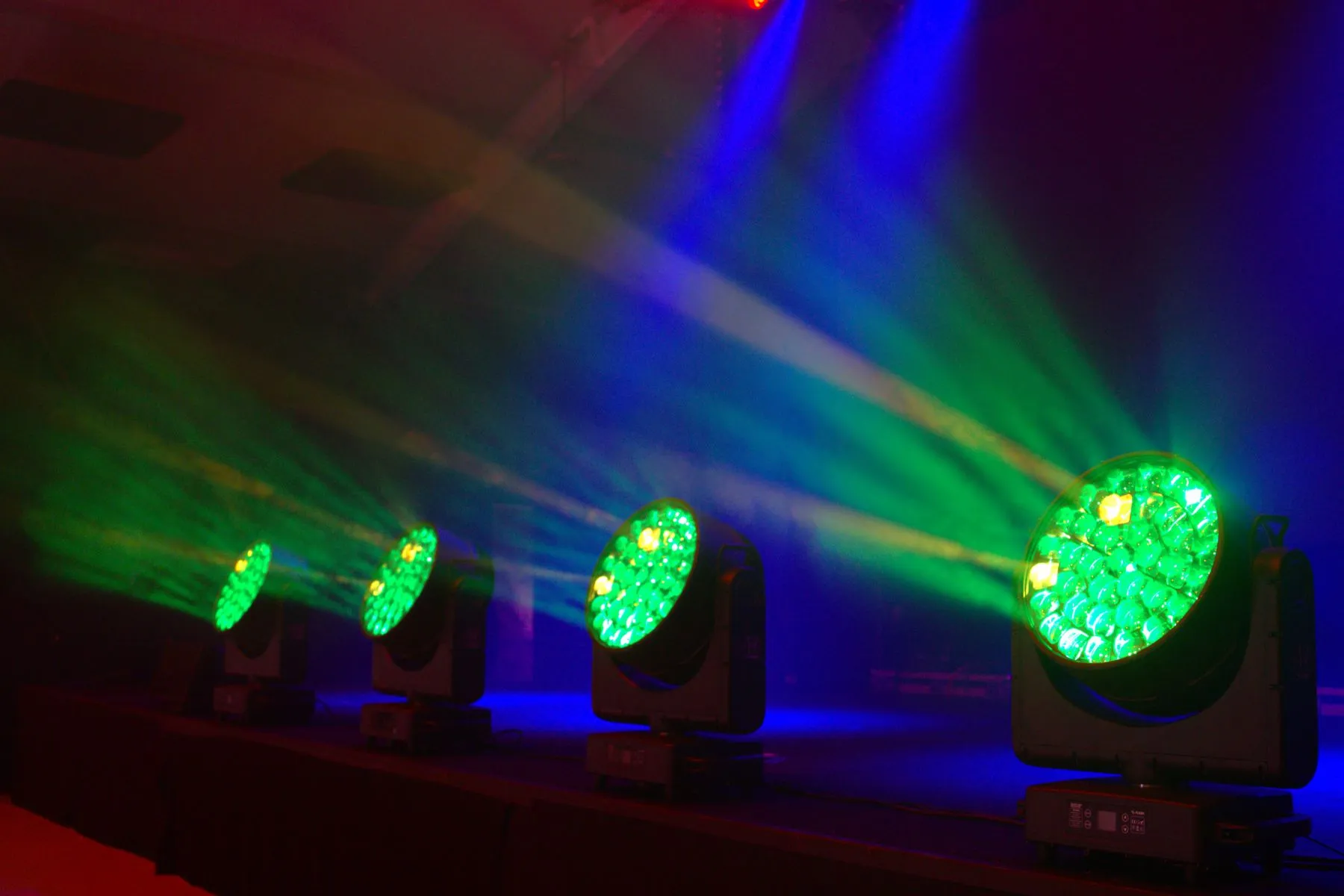

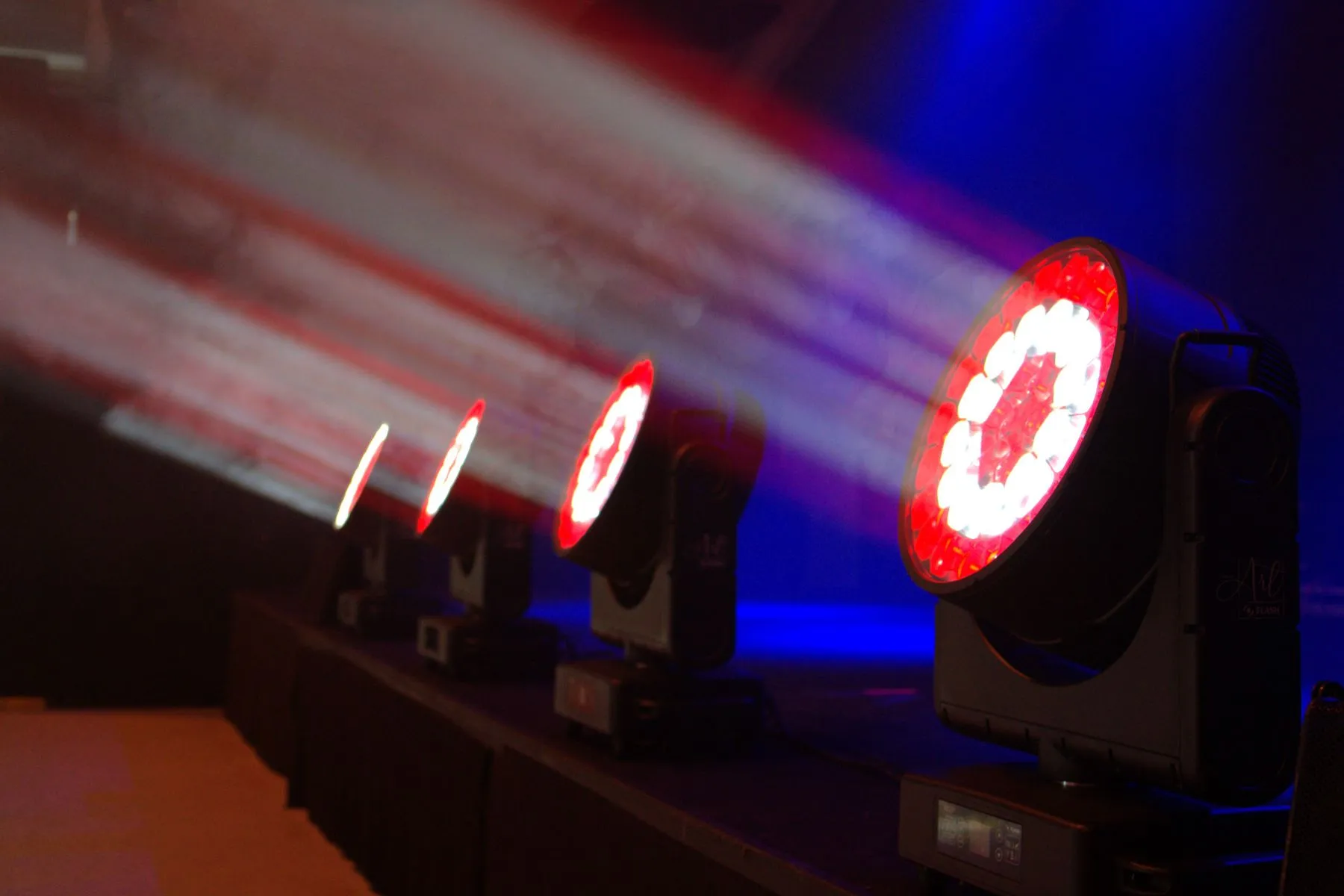

WashFX 2000 IP65 CRMX is a flagship Wash / FX moving head from the ART series, designed for demanding stage productions, touring and outdoor installations.It expands the WashFX 1000 concept offering more power, a wider range of effects and greater creative control.Thanks to its powerful light source and advanced optics, it delivers a spectacular visual output as both a wide wash and a dynamic FX tool.

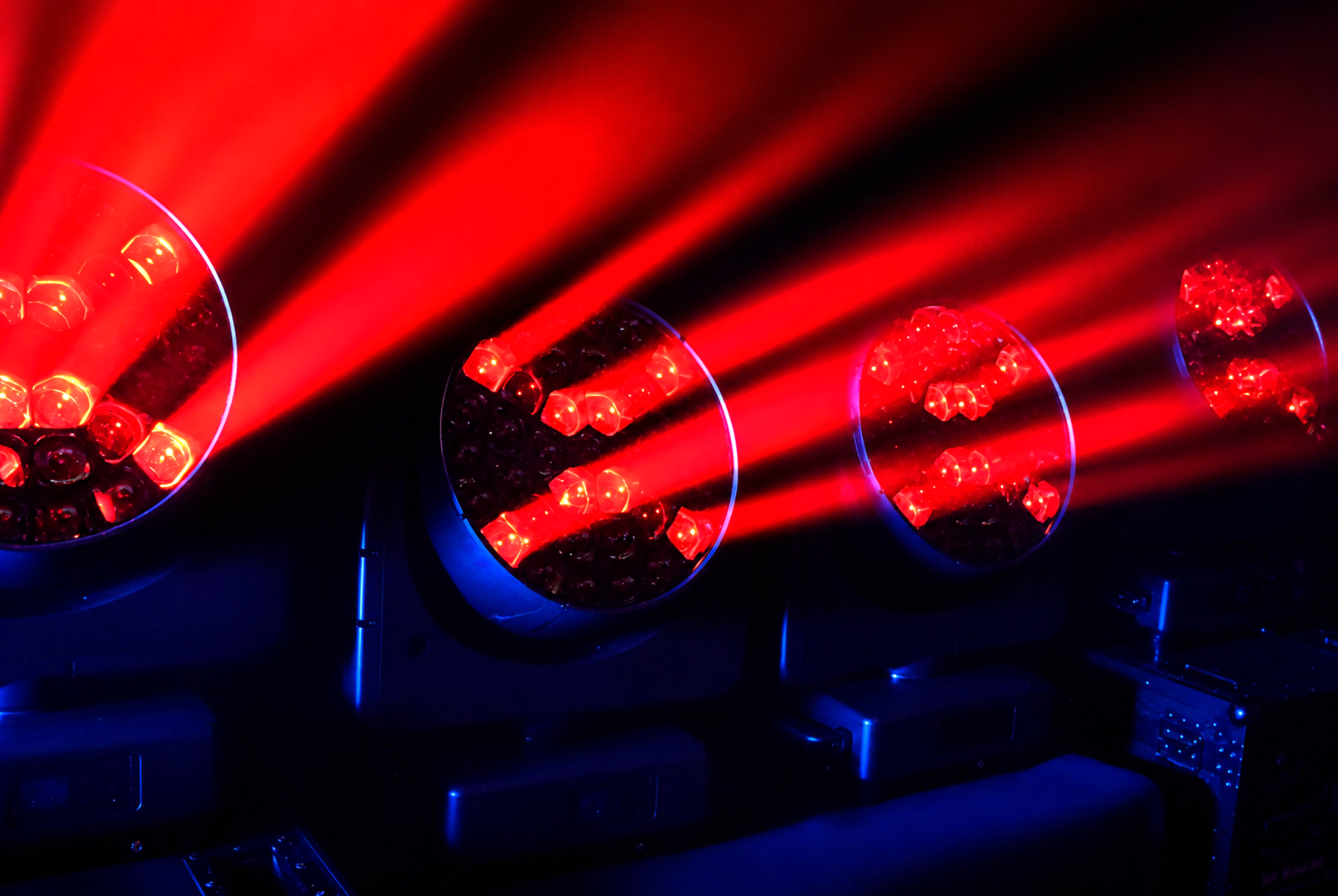

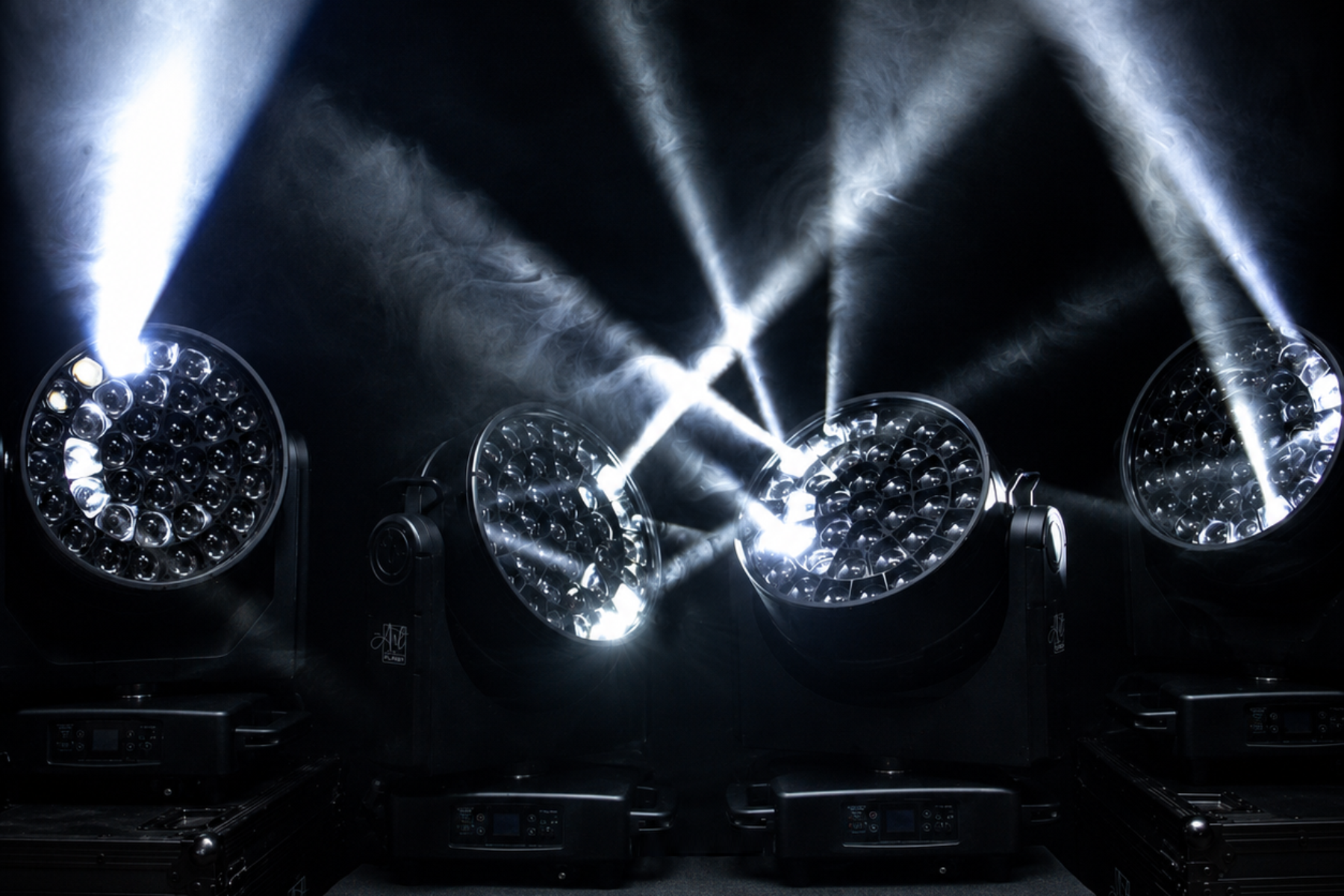

More power – greater stage impactEquipped with 37 RGBW LEDs at 40 W each, it provides high light output and excellent color saturation.Perfect for large outdoor stages, TV productions and concerts.The wide zoom enables smooth transitions from beam to wash.
Professional constructionThe IP65 housing ensures reliable operation both indoor and outdoor.The aluminum body, active cooling and sealed connectors guarantee durability and stability.
Control and integrationWireless CRMX and W-DMX operation eliminates signal cables
Supports DMX512 RDM Auto Master Slave
Up to 148 DMX channels
Rider compatible
Movement precisionPAN 540°
TILT 270°
16-bit precision control
Creative capabilitiesIndividual control of 37 LED pixels
Smooth RGBW color mixing 8 to 16 bit
Multiple dimmer curves
Strobe up to 25 Hz
Zoom range 7° to 50°
Set – fixtures and flight caseAvailable as a set with a professional flight case.The case allows safe transport of two fixtures, protecting them from damage and external conditions. Transport wheels and handles improve logistics and speed up setup.
ApplicationsConcerts and touring
Festivals and outdoor events
Architectural lighting
TV productions
Key features37 × 40 W RGBW LEDs
Pixel control 37 sections
Zoom 7° to 50°
IP65
CRMX W-DMX DMX RDM
1450 W

Specification WashFX 2000 IP65 CRMX

Power Source (AC)
Supply voltage	100-240V
Power consumption	1450W
Power frequency	50-60Hz

Light source
Type	LED (RGBW)
Quantity	37
Power (W)	40
Number of control sections	37

Color Mixing System
RGBW	8 bit - 16 bit

Dimming
Dimming	16 bit
Operating Curves	4

ZOOM
ZOOM	Motorized (8 bit)

Beam angle
Beam angle	Zmienny (7⁰-50⁰)

Strobe - frequency
Frequency	1Hz-25Hz
Pulsating	Yes
Random	Yes

DMX control
Number of modes	6
Number of channels	21-148

Movement
Range PAN	540°
Range TILT	270°
Regulation	16 bit

Modes of operation
DMX512	Yes
Auto control	Yes
Master-slave	Yes
W-DMX	Yes
CRMX	Yes

User Interface
Buttons	Capacitive (touch)
Display	LCD

Connectors
AC IN	TrueCon IP65
AC OUT	TrueCon IP65
DMX IN	3-pin XLR IP65
DMX IN	5-pin XLR IP65
DMX OUT	3-pin XLR IP65
DMX OUT	5-pin XLR IP65

Physical parameters
IP protection level	IP65
Housing type	Aluminium
Fixing	Integrated
Housing Color	Black
Cooling	Active
Length [cm]	53
Width [cm]	27,9
Height [cm]	66,3
Weight [kg]	32,2

Contents of the package
Manual	Yes
Wiring	DMX 3-pin
Wiring	TrueCON
Device	WashFX 2000 IP65 CRMX
Handle	Integrated

Instructions available WashFX 2000 IP65 CRMX

Instrukcja
Język: PL

Manual
Language: EN

Documents available WashFX 2000 IP65 CRMX

Data Sheet EN

Karta Katalogowa PL
