MATRIX BEAM

Name: MATRIX BEAM
Price: 479.70 EUR
Availability: InStock

Main information:

» Product from category:

Reflectors LED / Reflectors LED MATRIX

» Product series:

DJ

Product codes:

» Product code:

F9700344

Check series

XLR 3-pin
SOUND CONTROL
16 BIT DIMMING
RJ45
RDM
PowerCON
LED (RGBW)
LED (RGB)
FIXED BEAM ANGLE
ETHERNET
DMX512
BLACK
ACTIVE COOLING
AUTO CONTROL
ART-NET
AC
ABS

flash

fixtures:

To download fixtures from our database, enter your e-mail address. We will send the files to the e-mail address you provided. By entering the address, you accept statute.

Download now

Product description MATRIX BEAM

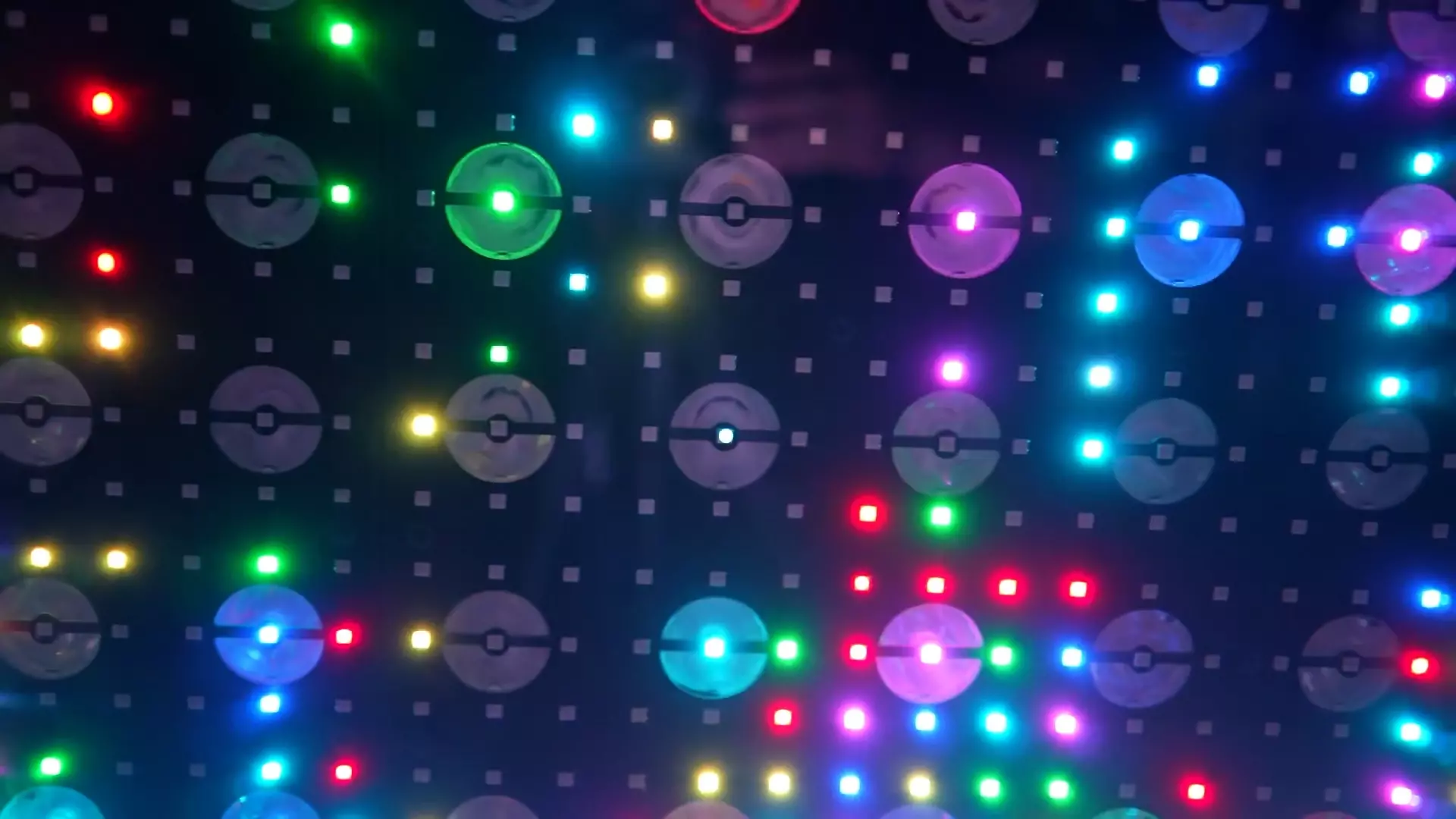

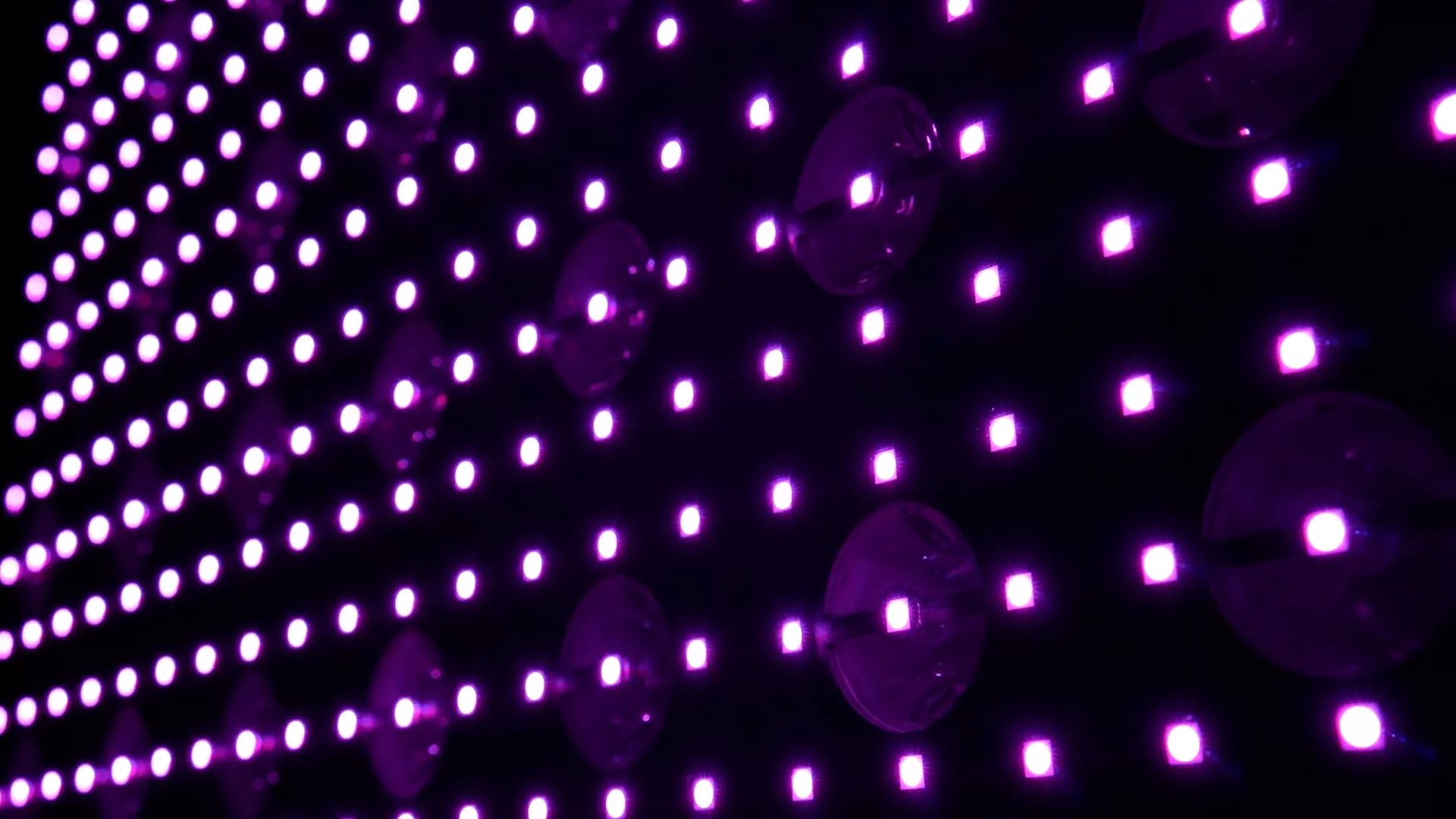

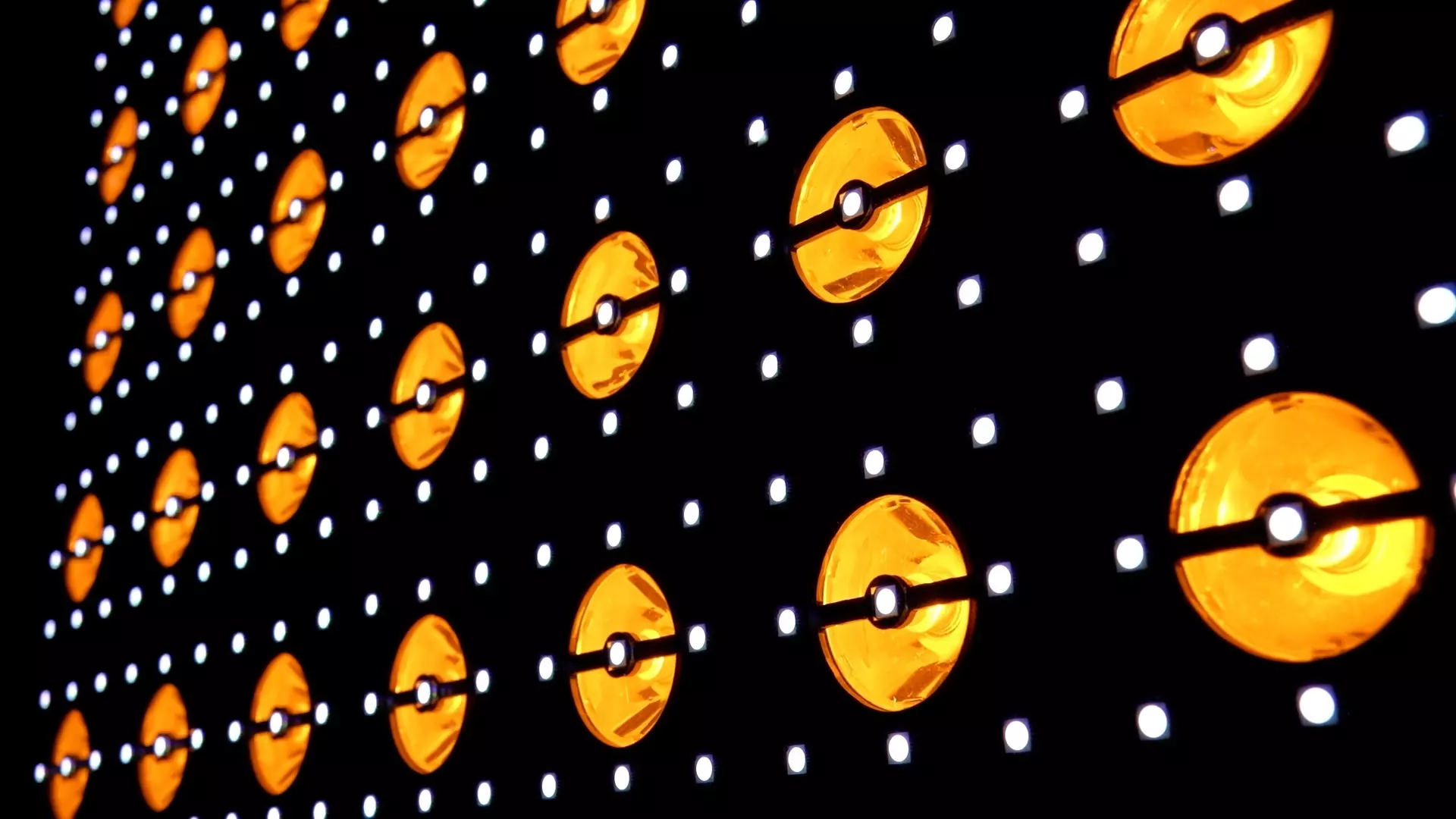

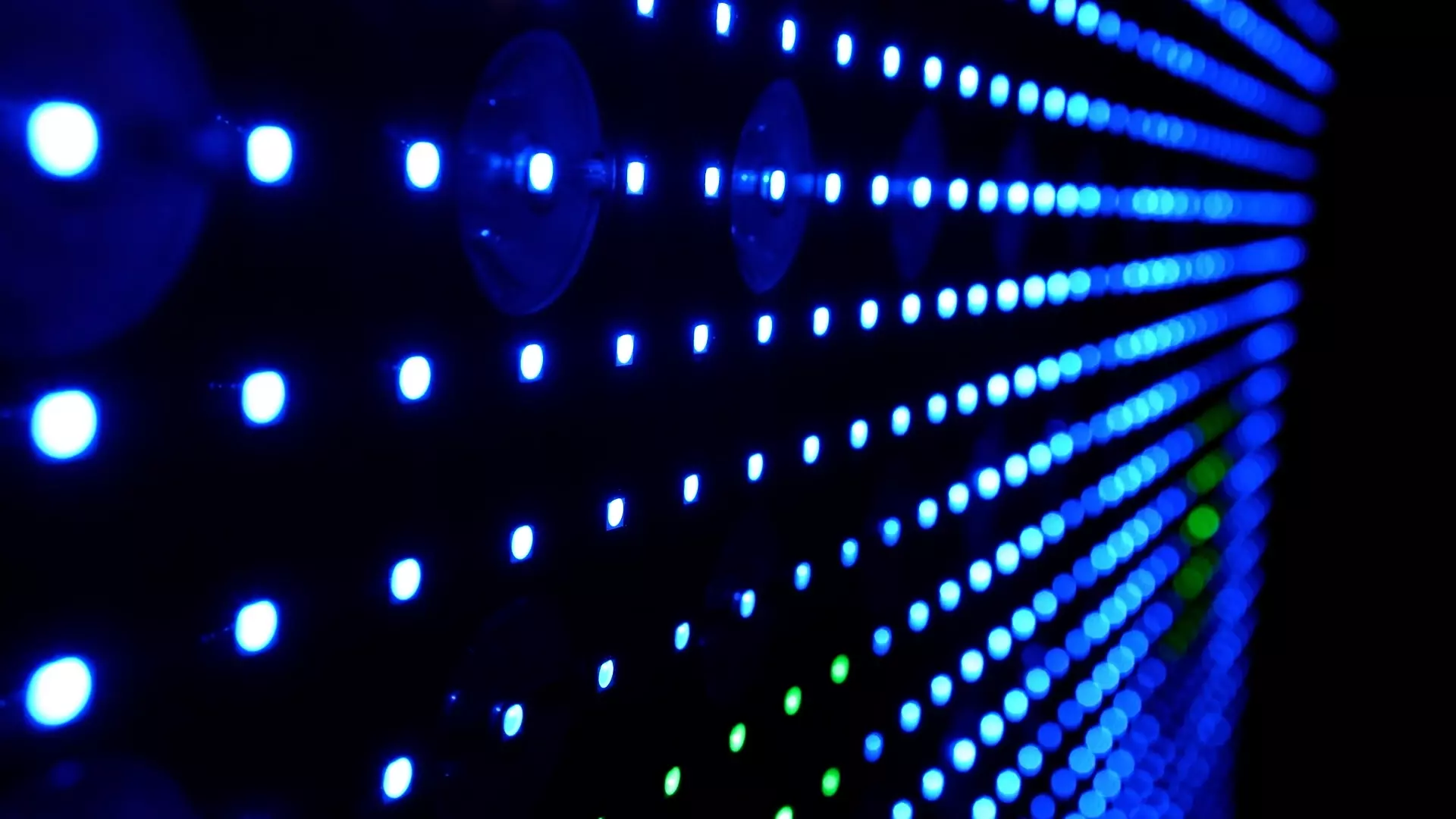

The Matrix BEAM is a modern stage lamp combining high performance with extensive control options. Powered by 100-240 V AC (50/60 Hz), it boasts a total power of 300 W. Its main light source is 49 3W RGBW LEDs, and it is also equipped with 441 0.2W RGB LEDs, allowing for rich and dynamic lighting effects.

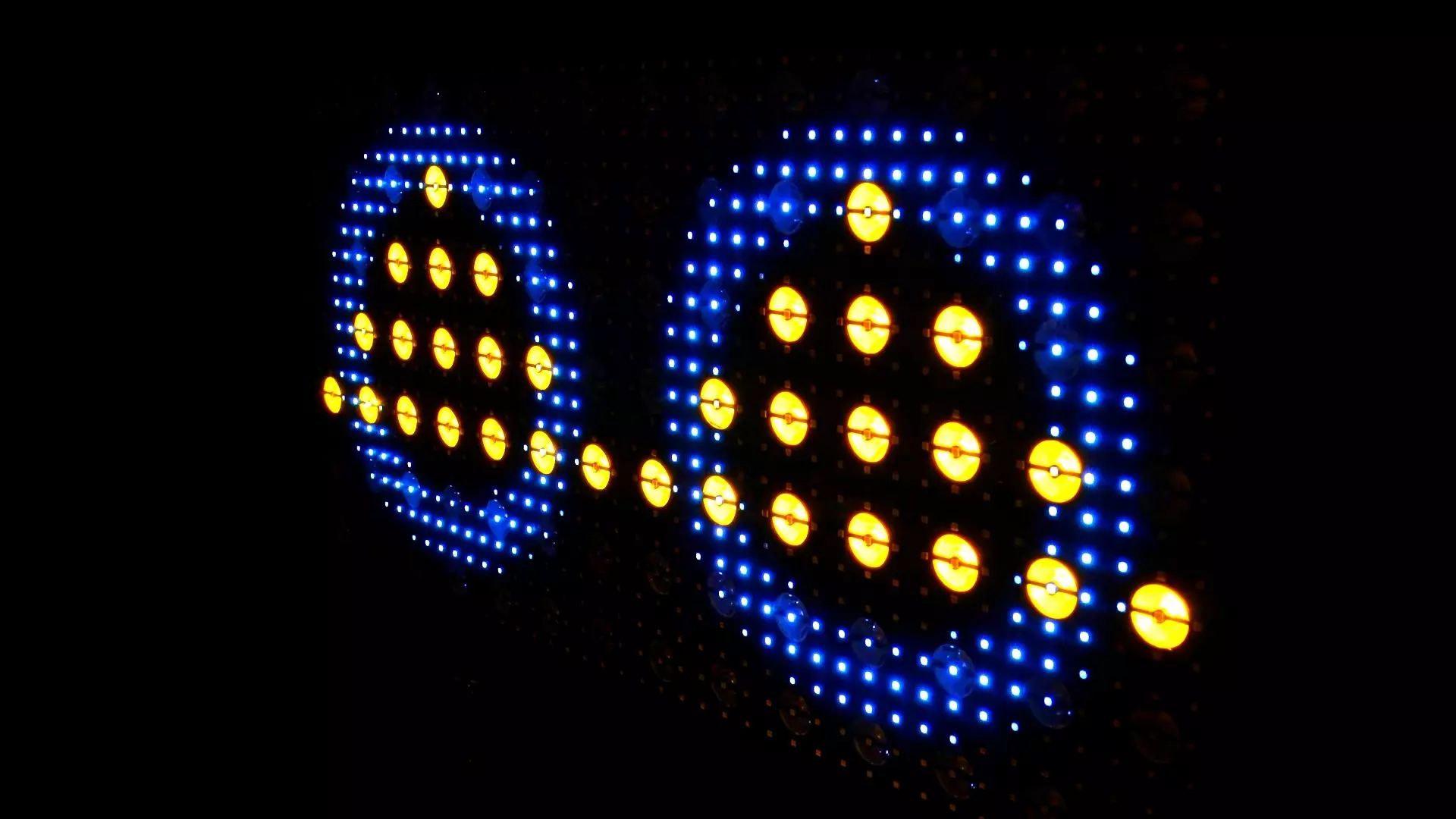

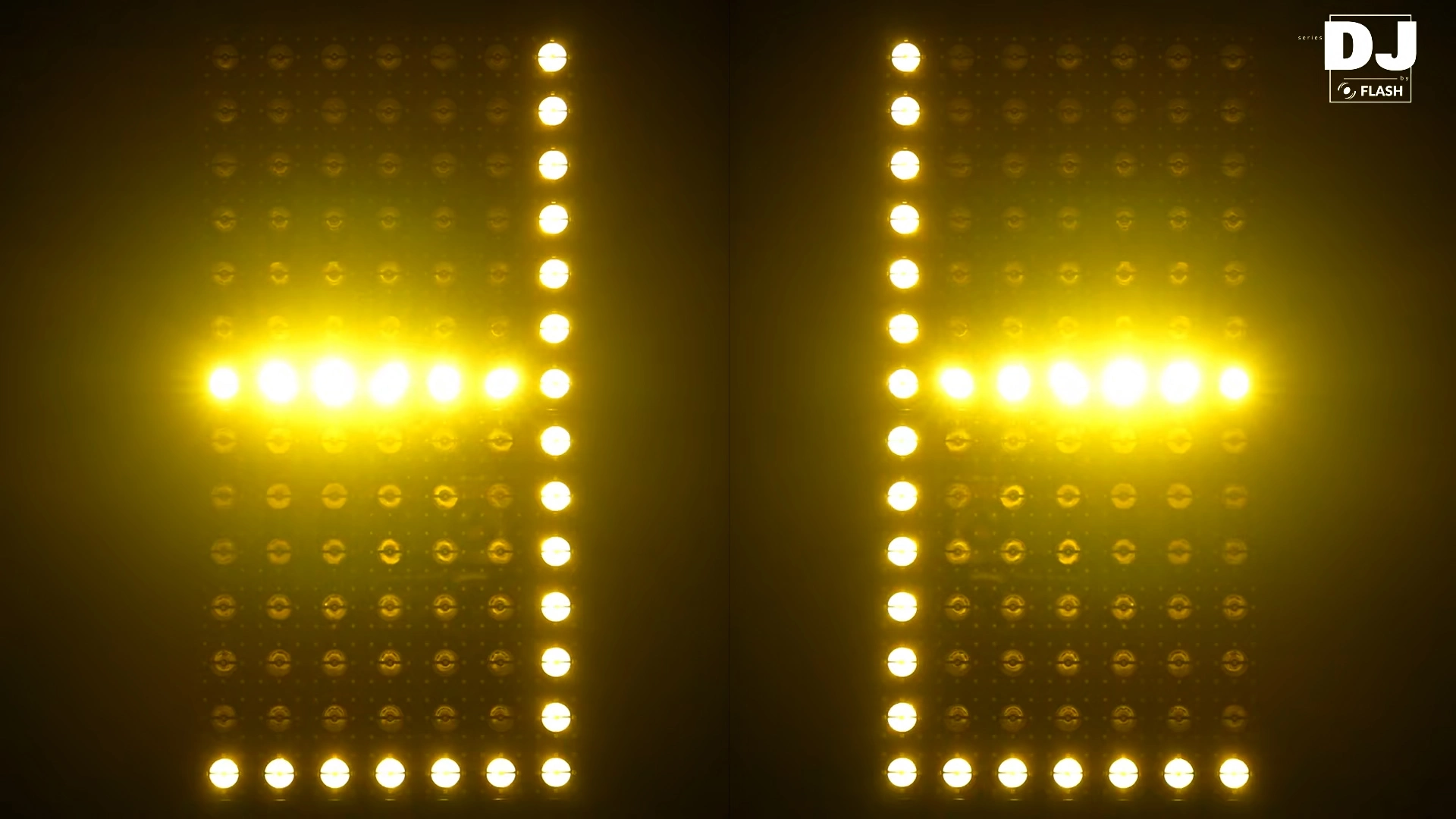

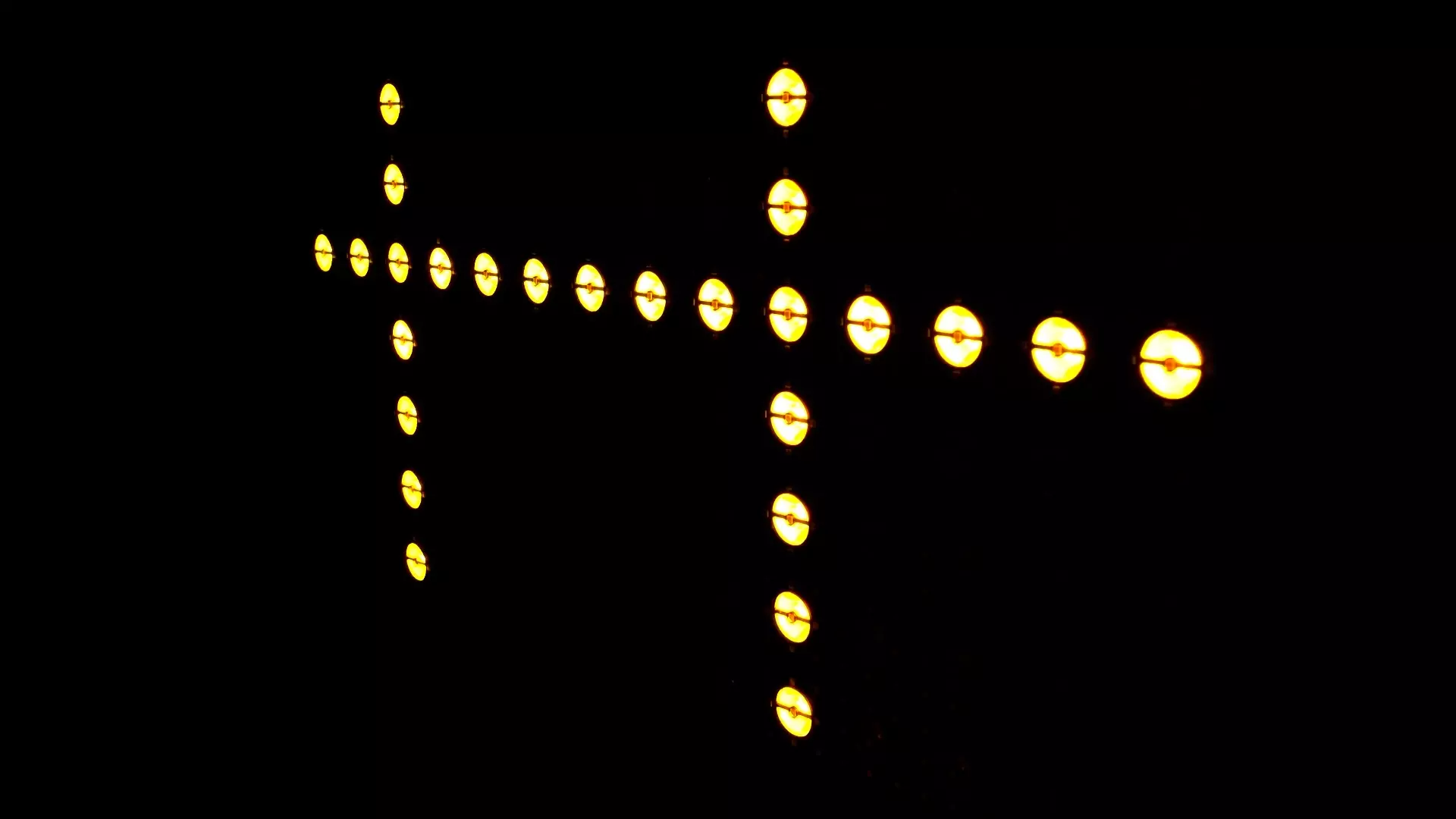

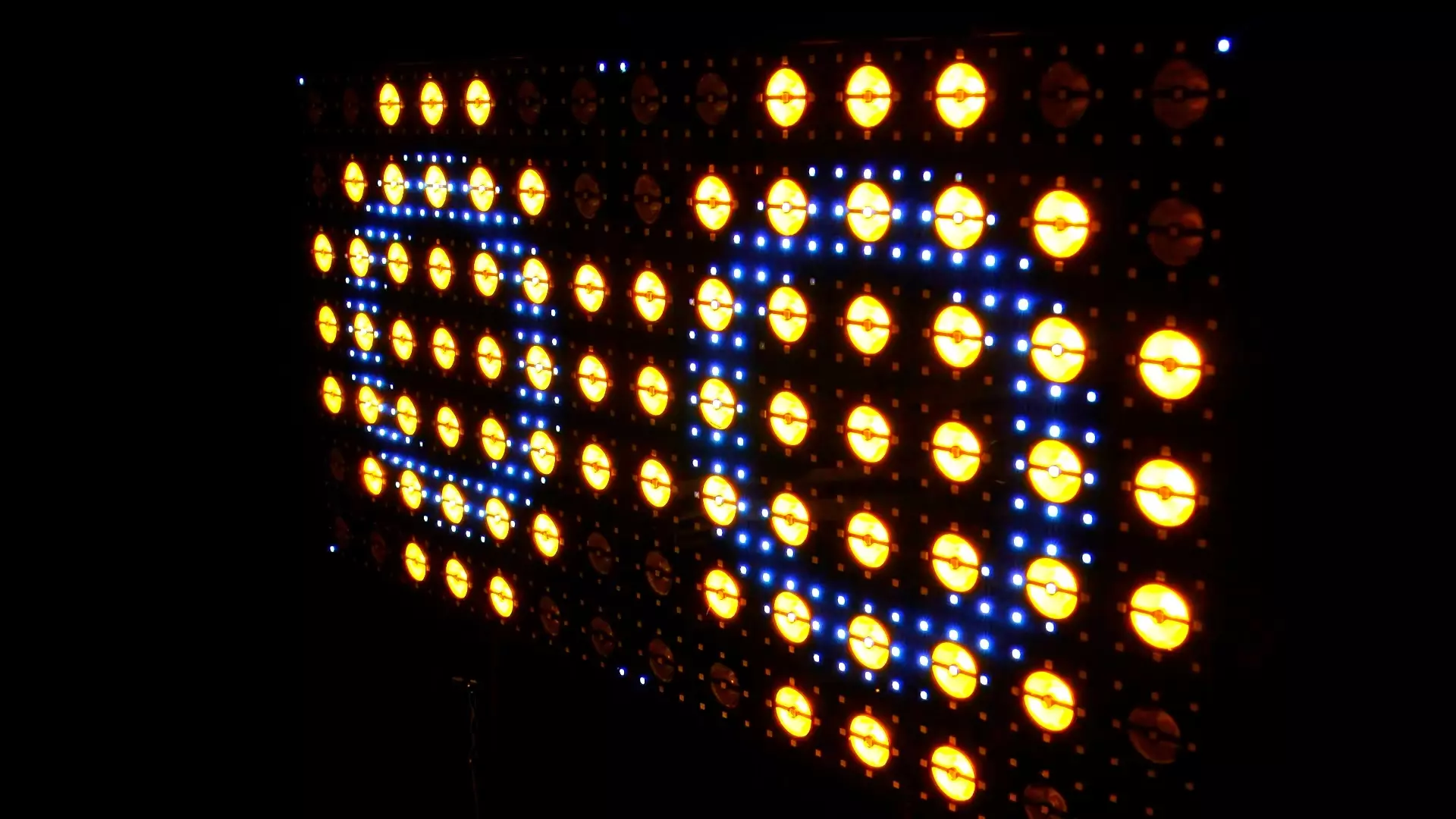

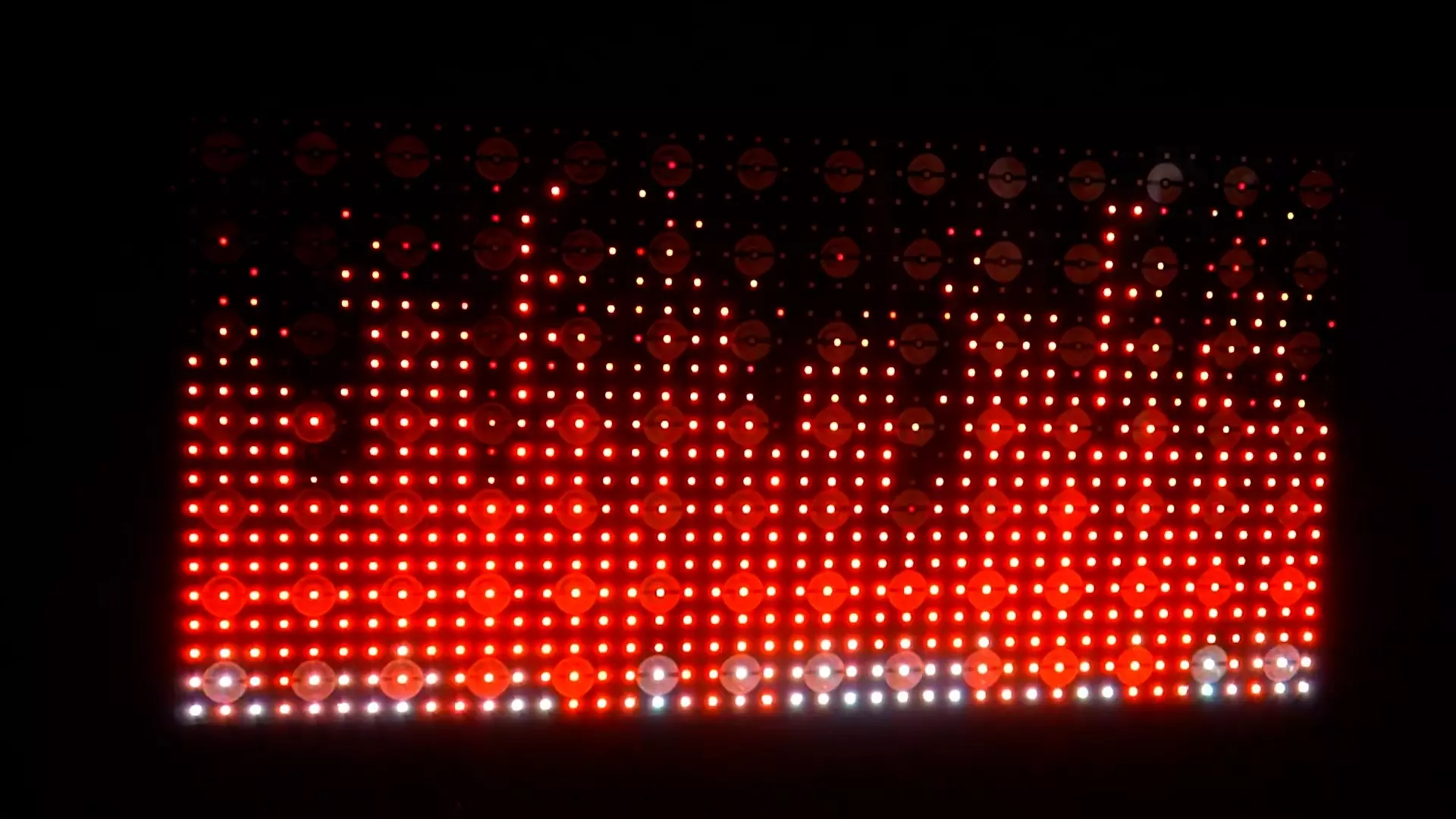

The Matrix BEAM is controlled and operated via a convenient LCD display. The lamp supports various channel configurations: 5, 15, 209, 1372, and 1376, allowing for flexible adaptation to the projector's needs. It supports DMX512 control, RDM, and Art-Net functions. It also offers smooth electronic dimming from 0 to 100%, fast flicker, and advanced pixel matrix control – both full and individual, with the ability to create effects based on pixel overlap and transformation.
Matrix BEAM is the ideal solution for demanding lighting designers, offering versatility, reliability, and creative freedom in creating modern light shows.

Specification MATRIX BEAM

Power Source (AC)
Supply voltage	100-240V
Power consumption	300W
Power frequency	50-60Hz

Light source
Type	LED (RGBW)
Quantity	49
Power (W)	3
Type	LED (RGB)
Quantity	441
Power (W)	0.2

Color Mixing System
RGB	16 bit
RGBW	16 bit

Dimming
Dimming	8 bit

Beam angle
Beam angle	Fixed

Inverted pixels
Pixel inversion	0°
Pixel inversion	90°
Pixel inversion	180°
Pixel inversion	270°

Strobe - frequency
Frequency	1-20Hz
Pulsating	Yes

DMX control
Number of modes	5
Number of channels	5-1376

Modes of operation
DMX512	Yes
RDM	Yes
Art-Net	Yes
Sound control	Yes
Auto control	Yes

User Interface
Physical buttons	Yes
LCD display	Yes

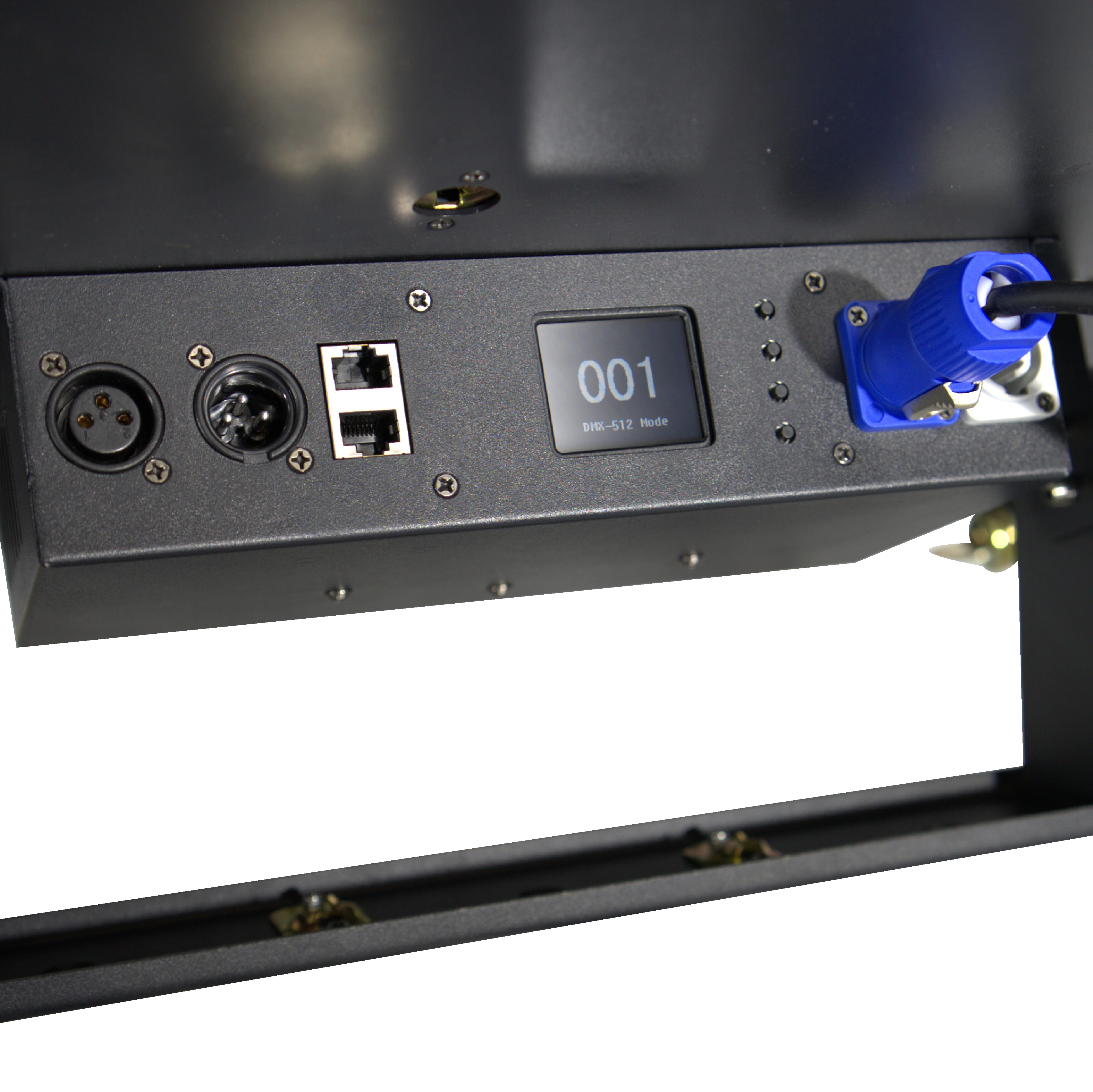

Connectors
AC IN	PowerCON
AC OUT	PowerCON
DMX IN	3-pin XLR
DMX OUT	3-pin XLR
ETHERNET IN	RJ-45
ETHERNET OUT	RJ-45

Physical parameters
IP protection level	IP20
Housing type	Aluminium

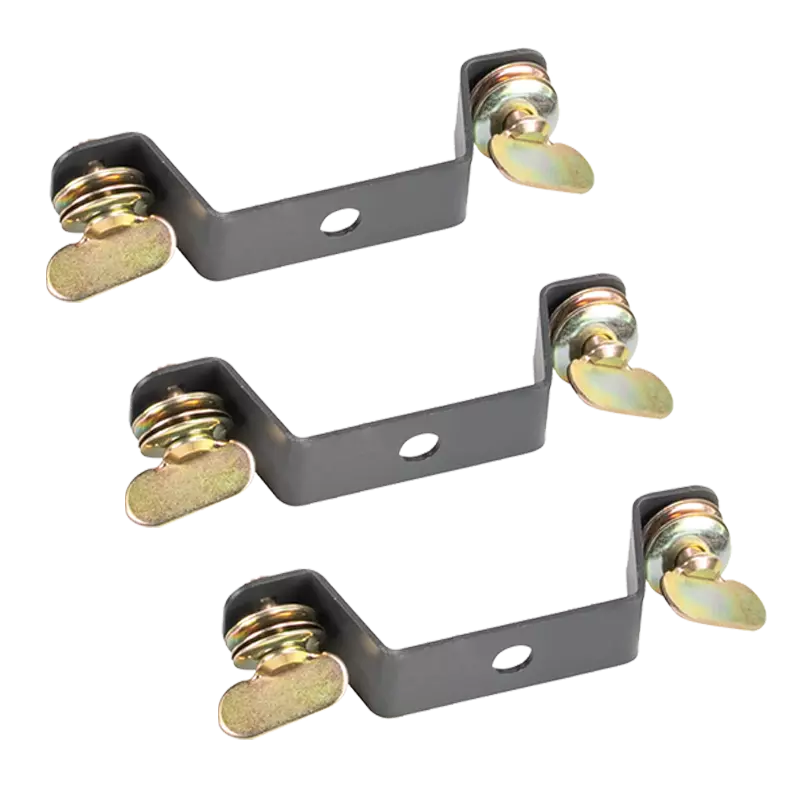

Fixing	Integrated
Housing Color	Black
Cooling	Active
Length [cm]	50
Width [cm]	50
Height [cm]	8
Weight [kg]	6.6

Contents of the package
Manual	-

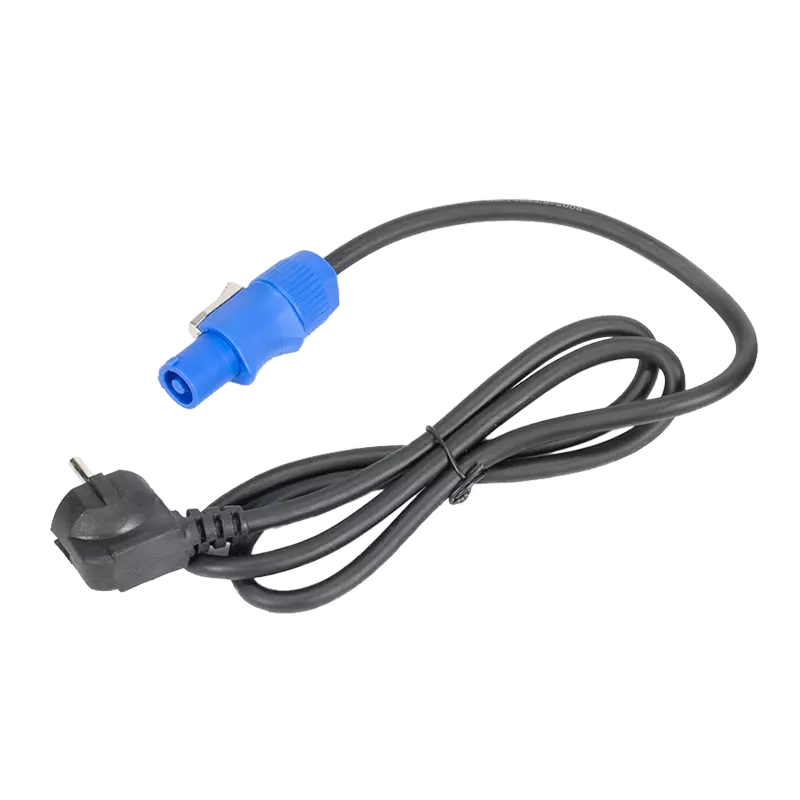

Wiring	PowerCON
Device	MATRIX BEAM

Package dimensions and weight
Package length [cm]	74
Package width [cm]	56
Package height [cm]	69
Weight with packaging [kg]	68.6
Type of packaging	F0902013 CASE FOR 6x MATRIX BEAM

Driver fixtures/libraries available

Documents available MATRIX BEAM

DMX Charts EN

Dedicated accessories for product MATRIX BEAM

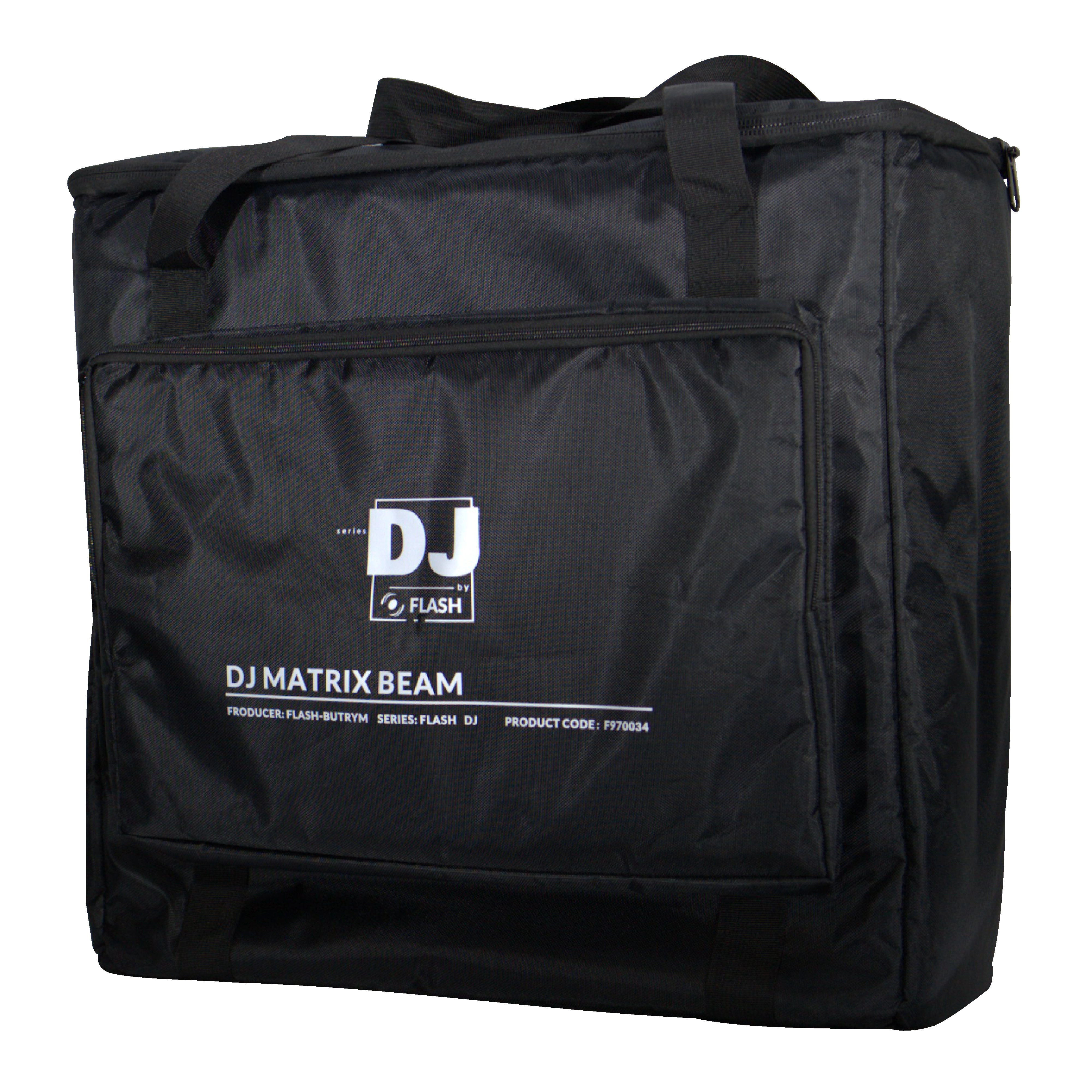

Bag for 2x MATRIX BEAM
Series: ADDon

Pojemna oraz wielofunkcyjna torba na 2 urządzenia oświetleniowe typu MATRIX BEAM.

See more
CASE FOR 6x MATRIX BEAM
Series: ADDon

Masywna skrzynia transportowa na 6 urządzeń MATRIX BEAM

See more
