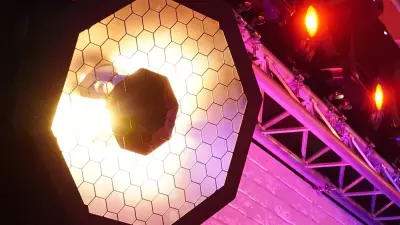

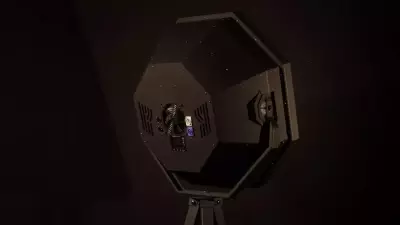

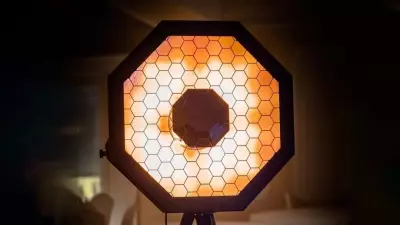

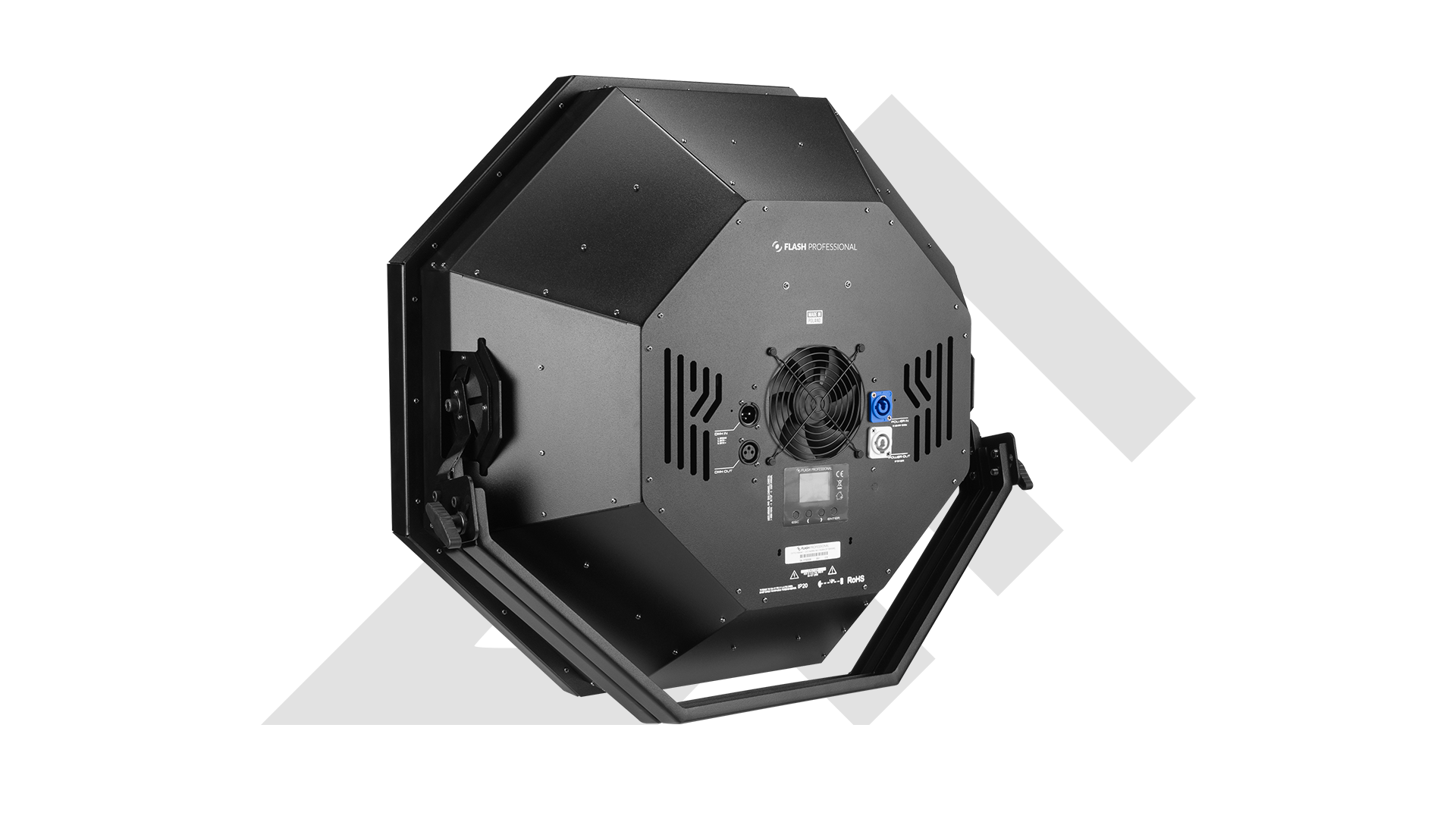

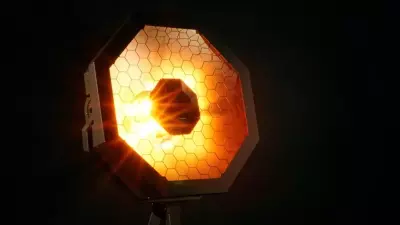

OCTO HELIOS is a unique combination of unique, retro design and innovative Polish technology. Its impressive dimensions attract attention, and the powerful 4x30W light source impresses with high parameters that will satisfy the expectations of even the most demanding producers. Four RGBW diodes allow you to create a full range of colors, which makes OCTO HELIOS an excellent light point in stage design. Dedicated proprietary firmware provides intuitive operation and numerous functions that allow precise adjustment of lighting effects to each event.
Power Source (AC) |
|
|---|---|
| Supply voltage | 100-245V |
| Power consumption | 120W |
| Power frequency | 50-60Hz |
Light source |
|
|---|---|
| Type | LED (RGBW) |
| Quantity | 4 |
| Power (W) | 30W |
| Number of control sections | 4 |
| Color Rendering Index (CRI) | 87 |
Color Mixing System |
|
|---|---|
| RGBW | 8 bit - 16 bit |
Dimming |
|
|---|---|
| Dimming | 8 bit - 16 bit |
Beam angle |
|
|---|---|
| Beam angle | Fixed |
Strobe - frequency |
|
|---|---|
| Frequency | 1Hz-20Hz |
DMX control |
|
|---|---|
| Number of modes | 21 |
| Number of channels | 3-32 |
Modes of operation |
|
|---|---|
| DMX512 | Yes |
| Sound control | Yes |
| Auto control | Yes |
| Master-slave | Yes |
User Interface |
|
|---|---|
| Physical buttons | Yes |
| LCD display | Yes |
Connectors |
|
|---|---|
| AC IN | PowerCON |
| AC OUT | PowerCON |
| DMX IN | 3-pin XLR |
| DMX OUT | 3-pin XLR |
Physical parameters |
|
|---|---|
| IP protection level | IP20 |
| Housing type | Steel |
| Fixing | Integrated |
| Housing color | Black |
| Cooling | Active |
| Length [cm] | 67 |
| Width [cm] | 66 |
| Height [cm] | 29 |
| Weight [kg] | 16,6 |
Contents of the package |
|
|---|---|
| Manual | Yes |
| Wiring | PowerCON |
| Device | OCTO HELIOS1 430 |
Package dimensions and weight |
|
|---|---|
| Package length [cm] | 72 |
| Package width [cm] | 71 |
| Package height [cm] | 37 |
| Weight with packaging [kg] | 20.6 |
| Type of packaging | Cardboard box |
