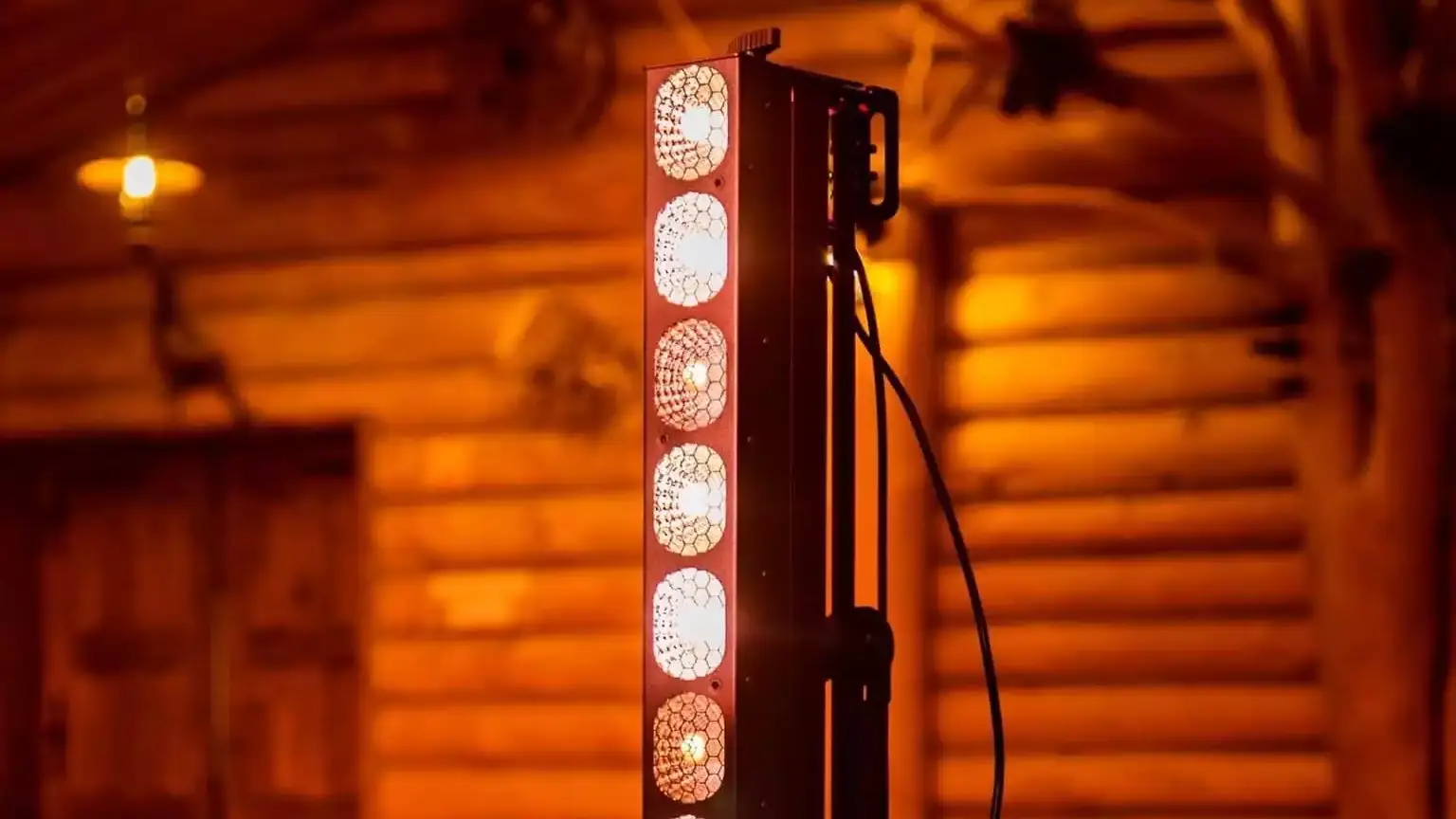

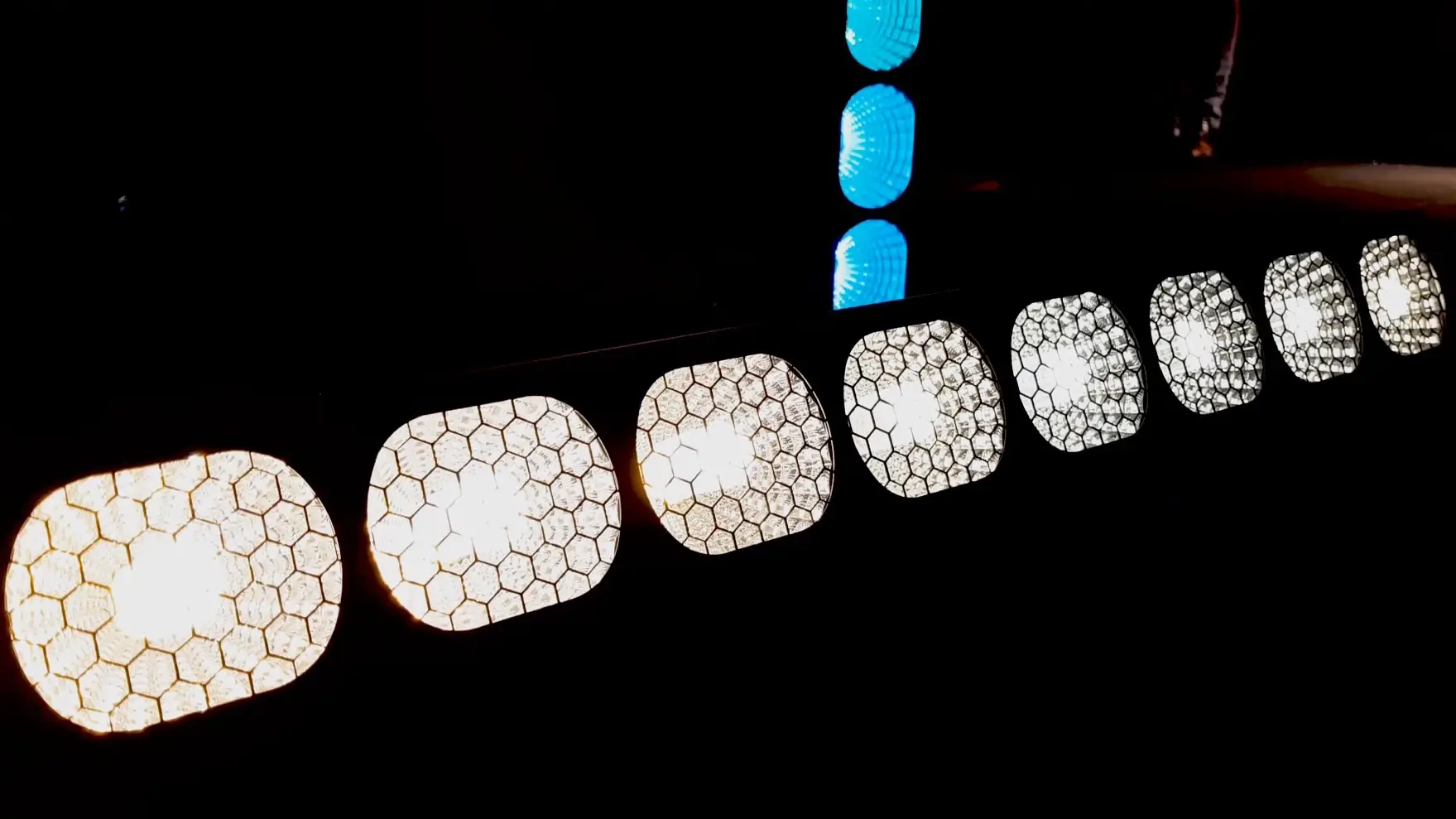

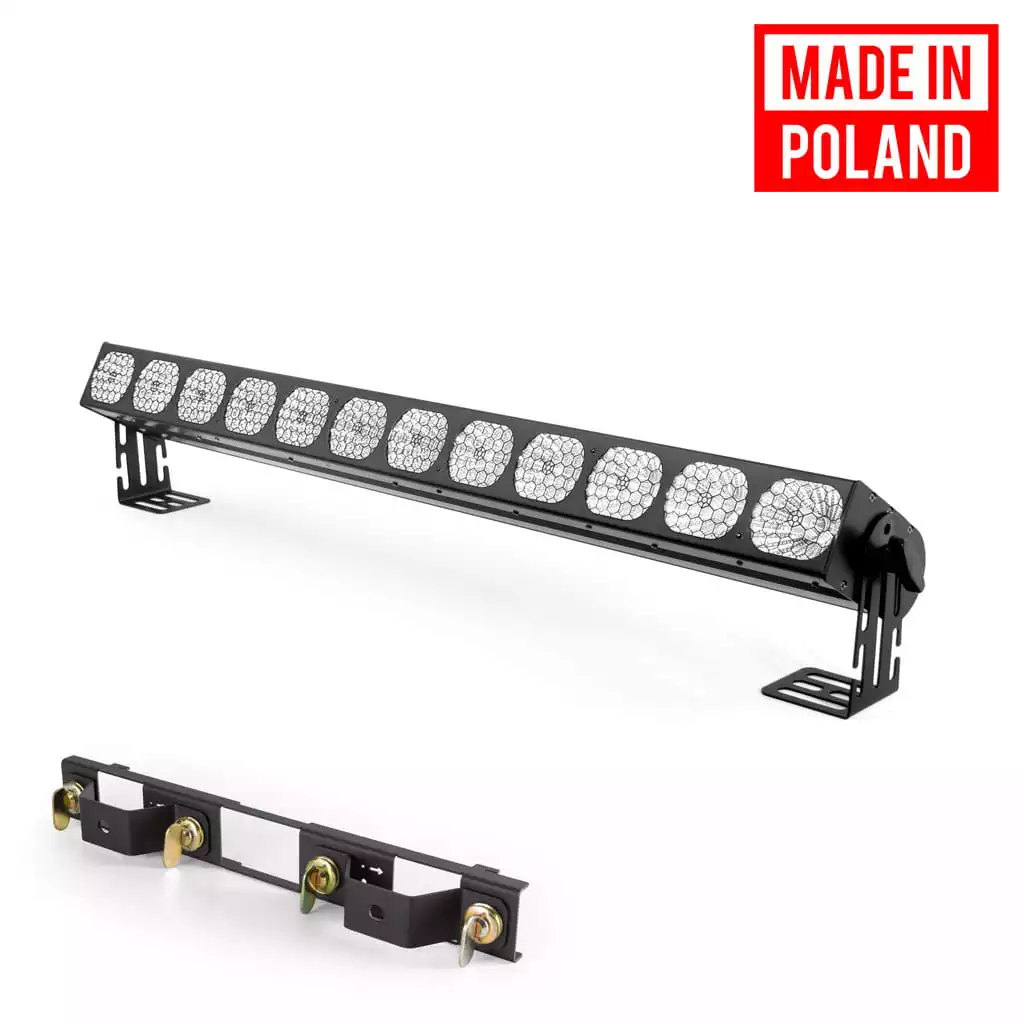

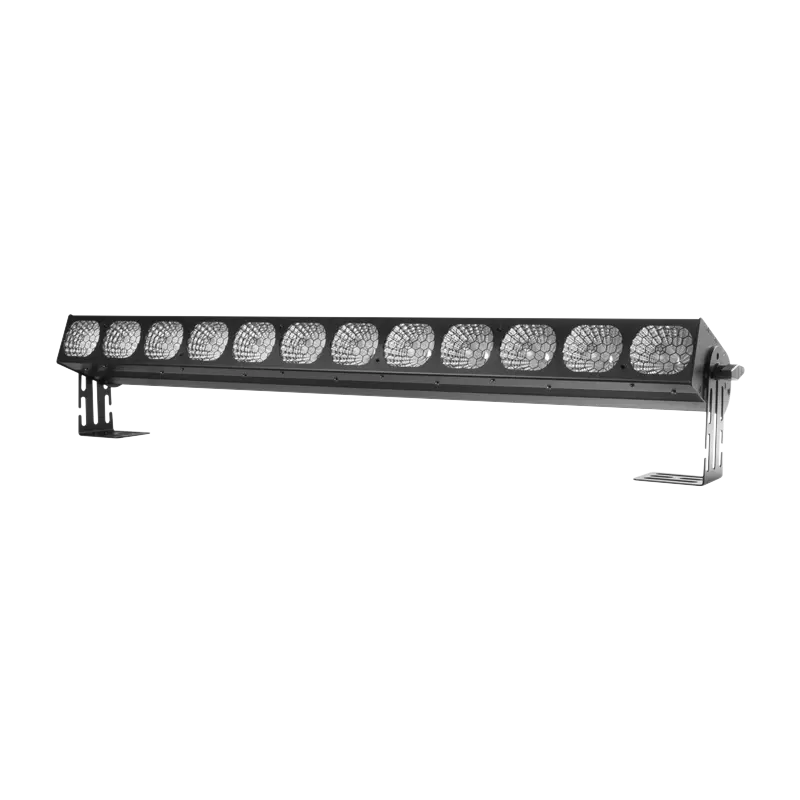

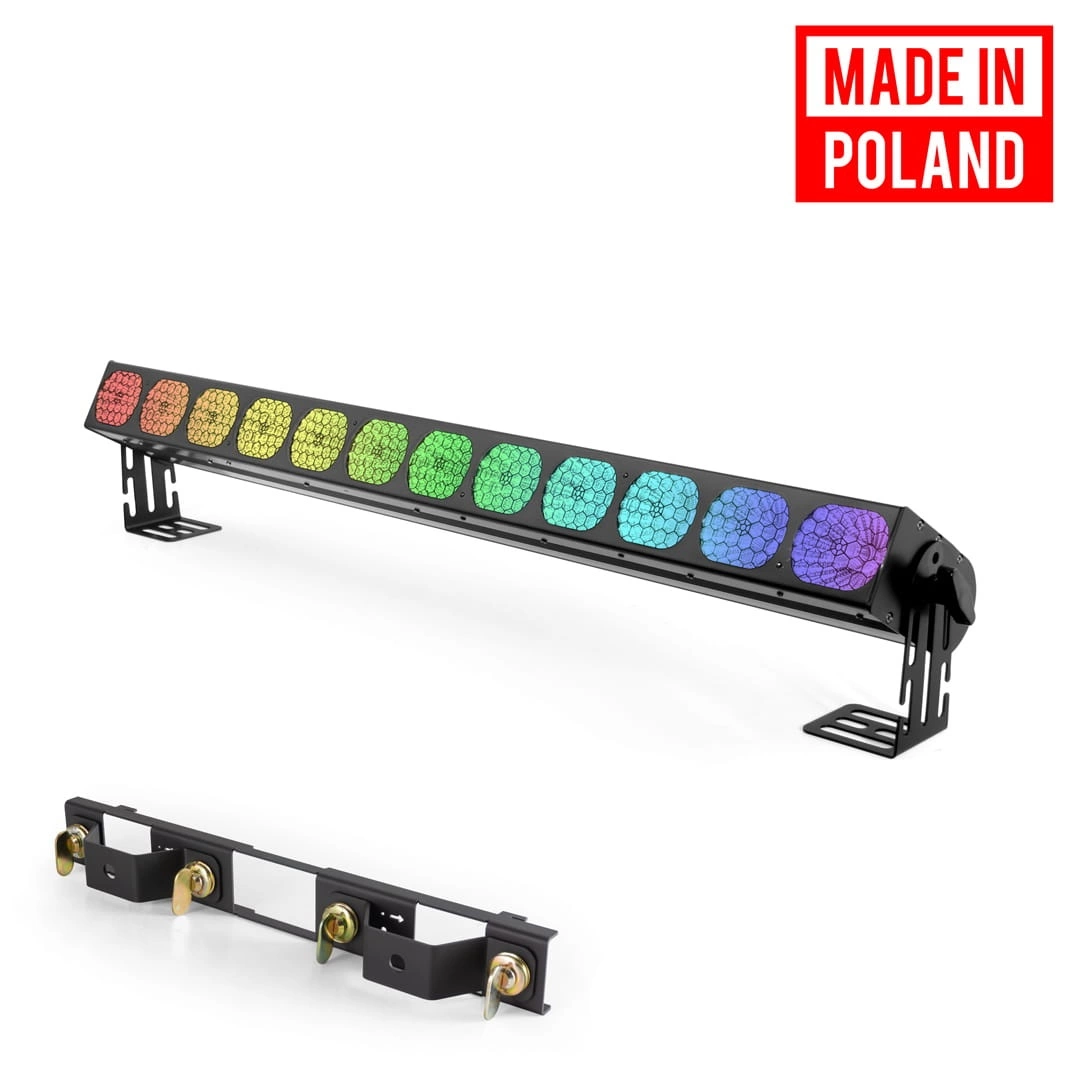

LedBar L1230V is equipped with 12 RGBW diodes with a power of 30W each. It is a combination of unique design and Polish technology.16-bit brightness control resolution via two DMX channels allows you to achieve extraordinary power! and by turning on the "Dim delay" function available in the Mk2 software, the user receives a perfect simulation of incandescent light - just like when using a classic halogen filament. This innovative solution makes the device perfect for professional theater, stage and television installations. The ability to control the brightness in the full range allows you to achieve perfect effects of smooth changes and allows you to precisely set the desired color from the primary color palette.
Power Source (AC) |
|
|---|---|
| Supply voltage | 100-245V |
| Power consumption | 360W |
| Power frequency | 50-60Hz |

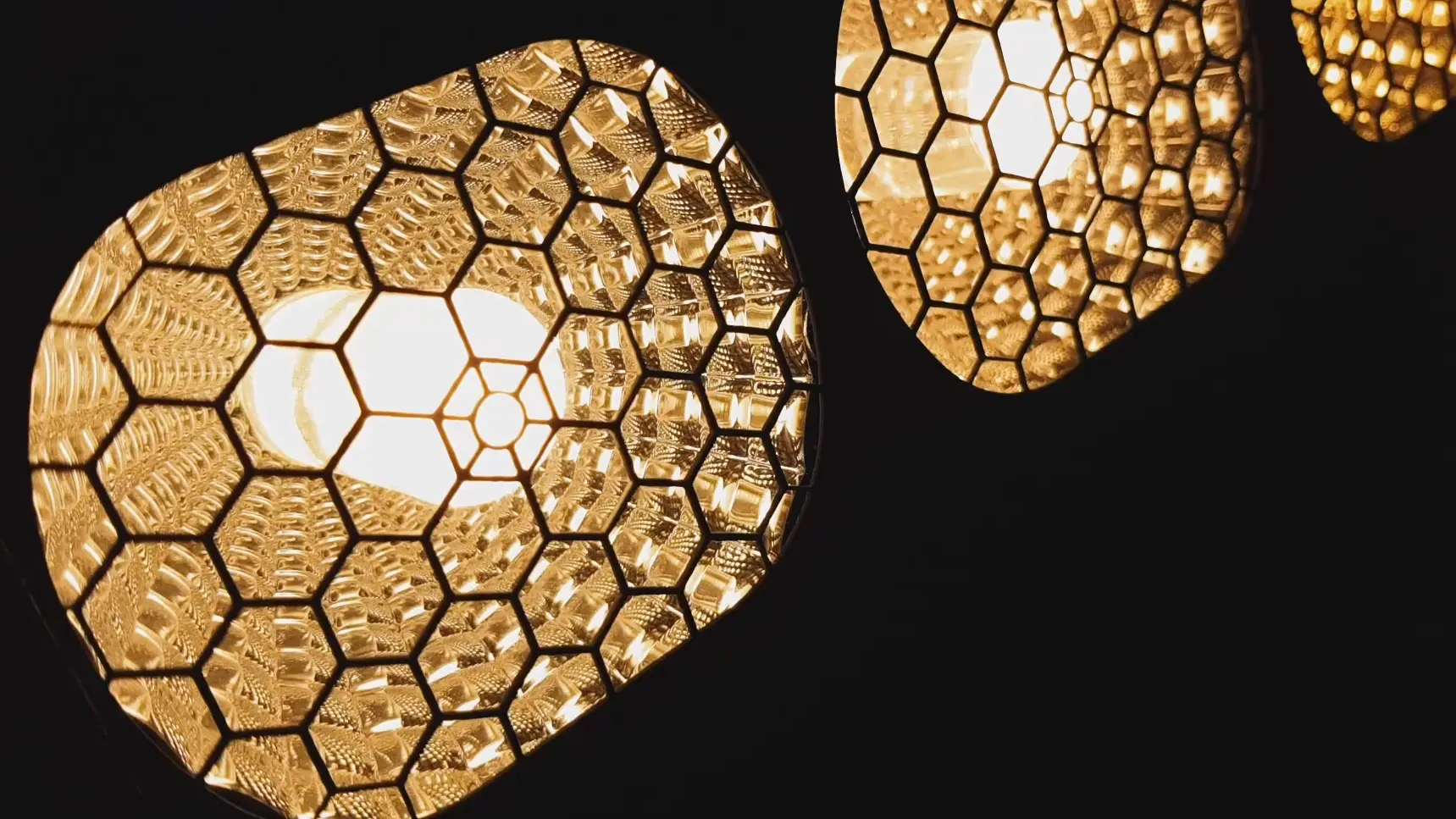

Light source |
|
|---|---|
| Type | LED (RGBW) |
| Quantity | 12 |
| Power (W) | 30W |
| Number of control sections | 12 |

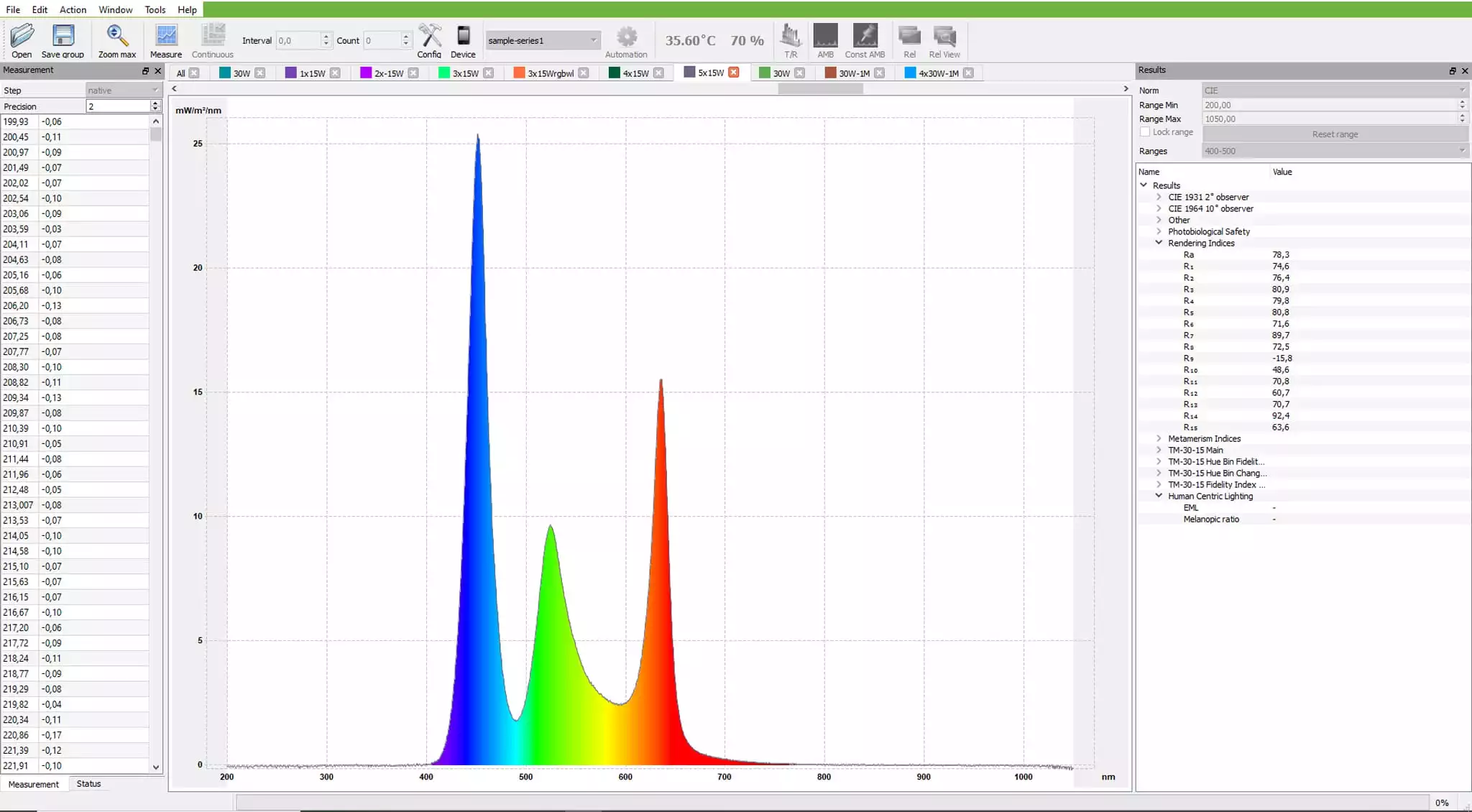

| Color Rendering Index (CRI) | 85,3 |
Color Mixing System |
|
|---|---|
| RGBW | 8 bit - 16 bit |
Dimming |
|
|---|---|
| Dimming | 8 bit - 16 bit |
Beam angle |
|
|---|---|
| Beam angle | Stały (50⁰) |
Strobe - frequency |
|
|---|---|
| Frequency | 1Hz-20Hz |
DMX control |
|
|---|---|
| Number of modes | 30 |
| Number of channels | 3-96 |
Modes of operation |
|
|---|---|
| DMX512 | Yes |
| Sound control | Yes |
| Auto control | Yes |
| Master-slave | Yes |

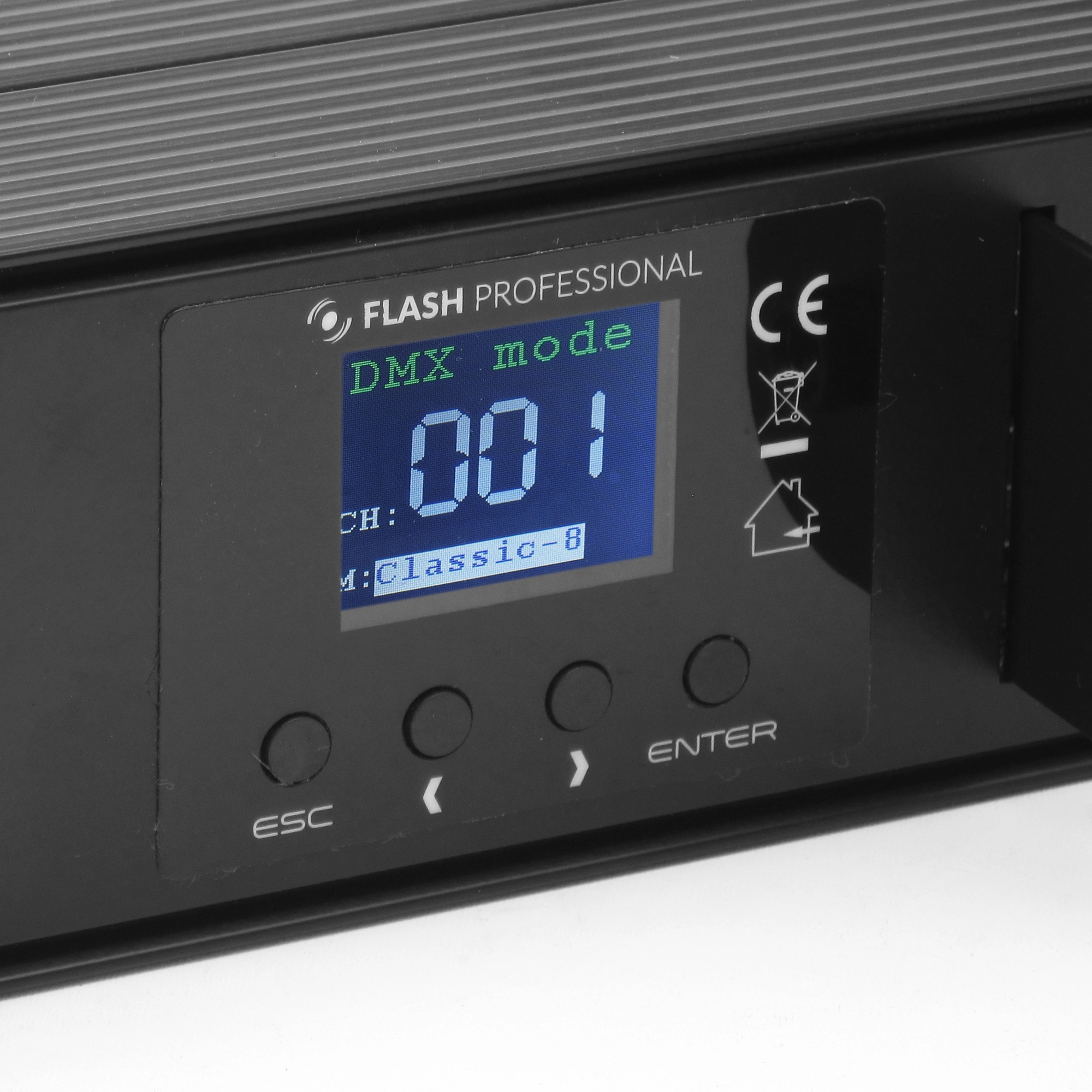

User Interface |
|
|---|---|
| Physical buttons | Yes |
| LCD display | Yes |

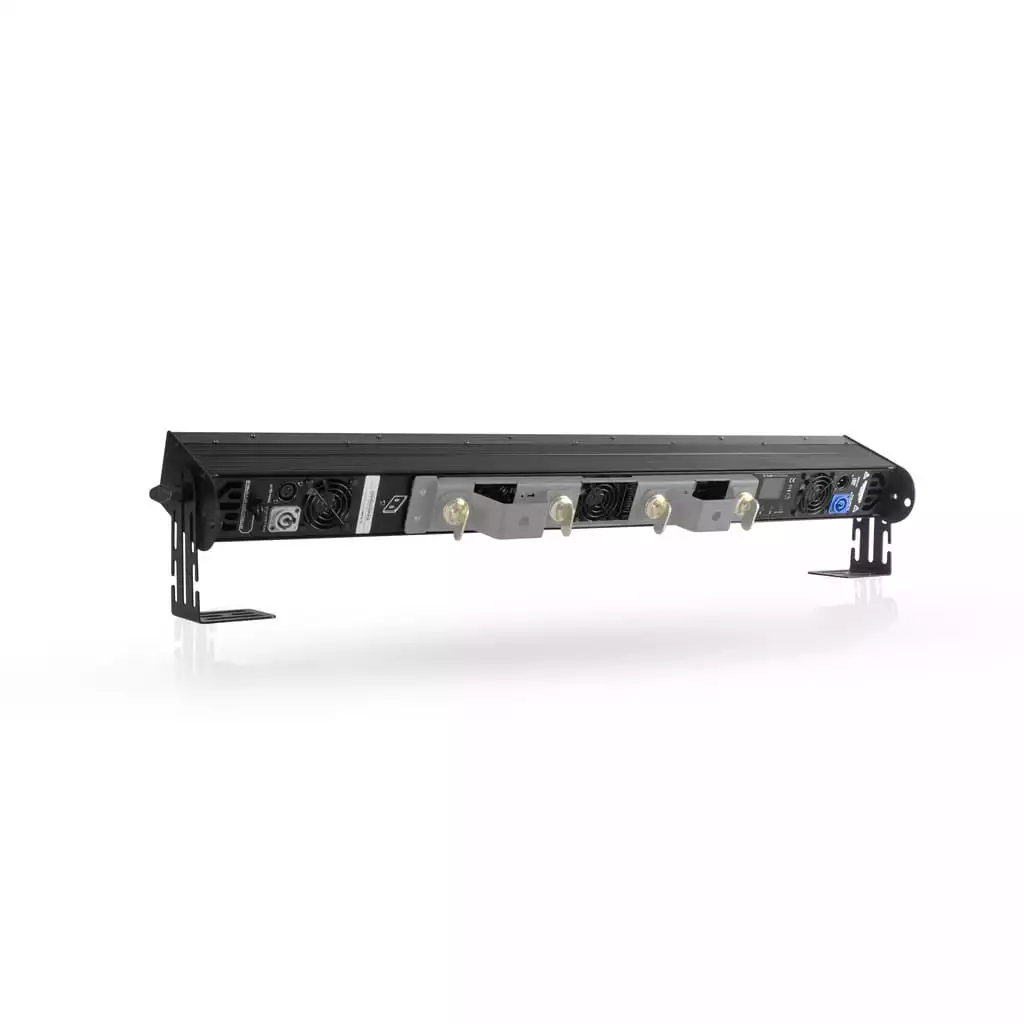

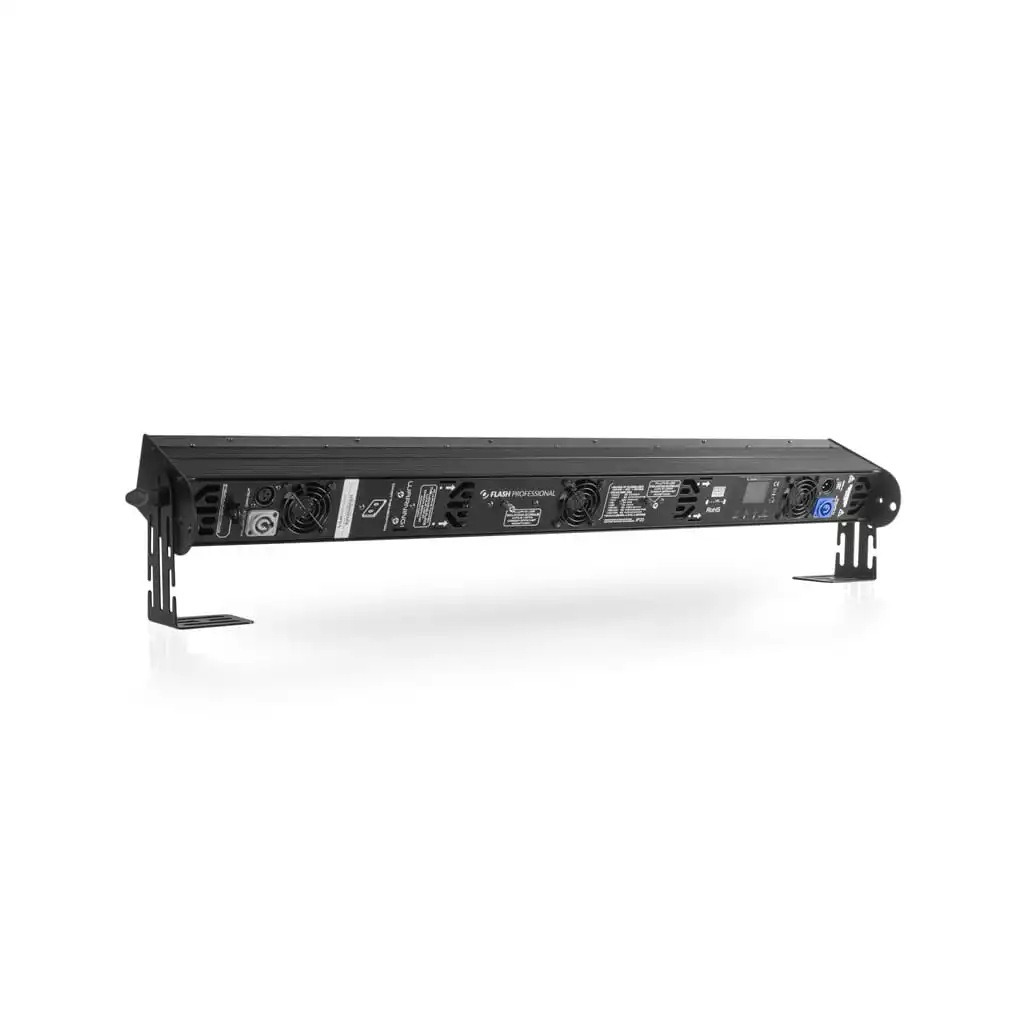

Connectors |
|
|---|---|
| AC IN | PowerCON |
| AC OUT | PowerCON |
| DMX IN | 3-pin XLR |
| DMX OUT | 3-pin XLR |
Physical parameters |
|
|---|---|
| IP protection level | IP20 |
| Housing type | Aluminium |
| Housing type | Steel |

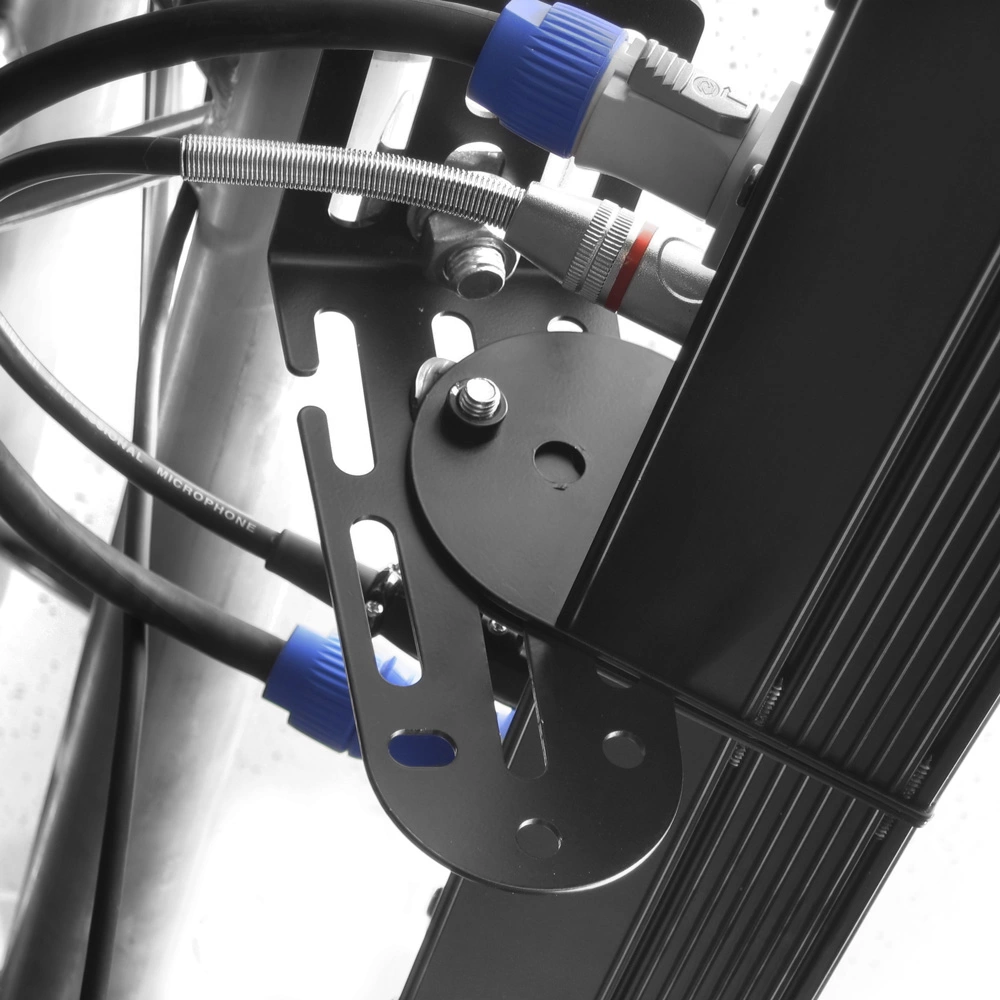

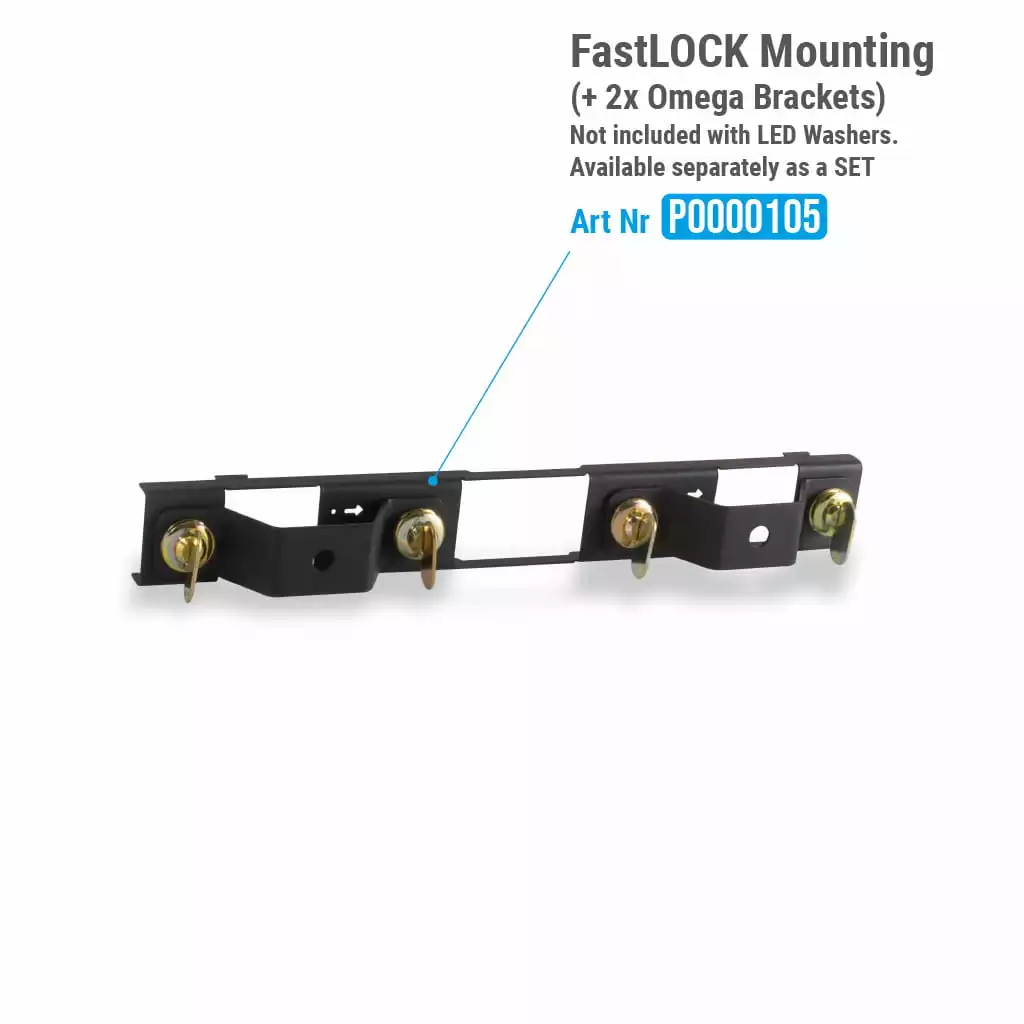

| Fixing | Integrated |
| Housing Color | Black |
| Cooling | Active |
| Length [cm] | 101 |
| Width [cm] | 17 |
| Height [cm] | 8 |
| Weight [kg] | 6 |
Contents of the package |
|
|---|---|
| Manual | Yes |

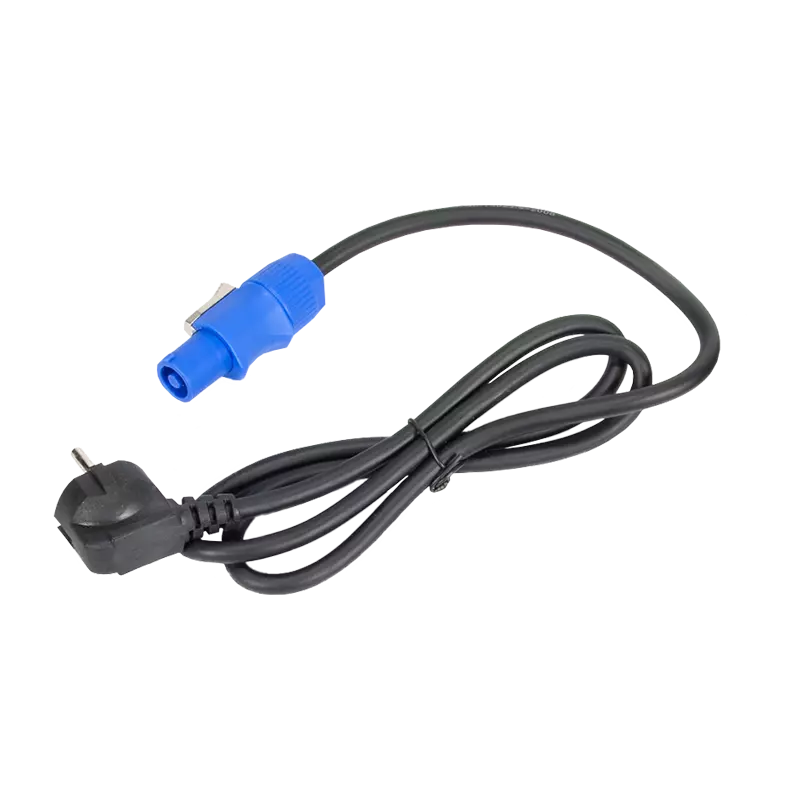

| Wiring | PowerCON |
| Device | LedBar L1230V |
Package dimensions and weight |
|
|---|---|
| Package length [cm] | 111 |
| Package width [cm] | 21 |
| Package height [cm] | 14 |
| Weight with packaging [kg] | 7 |
| Type of packaging | Cardboard box |
