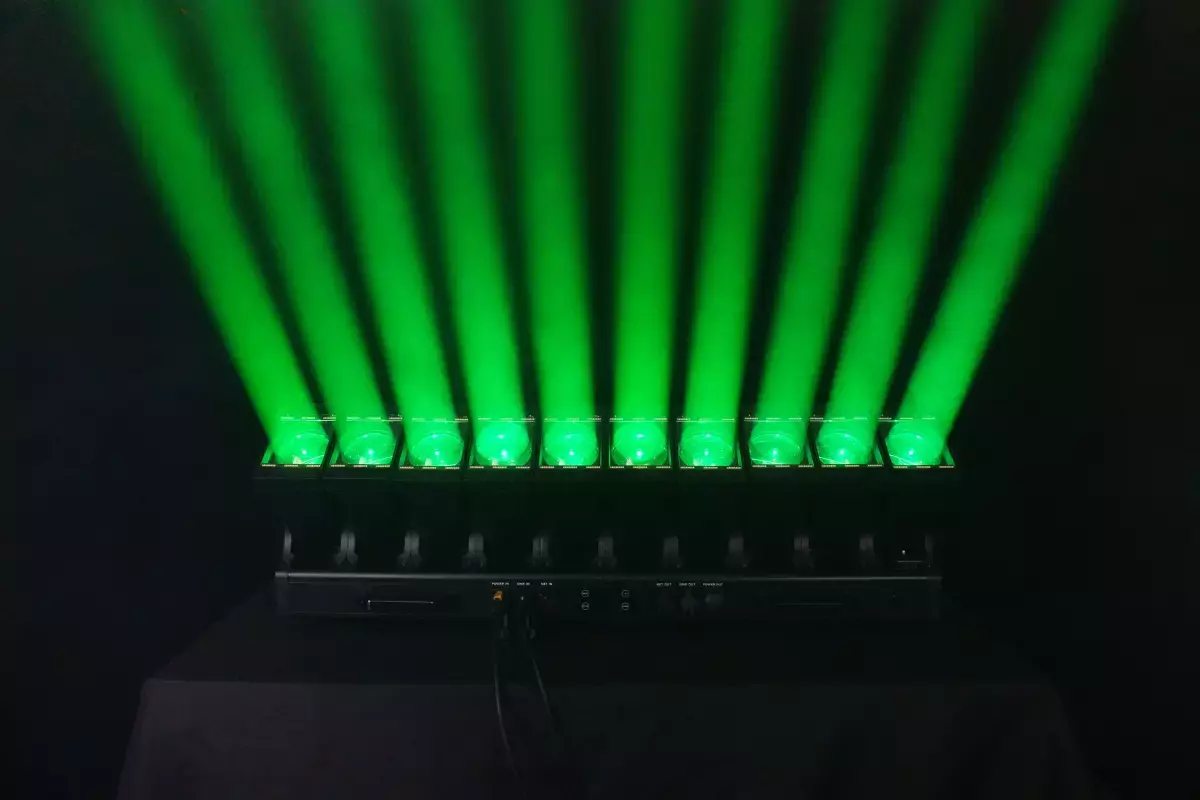

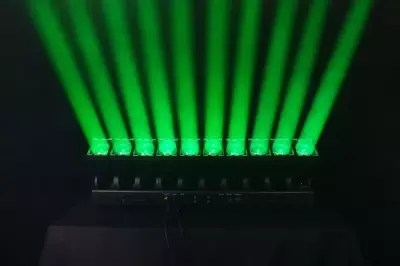

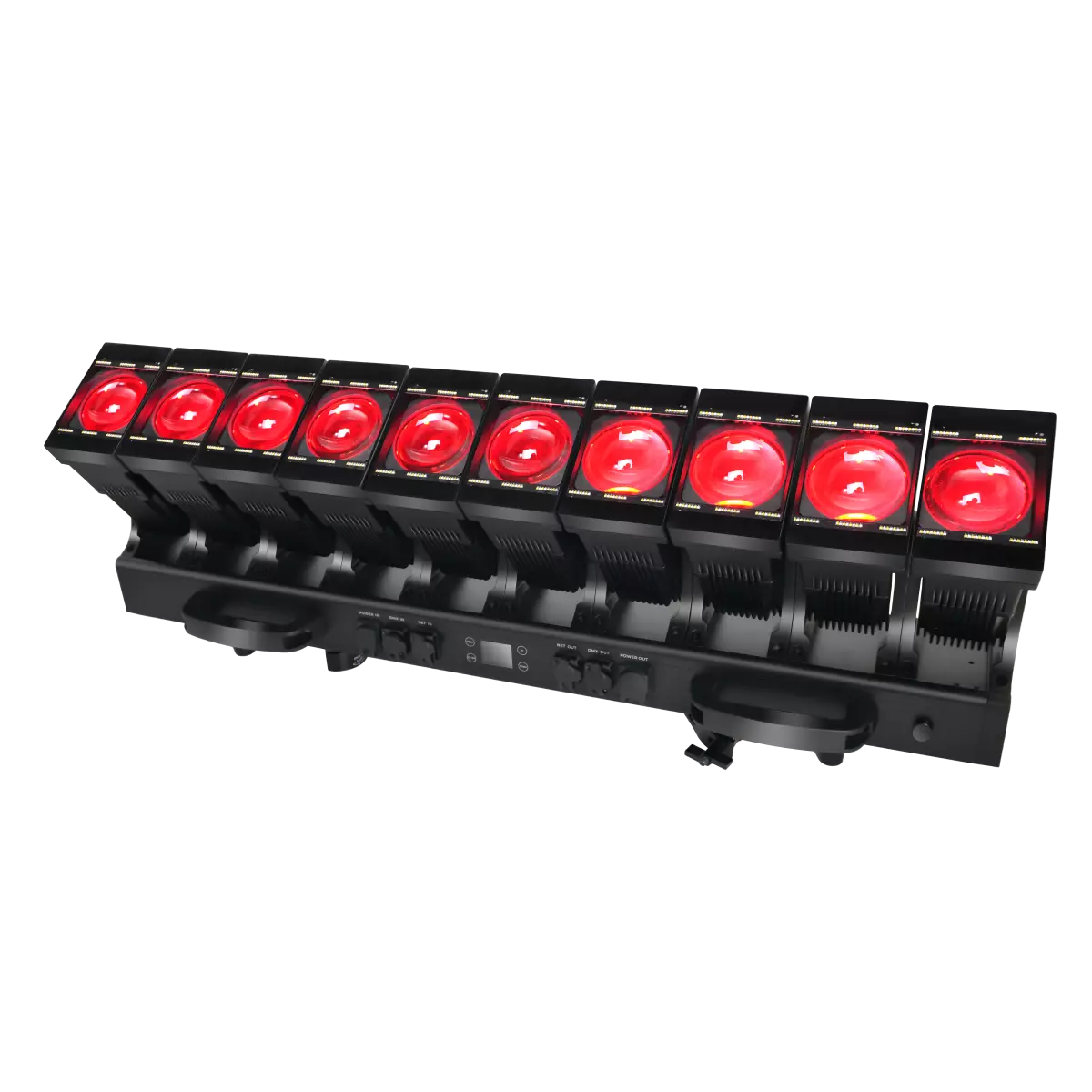

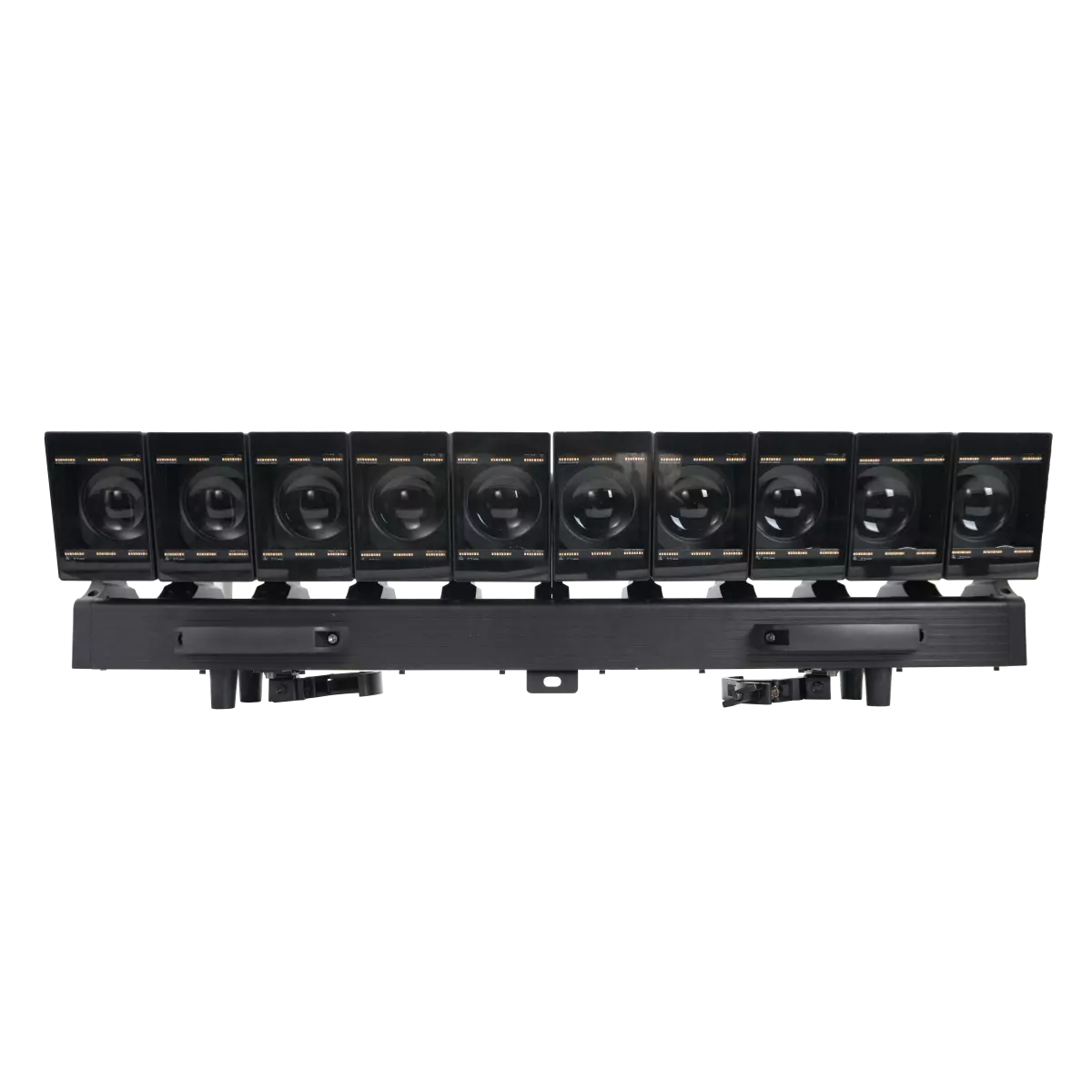

WaveFX 1500 is an innovative LED bar with ten independently moving RGBW heads, combining wash and FX functions in one compact fixture. Independent head control, precise zoom, and dynamic strobe effects provide wide creative possibilities for lighting design and animation. The fixture enables smooth transitions between head movement and pixel effects, allowing the creation of complex sequences, waves, and lighting animations for stage, concert, and event applications. Its robust construction and IP65 rating ensure reliable performance for both indoor and outdoor use.
Power Source (AC) |
|
|---|---|
| Supply voltage | 100-240V |
| Power consumption | 1500W |
| Power frequency | 50-60Hz |
Light source |
|
|---|---|
| Type | LED (RGBW) |
| Quantity | 10 |
| Power (W) | 60 |
| Number of control sections | 10 |
| Type | LED (CW-WW) |
| Number of control sections | 60 |
Color Mixing System |
|
|---|---|
| RGBW | 16 bit |
Dimming |
|
|---|---|
| Dimming | 16 bit |
ZOOM |
|
|---|---|
| ZOOM | Motorized (8 bit) |
Beam angle |
|
|---|---|
| Beam angle | Zmienny (4-25 ⁰) |
CTO |
|
|---|---|
| CTC | 1800K - 10000K |
Strobe - frequency |
|
|---|---|
| Frequency | 0-25Hz |
| Pulsating | Yes |
| Random | Yes |
DMX control |
|
|---|---|
| Number of modes | 14 |
| Number of channels | 33-340 |
Movement |
|
|---|---|
| Range TILT | 200 ° |
| Regulation | 16 bit |
Modes of operation |
|
|---|---|
| DMX512 | Yes |
| RDM | Yes |
| Art-Net | Yes |
| sACN | Yes |
| Sound control | Yes |
| Auto control | Yes |
| Master-slave | Yes |
| Built-in program | Yes |
User Interface |
|
|---|---|
| Capacitive (touch) buttons | Yes |
| Wyświetlacz TFT | Yes |
Connectors |
|
|---|---|
| AC IN | TrueCon IP65 |
| AC OUT | TrueCon IP65 |
| DMX IN | 3-pin XLR IP65 |
| DMX Out | 3-pin XLR IP65 |
| ETHERCON | RJ-45 |
| ETHERCON | RJ-45 |
Physical parameters |
|
|---|---|
| IP protection level | IP65 |
| Housing type | Aluminium |
| Fixing | Mounting hole |
| Housing Color | Black |
| Cooling | Active |
| Length [cm] | 100 |
| Width [cm] | 22,3 |
| Height [cm] | 33,2 |
| Weight [kg] | 41,3 |
Contents of the package |
|
|---|---|
| Manual | Yes |
| Wiring | TrueCON |
| Device | WaveFX 1500 |
