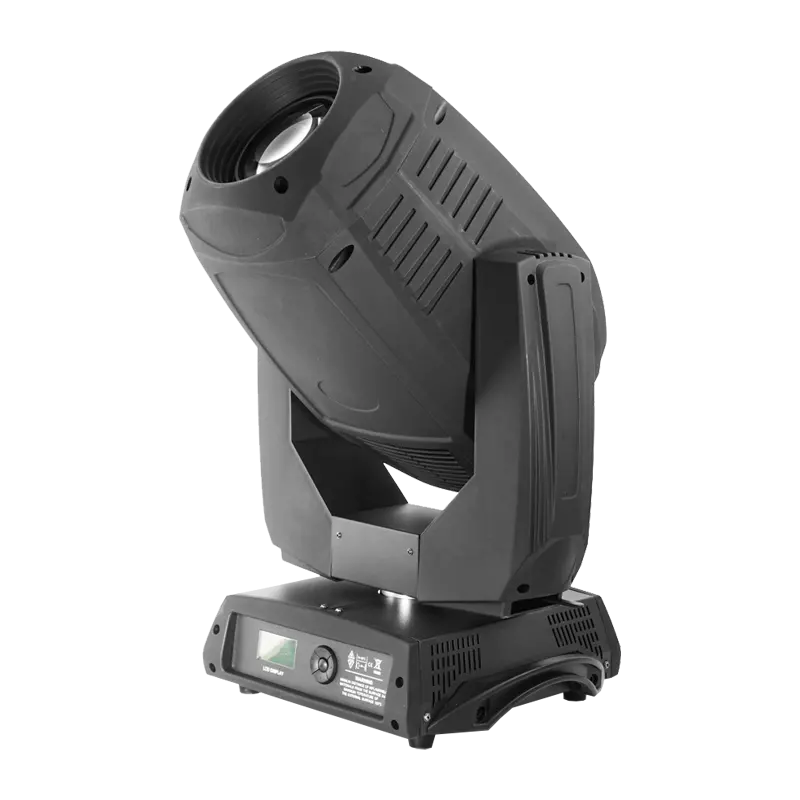

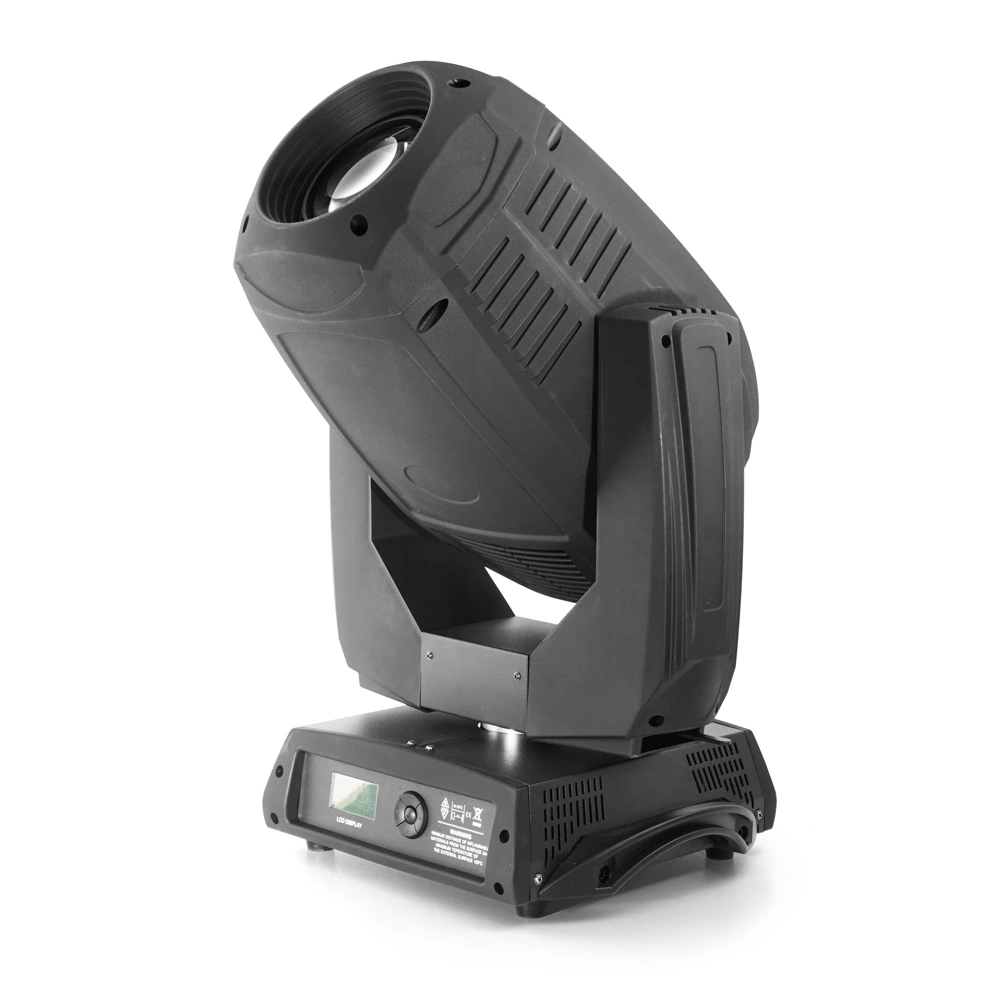

SPOT LED 330 CMY is a moving head of the SPOT type with an LED light source, ideal for various applications. Equipped with 3 color wheels with a smooth CMY transition and 4 colors + white on each wheel, it offers rich possibilities of mixing colors. Two GOBO wheels, prism, focus, iris and frost allow for advanced visual effects. Thanks to LED technology, the device is universal and comfortable to use, working well in both small rooms and large events.
Power Source (AC) |
|
|---|---|
| Supply voltage | 100-240V |
| Power consumption | 400W |
| Power frequency | 50-60Hz |
Light source |
|
|---|---|
| Type | LED |
| Quantity | 1 |
| Power (W) | 330 |
| Color Rendering Index (CRI) | 65 |
Color Mixing System |
|
|---|---|
| CMY | 16 bit |
Color Wheel |
|
|---|---|
| Quantity | 3 |
Dimming |
|
|---|---|
| Dimming | 8 bit |
ZOOM |
|
|---|---|
| ZOOM | Fixed |
IRIS |
|
|---|---|
| IRIS | Motorized (8 bit) |
Beam angle |
|
|---|---|
| Beam angle | Zmienny (5-40 ⁰) |
Focus adjustment - Focus |
|
|---|---|
| Focus adjustment - Focus | Motorized (8 bit) |
Prism |
|
|---|---|
| Prism 1 | 3 (Linear) |
FROST filter |
|
|---|---|
| FROST filter | light (smooth) |
GOBO Wheel |
|
|---|---|
| Static | 1 |
| Rotary | 1 |
| Rotation | 8 bit |
| Removable slot | Yes |
Strobe - frequency |
|
|---|---|
| Frequency | 1-20Hz |
| Pulsating | Yes |
| Random | Yes |
DMX control |
|
|---|---|
| Number of modes | 3 |
| Number of channels | 22-30 |
Movement |
|
|---|---|
| Range PAN | 540 ⁰ |
| Range TILT | 270 ⁰ |
| Regulation | 8 bit |
Modes of operation |
|
|---|---|
| DMX512 | Yes |
| RDM | Yes |
| Art-Net | Yes |
| Sound control | Yes |
| Auto control | Yes |
| Master/Slave | Yes |
User Interface |
|
|---|---|
| Physical buttons | Yes |
| LCD display | Yes |

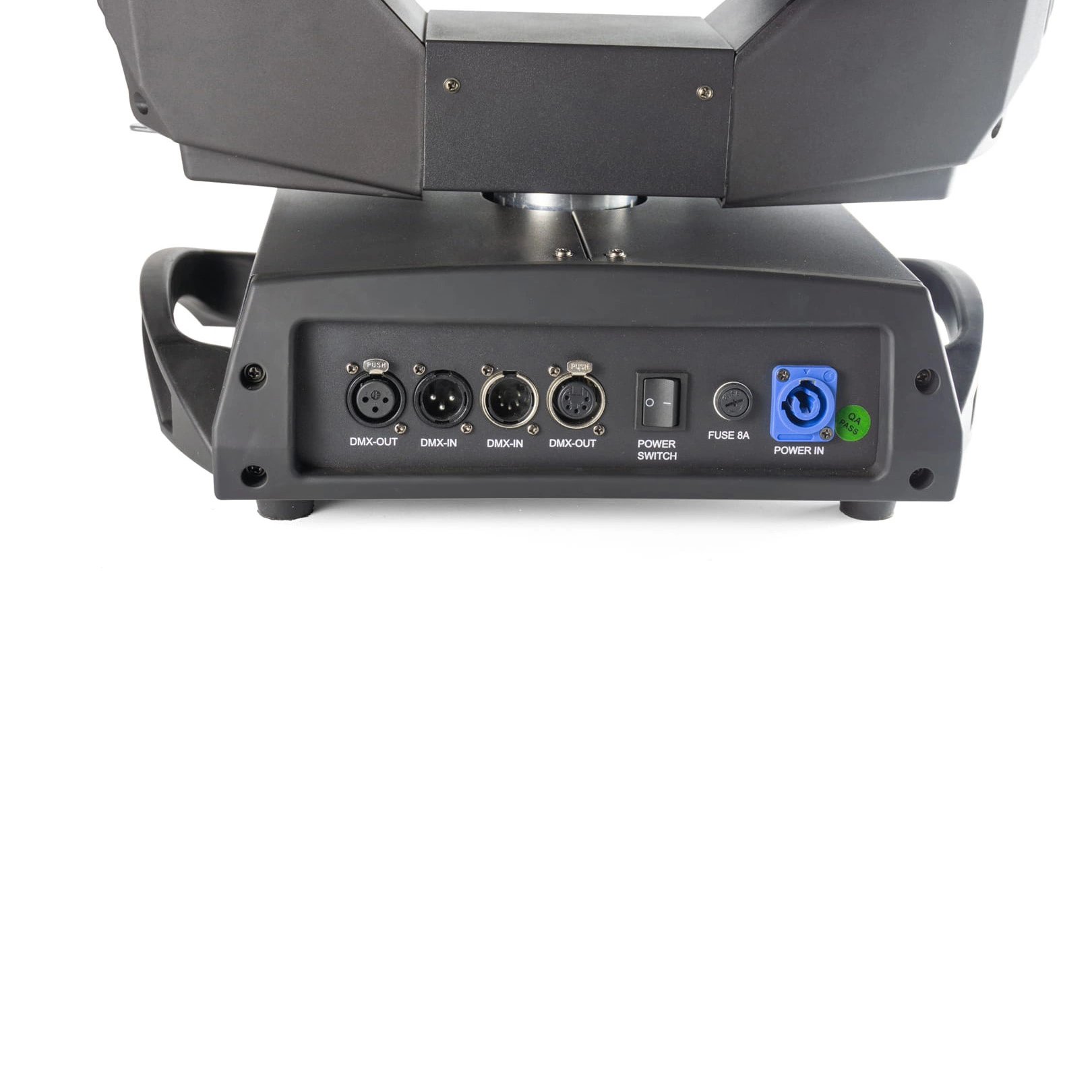

Connectors |
|
|---|---|
| AC IN | PowerCON |
| DMX IN | 3-pin XLR |
| DMX IN | 5-pin XLR |
| DMX OUT | 3-pin XLR |
| DMX OUT | 5-pin XLR |
Physical parameters |
|
|---|---|
| IP protection level | IP20 |
| Housing type | ABS |
| Fixing | Mounting hole |
| Blockade (Pan) | No |
| Blockade (Tilt) | No |
| Housing Color | Black |
| Cooling | Active |
| Length [cm] | 43 |
| Width [cm] | 33 |
| Height [cm] | 68 |
| Weight [kg] | 24,8 |
Contents of the package |
|
|---|---|
| Manual | Yes |

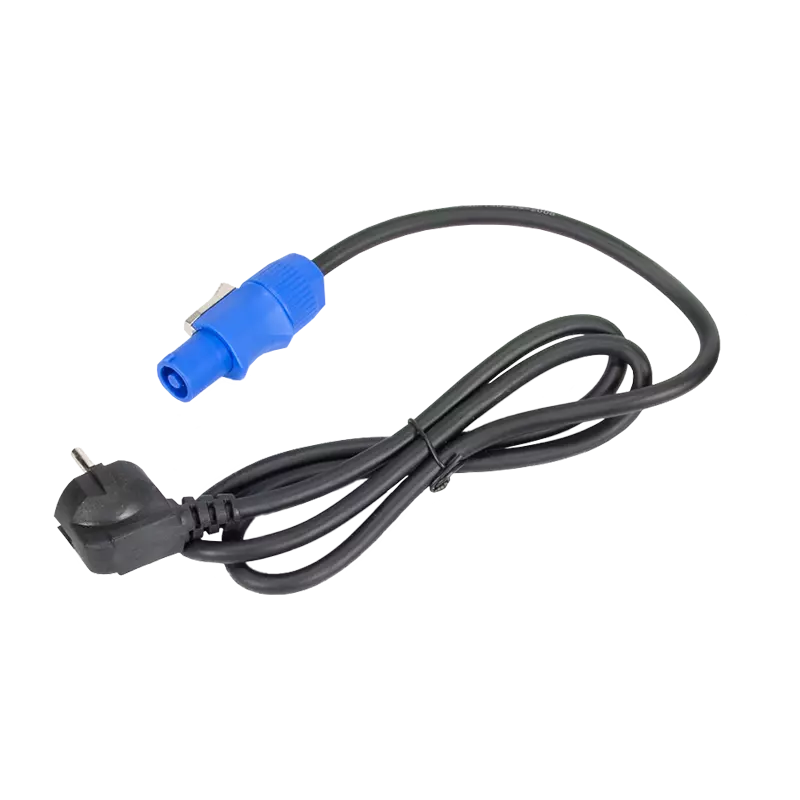

| Wiring | PowerCON |
| Device | SPOT LED 330 CMY |
Package dimensions and weight |
|
|---|---|
| Package length [cm] | 76.5 |
| Package width [cm] | 51 |
| Package height [cm] | 41.5 |
| Weight with packaging [kg] | 30 |
| Type of packaging | Cardboard box |
