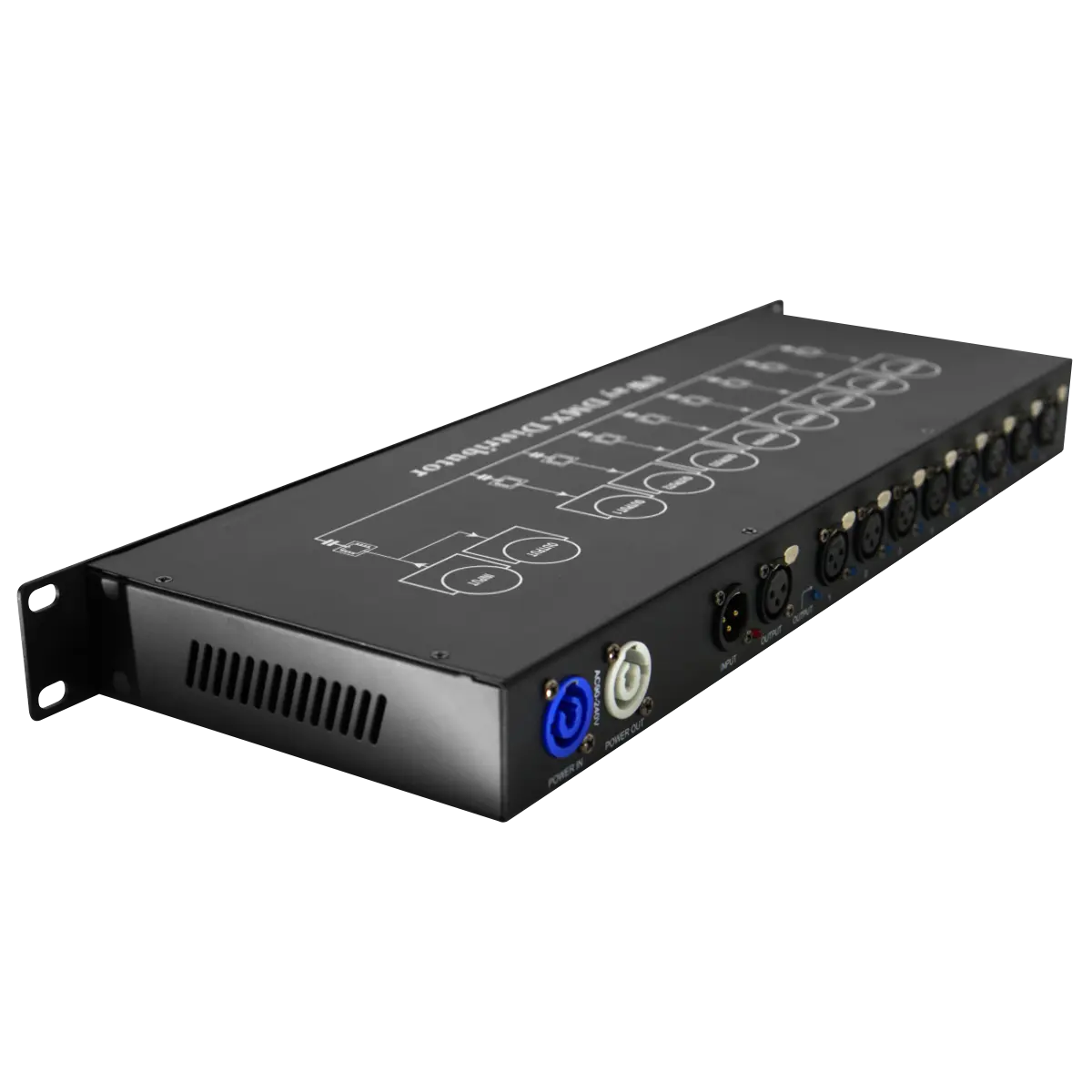

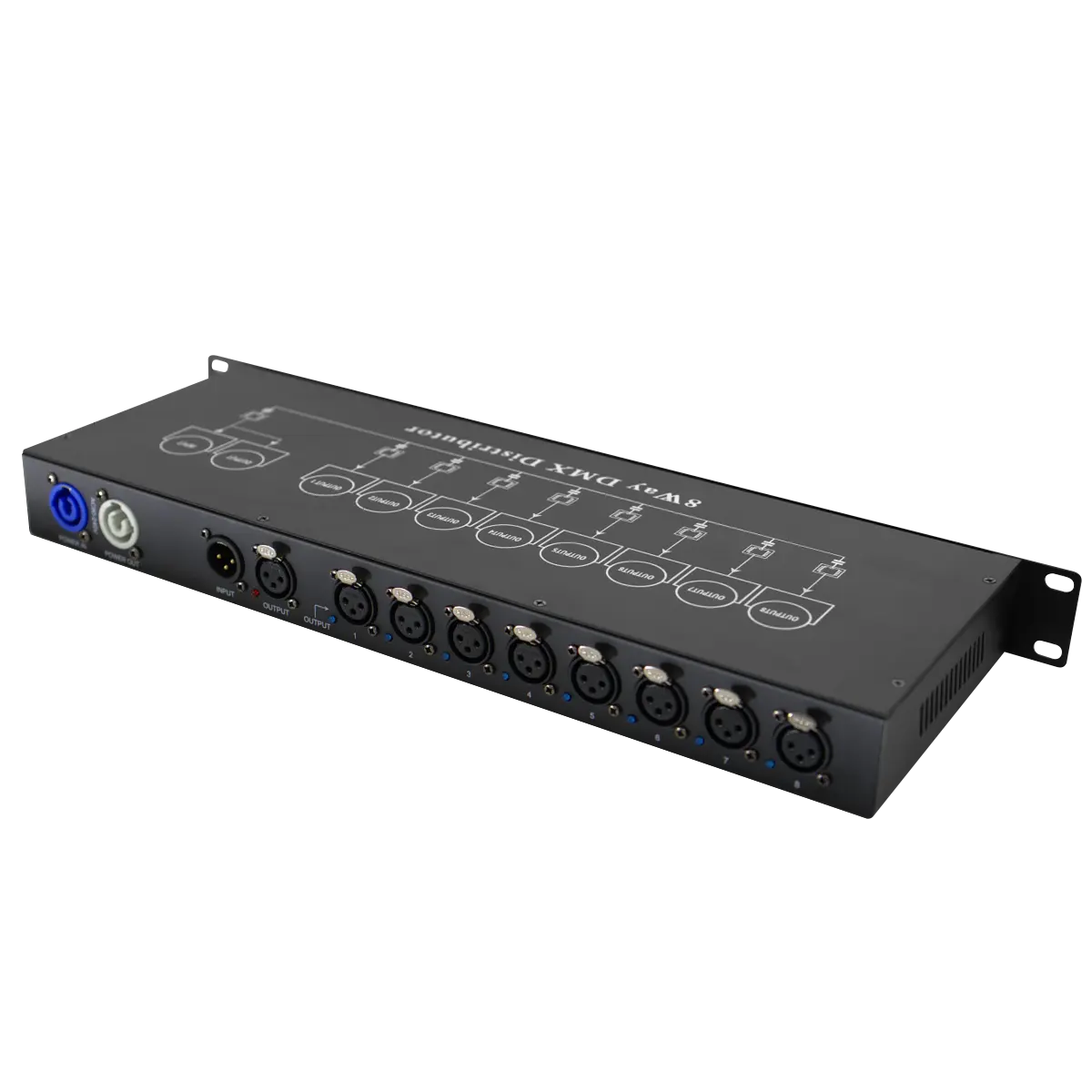

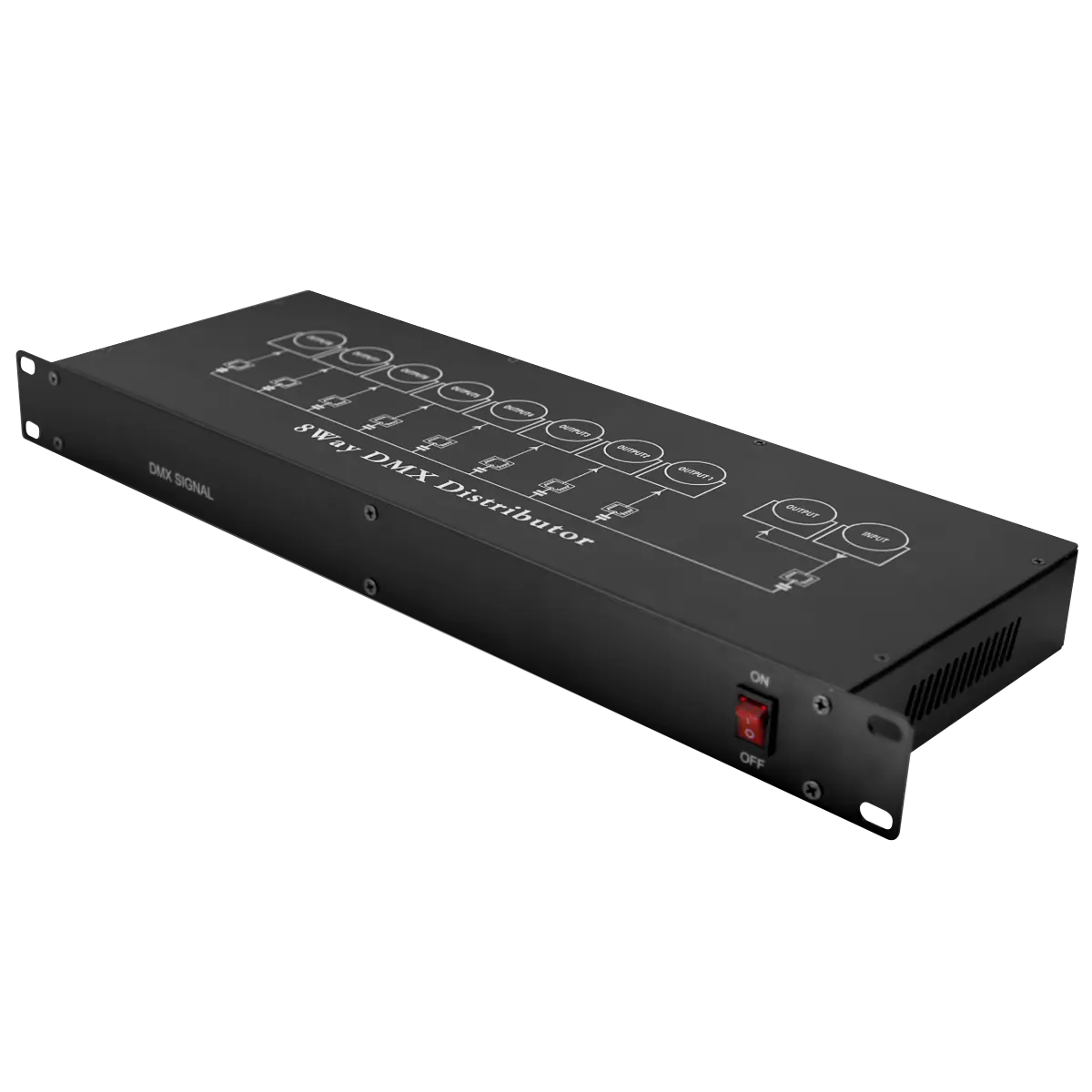

SPLITTER DMX 8 CH is a professional DMX512 signal splitter and amplifier designed for building and expanding lighting installations while ensuring reliable DMX signal distribution. The unit safely distributes the incoming DMX signal to eight independently optically isolated outputs, providing stable transmission even in complex lighting systems.The compact 19" rackmount 1U housing features parallel DMX IN/OUT connectors, eight optically isolated DMX outputs, and lockable PowerCON IN/OUT connectors for convenient power linking between multiple devices. Each output is equipped with an individual LED indicator showing DMX signal presence, making diagnostics and system monitoring quick and easy. The illuminated power switch allows the power status of the unit to be verified at a glance, providing convenient control during installation and operation.
Power Source (AC) |
|
|---|---|
| Supply voltage | 90-240V |
| Power consumption | 15W |
| Power frequency | 50-60Hz |
Modes of operation |
|
|---|---|
| DMX512 | Yes |
User Interface |
|
|---|---|
| Illuminated Power ON/OFF Switch | Yes |
| Individual DMX LED indicators for each output | Yes |
Connectors |
|
|---|---|

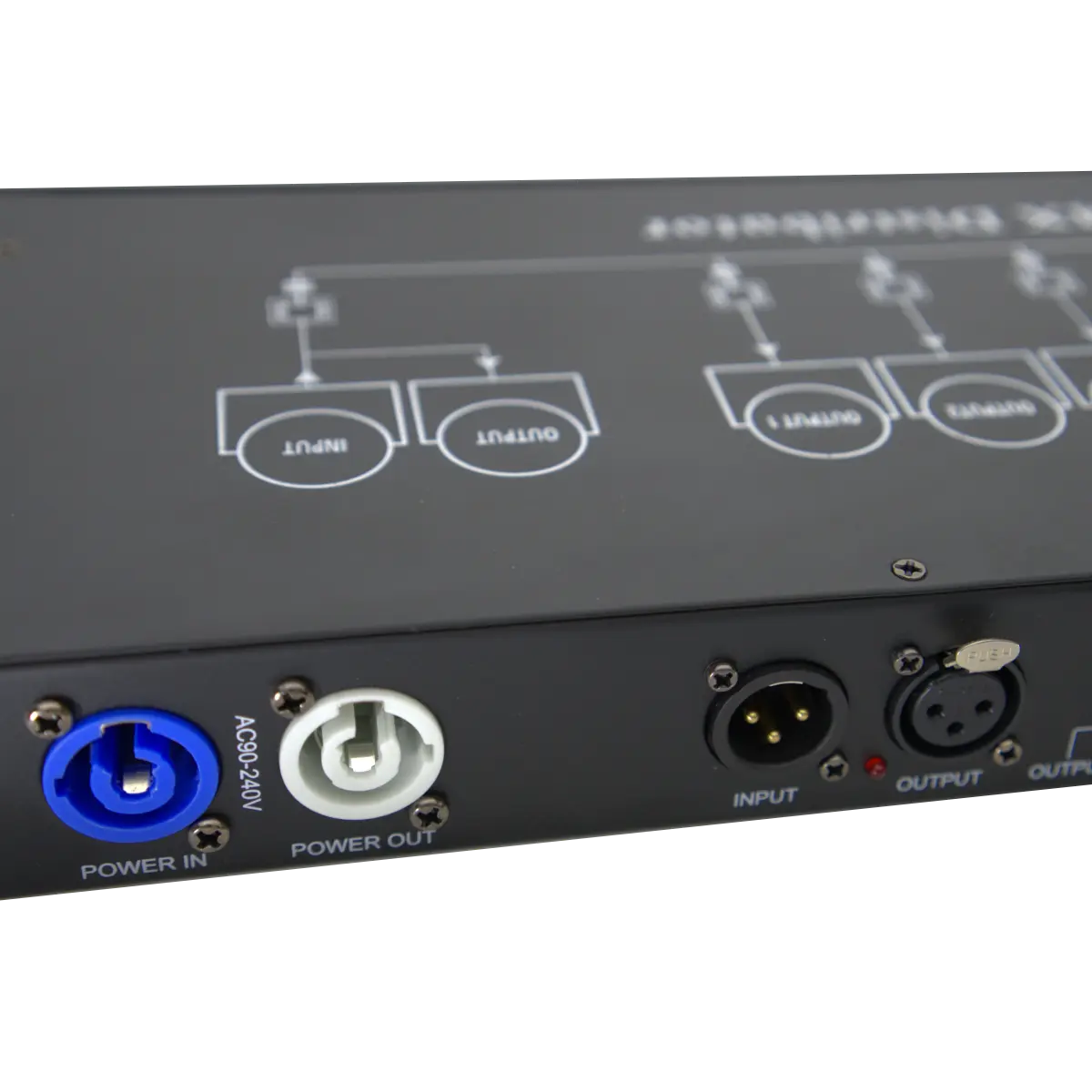

| AC IN | PowerCON |
| AC OUT | PowerCON |
| DMX IN | 3-pin XLR |
| DMX OUT (1 + 8) | 3-pin XLR |
Physical parameters |
|
|---|---|
| IP protection level | IP20 |
| Housing type | Steel |
| Fixing | Rack mount |
| Housing Color | Black |
| Cooling | Passive |
| Length [cm] | 48 |
| Width [cm] | 16 |
| Height [cm] | 4,5 |
| Weight [kg] | 1,8 |
Contents of the package |
|
|---|---|
| A kind of package | cardboard box |
| Manual | Yes |
| Wiring | PowerCON |
| Device | SPLITTER DMX 8 CH |
| Rack Mounting Brackets | Integrated |
