Profile QTM 800 IP

Profile QTM 800 IP – Professional LED Profile Moving Head IP66

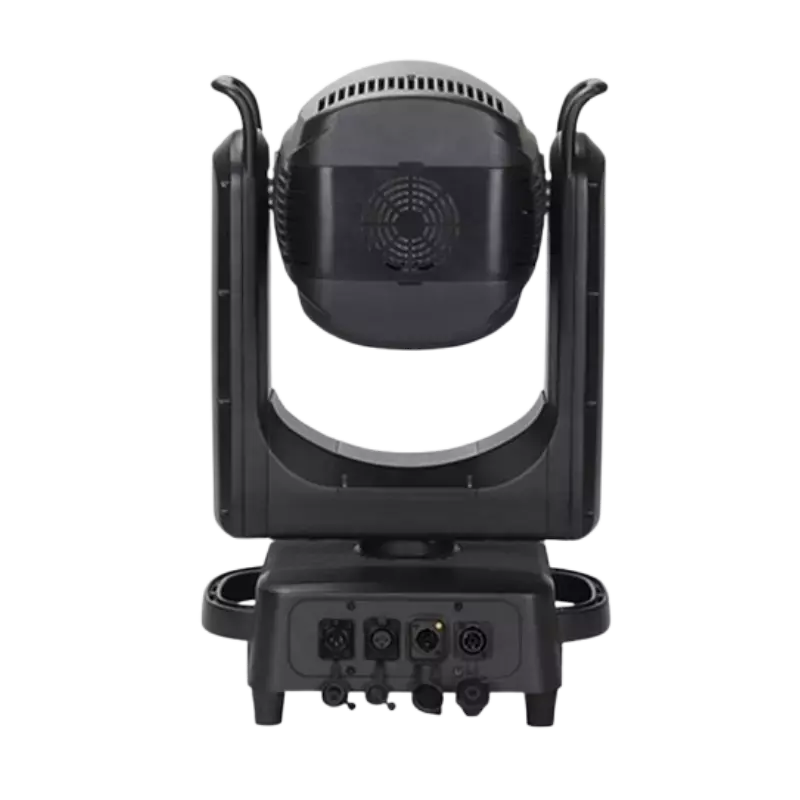

Profile QTM 800 IP is an advanced professional LED profile moving head designed for demanding stage productions, concerts, television environments and outdoor installations. The fixture uses a powerful 550 W LED light source that delivers high brightness, stable color temperature and excellent energy efficiency.

Thanks to the wide 3.5°–50° zoom range, the fixture can produce both a narrow, precise beam and a wide wash, making it an extremely versatile lighting tool. The CMY + CTO color mixing system allows smooth color blending and precise adjustment of color temperature for professional stage lighting.

Advanced effects system

Profile QTM 800 IP features an extensive effects section, enabling the creation of dynamic and creative lighting compositions. The fixture is equipped with:

color wheel with 6 colors + open, with split-color functionality

10 fixed gobos and 7 rotating gobos

animation wheel with 330° rotation

dual prism system – 4-facet circular prism and 6-facet linear prism

framing system with independent blade control and ±90° rotation

iris for precise beam diameter control

two frost filters (Soft and Heavy) for wash effects

Additionally, the fixture provides a fast 0–30 Hz strobe with pulse and random effects.

Precise control and movement

The moving head offers very smooth and accurate positioning thanks to 16-bit resolution control for PAN and TILT movement.

PAN: 540°
TILT: 270°

Control is available via DMX512 (40 channels), and the fixture also supports Auto, Sound, Master-Slave and RDM modes. Intuitive operation is ensured by the LCD display and physical control buttons.

Designed for demanding environments

The IP66-rated housing provides high resistance to dust, moisture and harsh weather conditions, making the fixture ideal for outdoor installations and professional event productions.

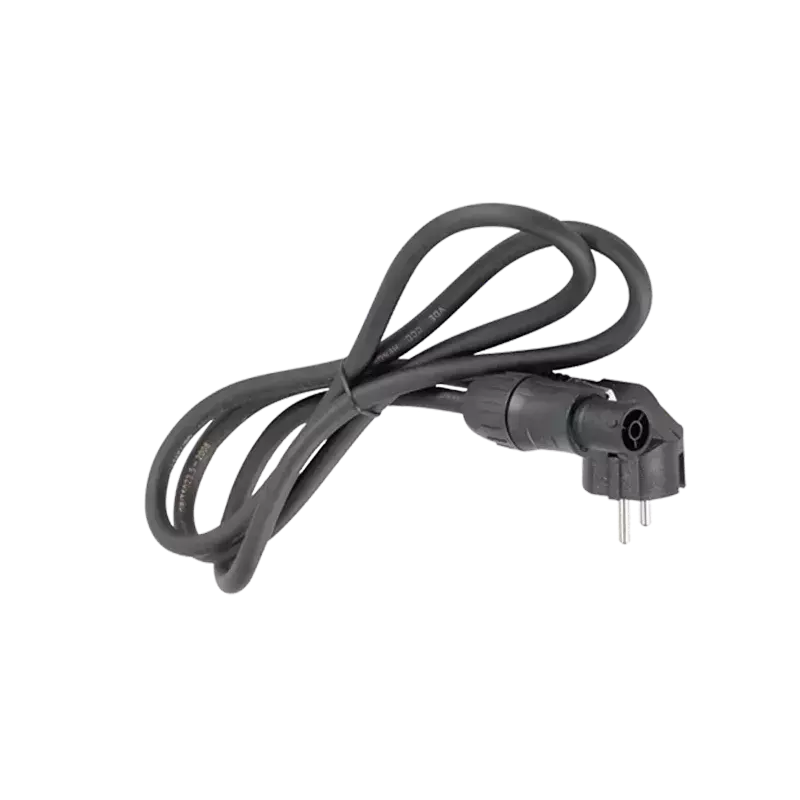

The unit features TrueCON IP65 power connectors and 3-pin XLR DMX connectors, ensuring safe and reliable operation in professional lighting systems.

Key features
550 W LED light source
800 W power consumption
3.5°–50° zoom
CMY + CTO color mixing
10 fixed gobos + 7 rotating gobos
animation wheel
4-facet and 6-facet prisms
framing system ±90°
iris and dual frost filters
0–30 Hz strobe
DMX512 / RDM
PAN 540° / TILT 270°
IP66 protection rating
weight: 24 kg
