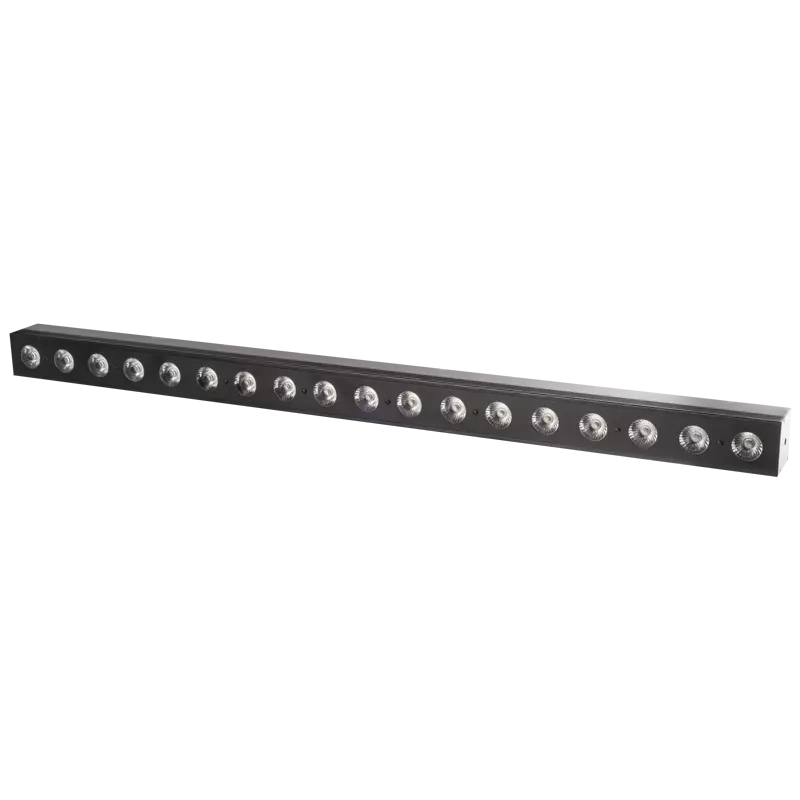

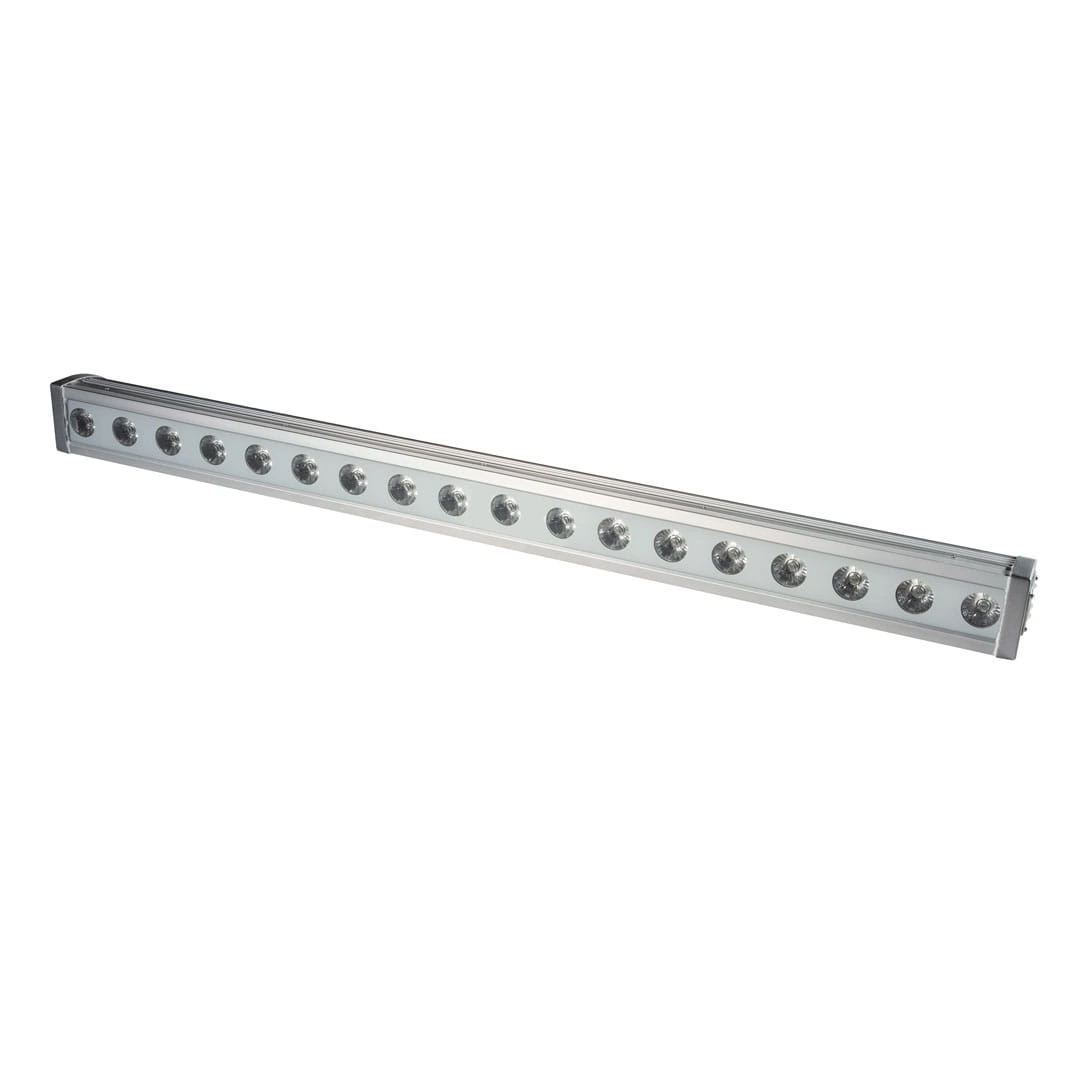

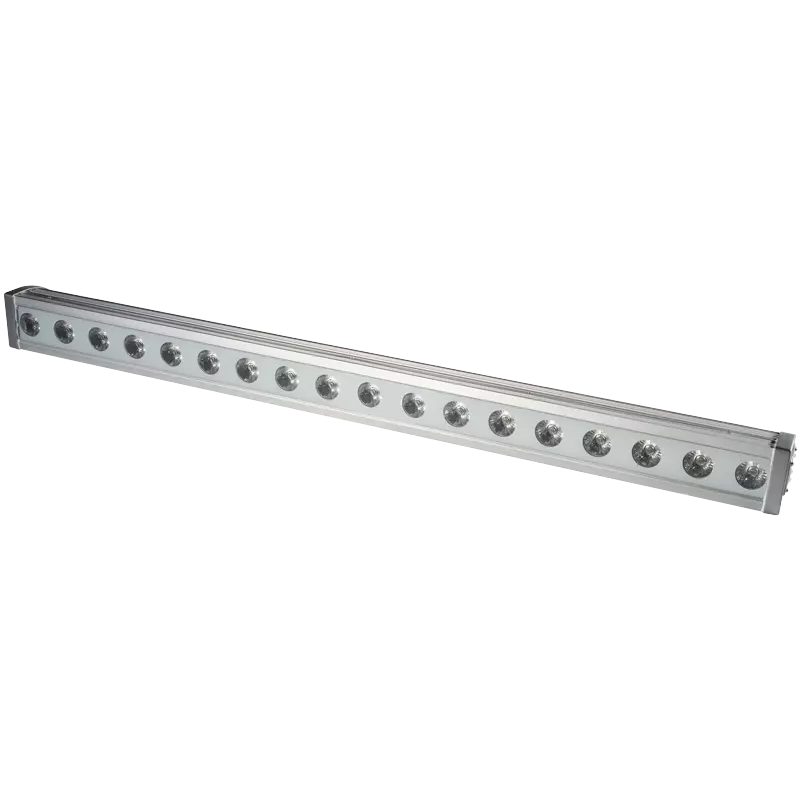

LedBar 185 +A IP is a professional LED bar designed for stage, event and installation applications. The fixture is equipped with 18 × 5 W RGBWA LEDs, each operating as an independently controllable section. This allows the creation of dynamic effects, smooth colour transitions and advanced pixel effects along the entire length of the bar.
RGBWA technology provides extensive colour-mixing possibilities, while the fixed 25° beam angle delivers a directional and uniform light output. Two DMX modes ranging from 9 to 94 channels are available, as well as Sound, Auto and Master-Slave operating modes.

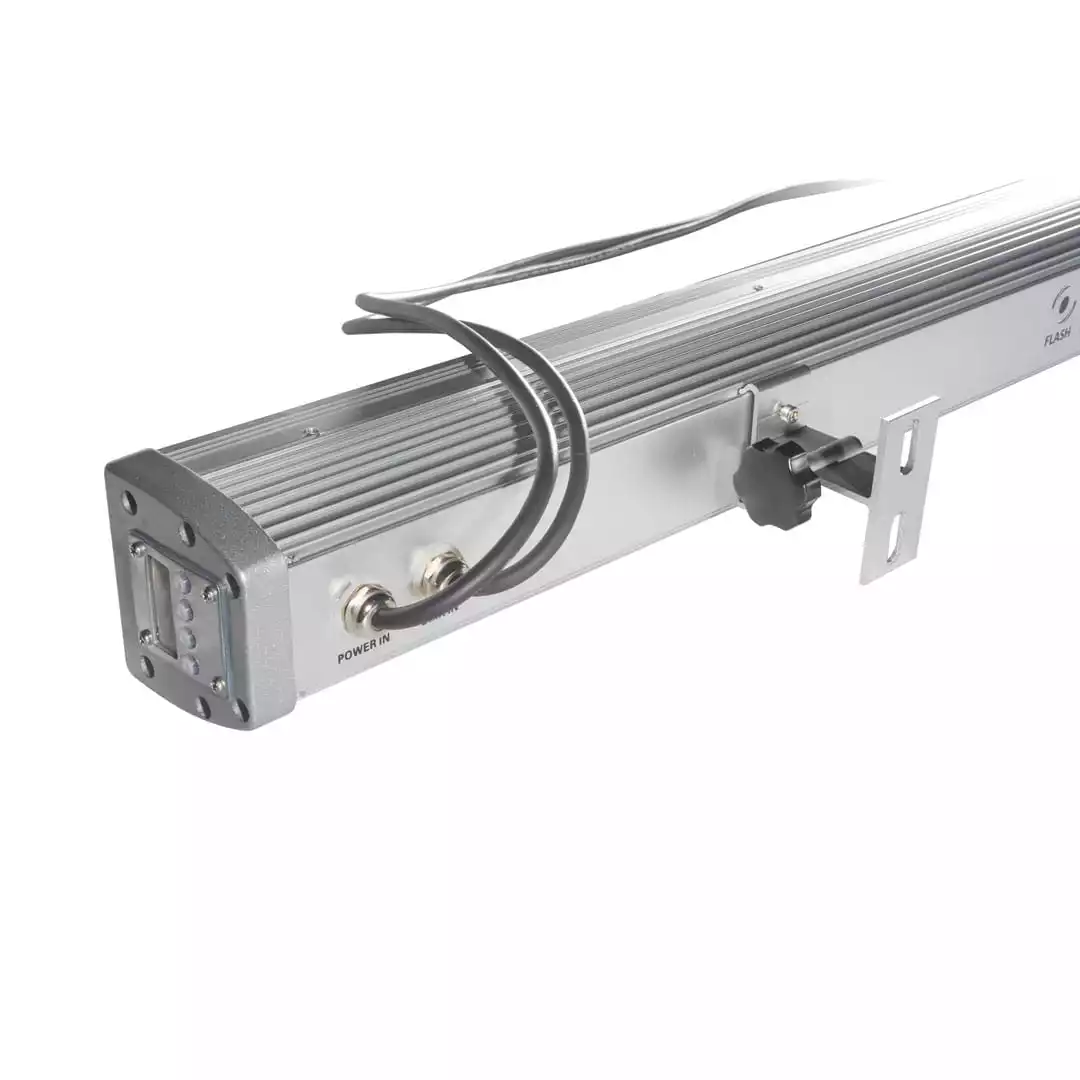

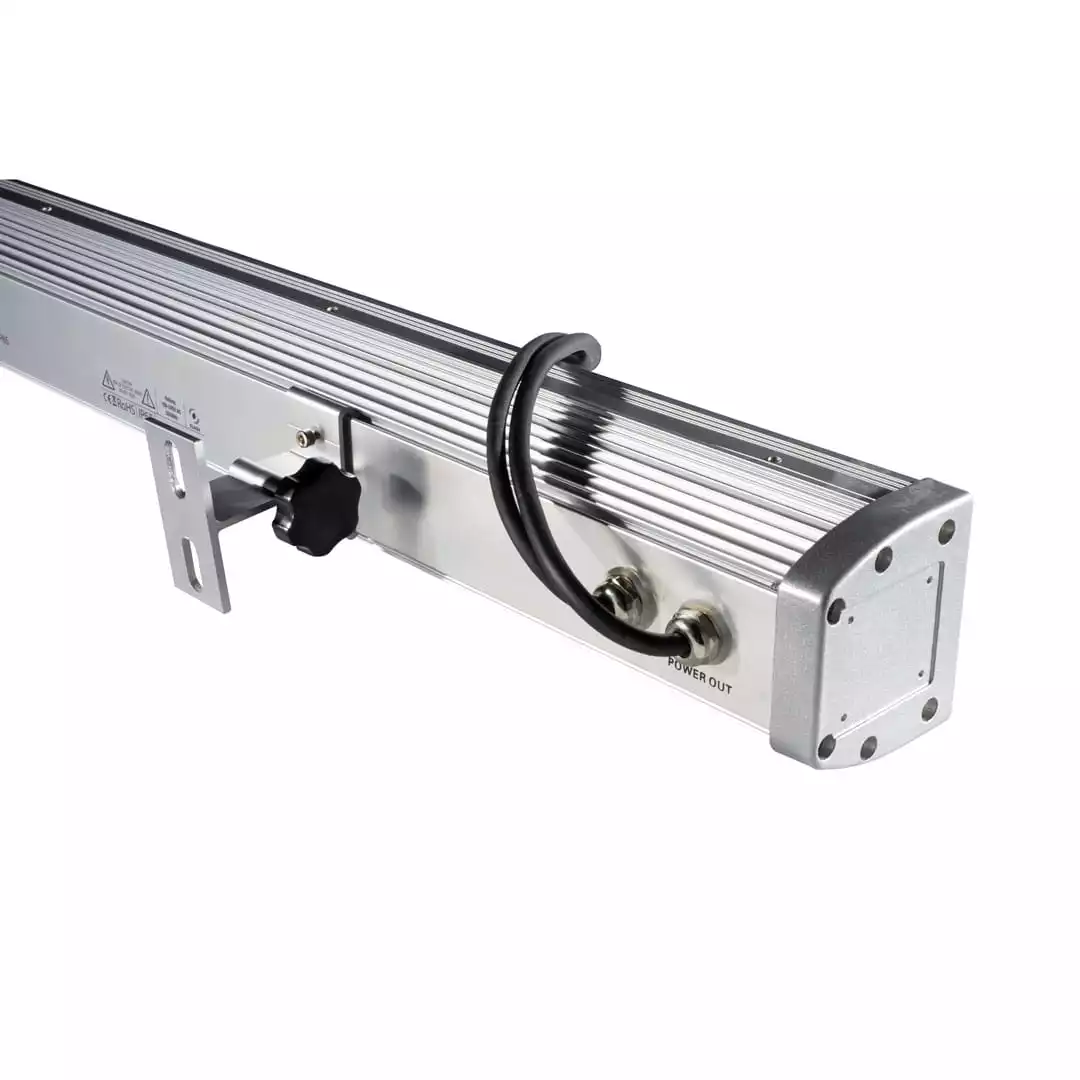

The aluminium housing, IP65 protection rating and passive cooling system make the fixture suitable for use in demanding conditions. Sealed AC IN/OUT and DMX IN/OUT connectors allow multiple fixtures to be conveniently linked within an installation.

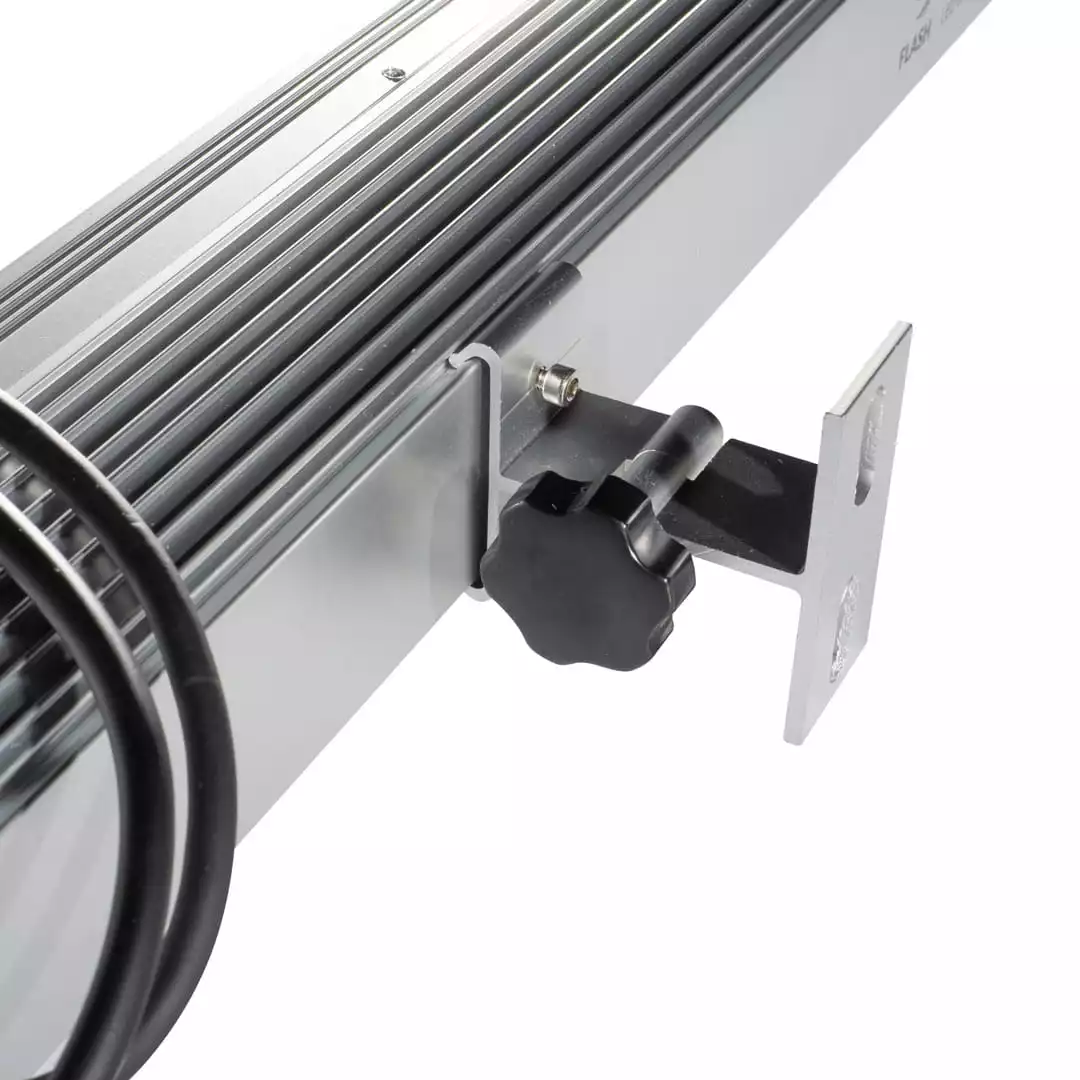

With its 100 cm length, 18 independently controllable sections and integrated mounting bracket, LedBar 185 +A IP is suitable for stage and architectural lighting as well as for creating linear and pixel-based effects.
The product is sold as a set of 4 units.
Power Source (AC) |
|
|---|---|
| Supply voltage | 100-240V |
| Power consumption | 100W |
| Power frequency | 50-60Hz |
Light source |
|
|---|---|
| Type | LED (RGBWA) |
| Quantity | 18 |
| Power (W) | 5 |
| Number of control sections | 18 |
| Color Rendering Index (CRI) | 65 |
Color Mixing System |
|
|---|---|
| RGBWA | 8 bit |
Dimming |
|
|---|---|
| Dimming | 8 bit |
Beam angle |
|
|---|---|
| Beam angle | Fixed (25⁰) |
Strobe - frequency |
|
|---|---|
| Frequency | 1-20Hz |
| Pulsating | Yes |
| Random | Yes |
DMX control |
|
|---|---|
| Number of modes | 2 |
| Number of channels | 9-94 |
Modes of operation |
|
|---|---|
| DMX512 | Yes |
| Sound control | Yes |
| Auto control | Yes |
| Master-slave | Yes |

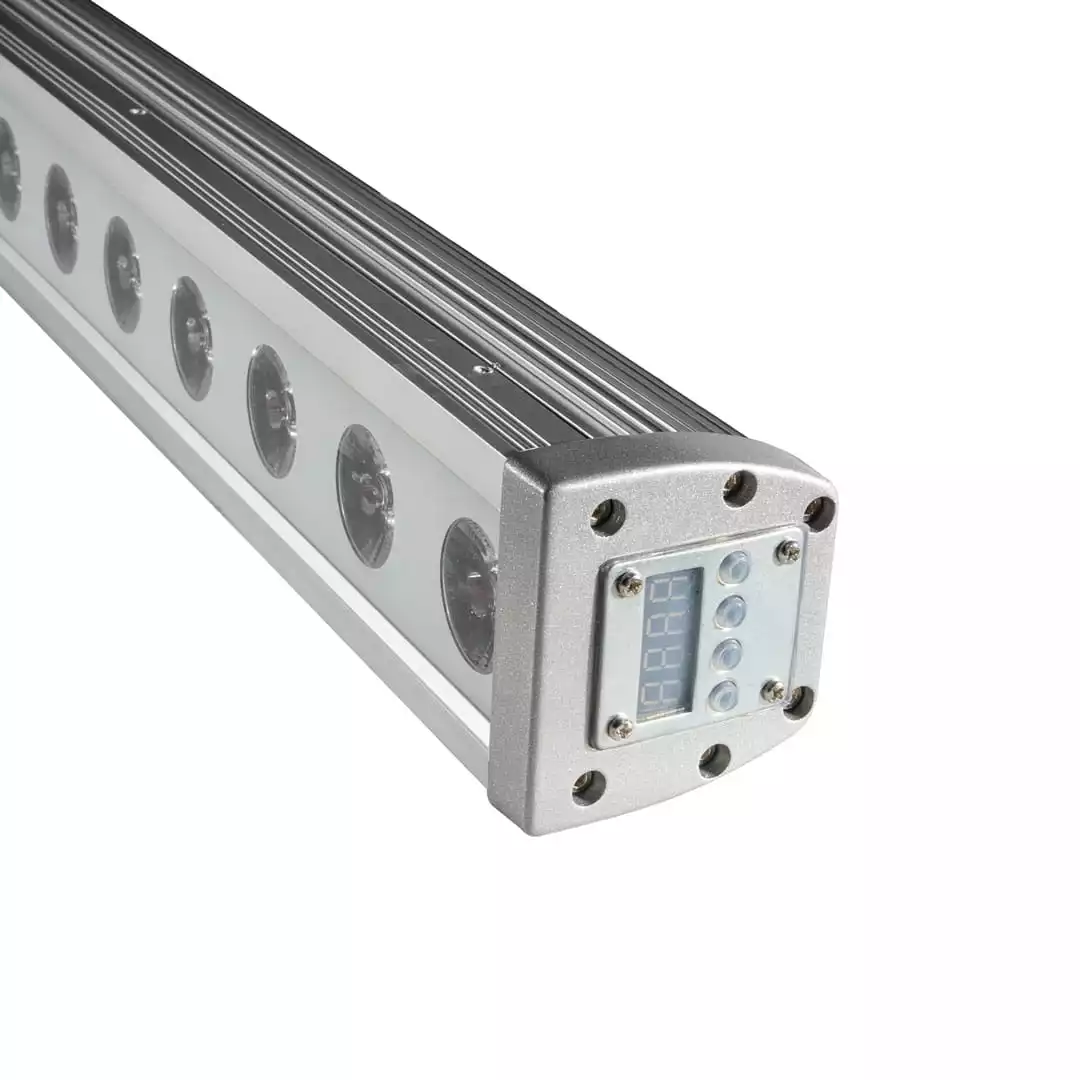

User Interface |
|
|---|---|
| Buttons | Physical |
| Display | LED segment display |

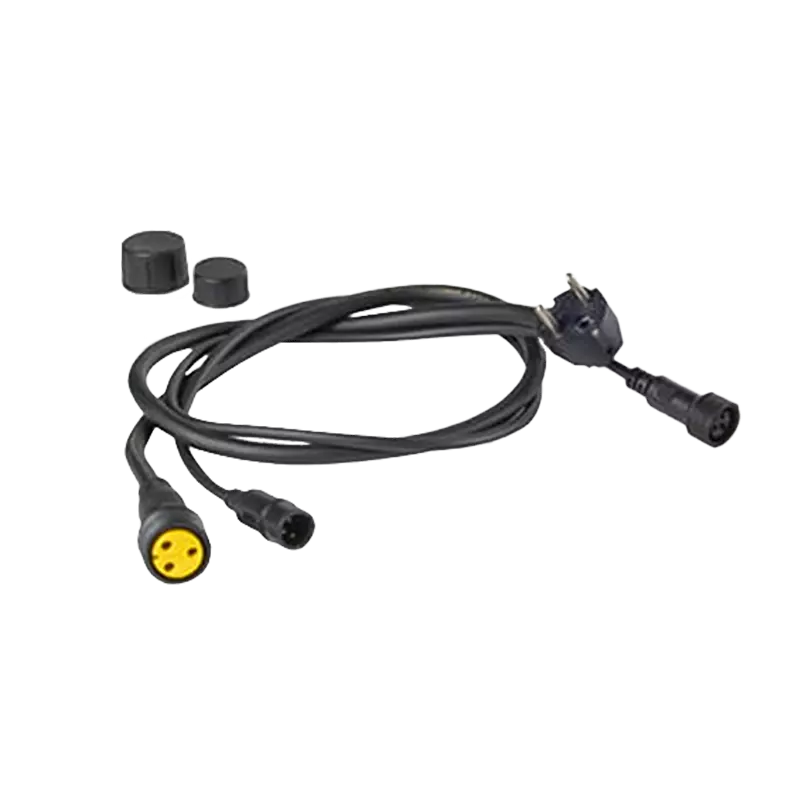

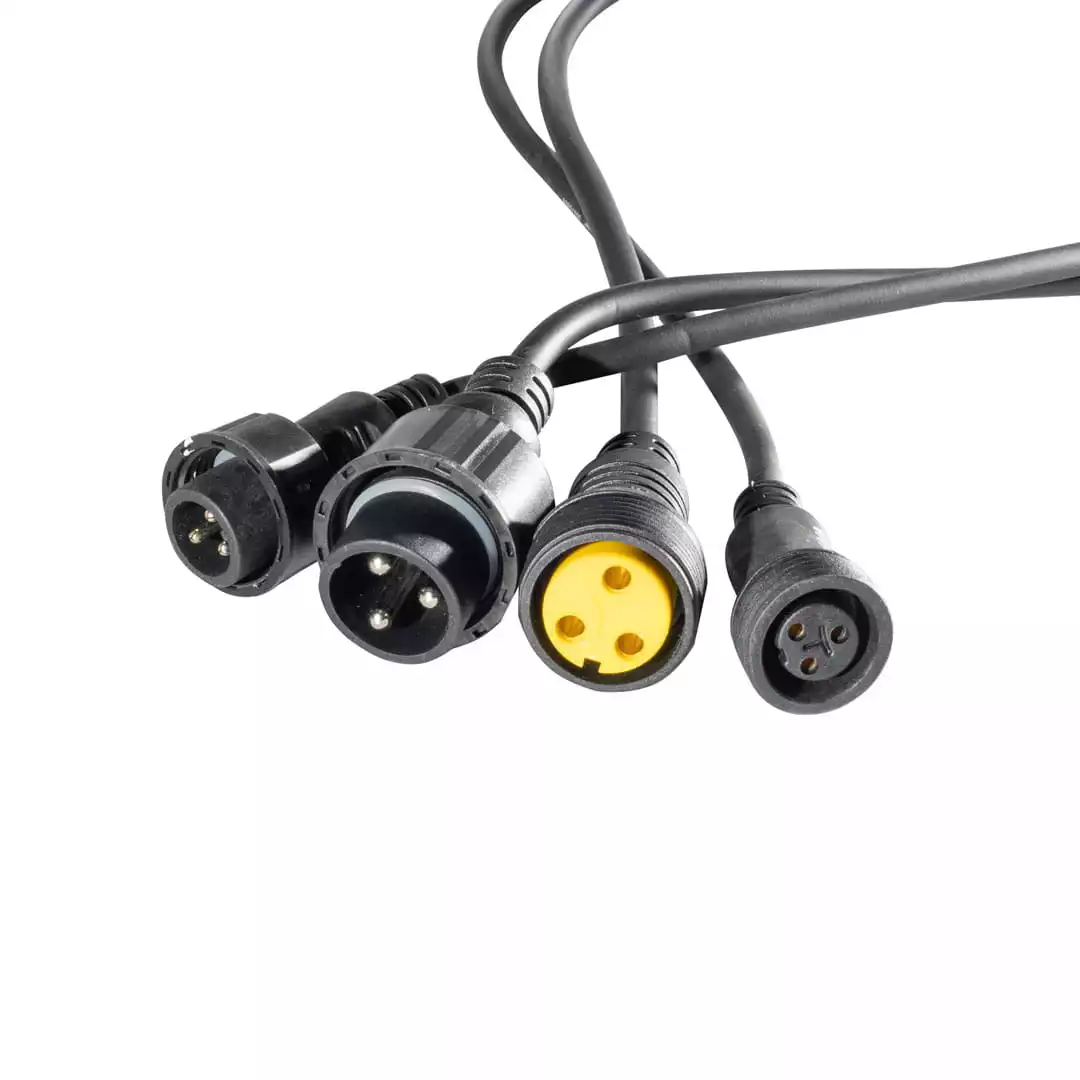

Connectors |
|
|---|---|
| AC IN | 3-pin hermetic connector |
| AC OUT | 3-pin hermetic connector |
| DMX IN | Hermetic 3-pin DMX connector |
| DMX OUT | Hermetic 3-pin DMX connector |
Physical parameters |
|
|---|---|
| IP protection level | IP65 |
| Housing type | Aluminium |
| Fixing | Integrated |
| Housing Color | Silver |
| Cooling | Passive |
| Length [cm] | 100 |
| Width [cm] | 12,5 |
| Height [cm] | 8 |
| Weight [kg] | 3,6 |
Contents of the package |
|
|---|---|
| Manual | Yes |
| Device | LedBar 185 +A IP |
| Handle | Integrated |
Package dimensions and weight |
|
|---|---|
| Package length [cm] | 106 |
| Package width [cm] | 28 |
| Package height [cm] | 34 |
| Weight with packaging [kg] | 17.4 |
| Type of packaging | Cardboard box |
