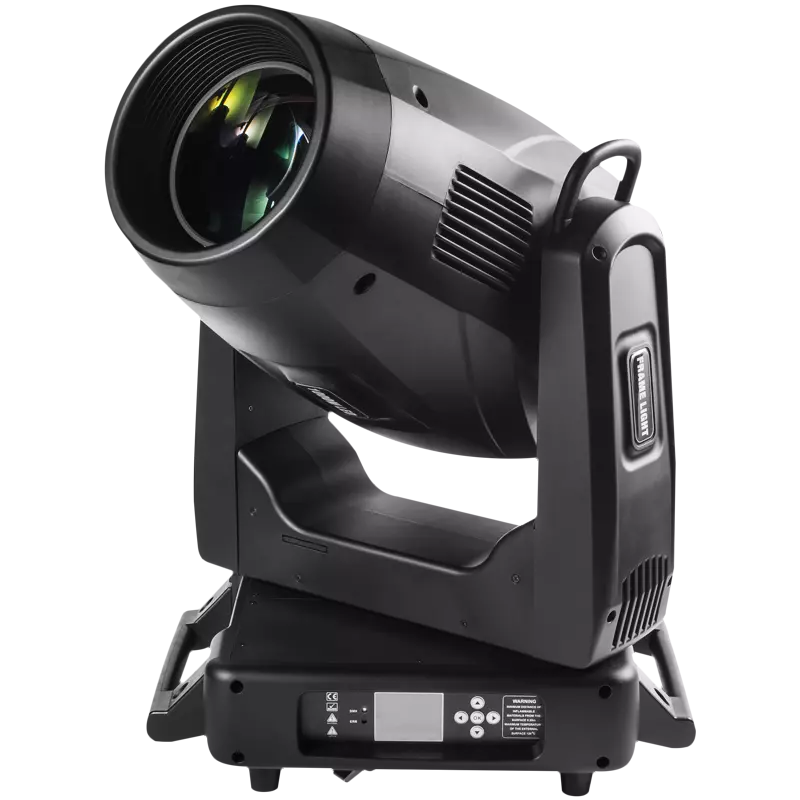

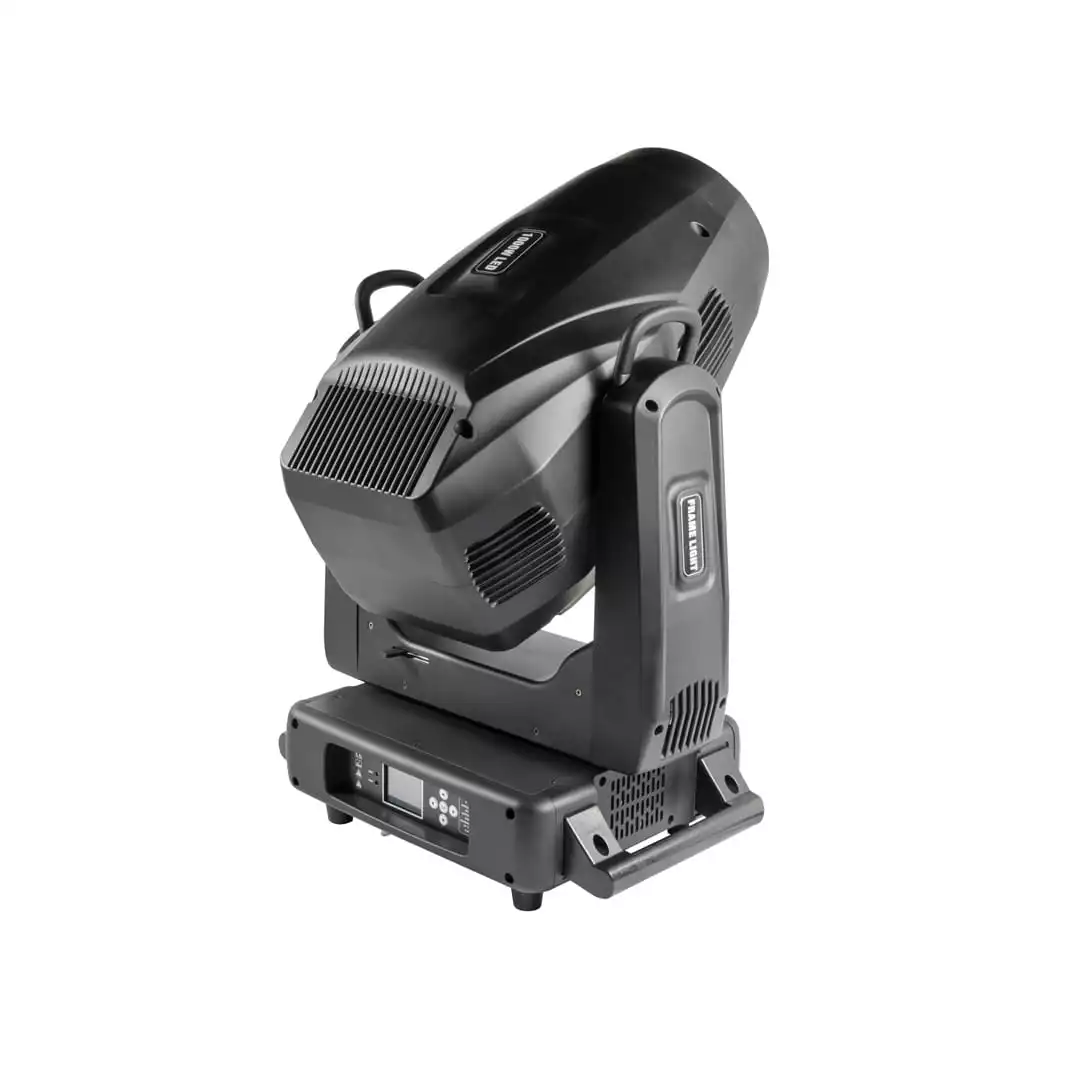

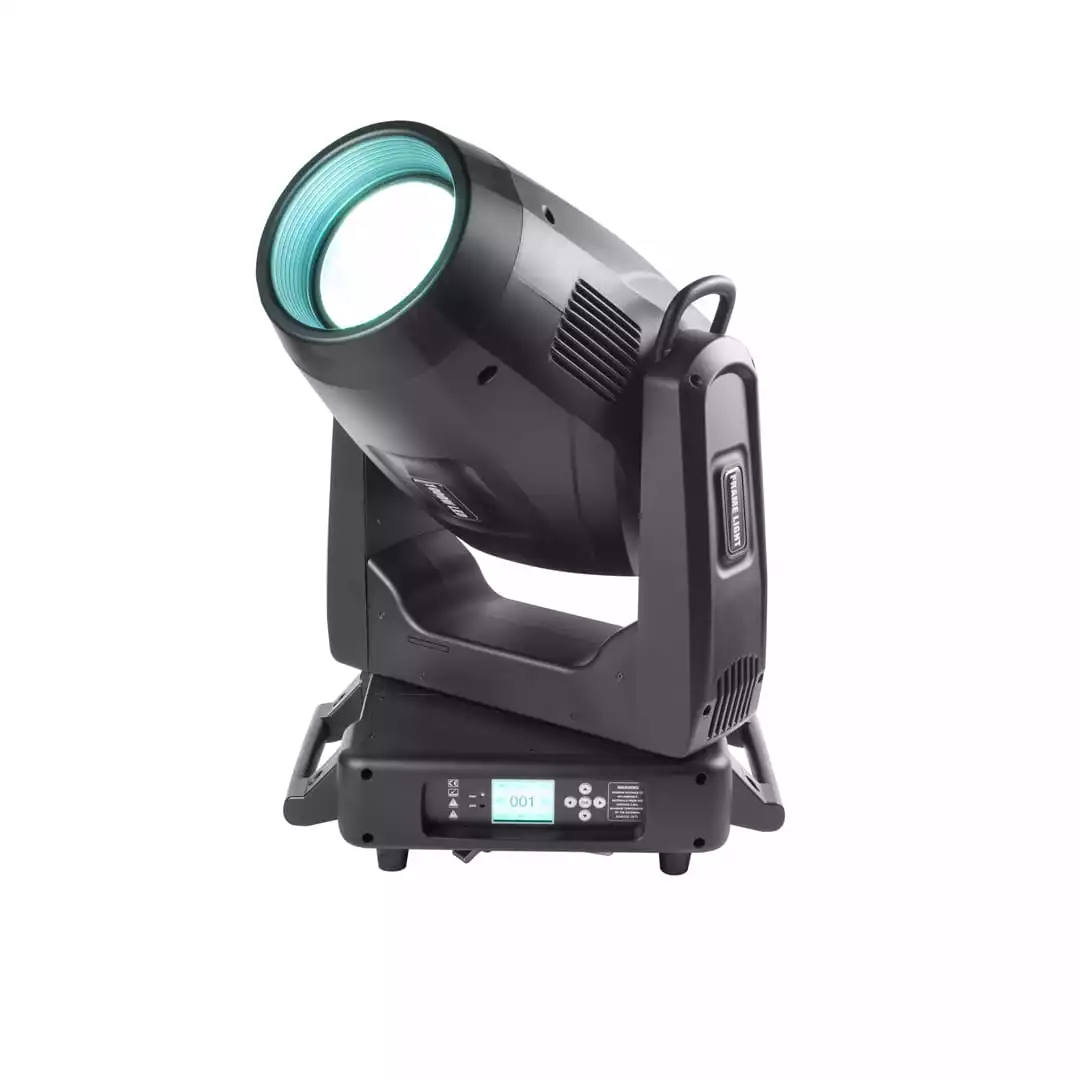

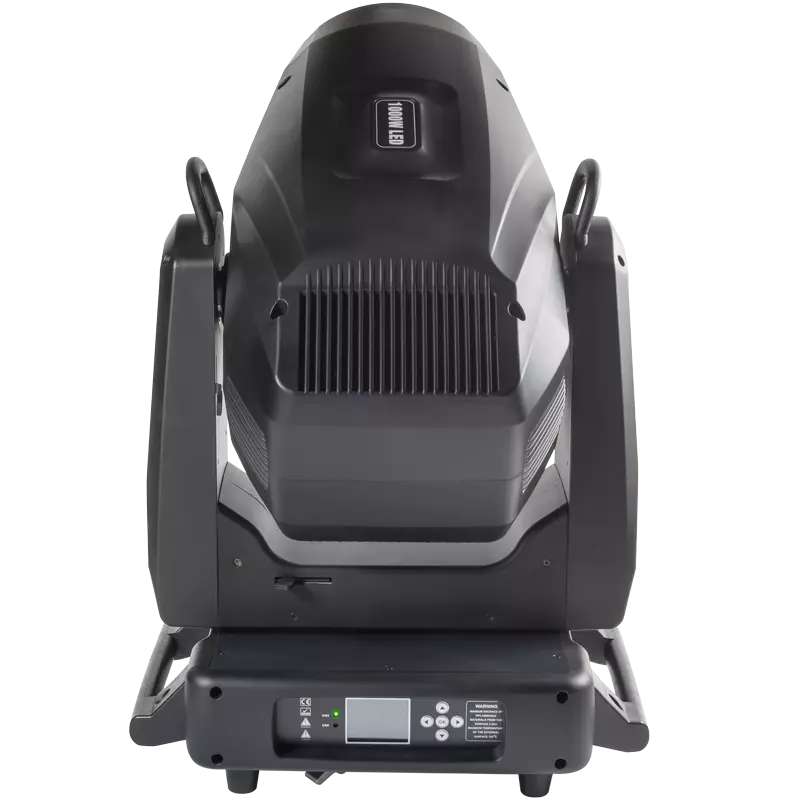

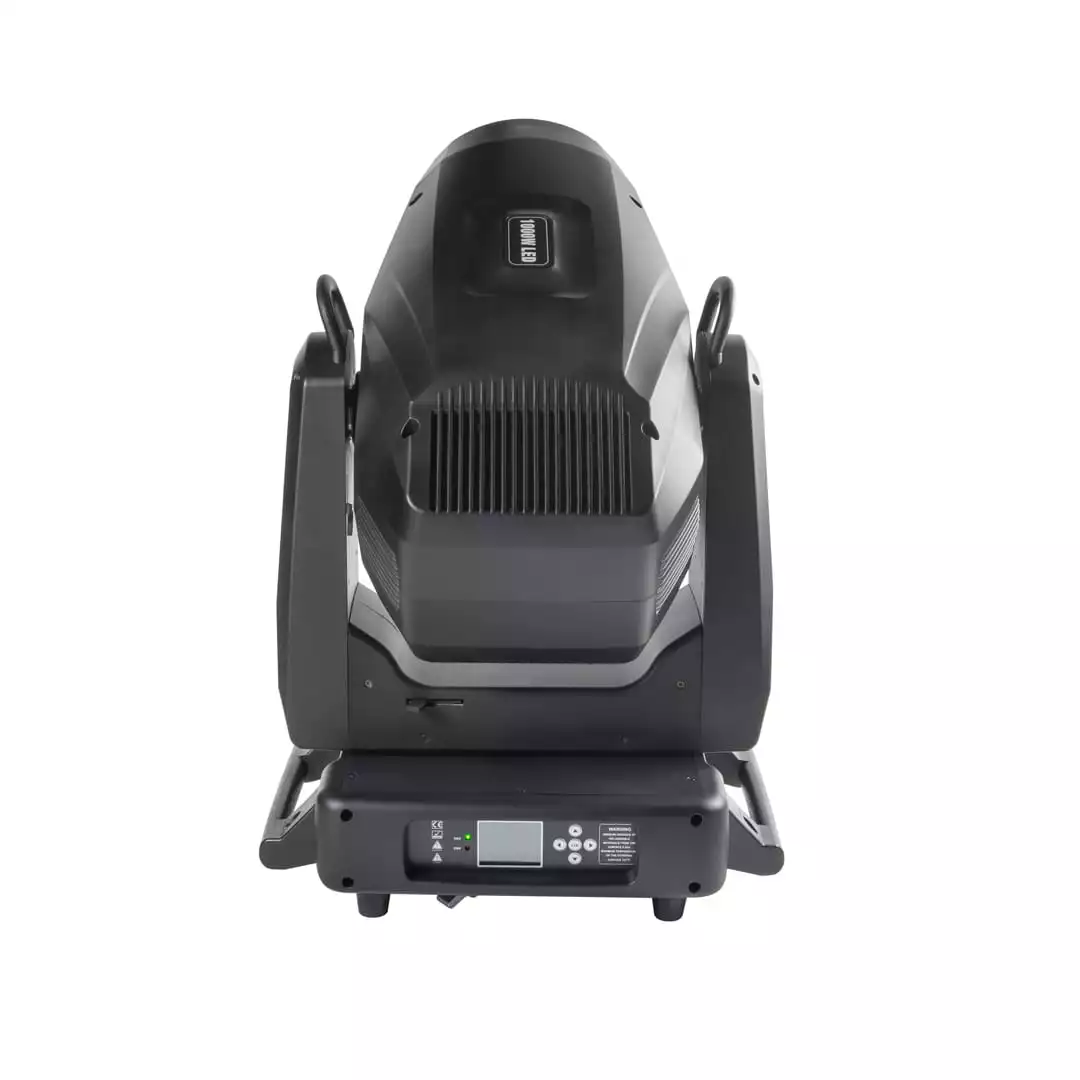

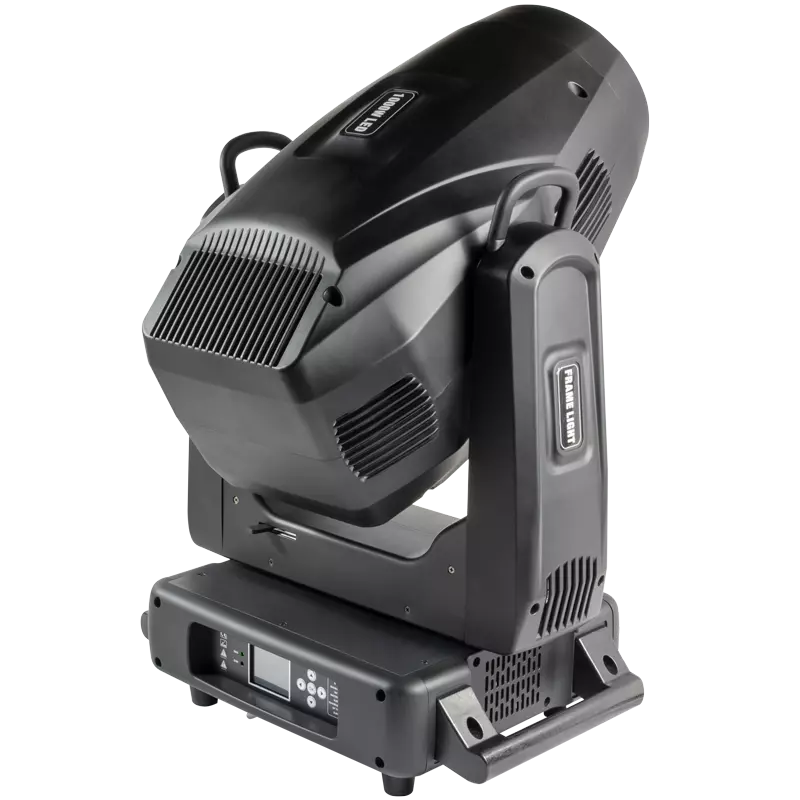

PROFILE LED 700 is a movable profile-type device with a color wheel (seven colors + white), smooth CMY mixing and profile knives. Equipped with a very powerful LED light source with a power of 700W, two discs with replaceable gobos (6 rotating gobos, 8 static gobos), a three-sided round prism and a six-sided linear prism, animation discs, frost, focus, and zoom with a range of (3 .5⁰-55⁰). High-quality workmanship with an ABS housing, fast response time, active cooling, many control modes and network protocols highlight the advantages of this device.
Power Source (AC) |
|
|---|---|
| Supply voltage | 100-240V |
| Power consumption | 3W |
| Power frequency | 50-60Hz |
Light source |
|
|---|---|
| Type | LED |
| Quantity | 1 |
| Power (W) | 700 |
| Color temperature | 8000K |
| Color Rendering Index (CRI) | 68-90 |
Color Mixing System |
|
|---|---|
| CMY | 8 bit |
Color Wheel |
|
|---|---|
| Quantity | 1 |
Dimming |
|
|---|---|
| Dimming | 8 bit |
ZOOM |
|
|---|---|
| ZOOM | Motorized (8 bit) |
Beam angle |
|
|---|---|
| Beam angle | Range (3,5-55 ⁰) |
Focus adjustment - Focus |
|
|---|---|
| Focus adjustment - Focus | Motorized (8 bit) |
Prism |
|
|---|---|
| Prism 1 | 6 (Linear) |
| Prism 2 | 3 (Round) |
FROST filter |
|
|---|---|
| FROST filter | light (smooth) |
CTO |
|
|---|---|
| CTO | smooth |

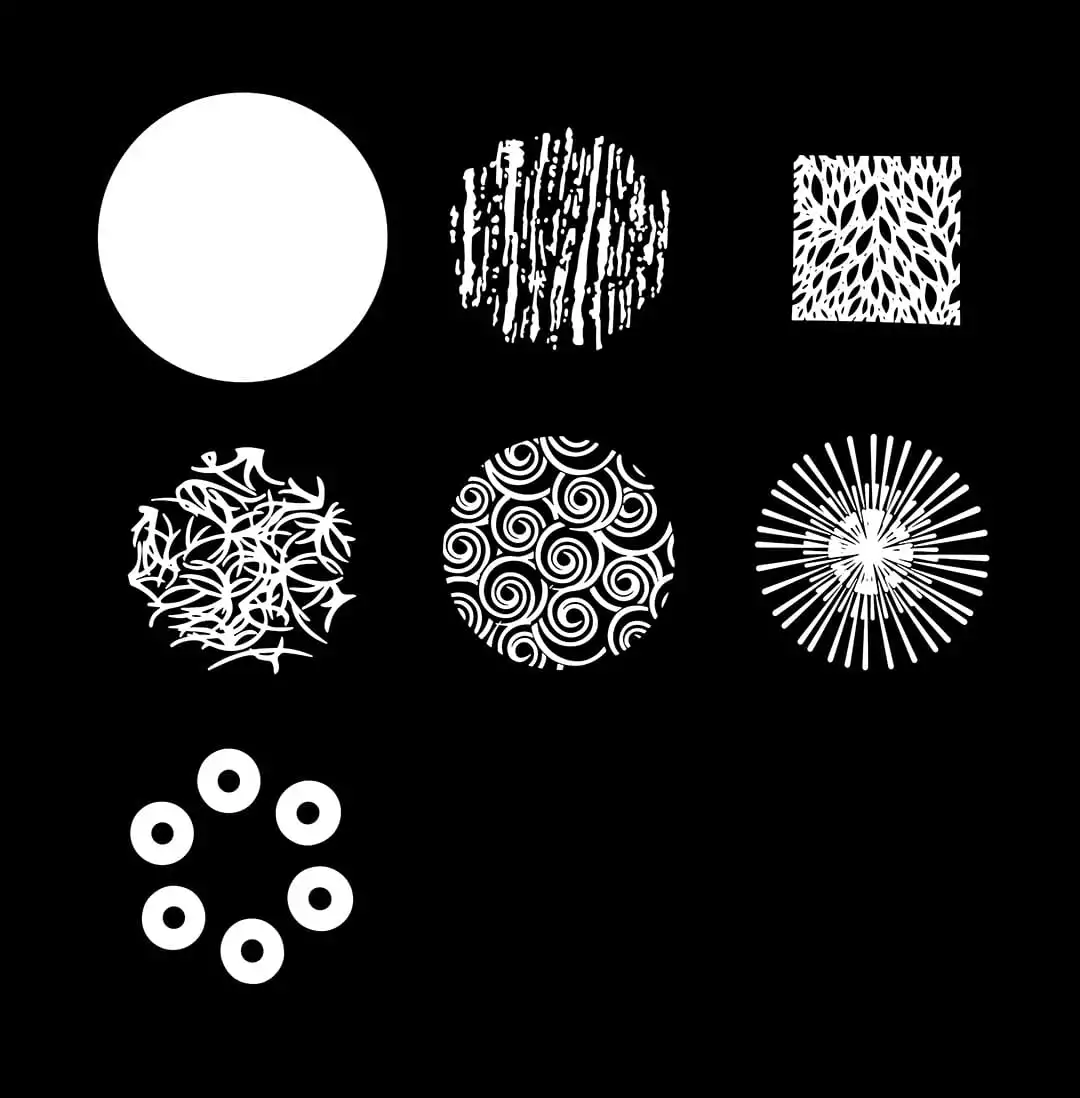

GOBO Wheel |
|
|---|---|
| Static | 8 |
| Rotary | 6 |
| Rotation | 8 bit |
| Removable slot | Yes |
Animation dial |
|
|---|---|
| Animation dial | Yes |
Profile knives |
|
|---|---|
| Profile knives | Yes |
Strobe - frequency |
|
|---|---|
| Frequency | 1-20Hz |
| Pulsating | Yes |
| Random | Yes |
DMX control |
|
|---|---|
| Number of modes | 1 |
| Number of channels | 36 |
Movement |
|
|---|---|
| Range PAN | 540 ⁰ |
| Range TILT | 270 ⁰ |
| Regulation | 8 bit |
Modes of operation |
|
|---|---|
| DMX512 | Yes |
| RDM | Yes |
| Art-Net | Yes |
| Sound control | Yes |
| Auto control | Yes |
| Master-slave | Yes |

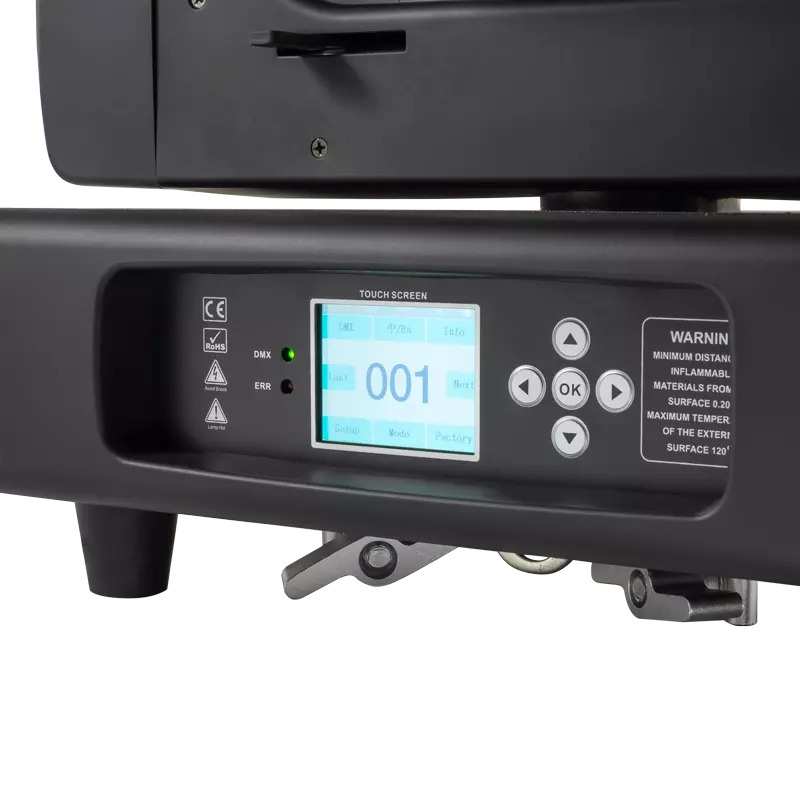

User Interface |
|
|---|---|
| Physical buttons | Yes |
| Color display | Yes |

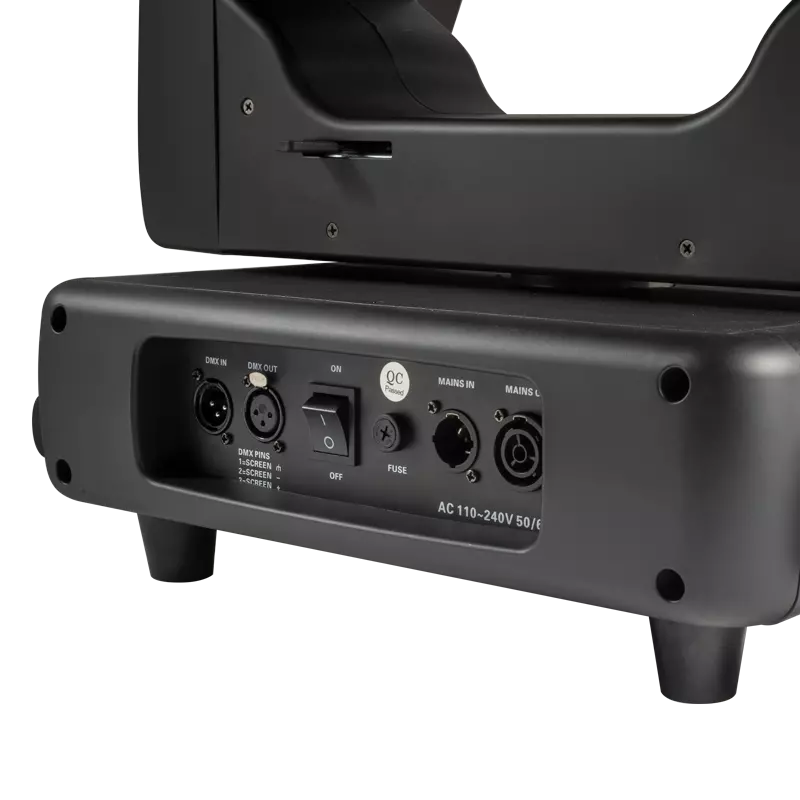

Connectors |
|
|---|---|
| AC IN | TrueCon IP65 |
| AC OUT | TrueCon IP65 |
| DMX IN | 3-pin XLR |
| DMX OUT | 3-pin XLR |
Physical parameters |
|
|---|---|
| IP protection level | IP20 |
| Housing type | ABS |

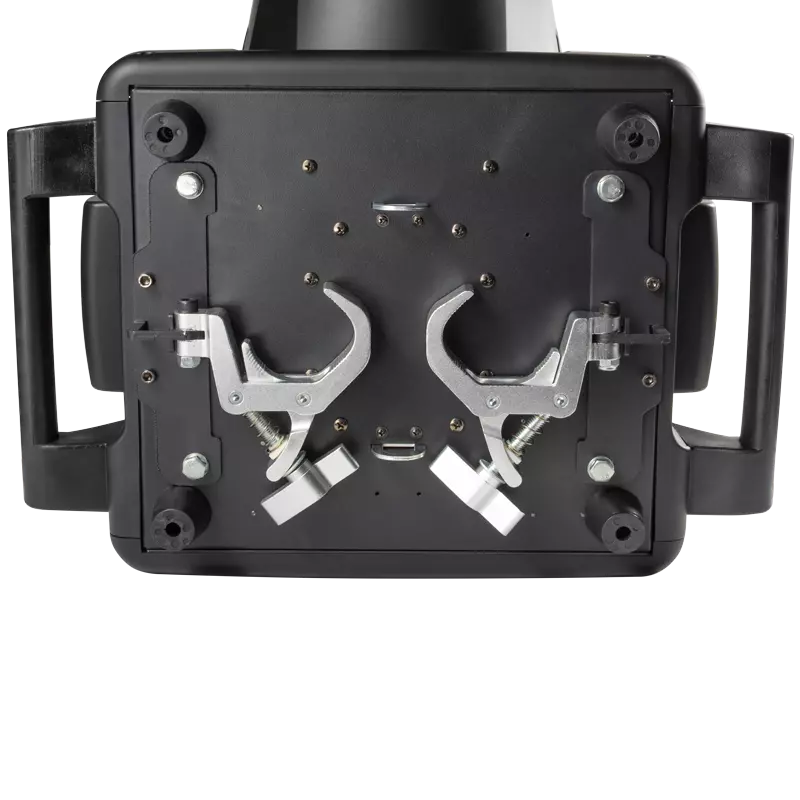

| Fixing | Integrated |
| Blockade (Pan) | Yes |
| Blockade (Tilt) | Yes |
| Housing Color | Black |
| Cooling | Active |
| Length [cm] | 52 |
| Width [cm] | 34 |
| Height [cm] | 80 |
| Weight [kg] | 40,8 |

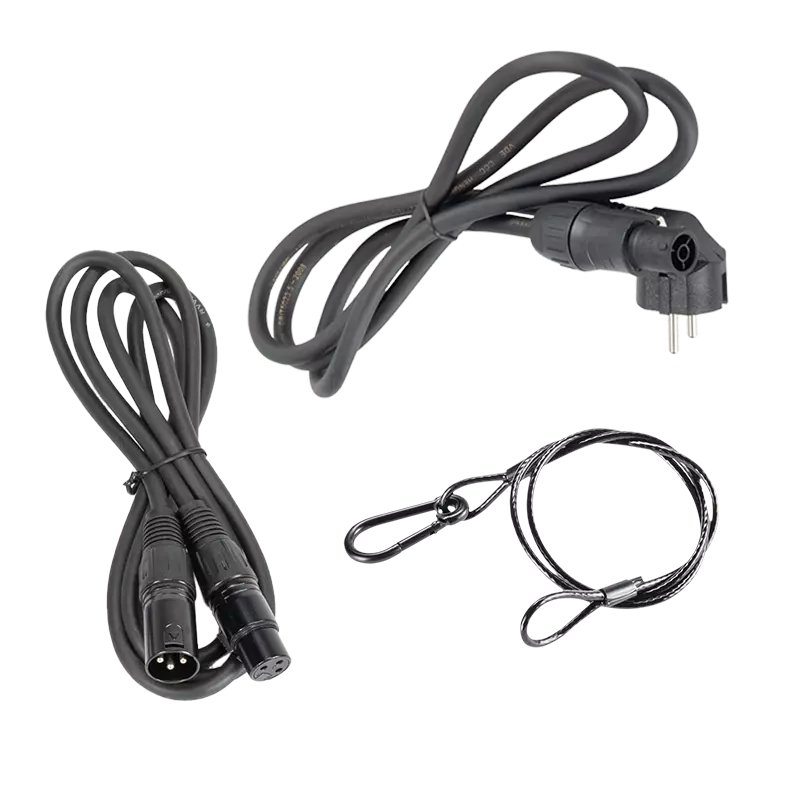

Contents of the package |
|
|---|---|
| Manual | Yes |
| Wiring | TrueCON |
| Device | PROFILE LED 700 |
| Steel safety cable | Yes |
Package dimensions and weight |
|
|---|---|
| Package length [cm] | 84 |
| Package width [cm] | 56 |
| Package height [cm] | 101 |
| Weight with packaging [kg] | 113 |

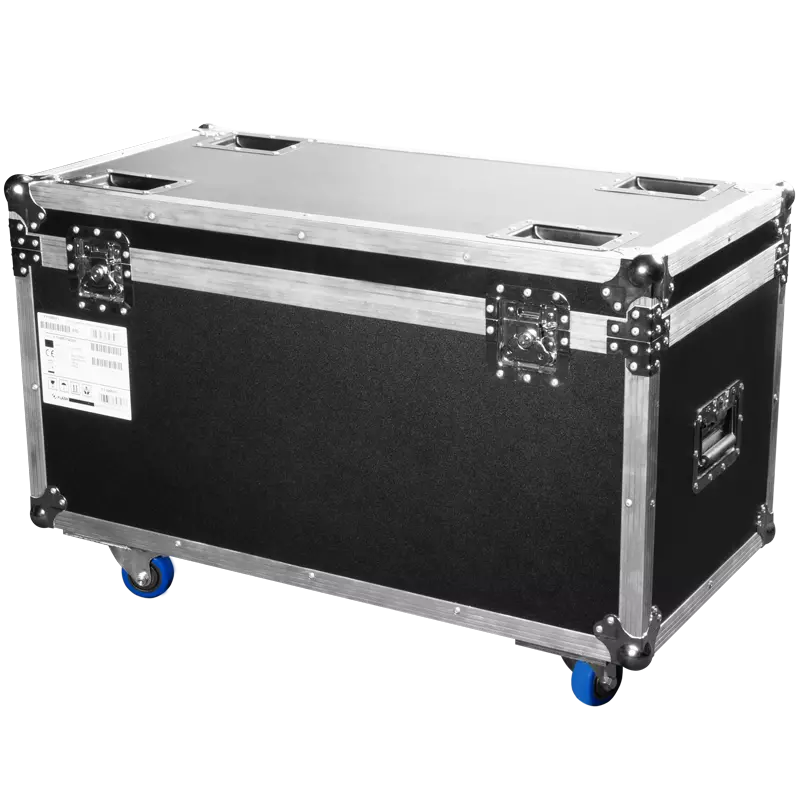

| Type of packaging | F0901988 CASE FOR 2x PROFILE LED 700 |
