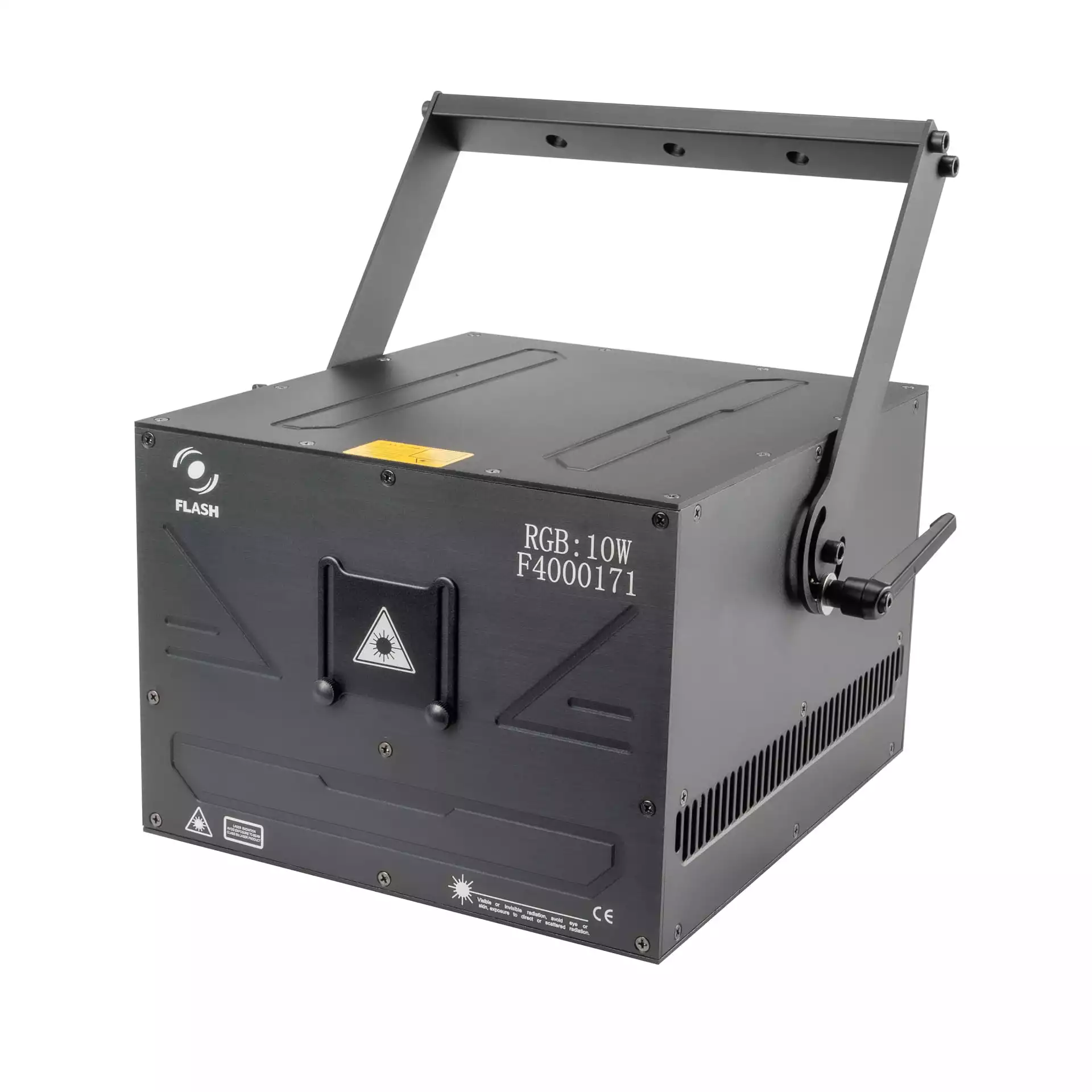

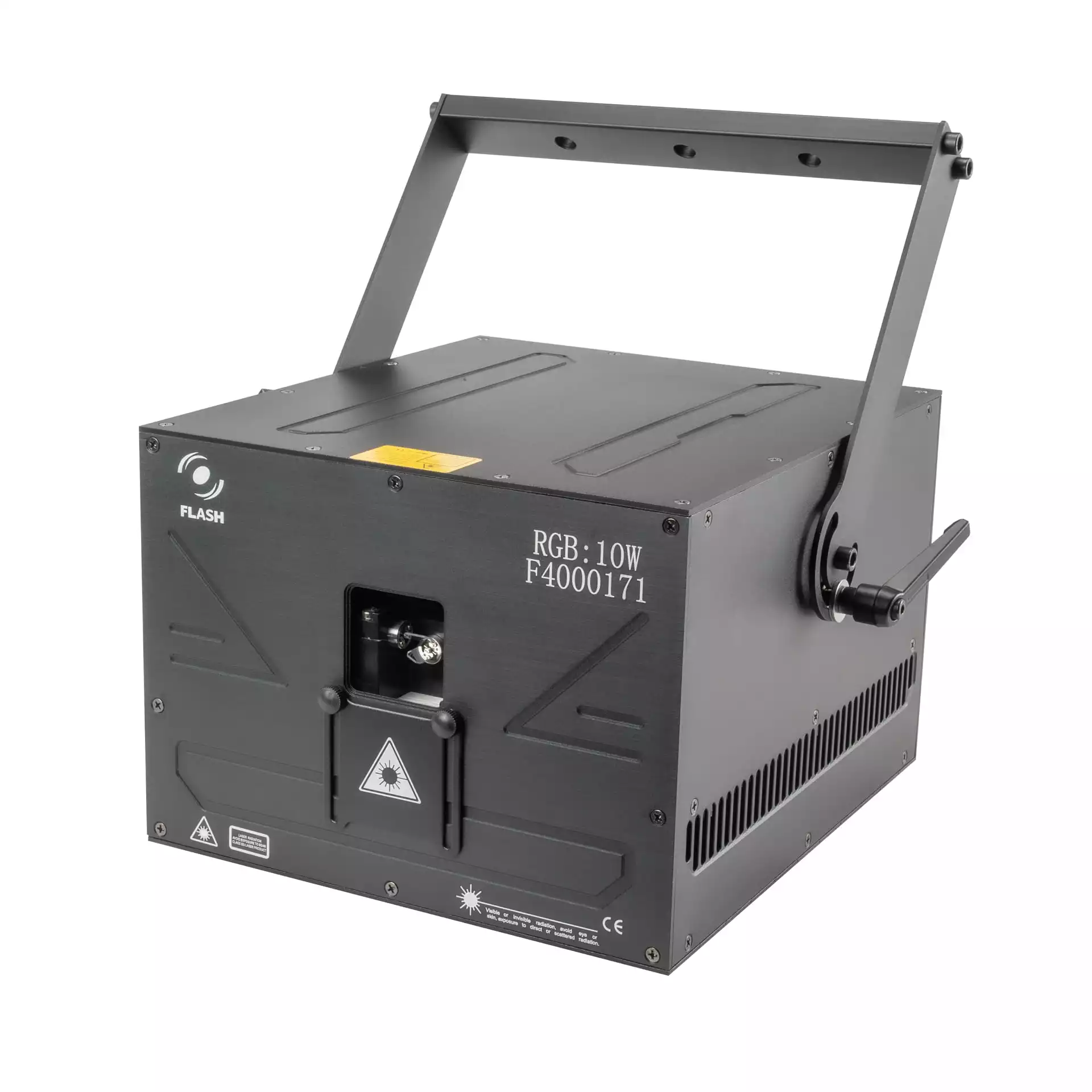

The 10W RGB LASER is distinguished by high power of 180W and effective light combinations. The intensity, speed and pattern of light can be operated via the following modes: ILDA (control from a computer), DMX512, PRG (program from a TF card), ILD (program from a TF card), SOUND mode, AUTO mode, Master/Slave.Playback file format (.ild).The laser generates beam diameters <6 mm with divergence <1.5 mrad. and the high-speed 40K optical scanner provides (+/-) 30° high-angle scanning.RED laser: 3000mW, wavelength 638nmGREEN laser: 3000mW, wavelength 525nmBLUE laser: 4000mW, wavelength 450nmIn addition, the device is equipped with numerous safeguards to ensure safety protection: laser key switch, remote laser lock, SFS Control (ON/OFF scanner security control).
Power Source (AC) |
|
|---|---|
| Supply voltage | 90-240V |
| Power consumption | 180W |
| Power frequency | 50-60Hz |
Light source |
|
|---|---|
| Type | LASER (RGB) |
| Quantity | 1 |
| Power (W) | 180 |
| Red | 3000mW, wavelength 638nm |
| Green | 3000mW, długość fali 525nm |
| Blue | 4000mW, wavelength 450nm |
Beam angle |
|
|---|---|
| Beam angle | Range (30⁰) |
DMX control |
|
|---|---|
| Number of modes | 2 |
| Number of channels | 10-32 |
Modes of operation |
|
|---|---|
| DMX512 | Yes |
| ILDA | Yes |
| Sound control | Yes |
| Auto control | Yes |
| Master-slave | Yes |
| TF Card (Micro SD) | Yes (PRG-ILD) |
User Interface |
|
|---|---|
| Physical buttons | Yes |
| Knob | Yes |
| LCD display | Yes |

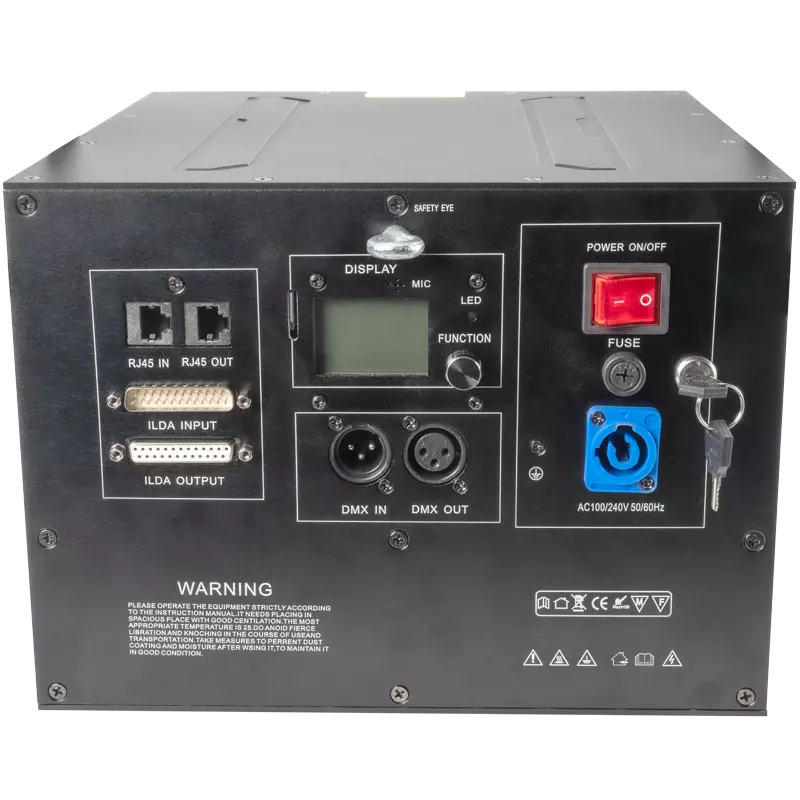

Connectors |
|
|---|---|
| AC IN | PowerCON |
| DMX IN | 3-pin XLR |
| DMX OUT | 3-pin XLR |
| RJ45 IN | Yes |
| RJ45 OUT | Yes |
| ILDA IN | Yes |
| ILDA OUT | Yes |
Physical parameters |
|
|---|---|
| IP protection level | IP20 |
| Housing type | Aluminium |
| Fixing | Integrated |
| Fixing | Mounting hole |
| Housing Color | Black |
| Cooling | Active |
| Length [cm] | 38 |
| Width [cm] | 28 |
| Height [cm] | 22 |
| Weight [kg] | 7,8 |
Contents of the package |
|
|---|---|
| Manual | Yes |

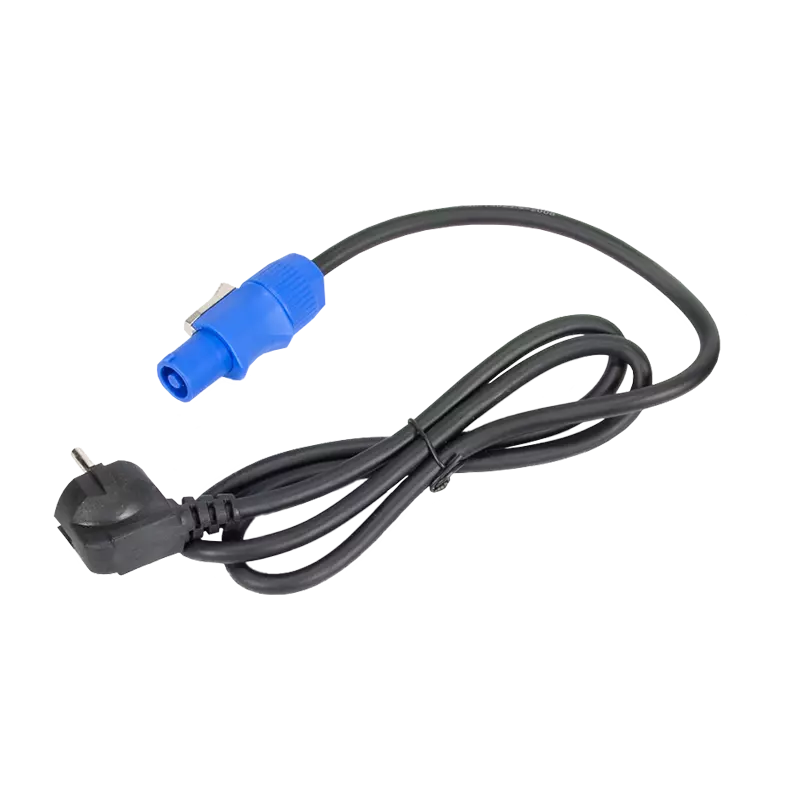

| Wiring | PowerCON |
| Device | LASER 10W RGB |
Package dimensions and weight |
|
|---|---|
| Package length [cm] | 42 |
| Package width [cm] | 41 |
| Package height [cm] | 30 |
| Weight with packaging [kg] | 9.2 |
| Type of packaging | Cardboard box |
