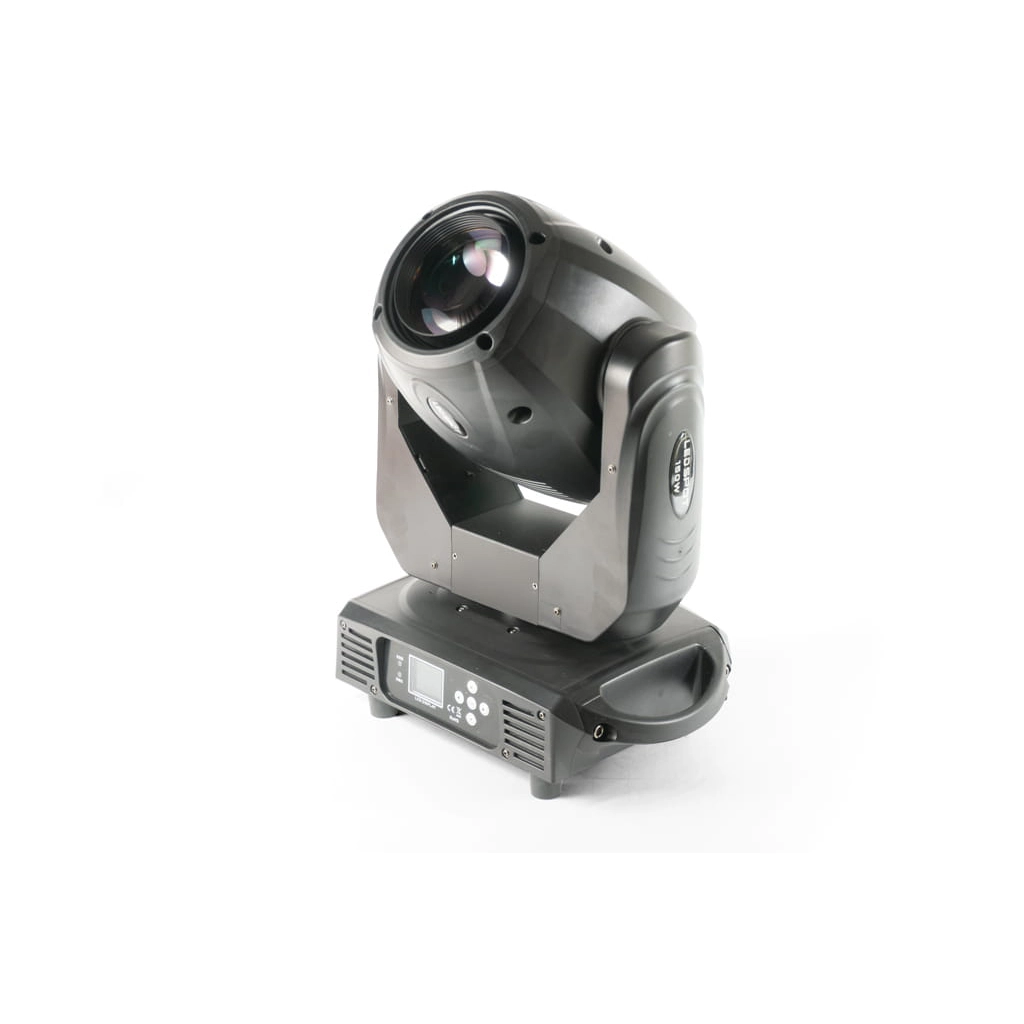

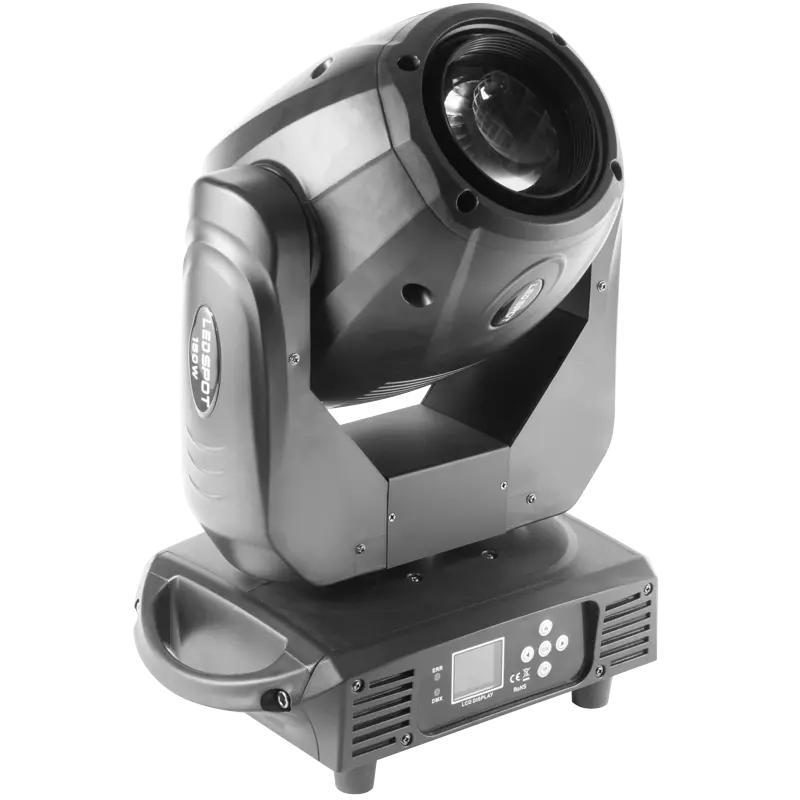

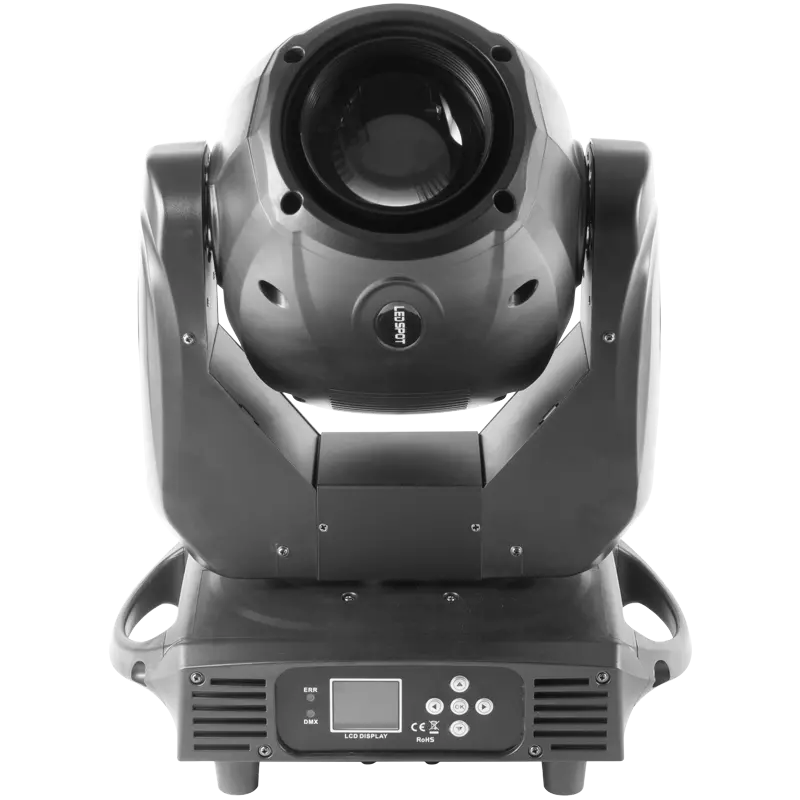

SPOT LED 150 is a compact SPOT type moving head with a 150W LED light source. Equipped with eight color dials + white, two GOBO discs, and two rotating prisms. Small dimensions and weight, as well as easier operation due to the use of an LED diode, make the device extremely versatile and convenient to use both in small rooms or on small stages, as well as at larger events.

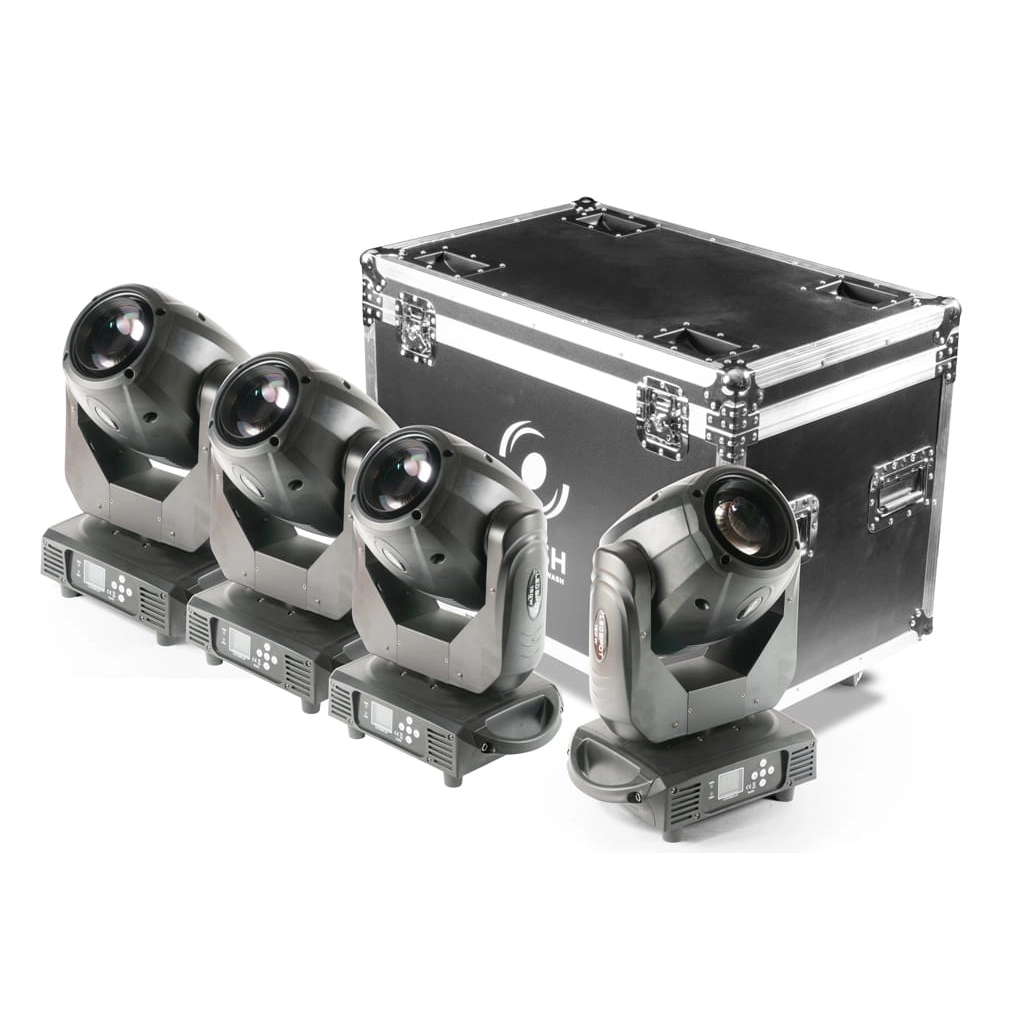

When purchasing 2 devices, you receive a dedicated Case, enabling safe storage and transport of devices and accessories.
Power Source (AC) |
|
|---|---|
| Supply voltage | 110-240V |
| Power consumption | 300W |
| Power frequency | 50-60Hz |
Light source |
|
|---|---|
| Type | LED |
| Quantity | 1 |
| Power (W) | 150 |
| Color Rendering Index (CRI) | 65 |
Color Mixing System |
|
|---|---|
| CMY | 8 bit |
Color Wheel |
|
|---|---|
| Quantity | 8+biały |
Dimming |
|
|---|---|
| Dimming | 8 bit |
ZOOM |
|
|---|---|
| ZOOM | Motorized (8 bit) |
Beam angle |
|
|---|---|
| Beam angle | Zmienny (- ⁰) |
Prism |
|
|---|---|
| Prism 1 | 6 (Linear) |
| Prism 2 | 8 (Round) |
FROST filter |
|
|---|---|
| FROST filter | light (smooth) |
CTO |
|
|---|---|
| CTO | smooth |
GOBO Wheel |
|
|---|---|
| Static | 7 |
| Rotary | 7 |
| Rotation | 8 bit |
| Removable slot | No |
Strobe - frequency |
|
|---|---|
| Frequency | 1-20Hz |
| Pulsating | Yes |
| Random | Yes |
DMX control |
|
|---|---|
| Number of modes | 2 |
| Number of channels | 16-20 |
Movement |
|
|---|---|
| Range PAN | 540 ⁰ |
| Range TILT | 270 ⁰ |
| Regulation | 16 bit |
Modes of operation |
|
|---|---|
| DMX512 | Yes |
| Sound control | Yes |
| Auto control | Yes |
| Master-slave | Yes |

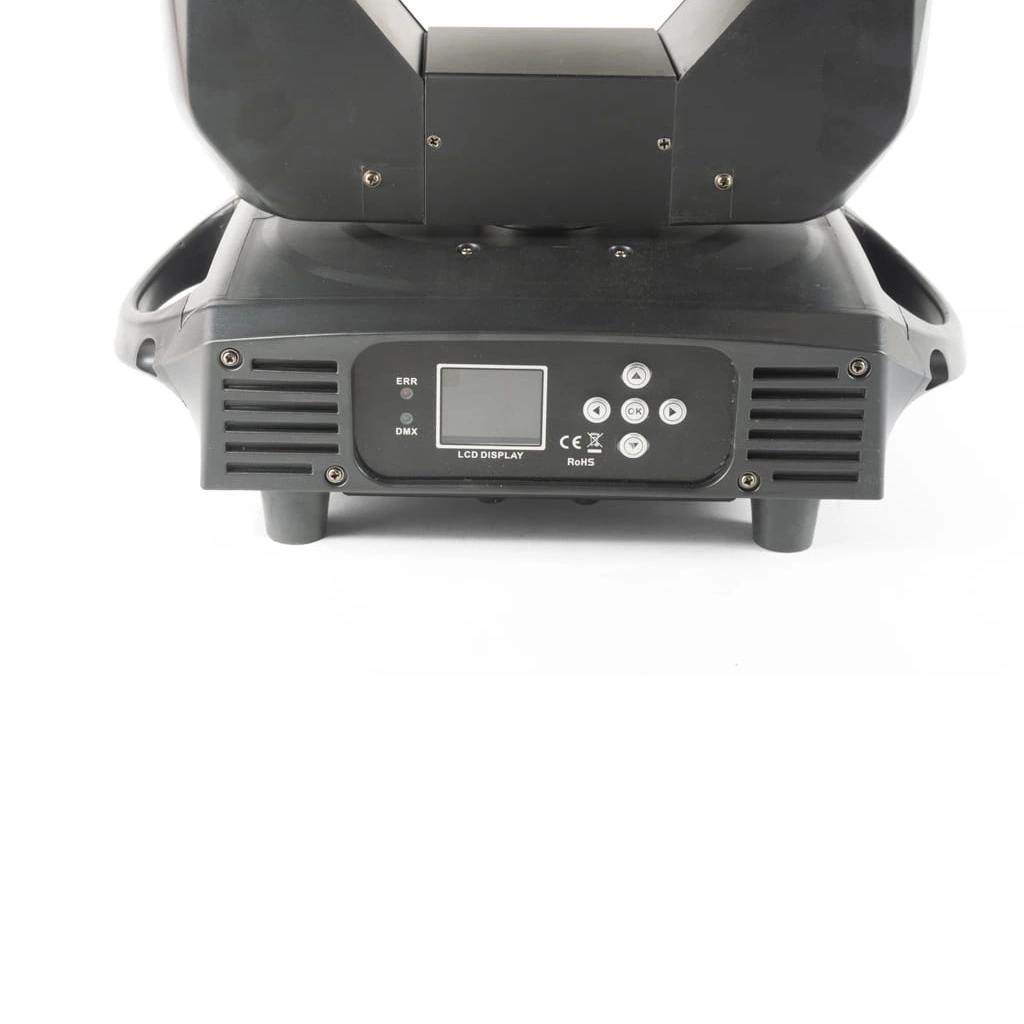

User Interface |
|
|---|---|
| Physical buttons | Yes |
| Color display | Yes |

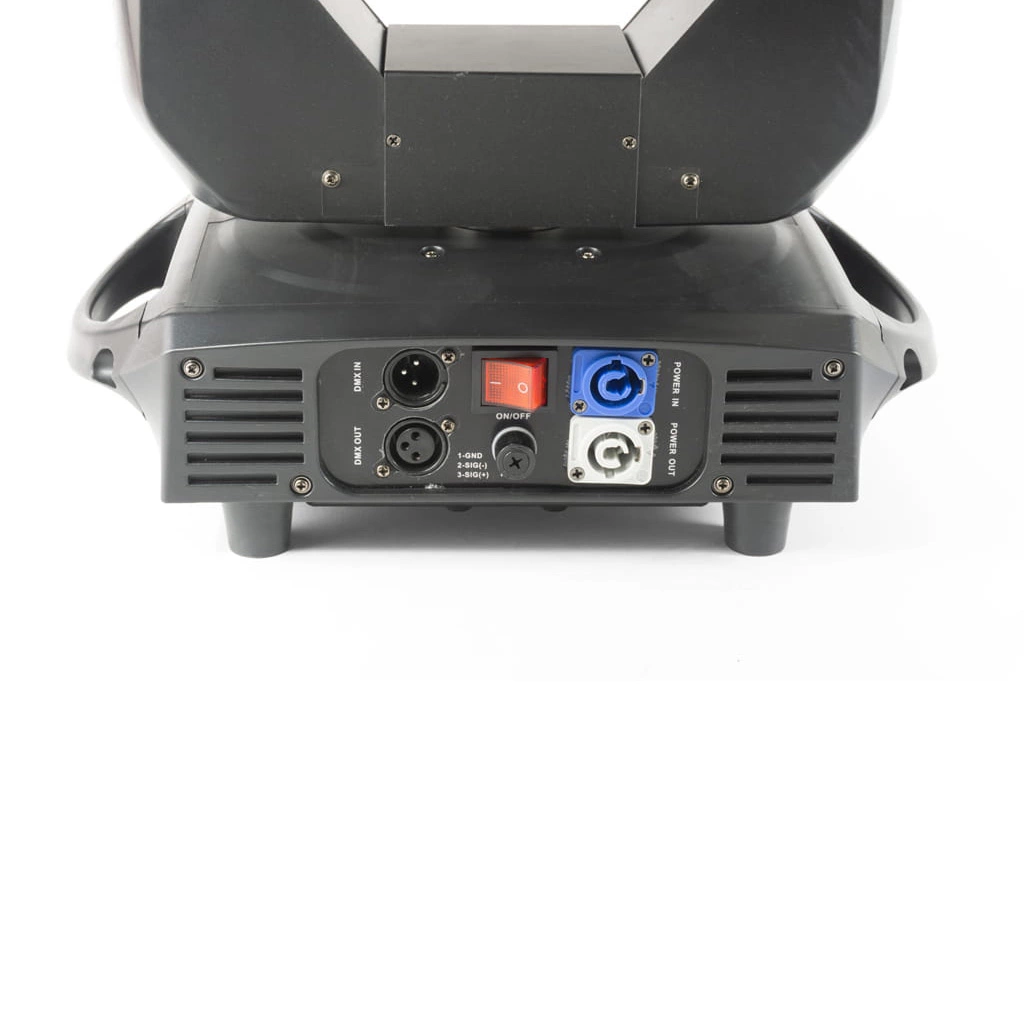

Connectors |
|
|---|---|
| AC IN | PowerCON |
| AC OUT | PowerCON |
| DMX IN | 3-pin XLR |
| DMX OUT | 3-pin XLR |

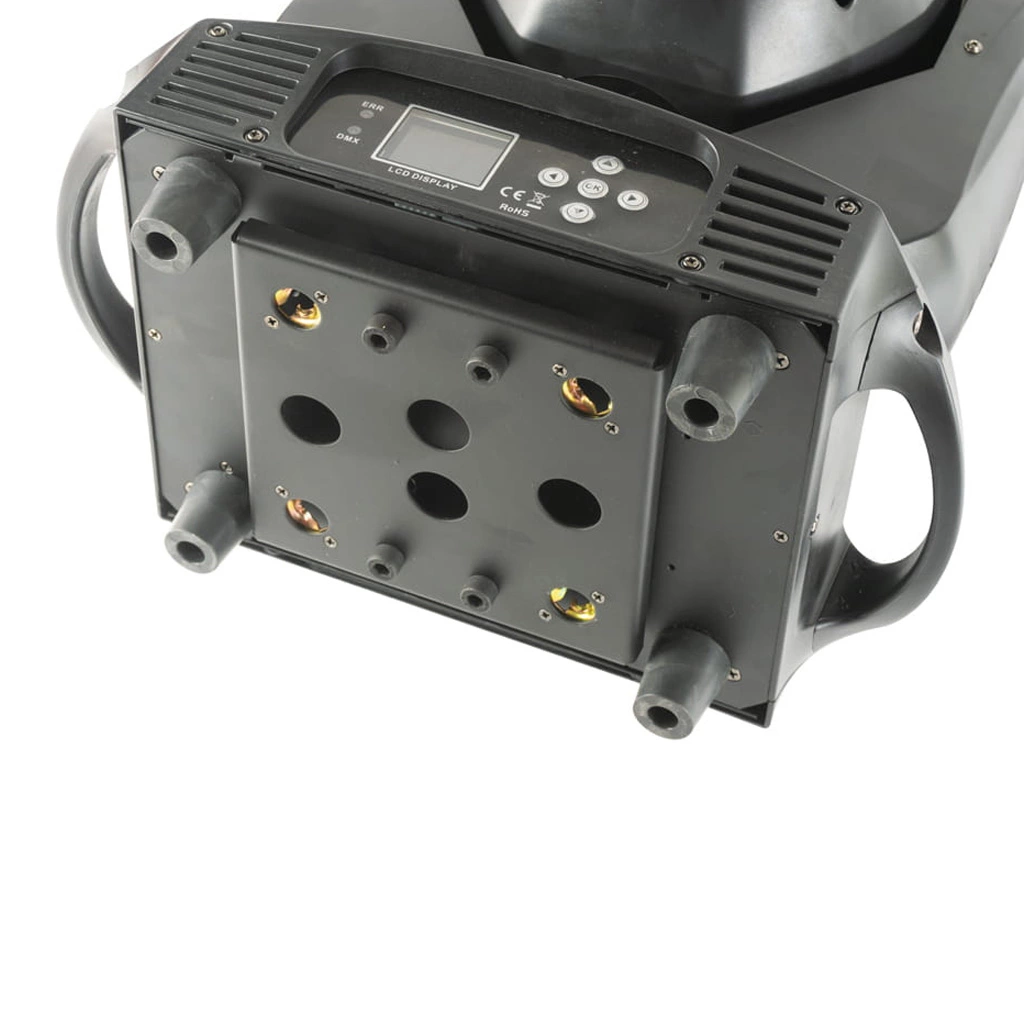

Physical parameters |
|
|---|---|
| IP protection level | IP20 |
| Housing type | ABS |

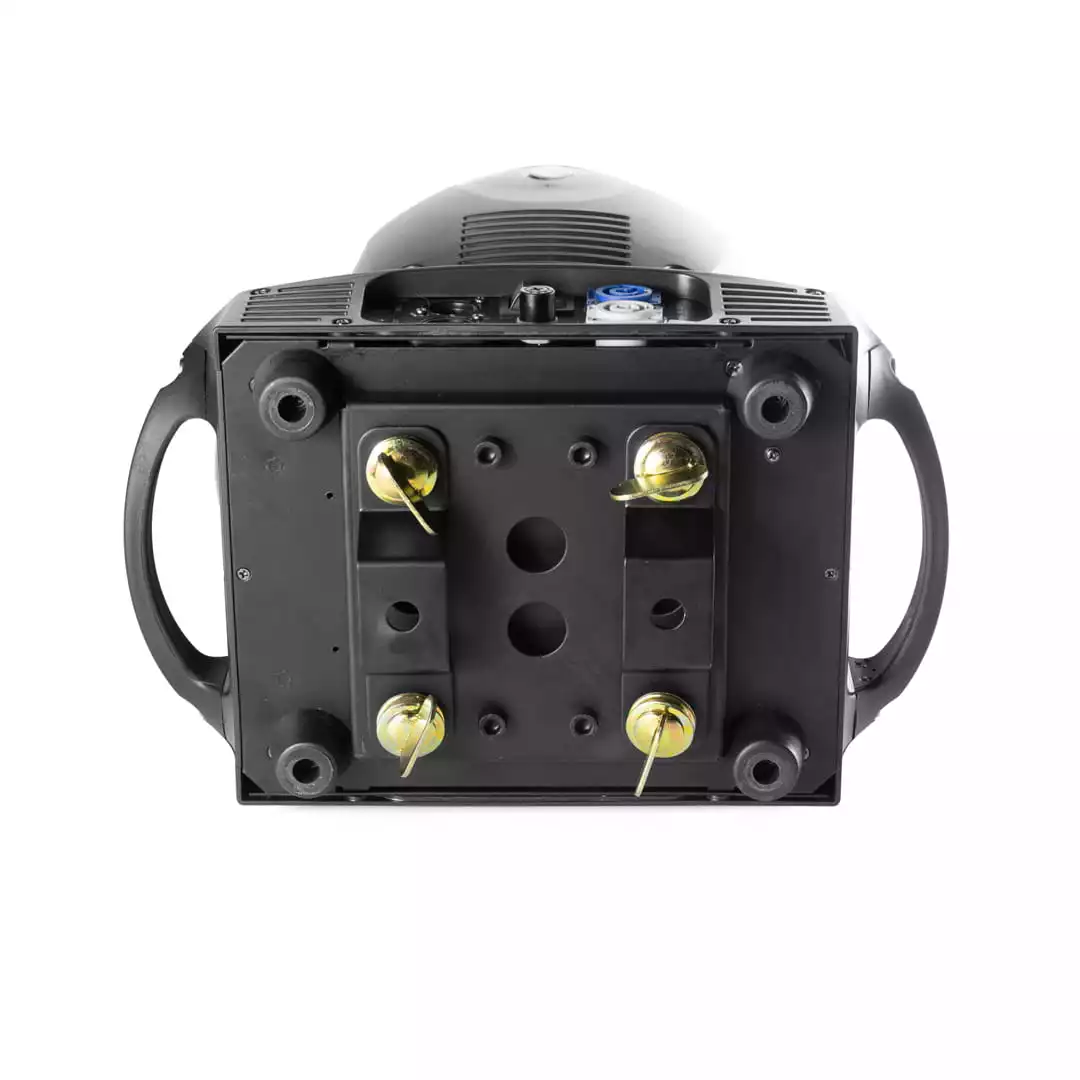

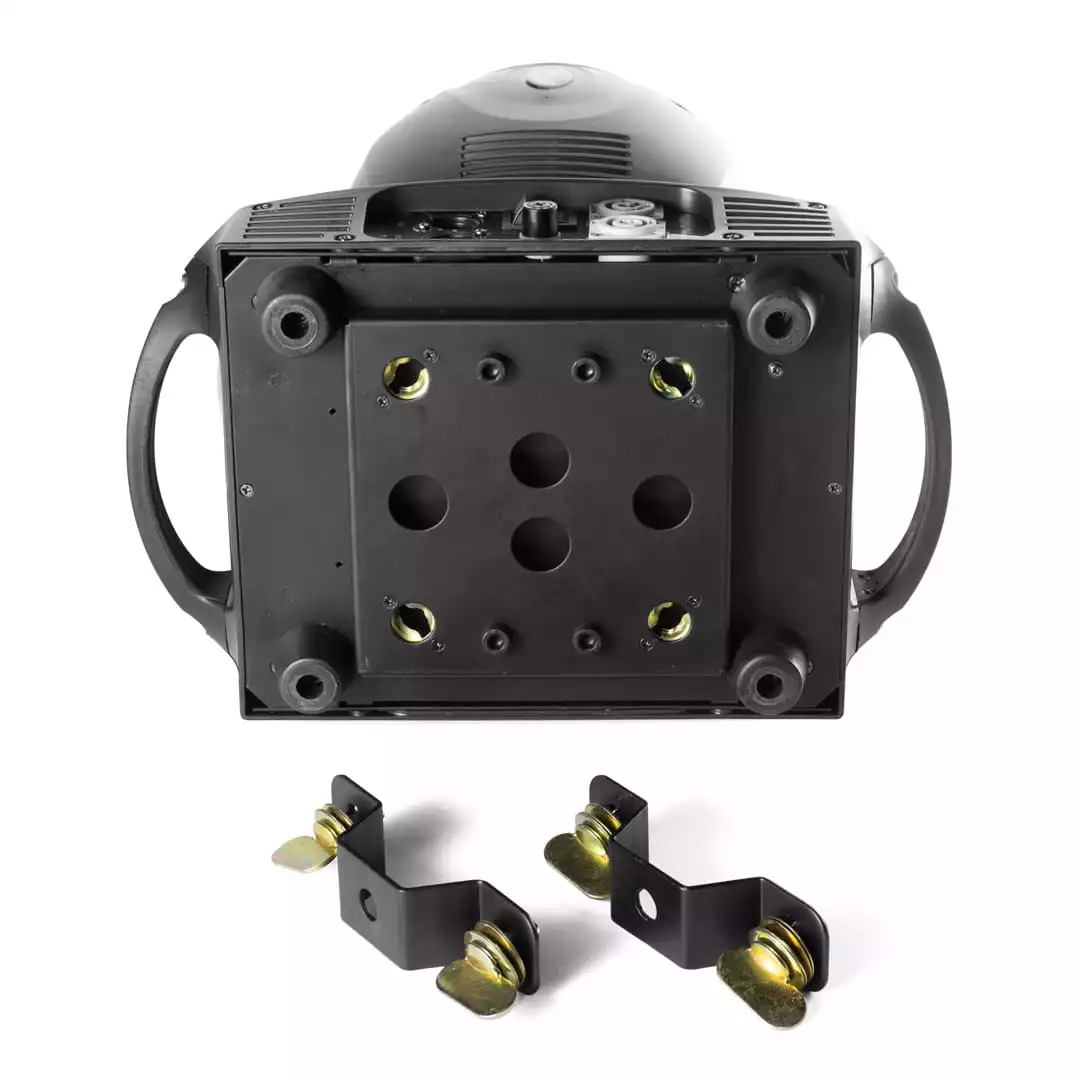

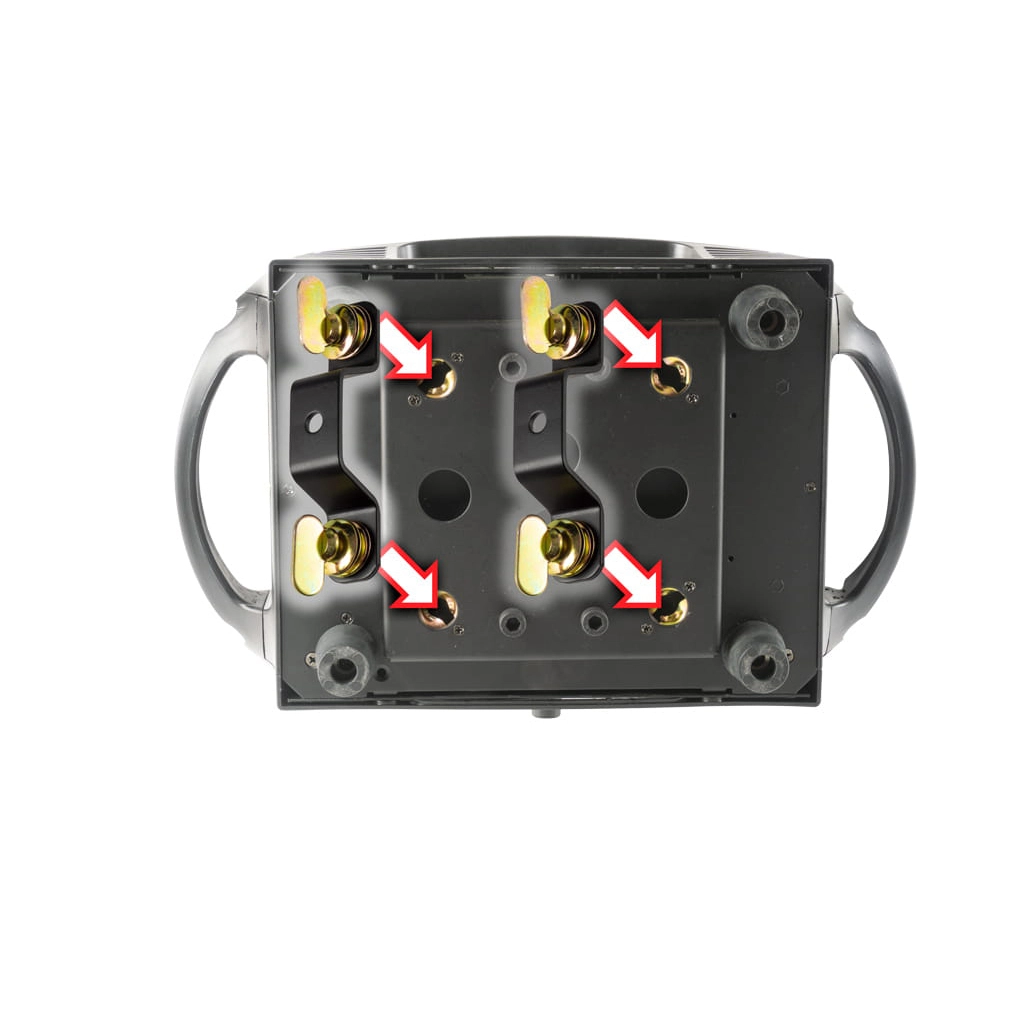

| Fixing | Mounting hole |
| Fixing | fastlock |
| Blockade (Pan) | No |
| Blockade (Tilt) | No |
| Housing color | Black |

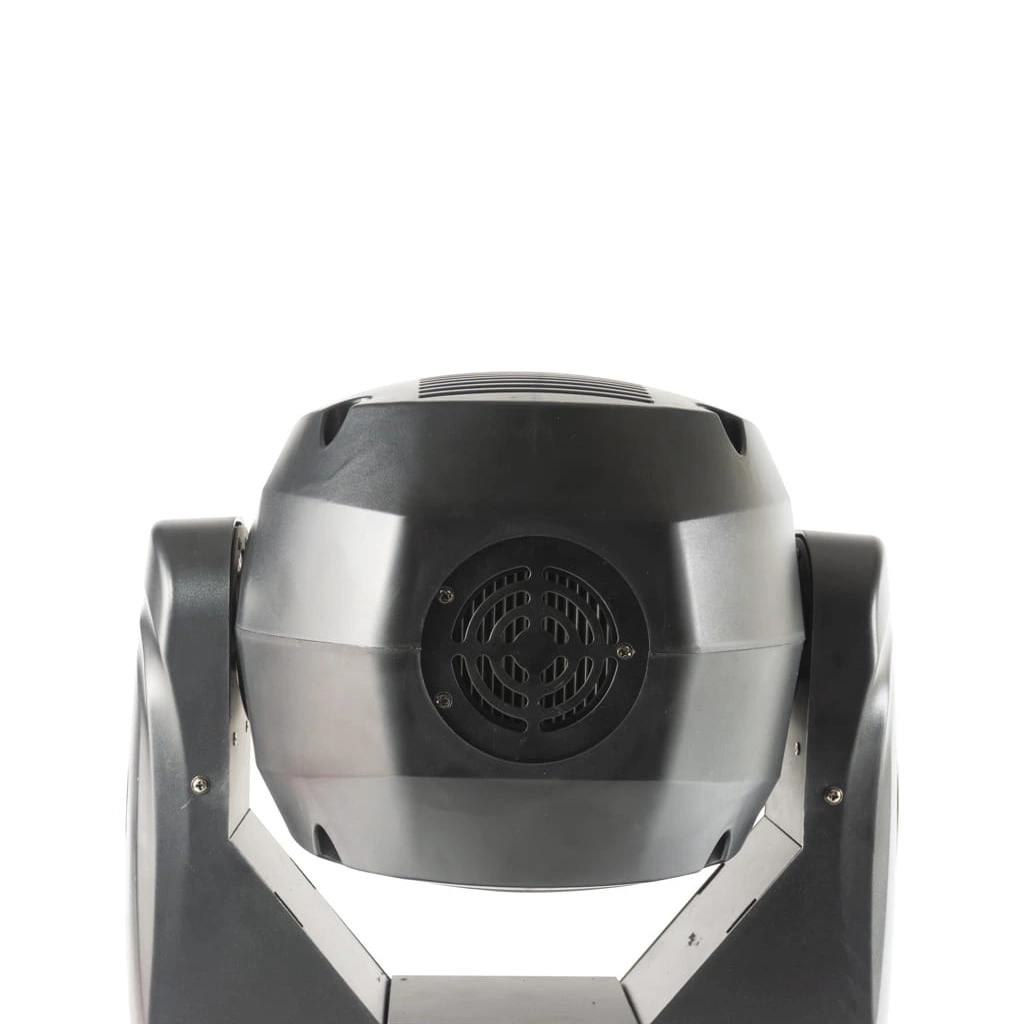

| Cooling | Active |
| Length [cm] | 40 |
| Width [cm] | 33 |
| Height [cm] | 50 |
| Weight [kg] | 12,4 |

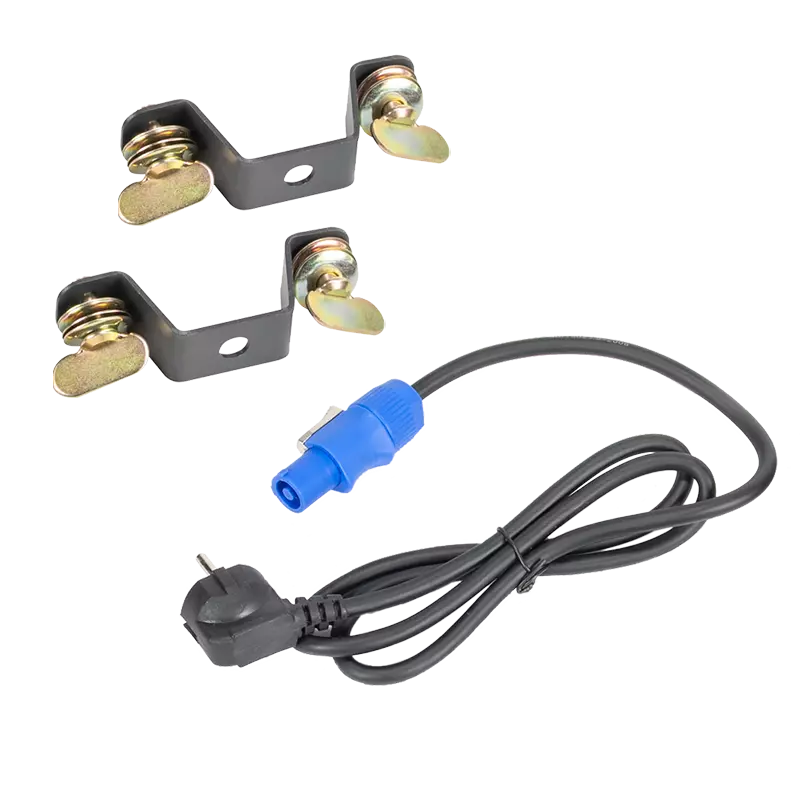

Contents of the package |
|
|---|---|
| Manual | Yes |
| Wiring | PowerCON |
| Device | SPOT LED 150 |
Package dimensions and weight |
|
|---|---|
| Package length [cm] | 89 |
| Package width [cm] | 58 |
| Package height [cm] | 65 |
| Weight with packaging [kg] | 30 |
| Type of packaging | F0900359 CASE FOR 4x SPOT LED 150 |
