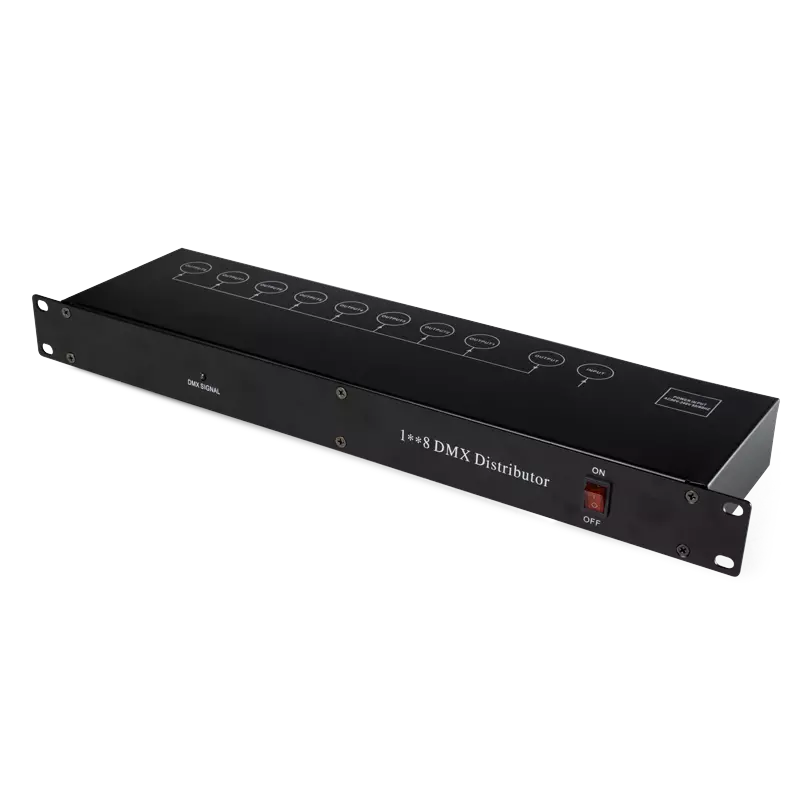

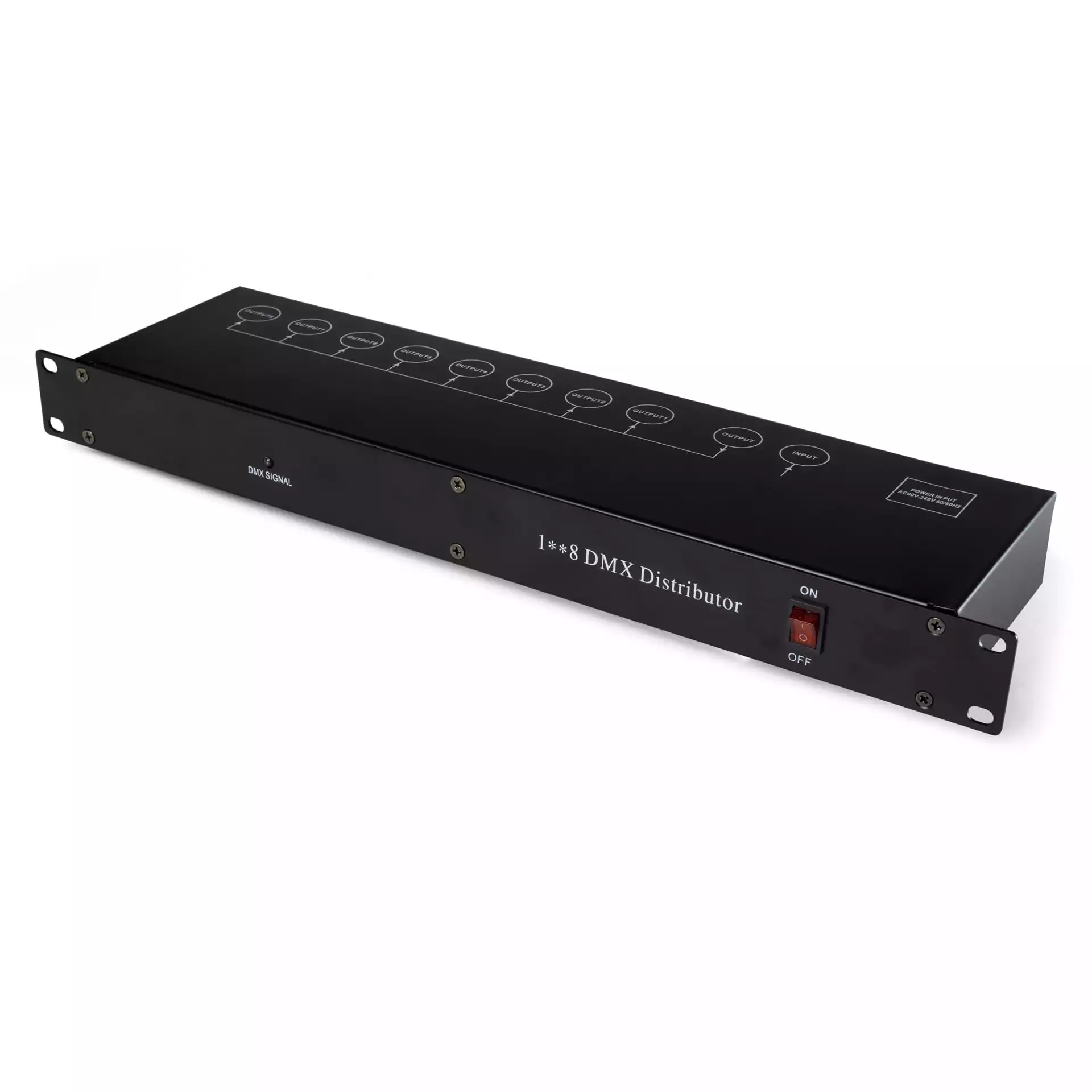

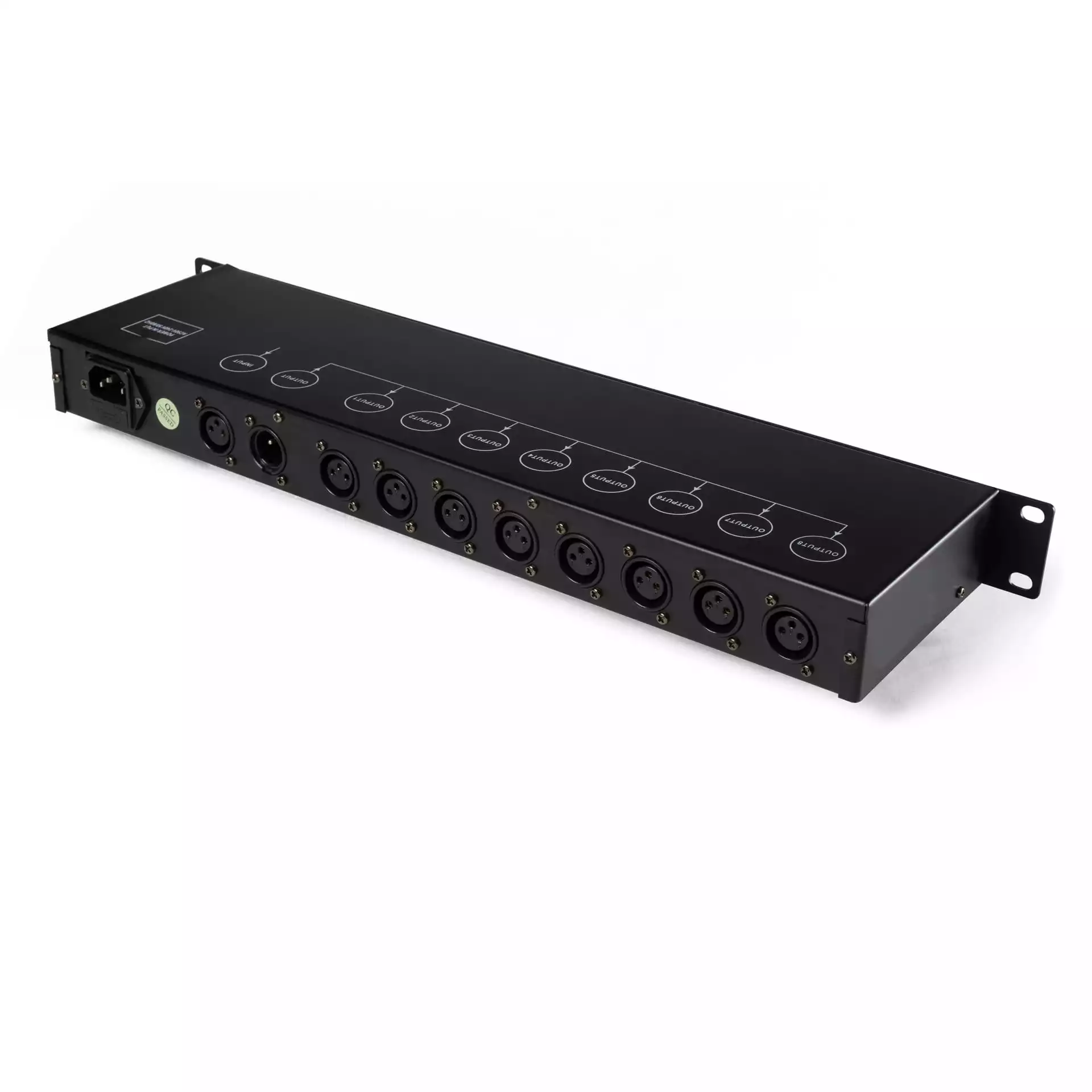

SPLITTER DMX 8 CH ver.20 is a professional device for large lighting installations, designed to configure DMX networks through a DMX input signal splitter and amplifier. The 1U device has 8 galvanically isolated outputs, DMX IN/OUT connected in parallel, an ON/OFF switch, a bright LED indicating the DMX status and external power supply via the C14 socket.
Power Source (AC) |
|
|---|---|
| Supply voltage | 110-240V |
| Power consumption | 15W |
| Power frequency | 50-60Hz |
Modes of operation |
|
|---|---|
| DMX512 | Yes |
User Interface |
|
|---|---|
| Physical buttons | Yes |
Connectors |
|
|---|---|
| AC IN | IEC-C14 |
| DMX IN | 3-pin XLR |
| DMX OUT | 3-pin XLR |
Physical parameters |
|
|---|---|
| IP protection level | IP20 |
| Housing type | Steel |
| Fixing | Mounting hole |
| Housing color | Black |
| Cooling | Passive |
| Length [cm] | 48 |
| Width [cm] | 16 |
| Height [cm] | 4,5 |
| Weight [kg] | 1,8 |
Contents of the package |
|
|---|---|
| A kind of package | cardboard box |
| Manual | Yes |

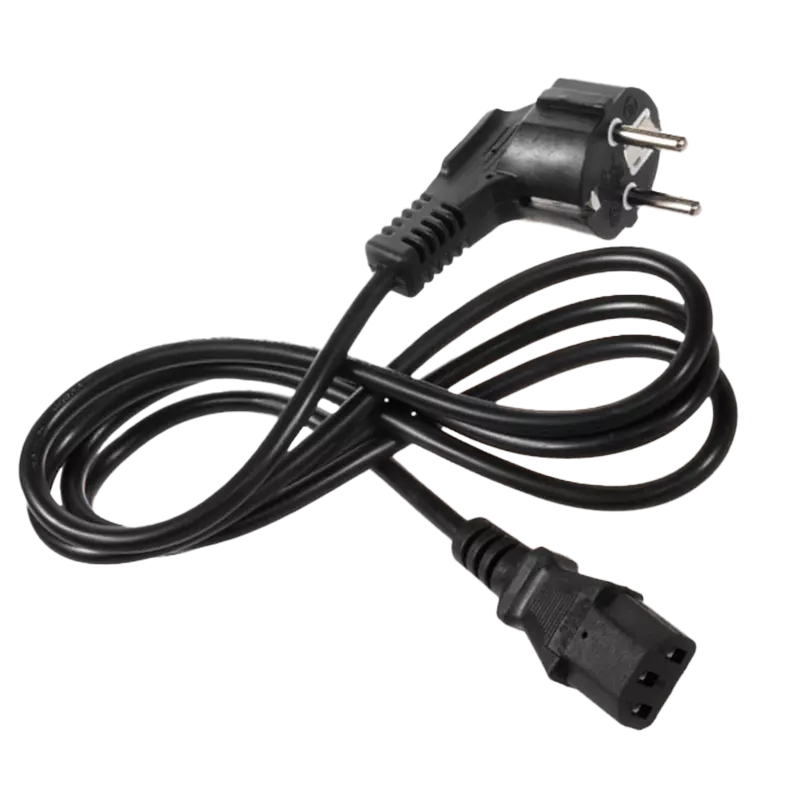

| Wiring | IEC-C13 |
| Device | SPLITTER DMX 8 CH ver.20 |
| Handle | Integrated |
| Steel safety cable | Yes |
