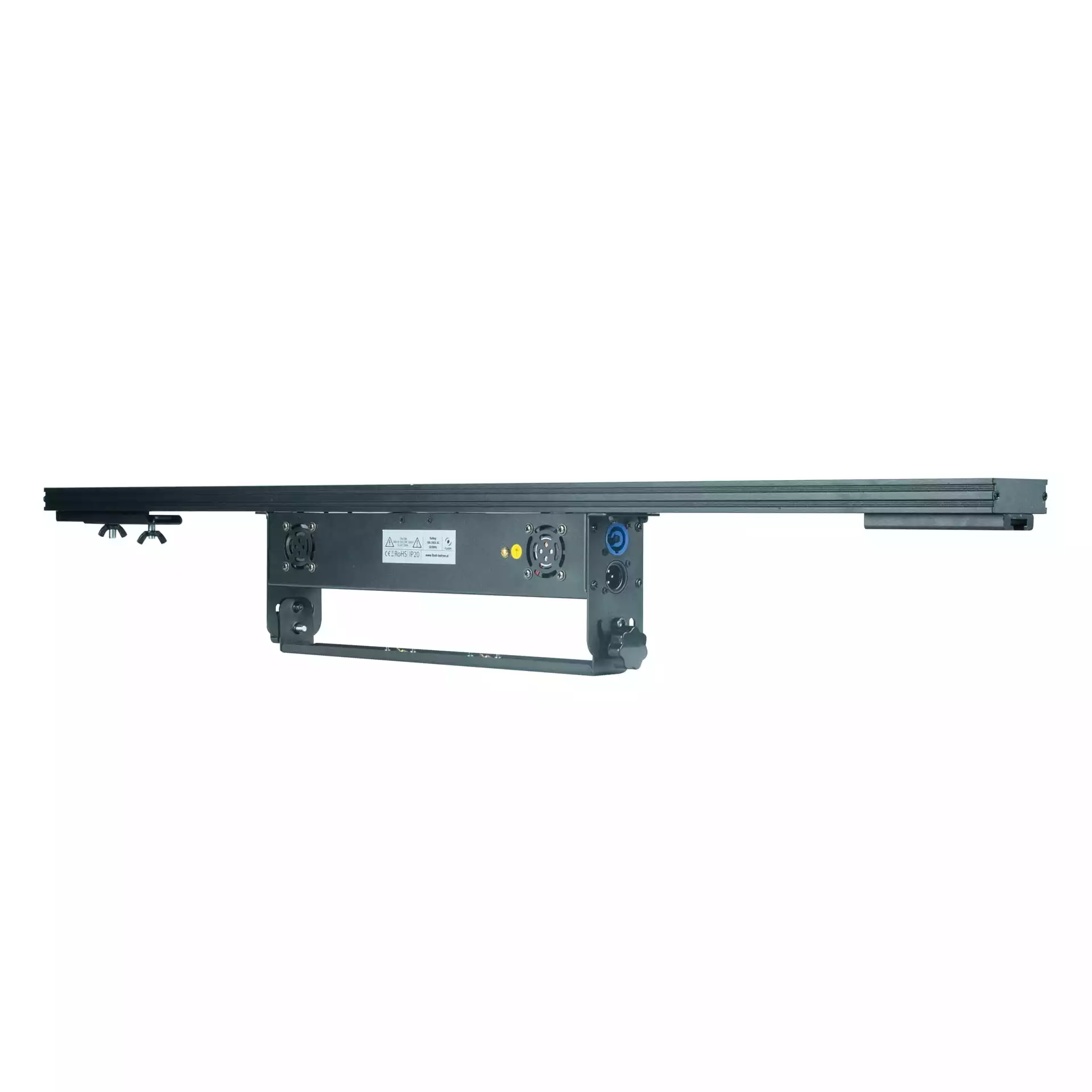

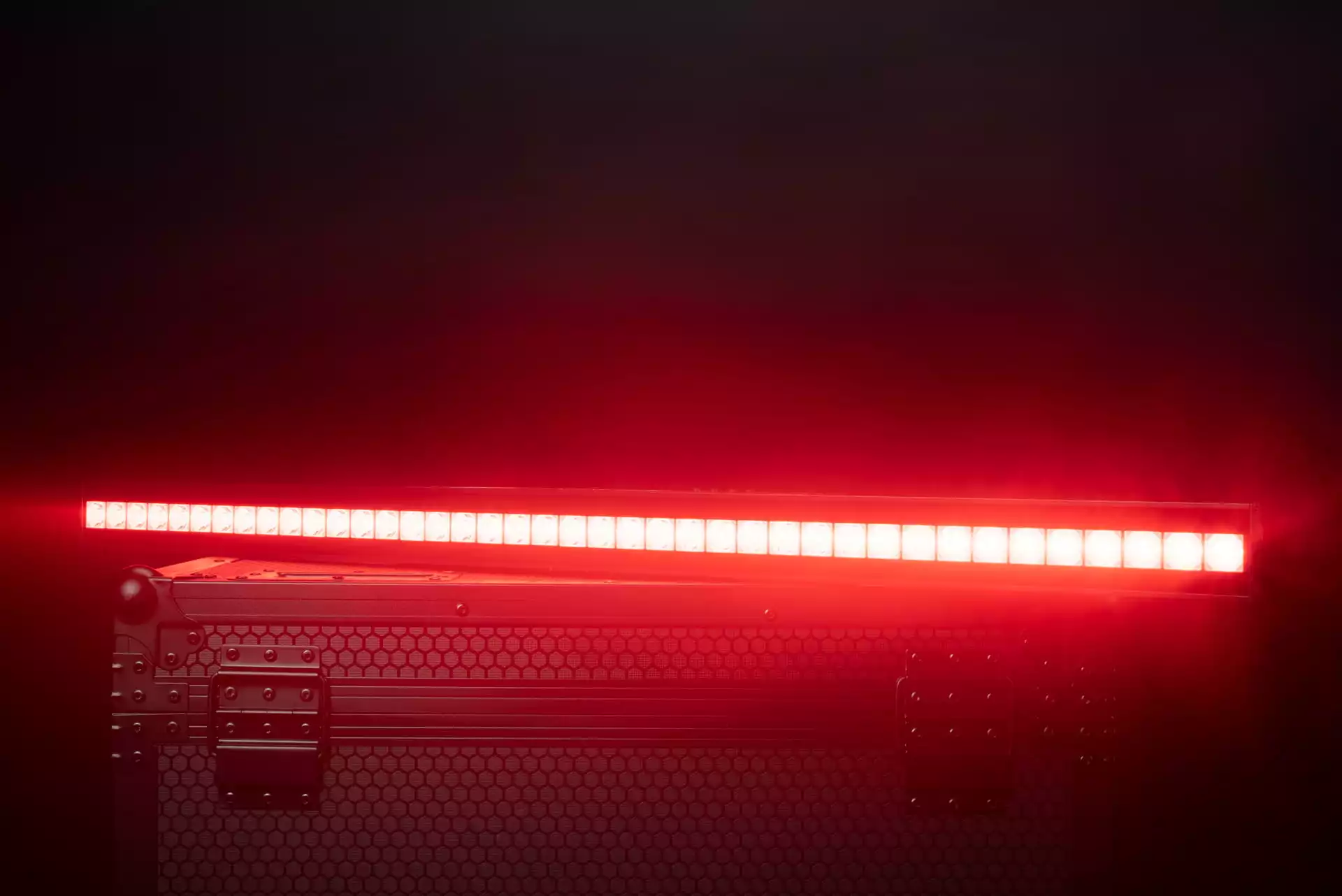

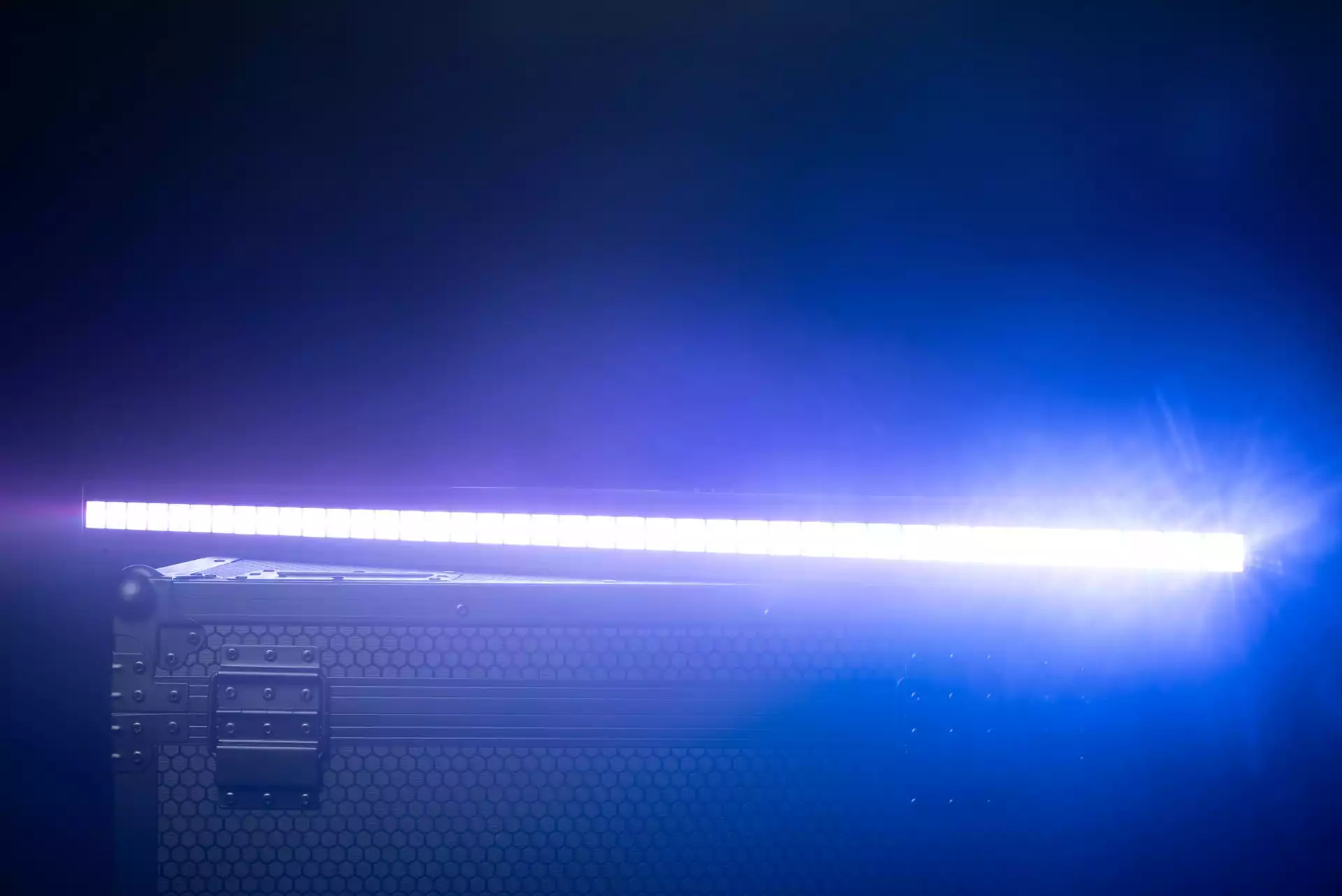

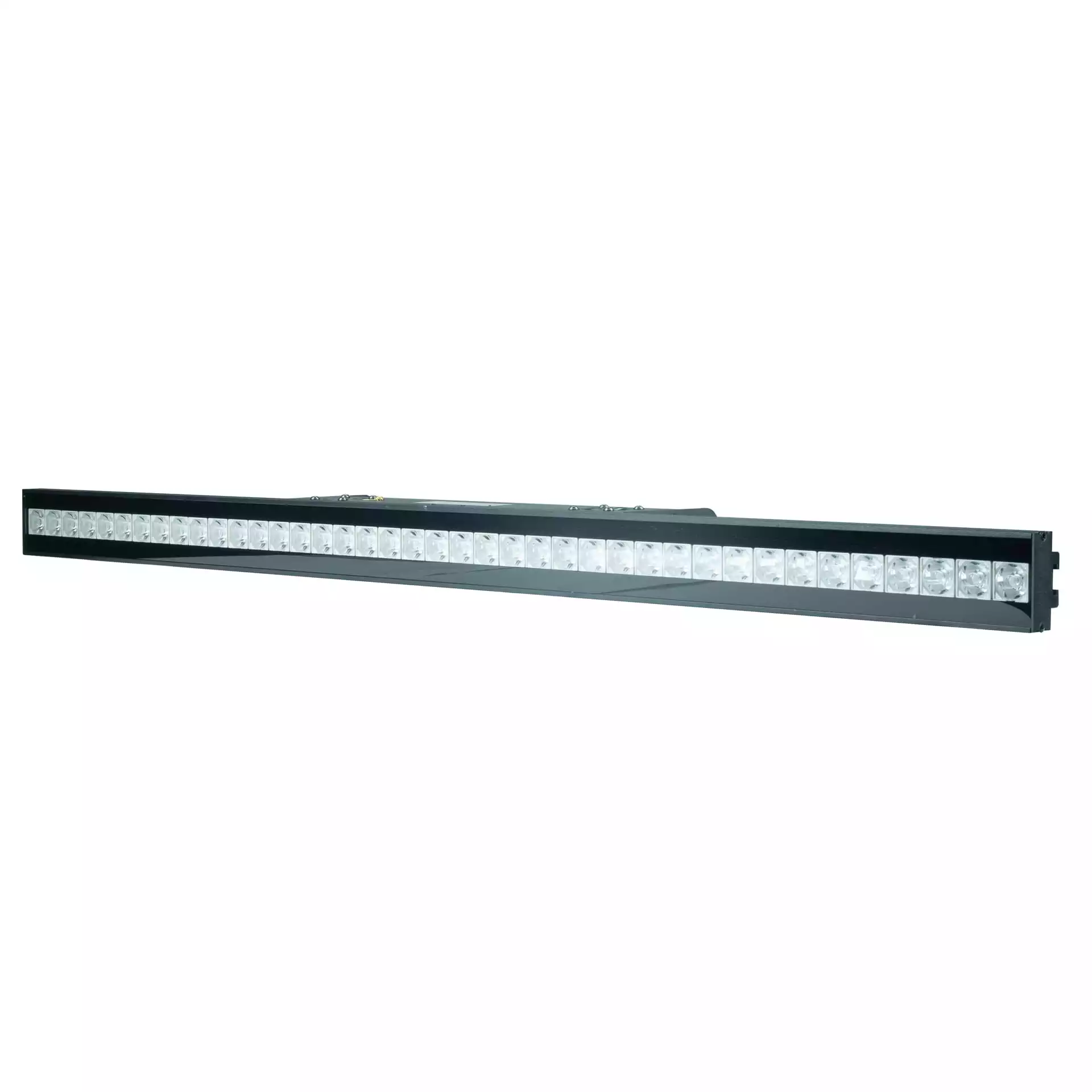

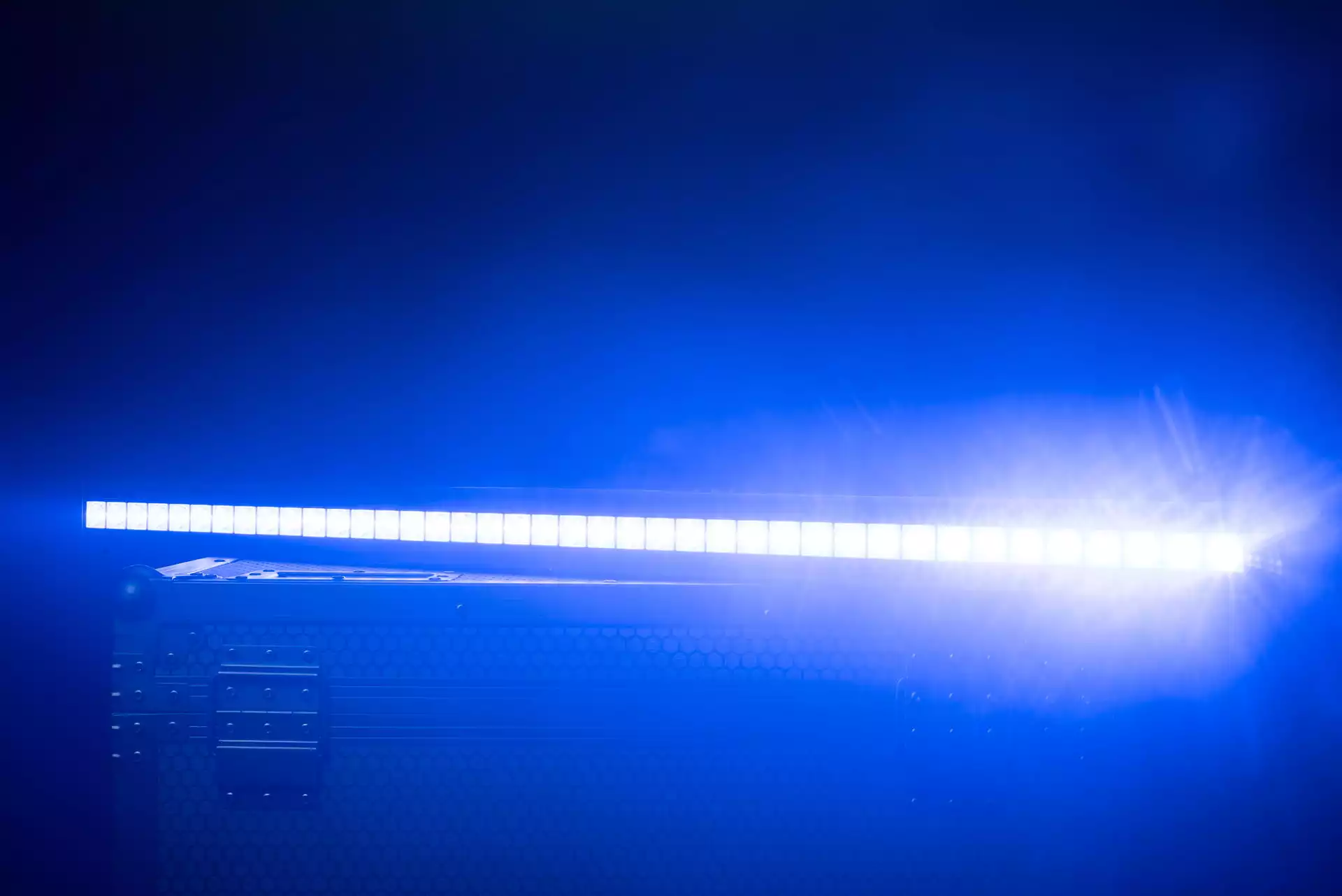

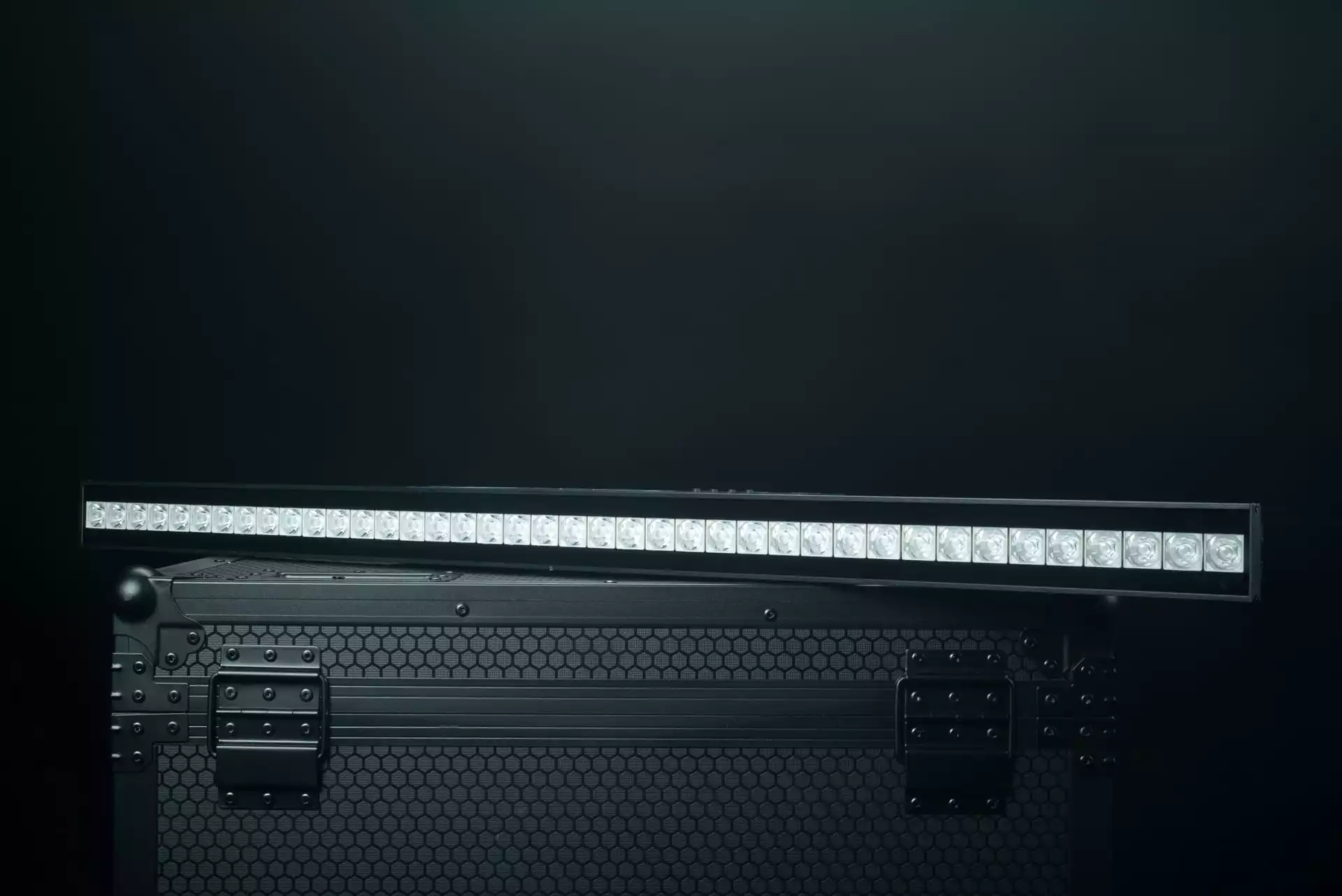

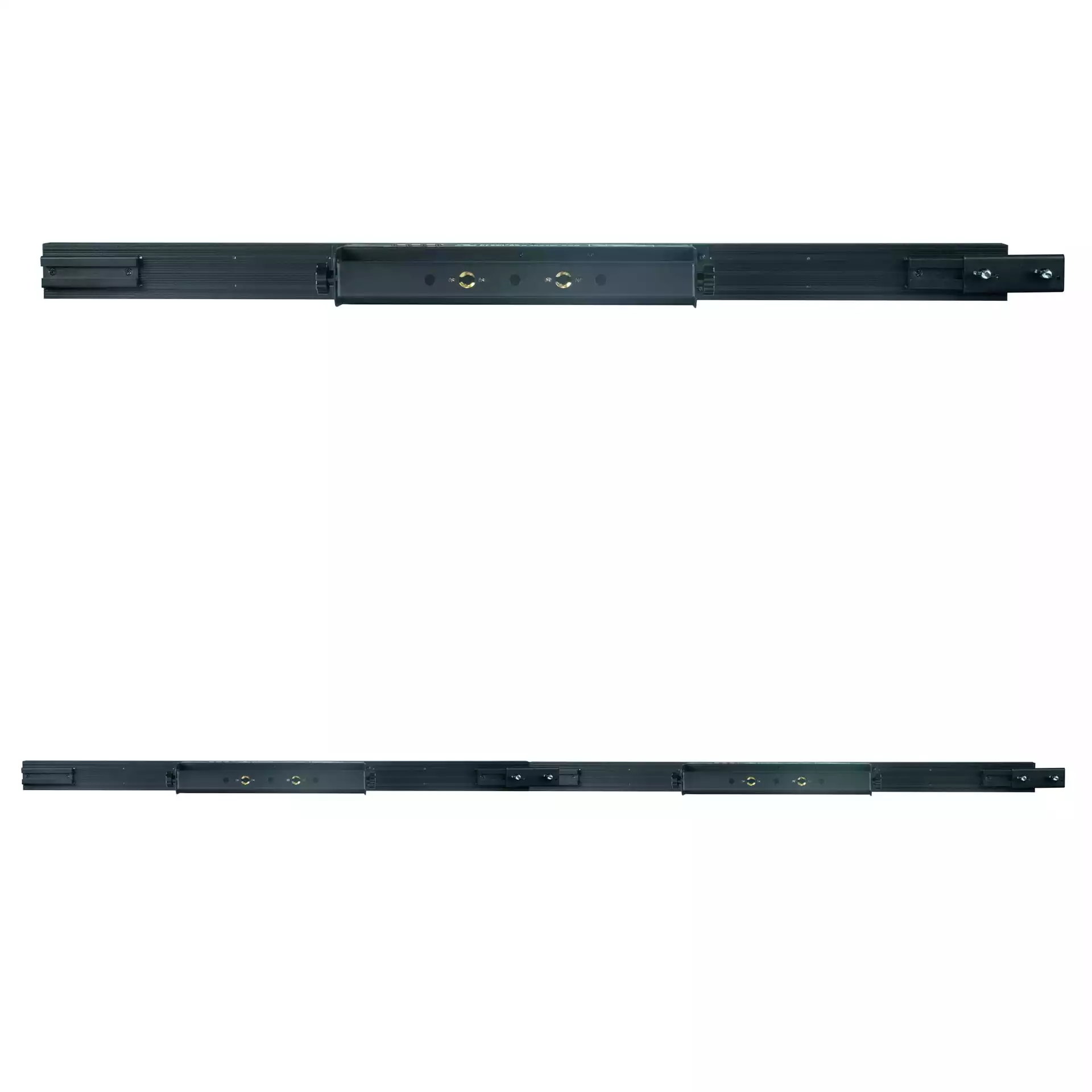

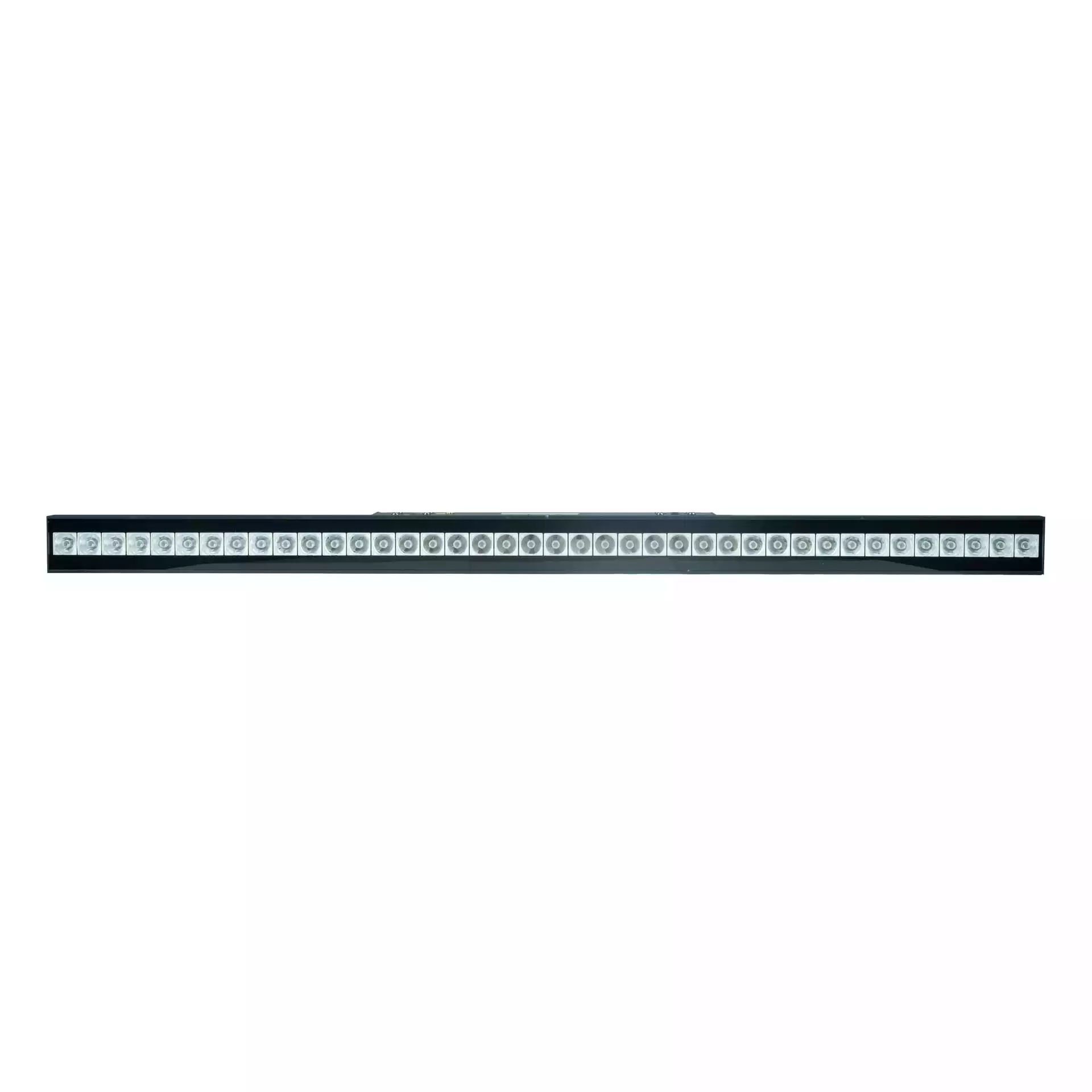

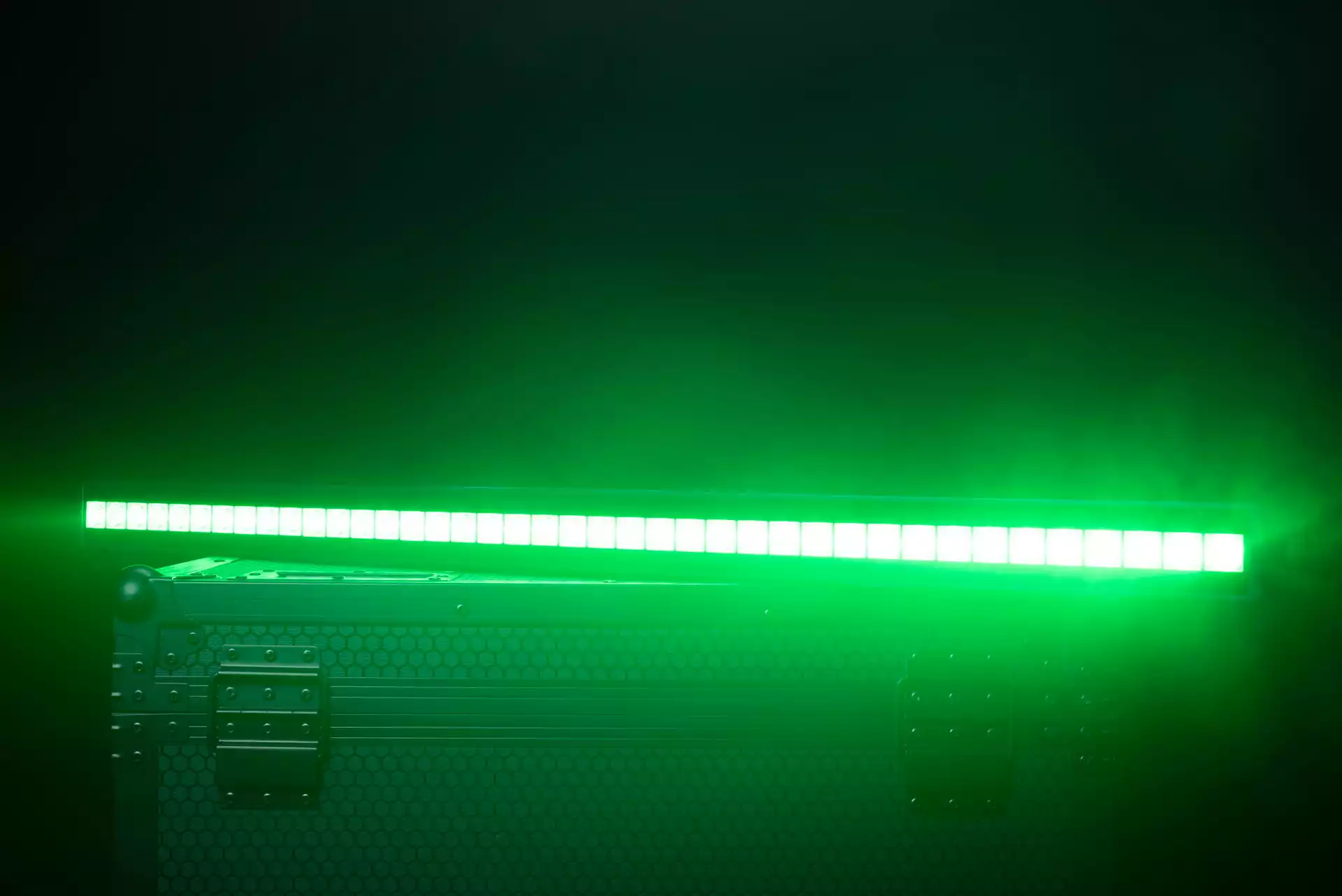

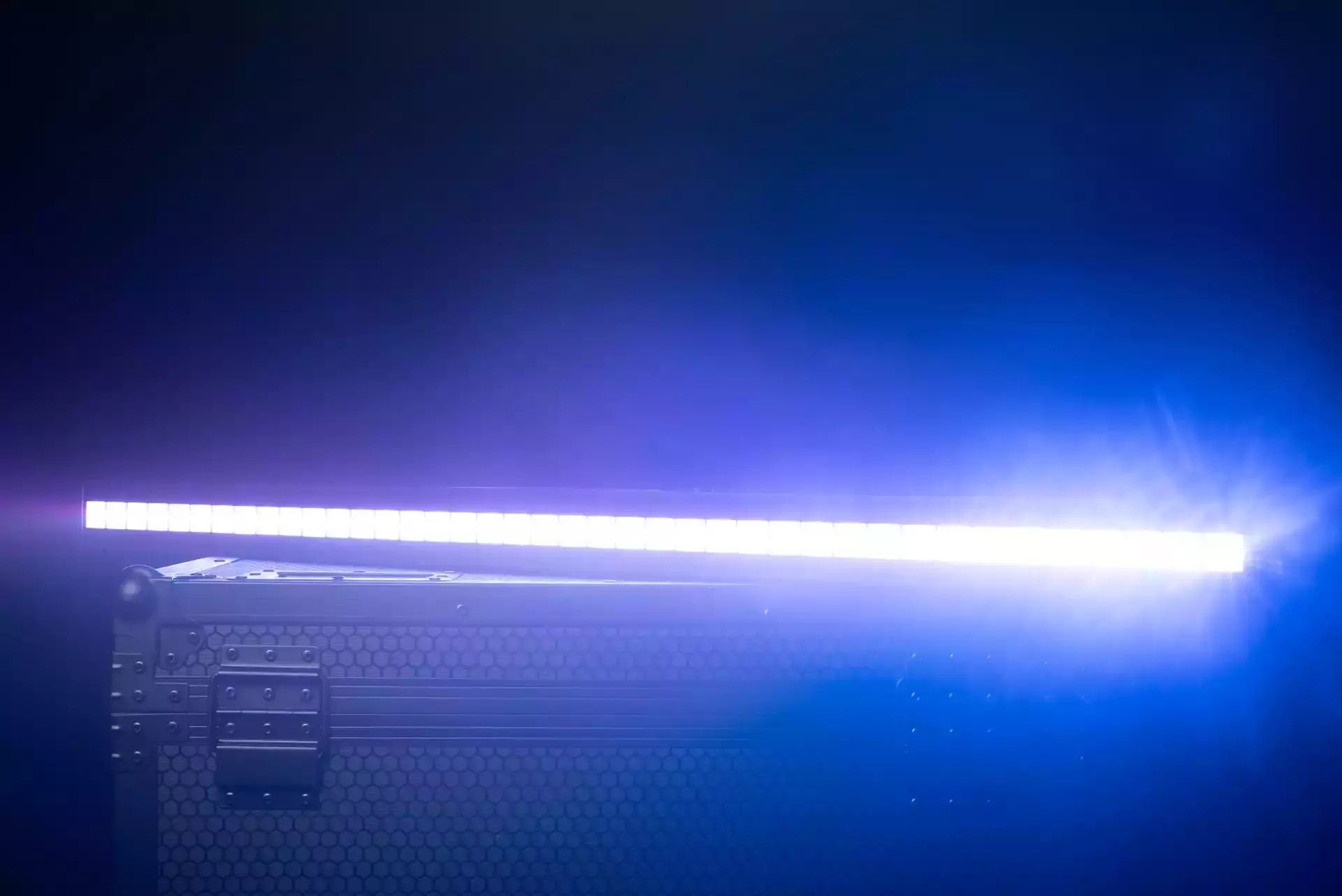

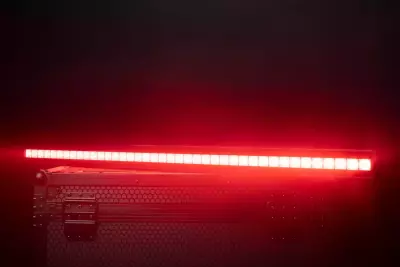

LedBar 403 RGB is equipped with 40 high-quality LEDs with a power of 3W each, ensuring smooth mixing of RGB colors. The device has an aluminum housing, active cooling, a handle with a mounting hole enabling quick installation of the device on a structure or its stable placement, built-in XLR and PowerCON connectors. In addition, this LED bar allows many control modes: DMX512, Sound control, Auto control, Master-slave, and its fixed lighting angle ensures a uniform directional light stream.
Power Source (AC) |
|
|---|---|
| Supply voltage | 100-240V |
| Power consumption | 120W |
| Power frequency | 50-60Hz |
Light source |
|
|---|---|
| Type | LED (RGB) |
| Quantity | 40 |
| Power (W) | 3 |
| Number of control sections | 40 |
| Color Rendering Index (CRI) | 65 |
Color Mixing System |
|
|---|---|
| RGB | 8 bit |
Dimming |
|
|---|---|
| Dimming | 8 bit |
Beam angle |
|
|---|---|
| Beam angle | Fixed |
Strobe - frequency |
|
|---|---|
| Frequency | 1-20Hz |
| Pulsating | Yes |
| Random | Yes |
DMX control |
|
|---|---|
| Number of modes | 10 |
| Number of channels | 3-121 |
Modes of operation |
|
|---|---|
| DMX512 | Yes |
| Sound control | Yes |
| Auto control | Yes |
| Master-slave | Yes |

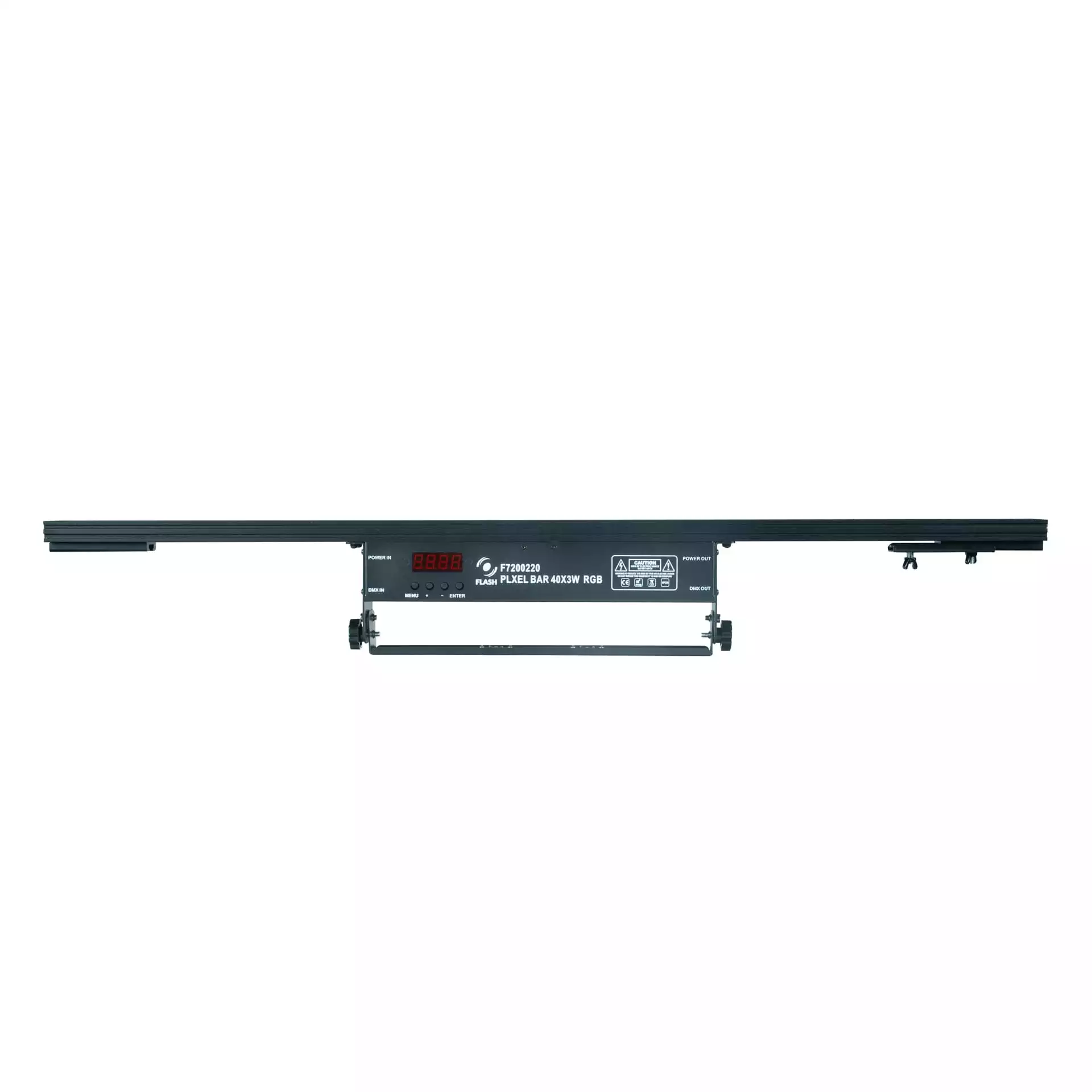

User Interface |
|
|---|---|
| Physical buttons | Yes |
| LED segment display | Yes |
Connectors |
|
|---|---|
| AC IN | PowerCON |
| AC OUT | PowerCON |
| DMX IN | 3-pin XLR |
| DMX OUT | 3-pin XLR |
Physical parameters |
|
|---|---|
| IP protection level | IP20 |
| Housing type | Aluminium |

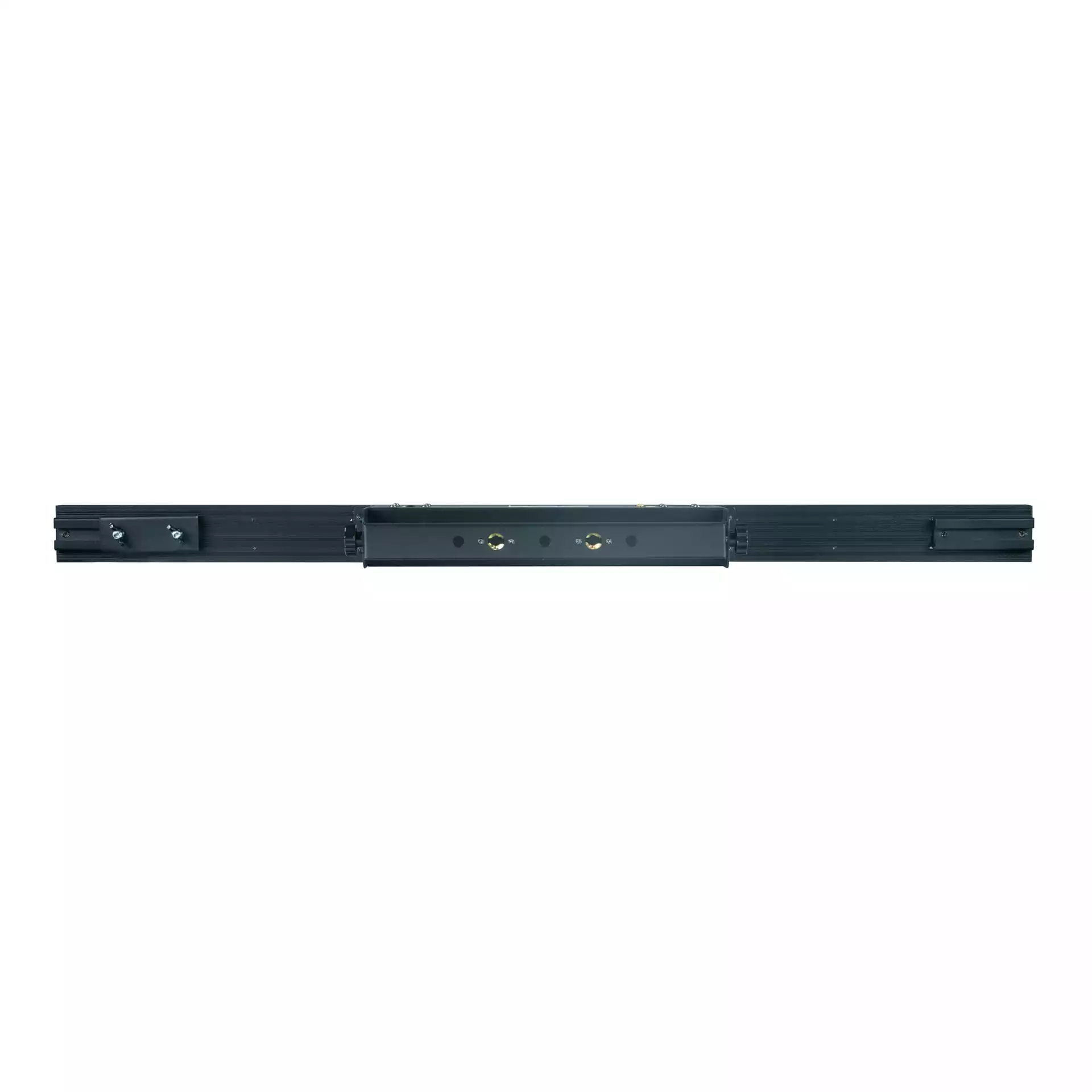

| Fixing | Integrated |
| Housing Color | Black |
| Cooling | Active |
| Length [cm] | 100 |
| Width [cm] | 14 |
| Height [cm] | 6 |
| Weight [kg] | 2,8 |

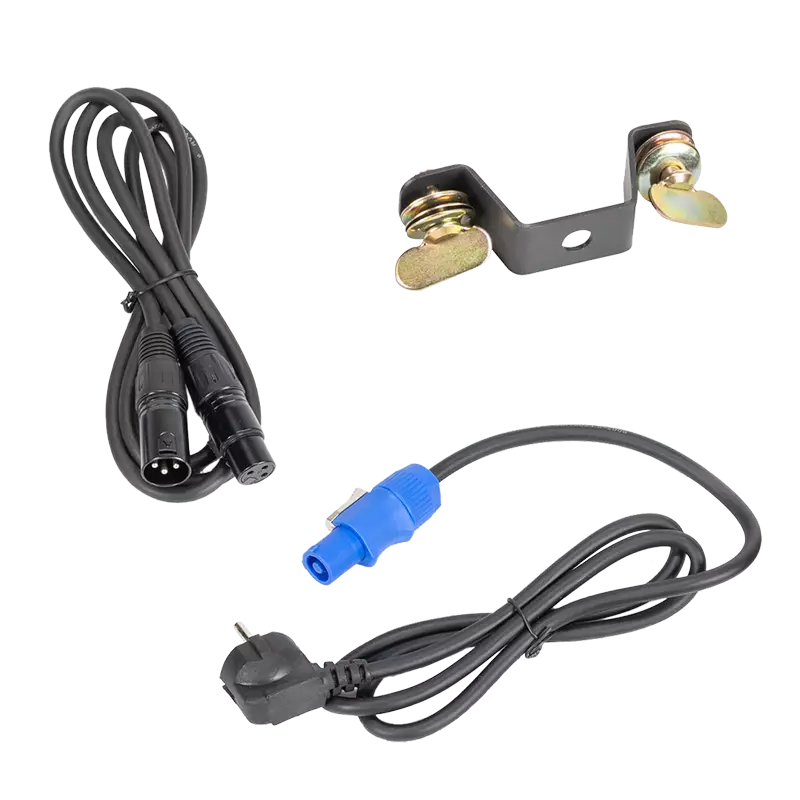

Contents of the package |
|
|---|---|
| Manual | Yes |
| Wiring | PowerCON |
| Device | LedBar 403 RGB |
| Handle | Integrated |
Package dimensions and weight |
|
|---|---|
| Package length [cm] | 106 |
| Package width [cm] | 14 |
| Package height [cm] | 16 |
| Weight with packaging [kg] | 3.8 |
| Type of packaging | Cardboard box |
