TubeFX 360 IP WDMX SET8

TubeFX 360 IP WDMX SET8

Main information:
» Product from category:

Reflectors Battery

» Product series:

EVENT

Product codes:
» Product code:

F7300258

EVENT
Check series
flash
fixtures:

To download fixtures from our database, enter your e-mail address. We will send the files to the e-mail address you provided. By entering the address, you accept statute.

Download now

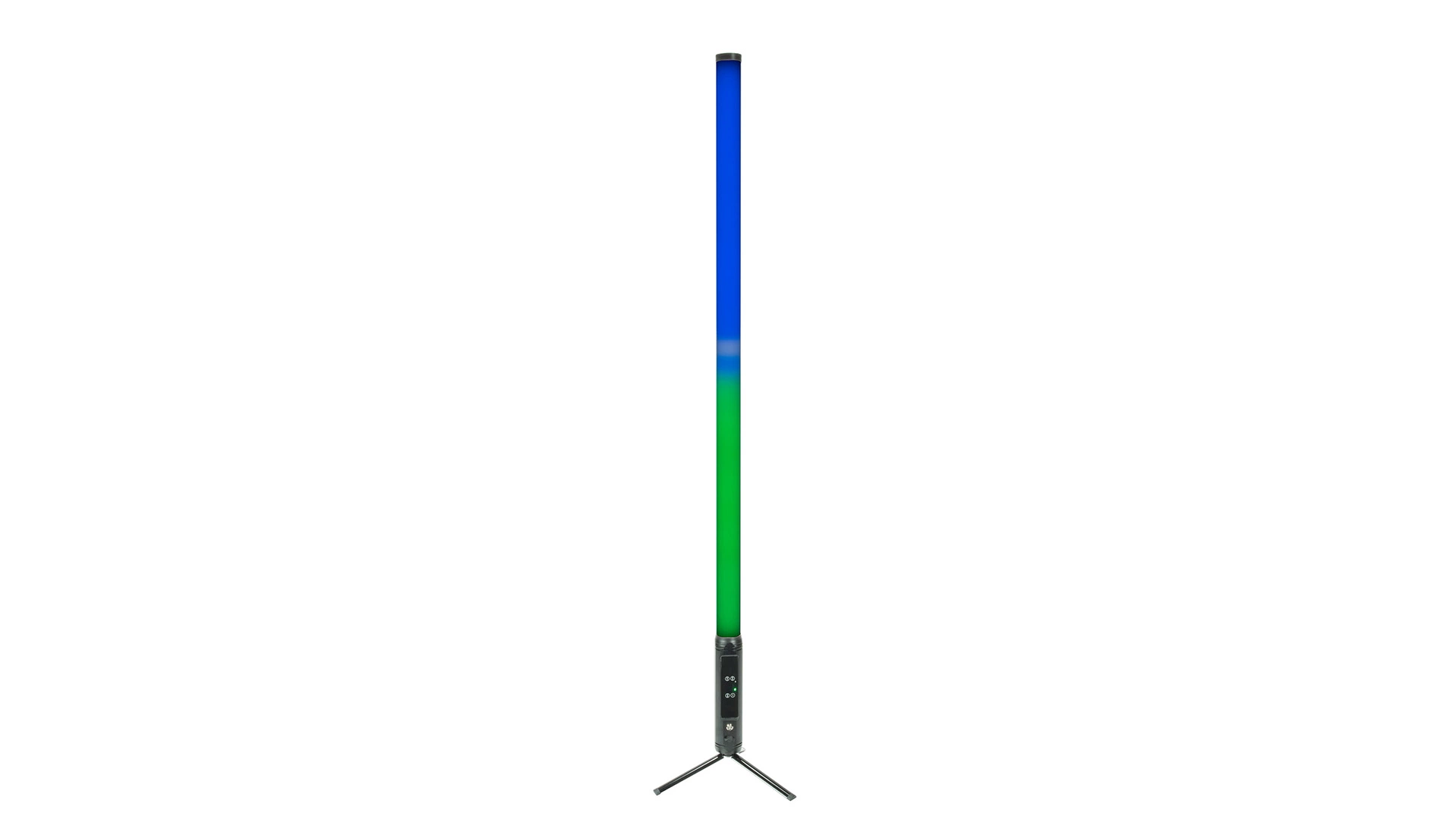

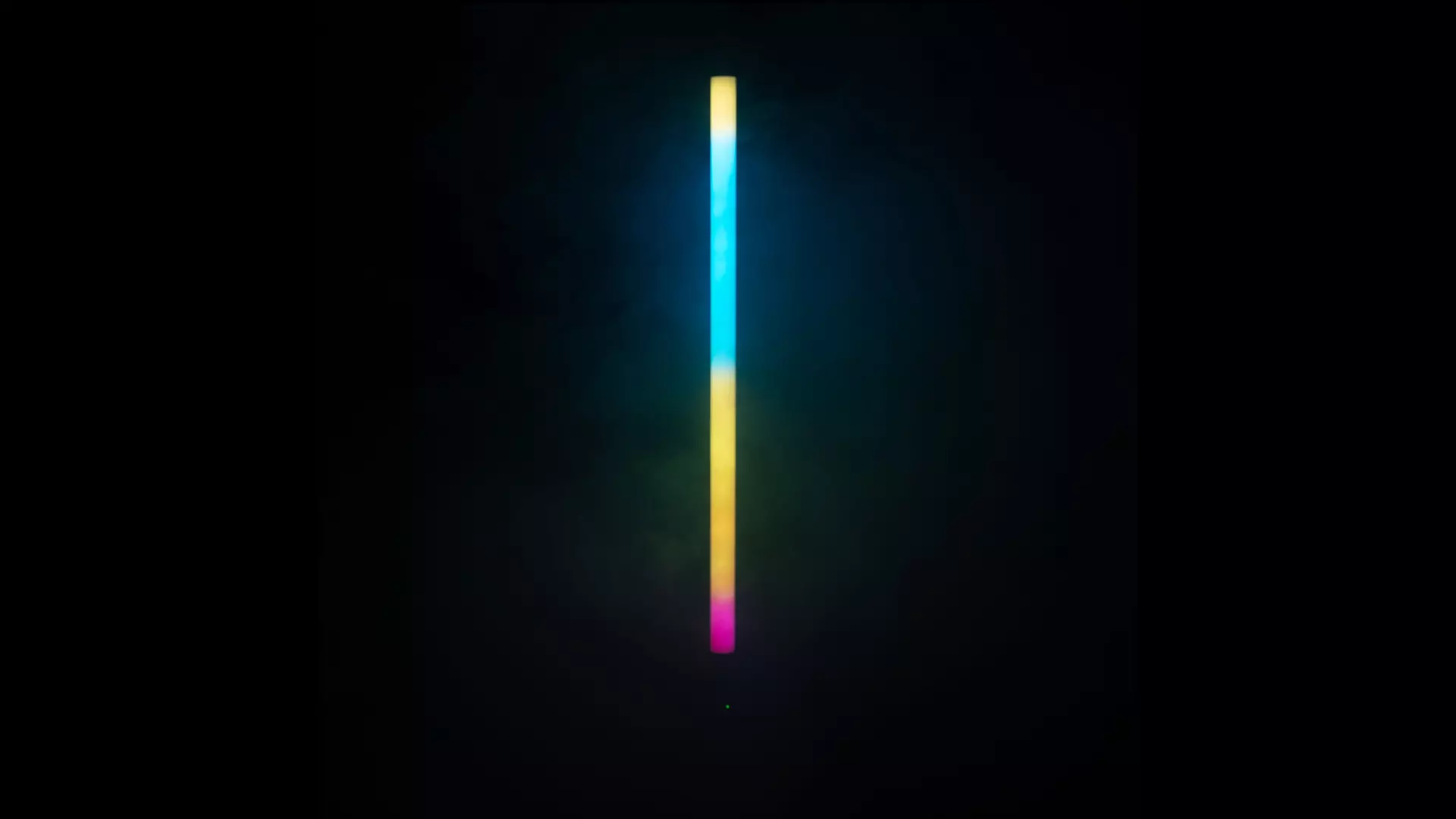

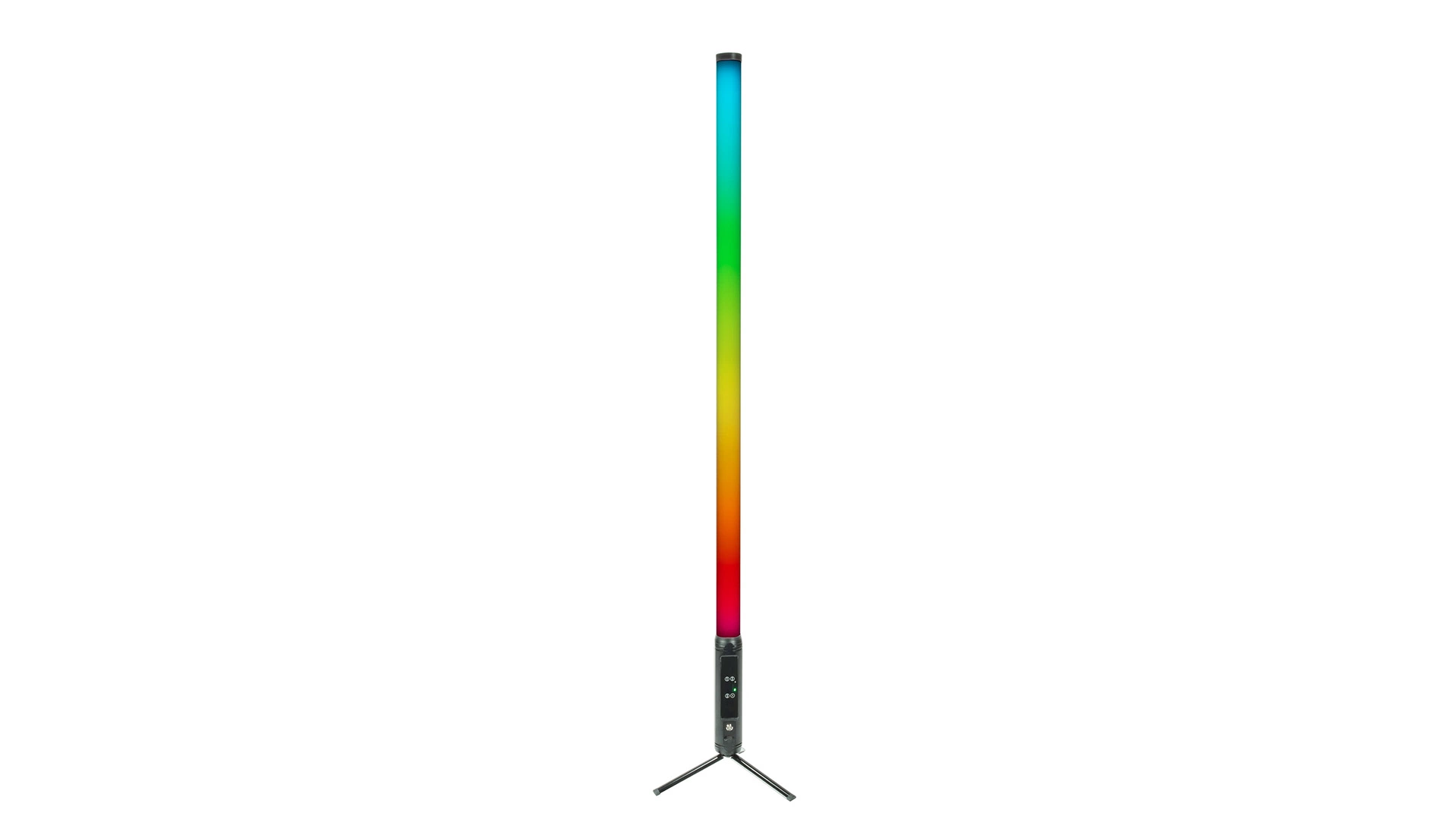

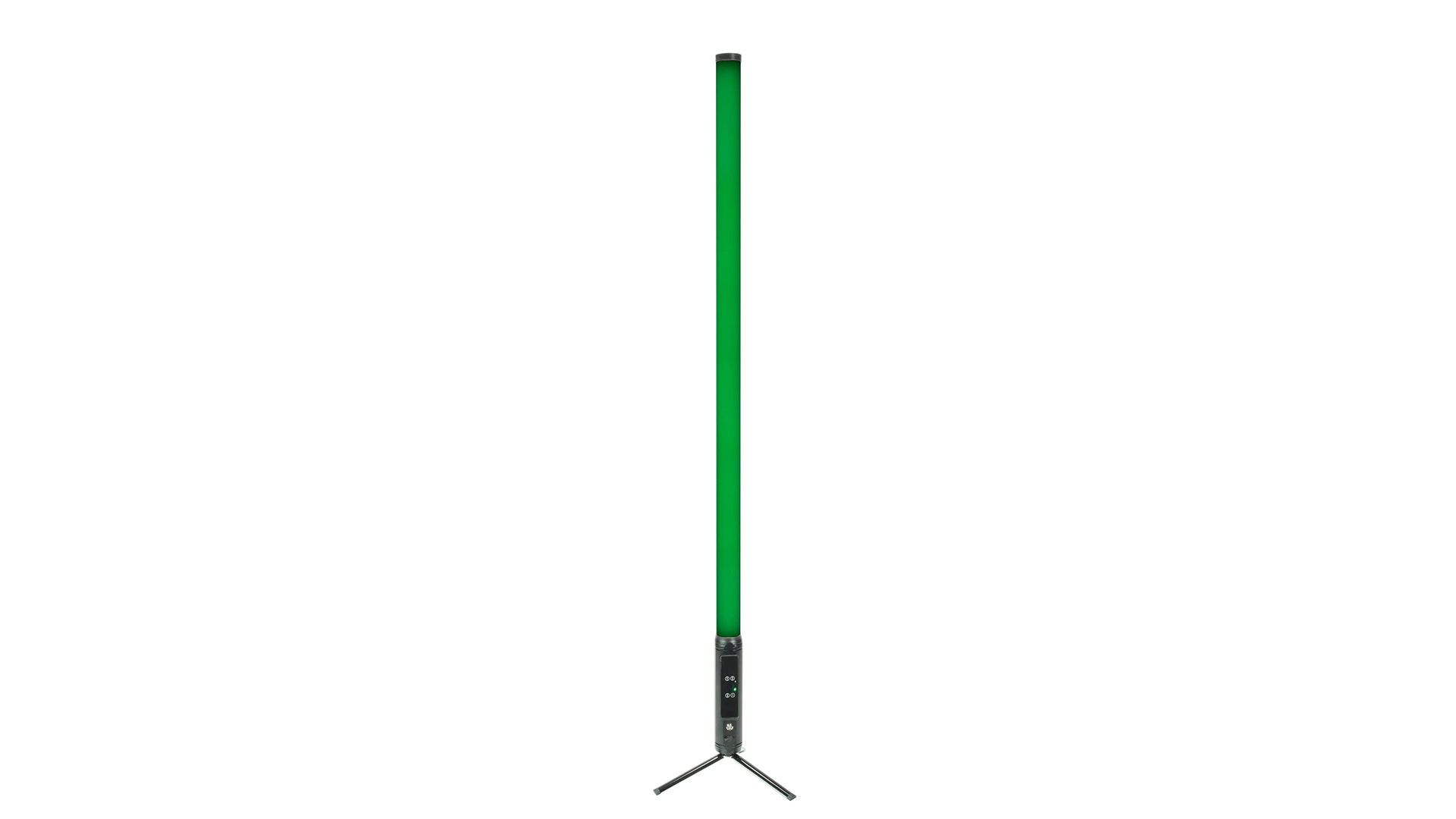

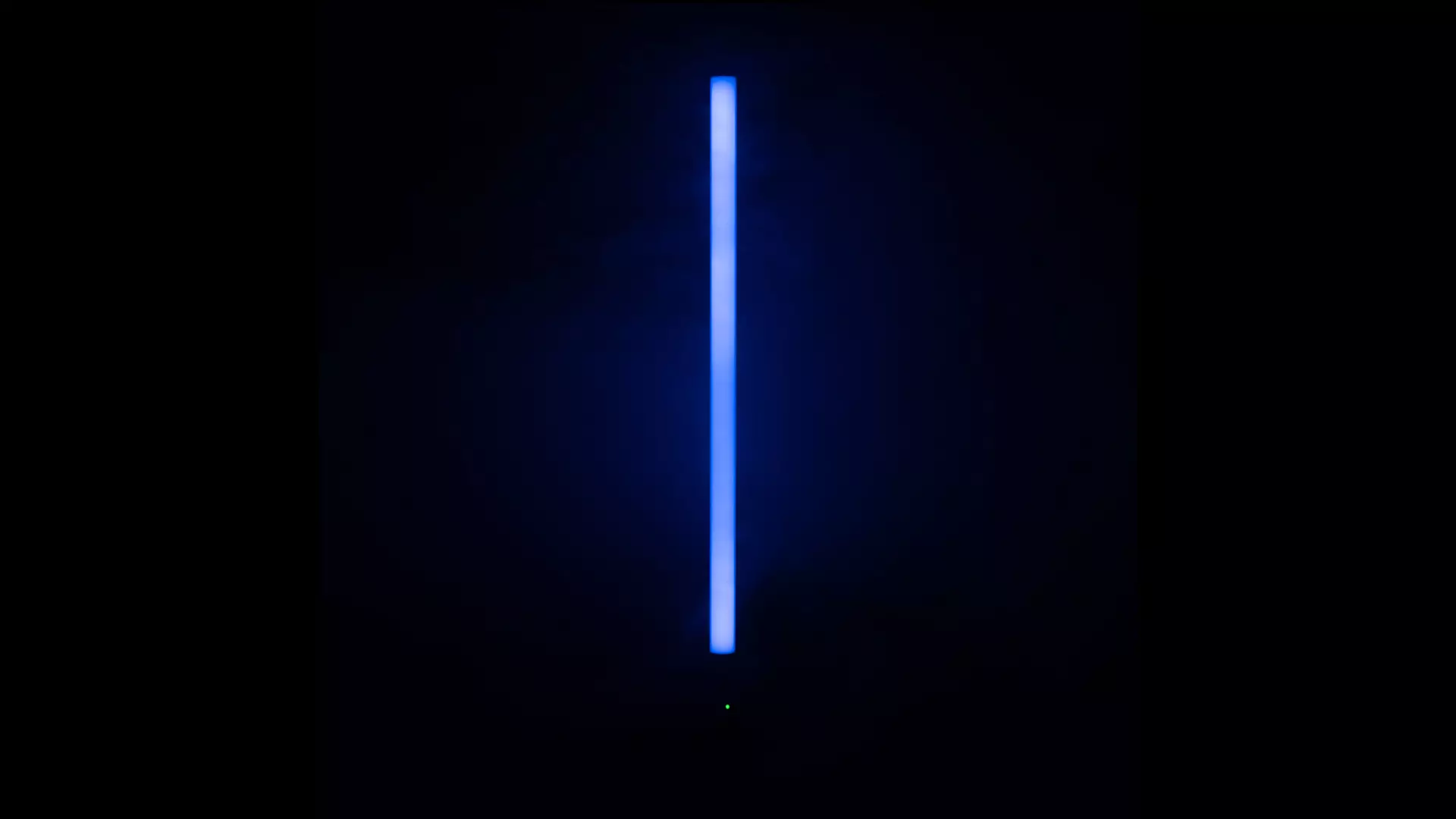

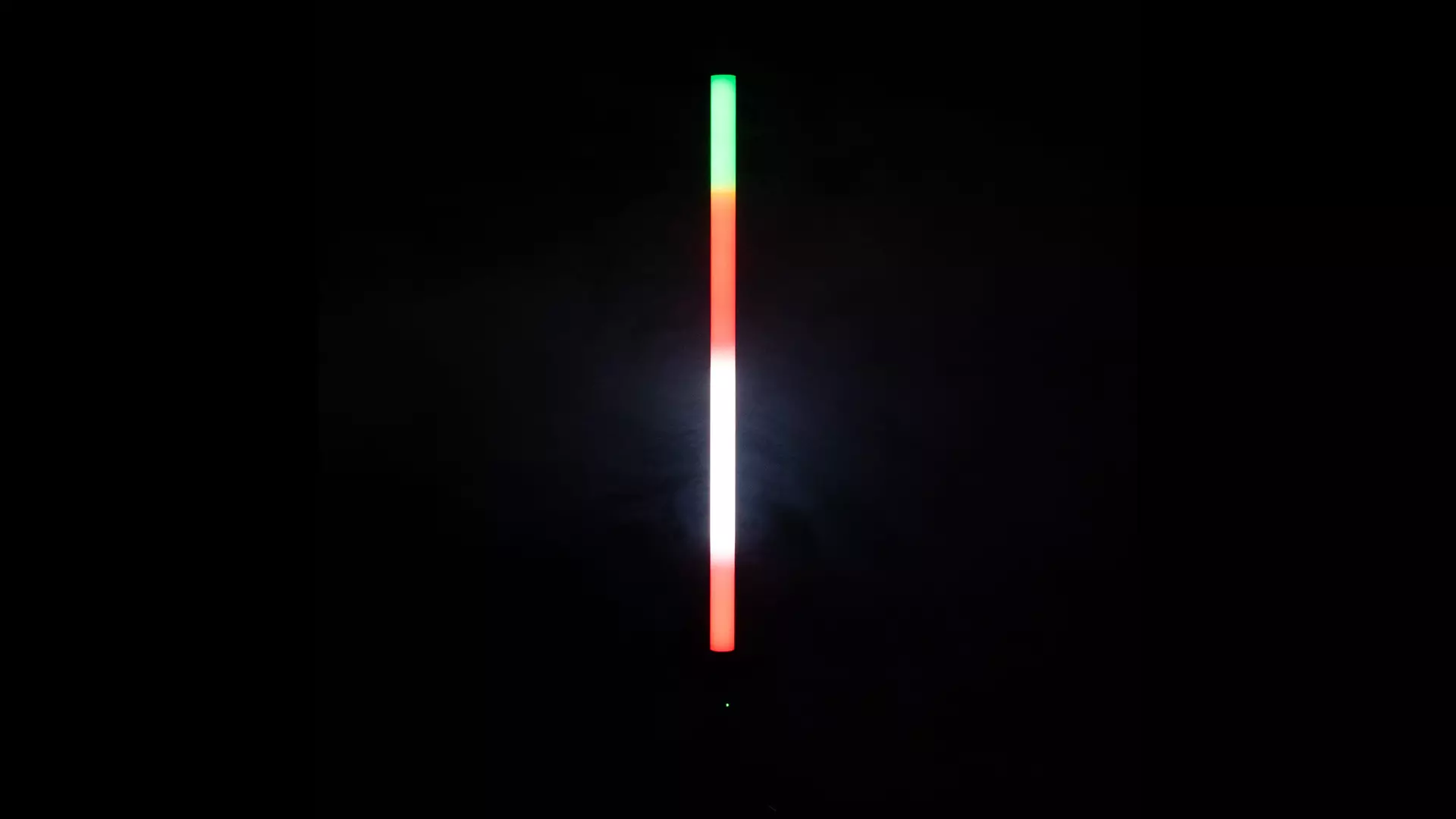

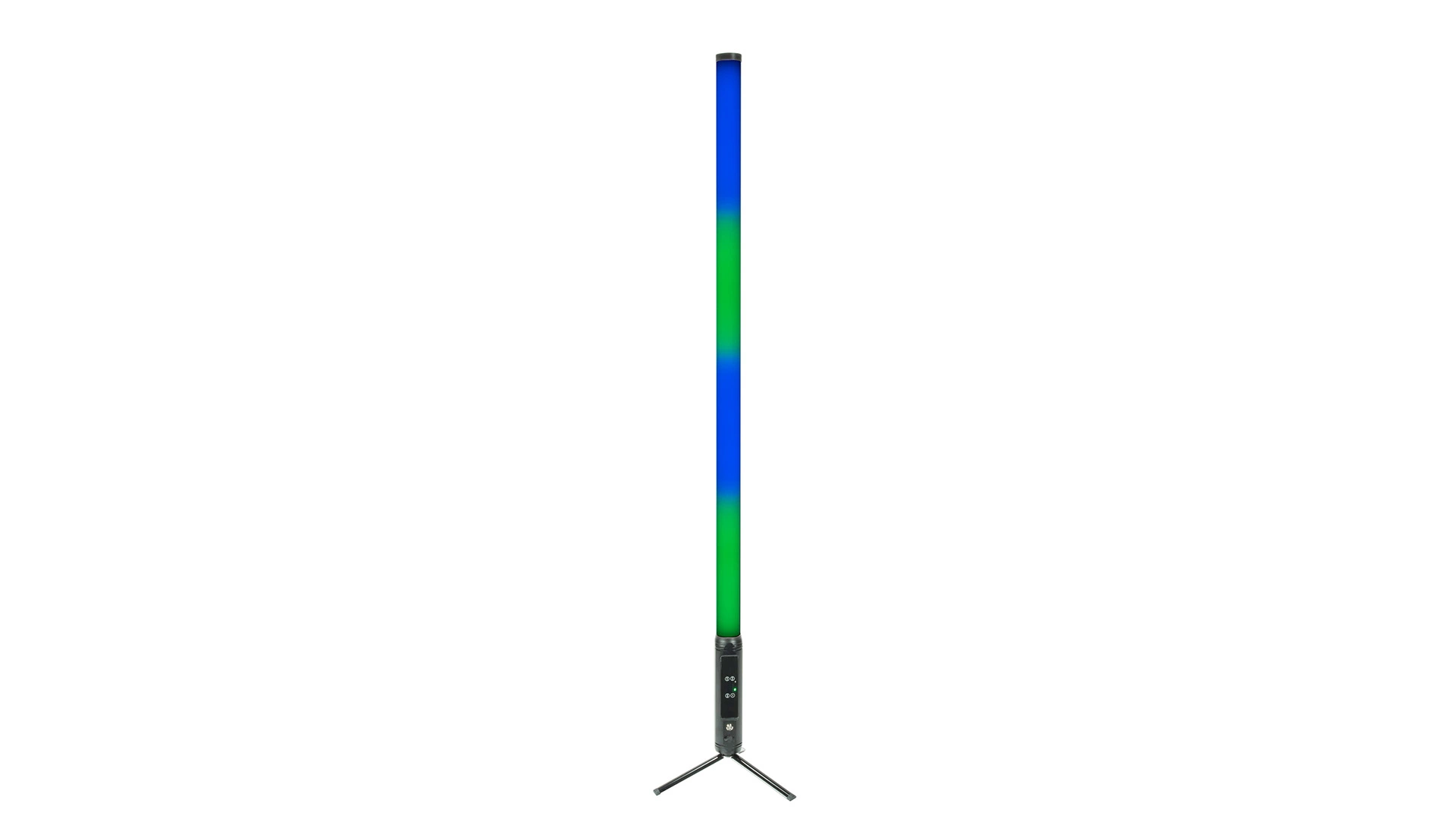

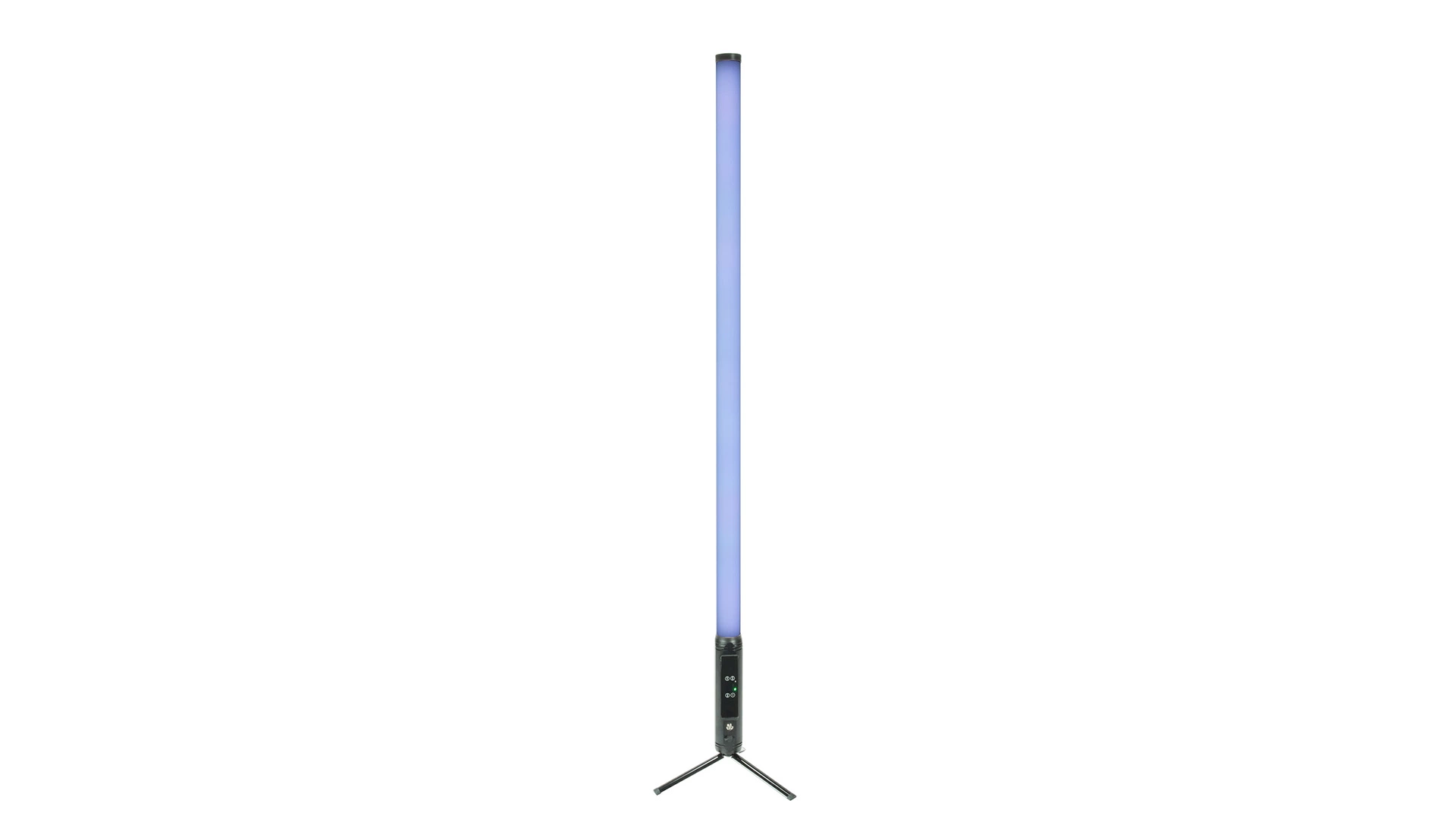

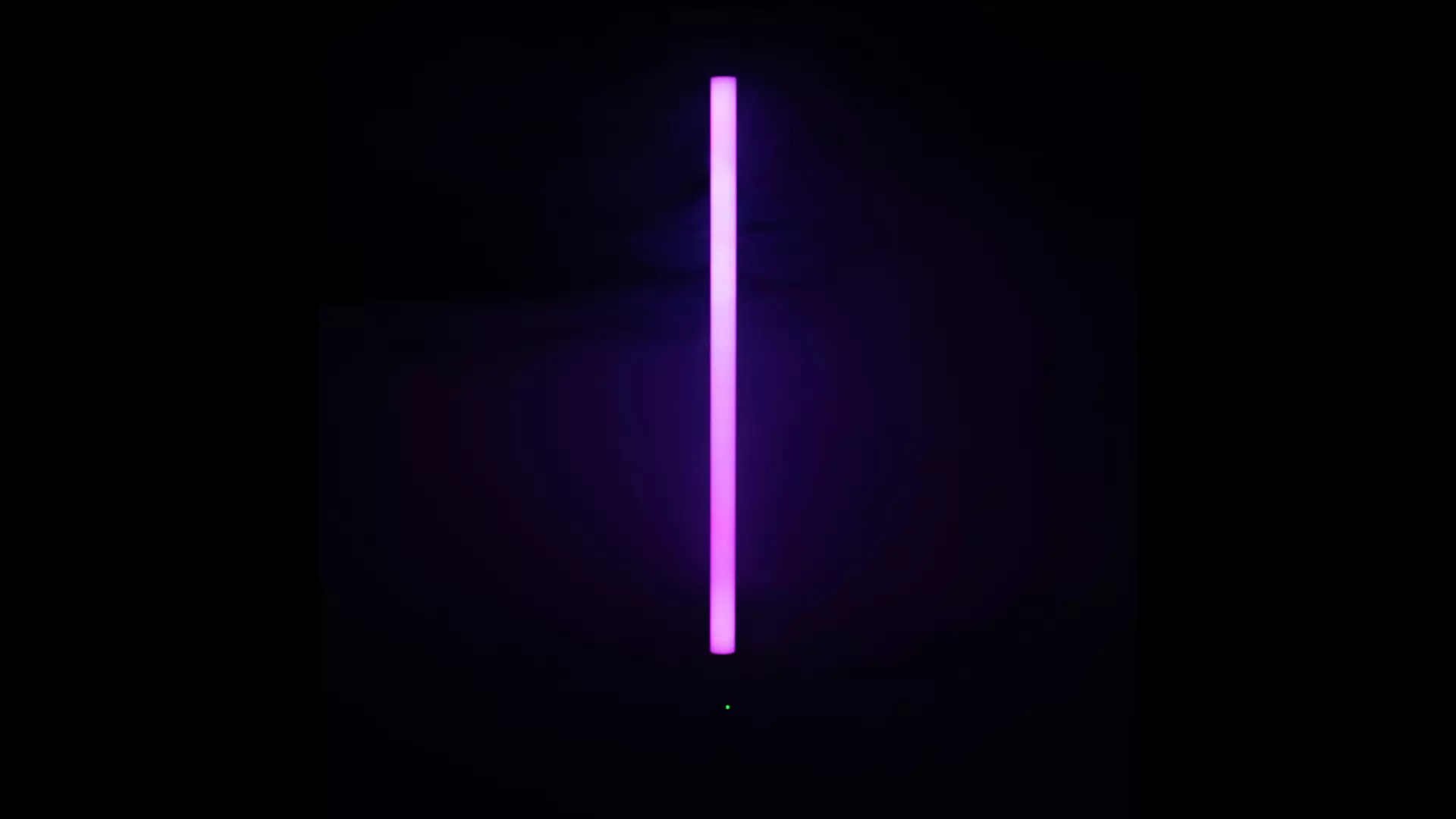

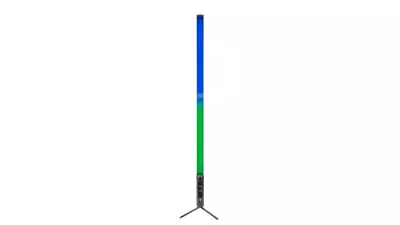

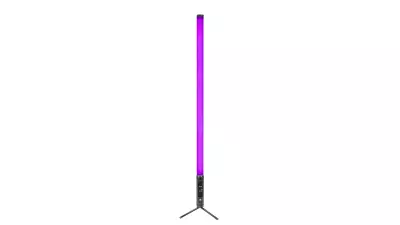

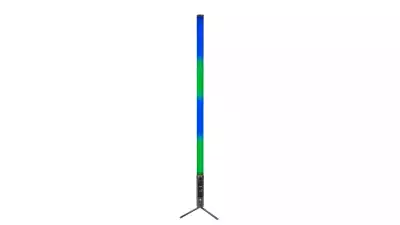

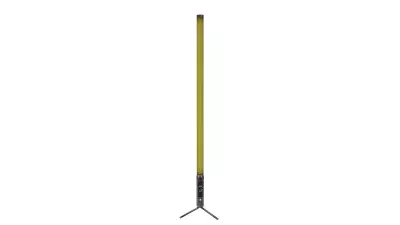

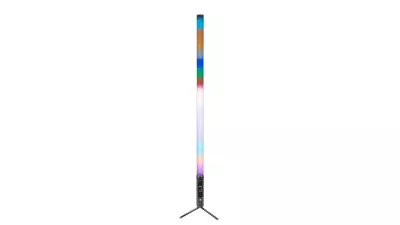

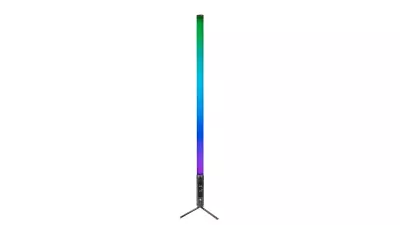

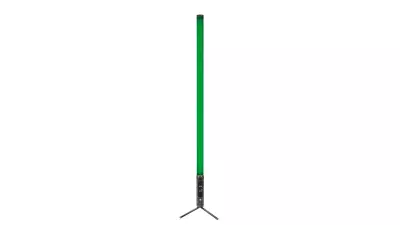

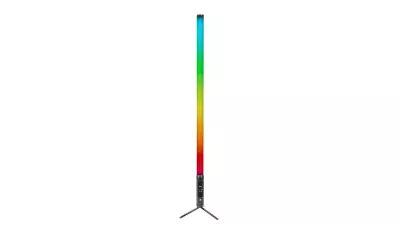

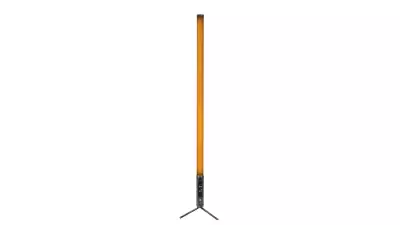

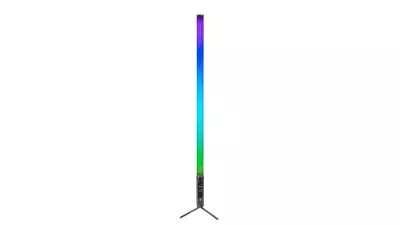

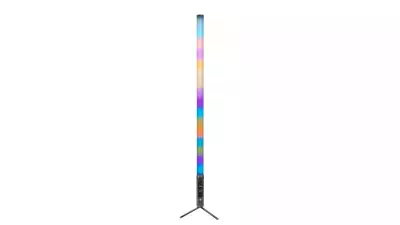

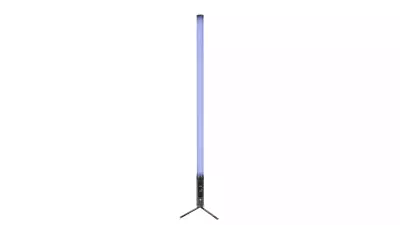

Product description TubeFX 360 IP WDMX SET8

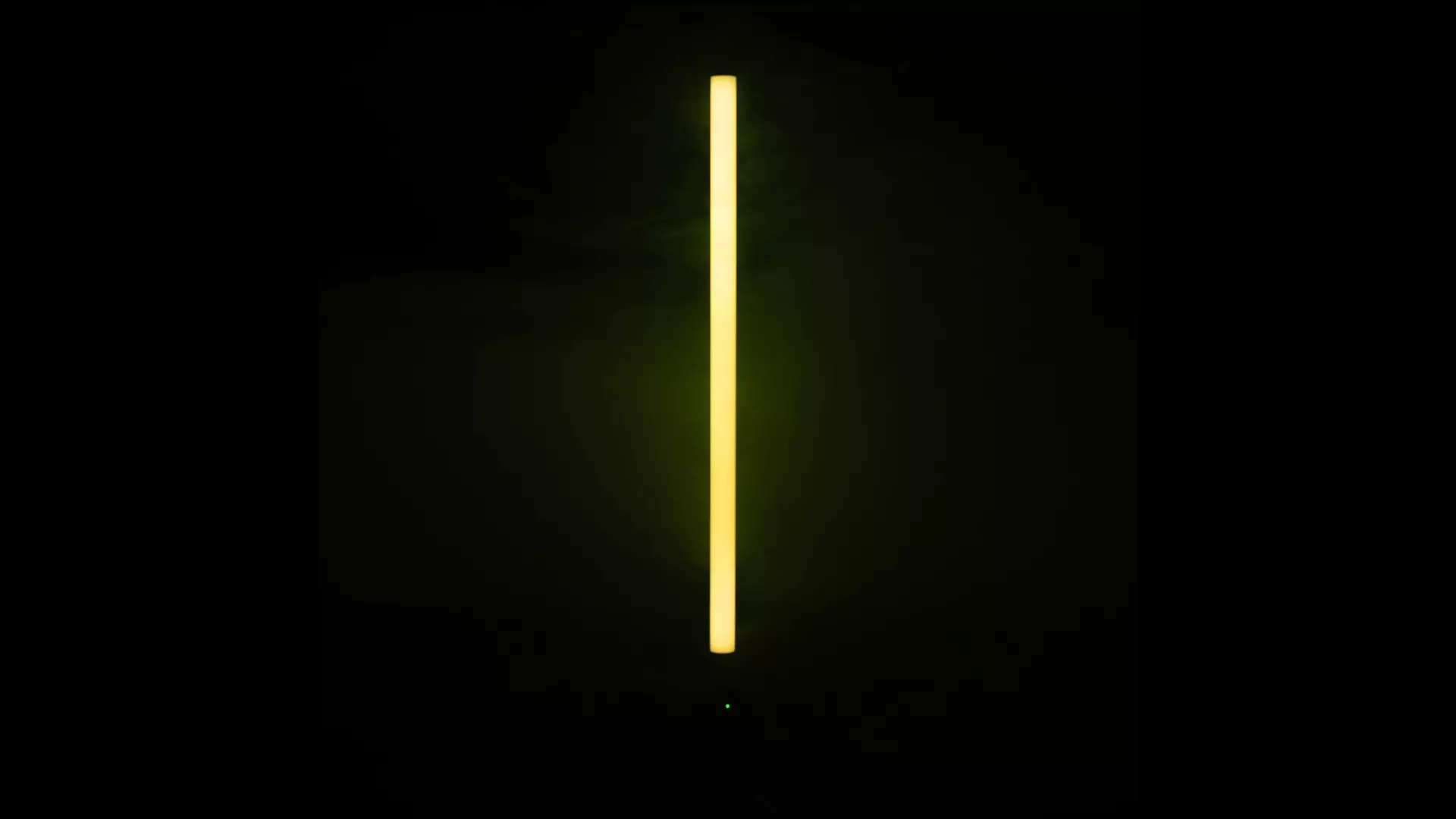

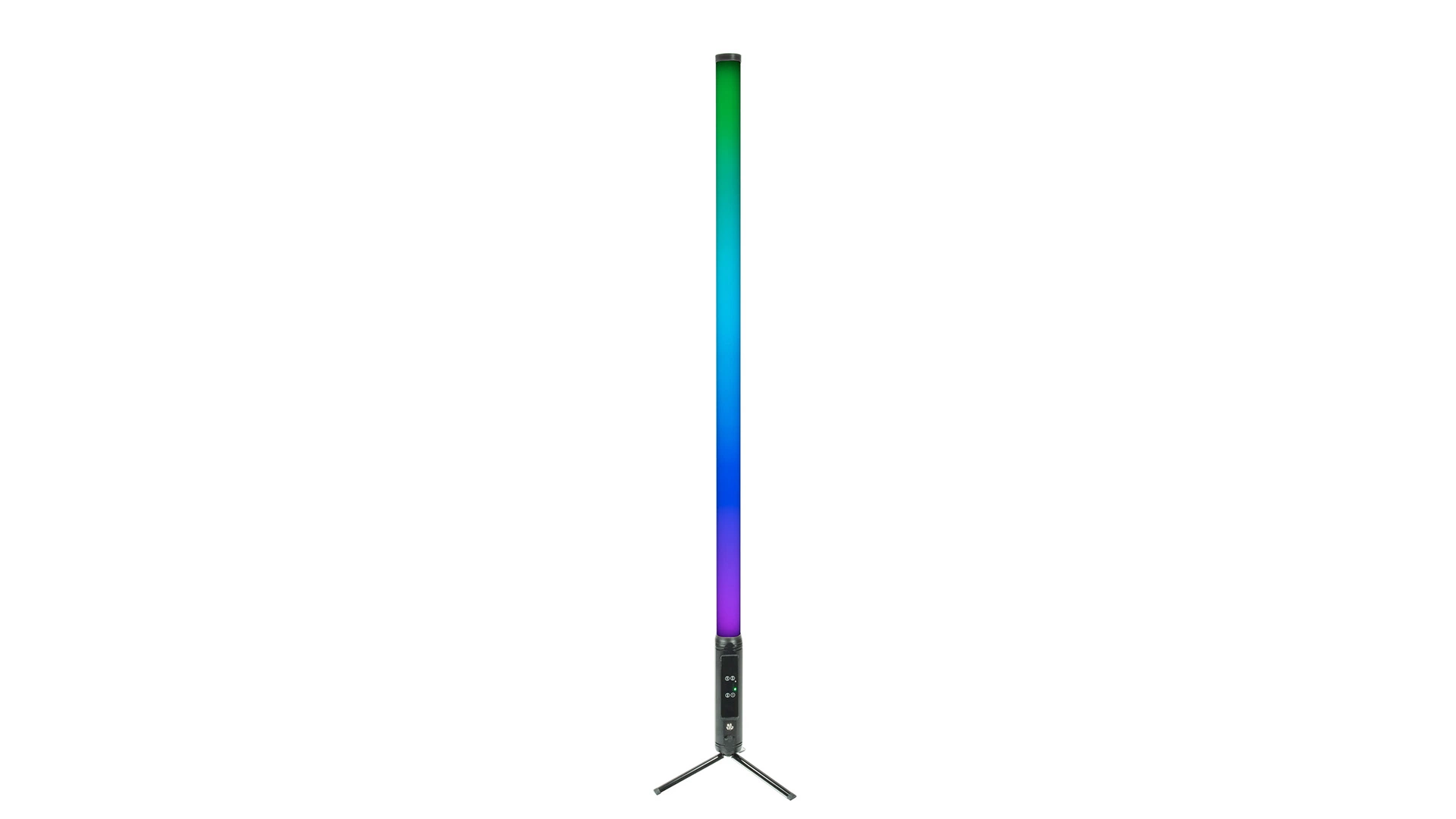

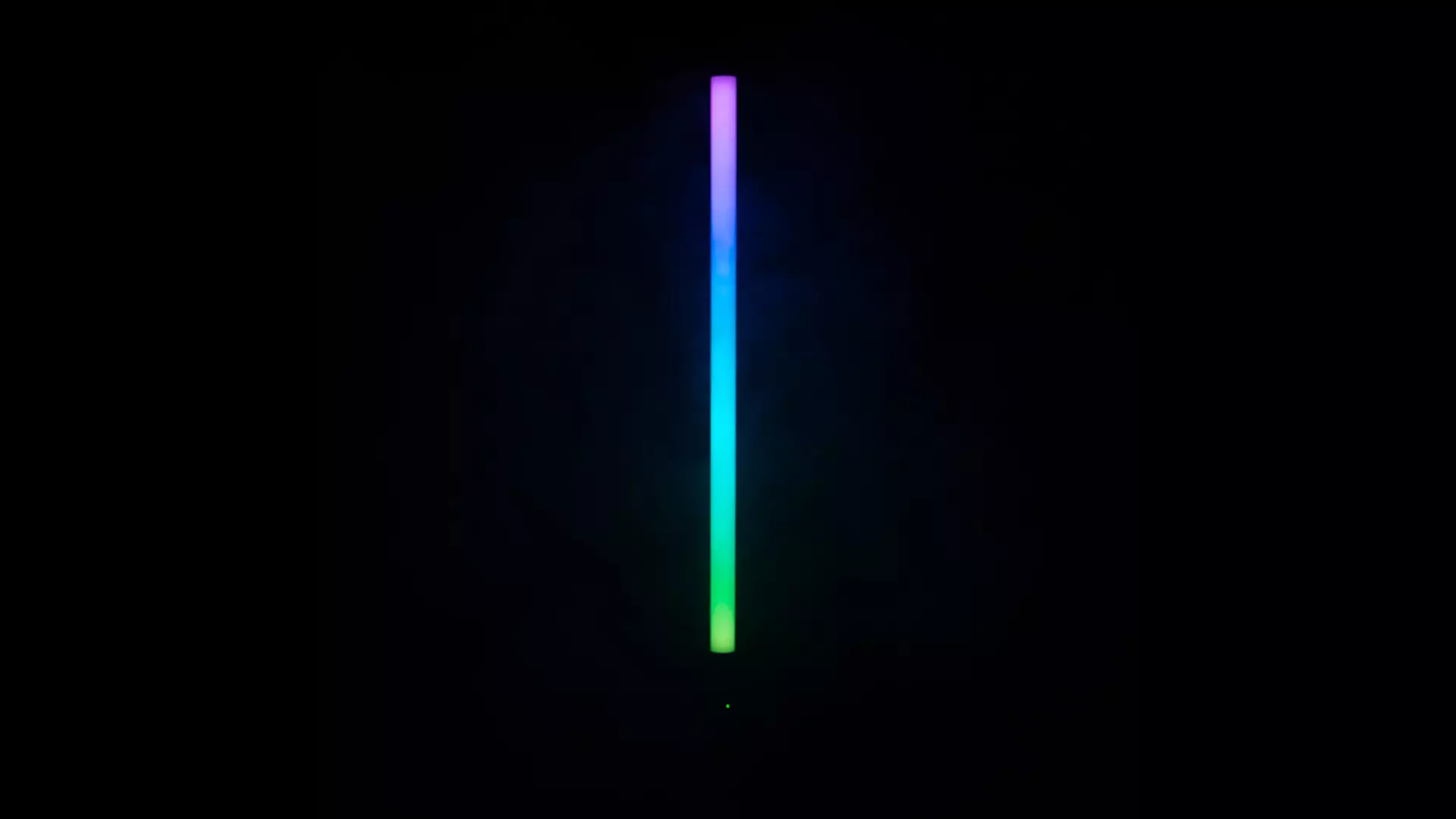

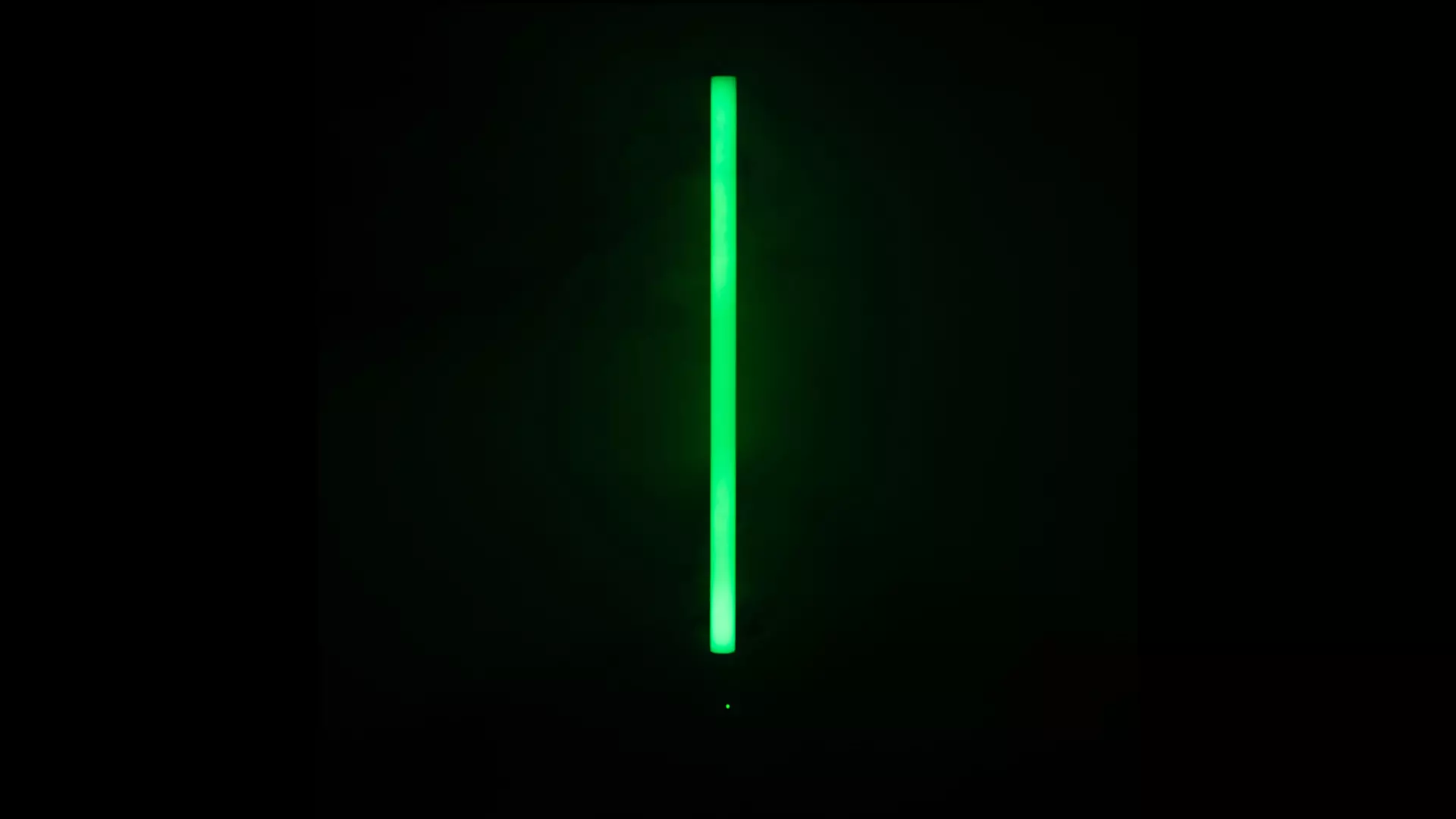

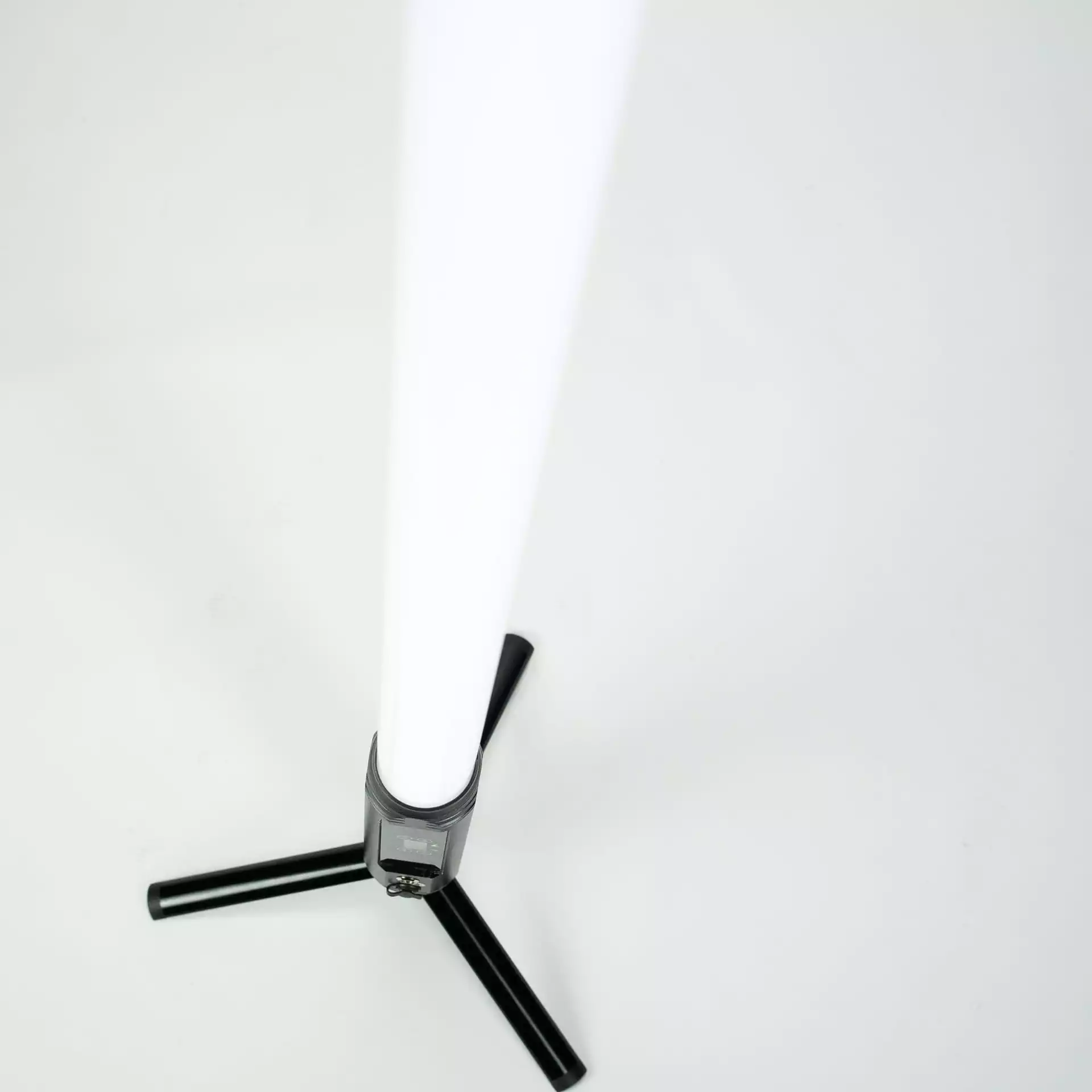

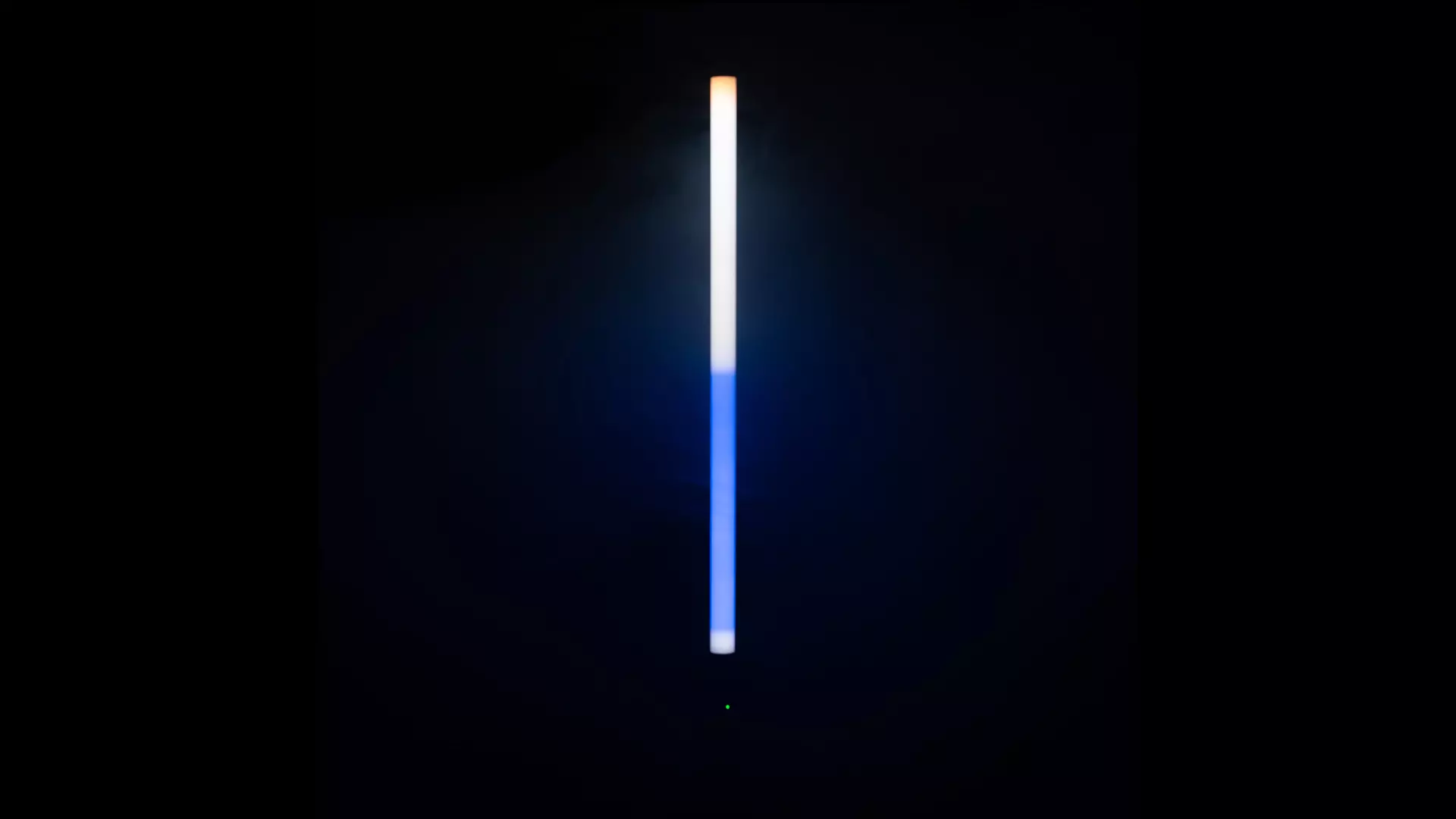

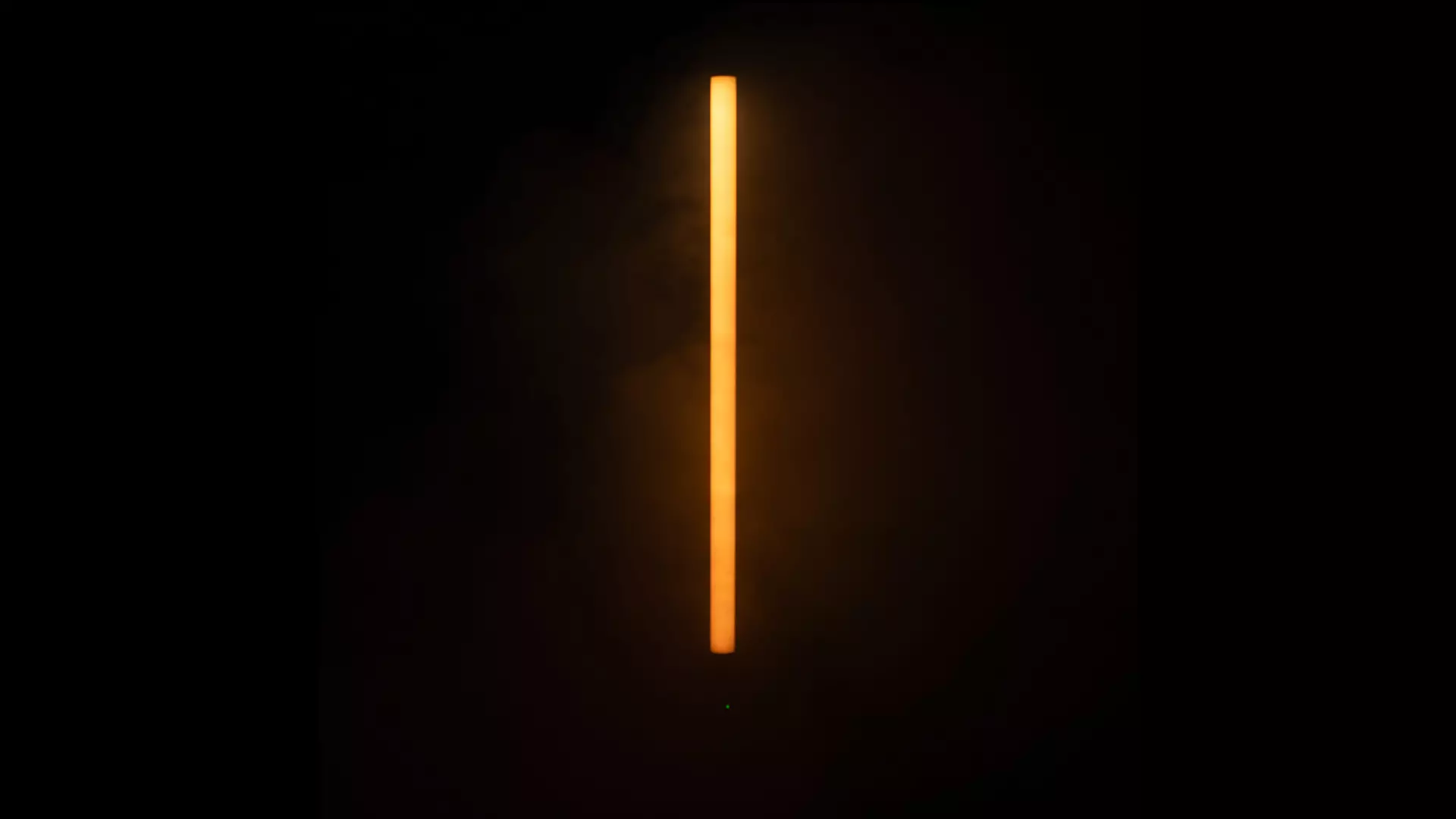

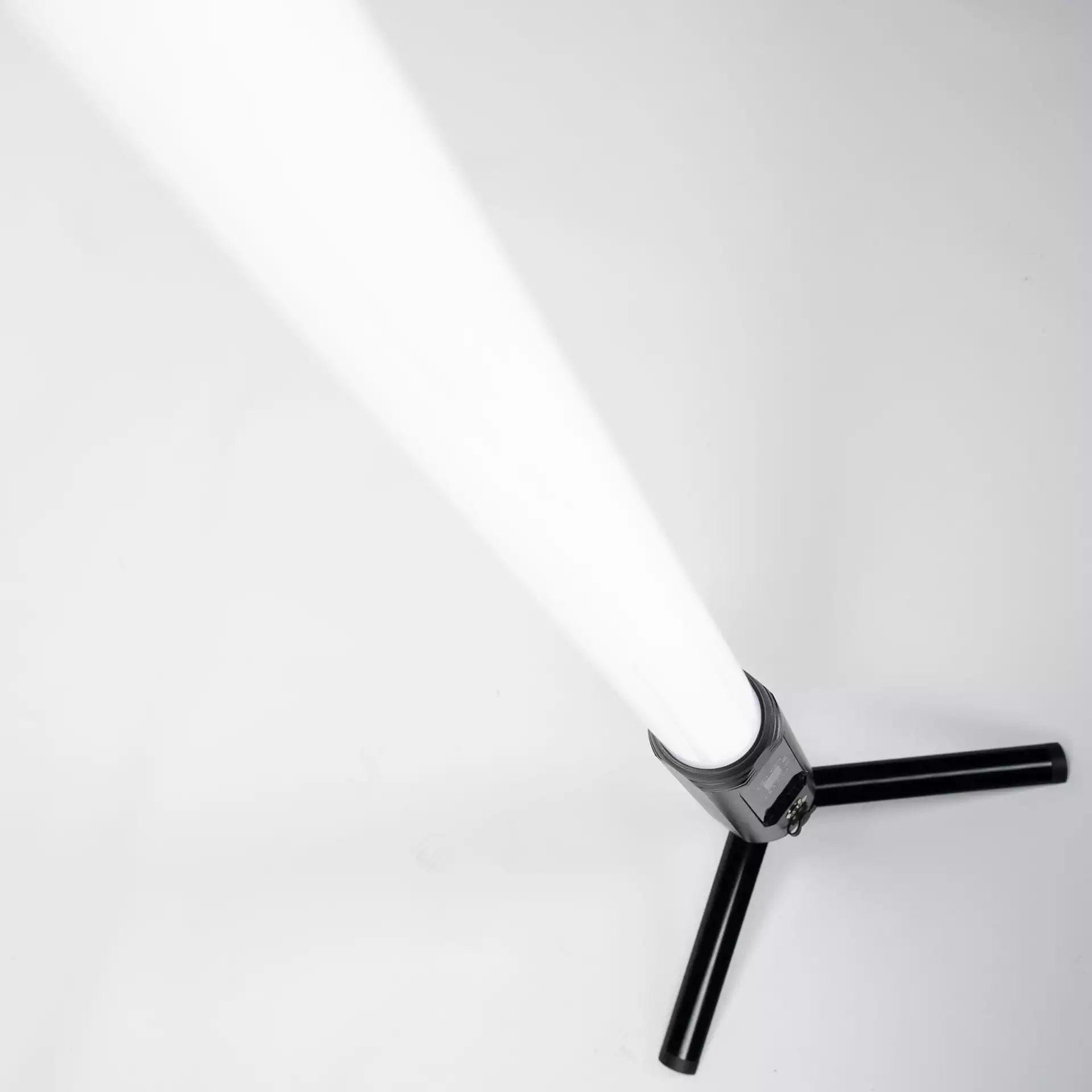

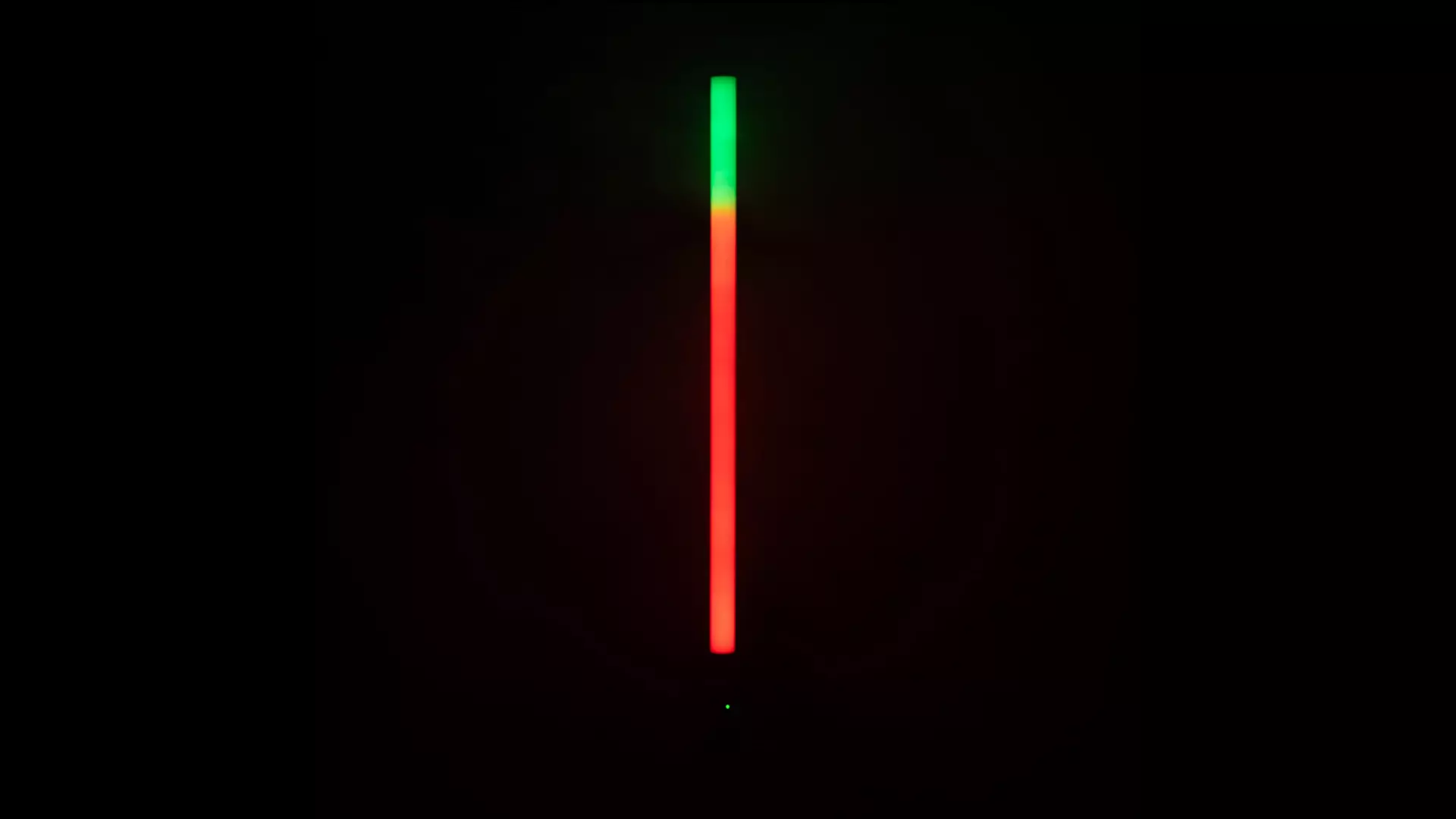

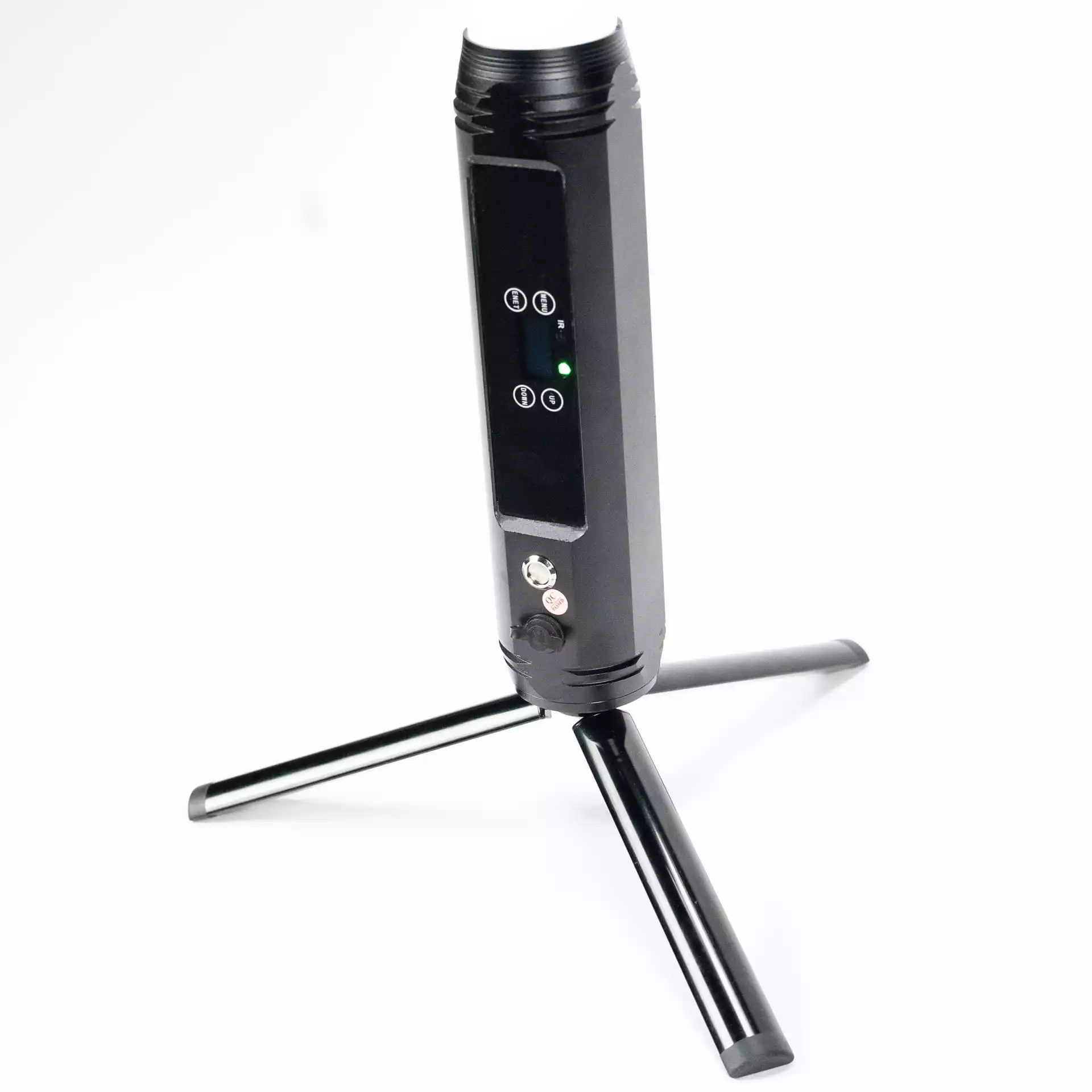

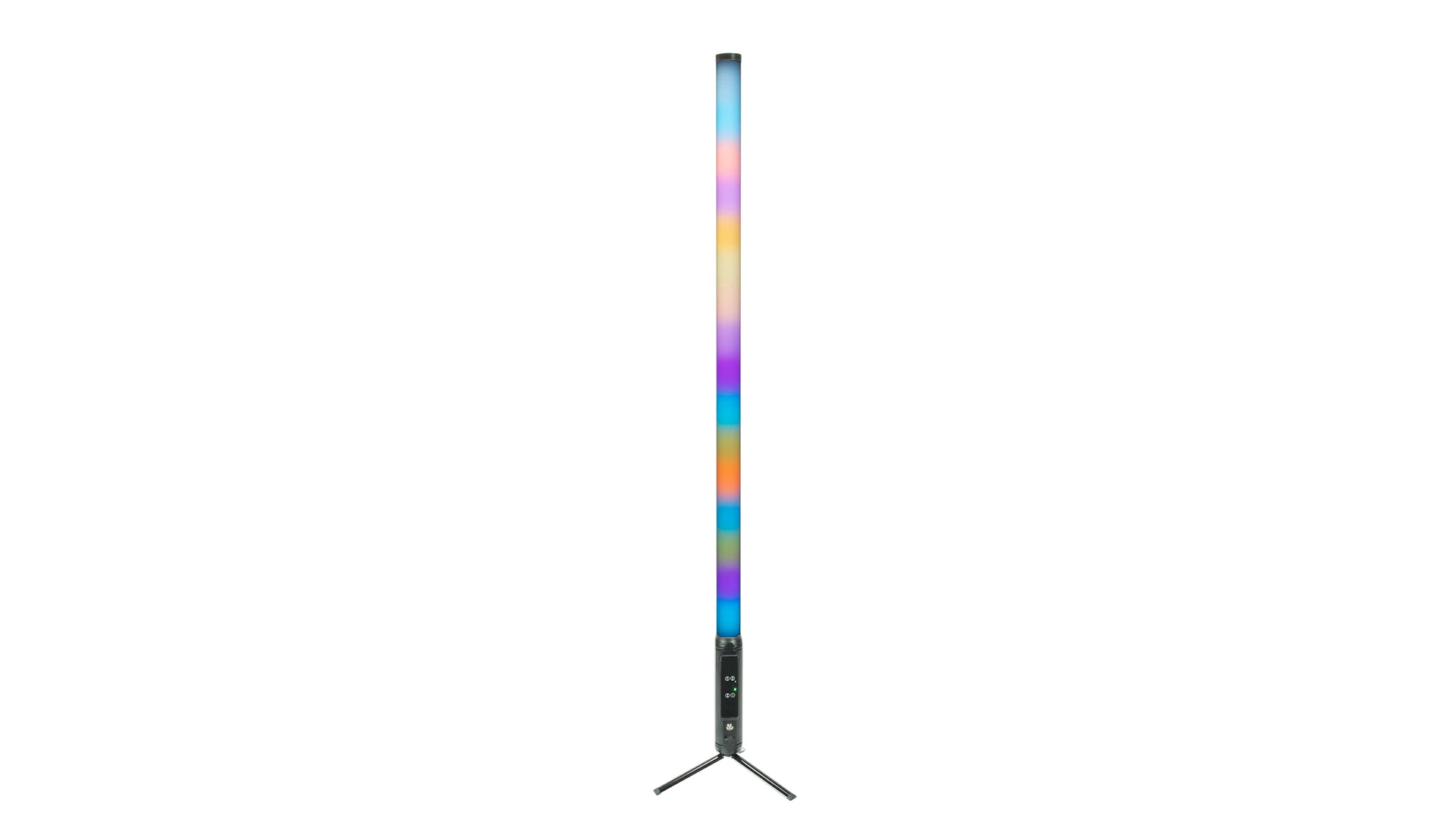

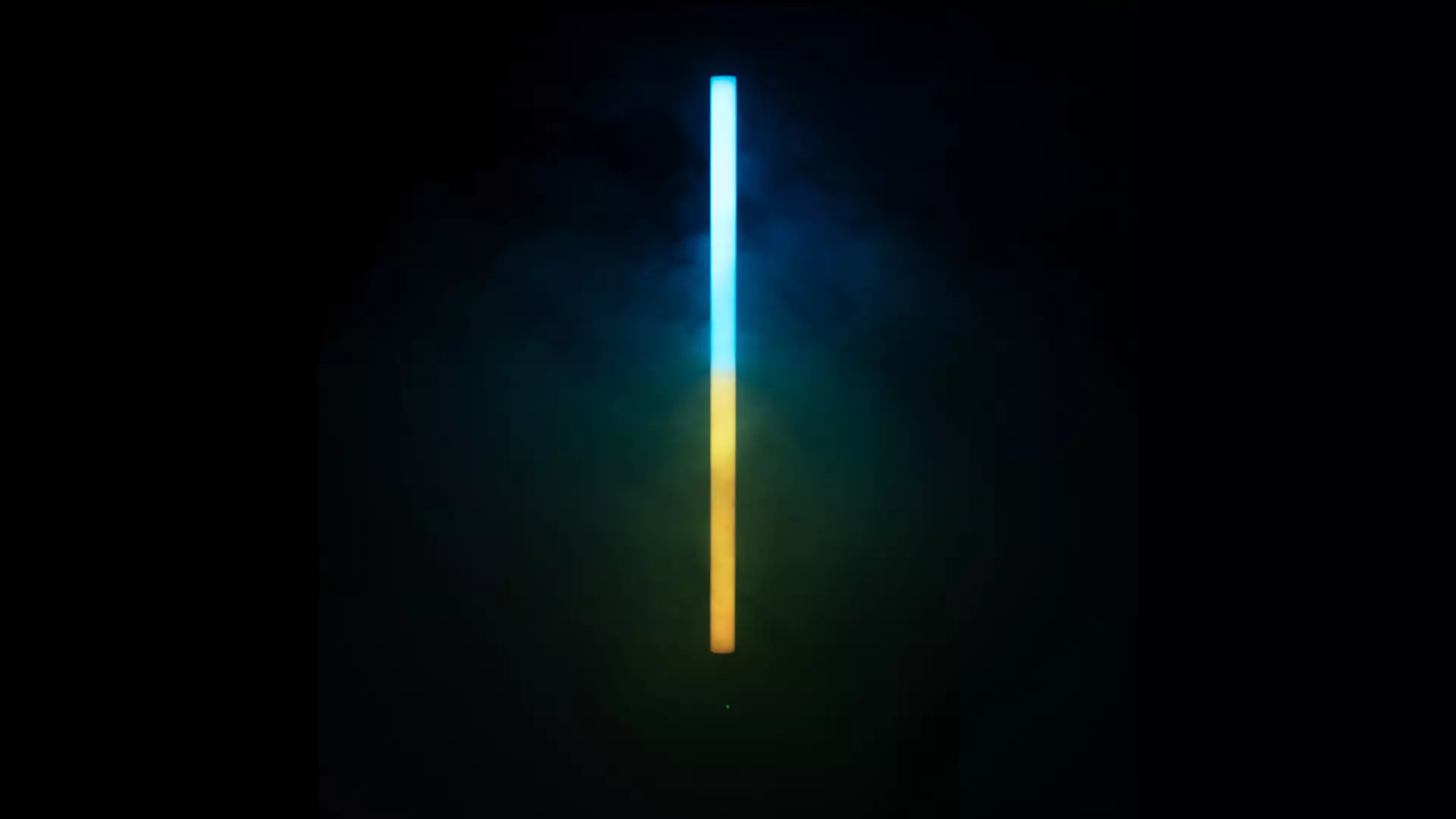

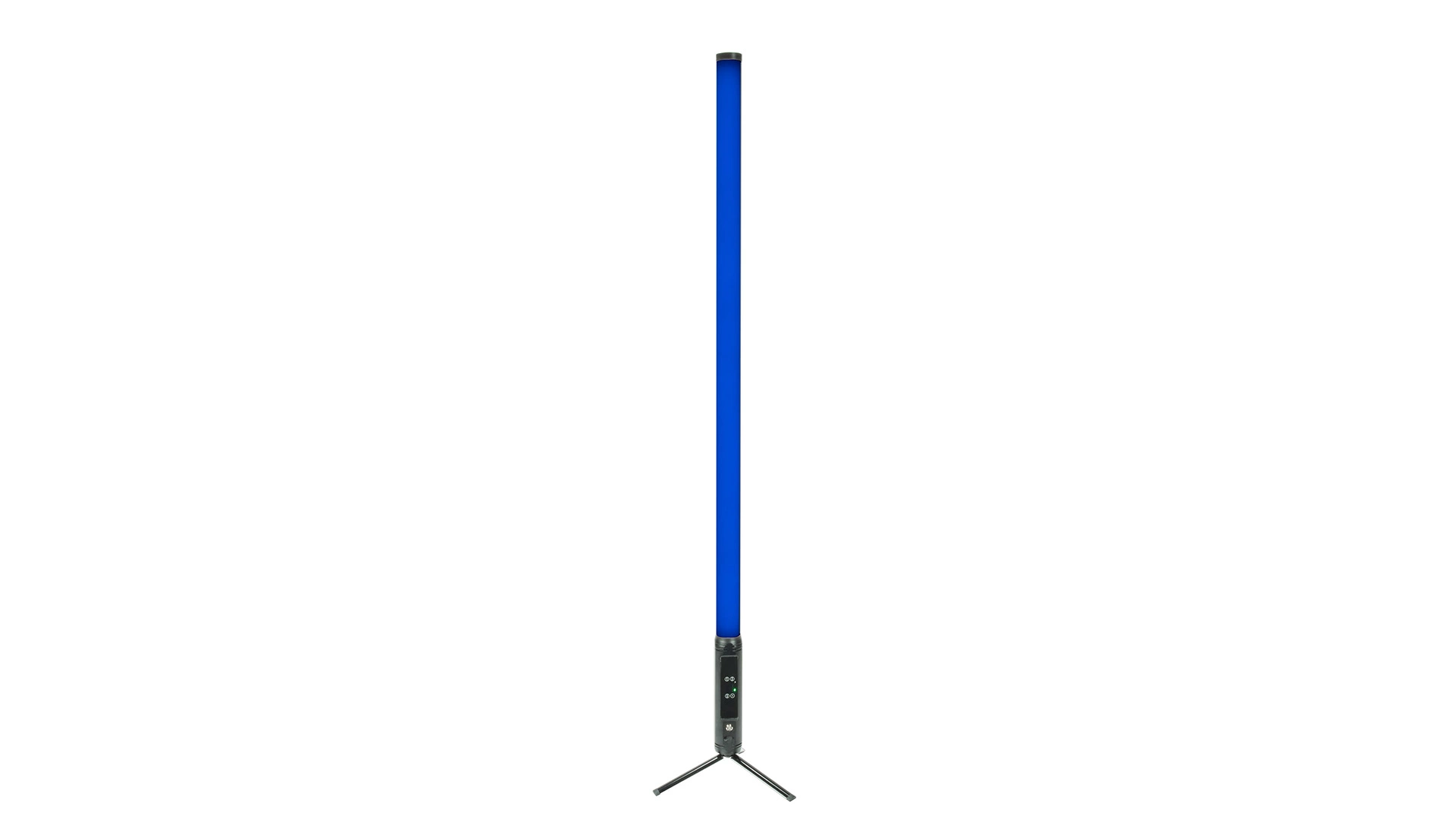

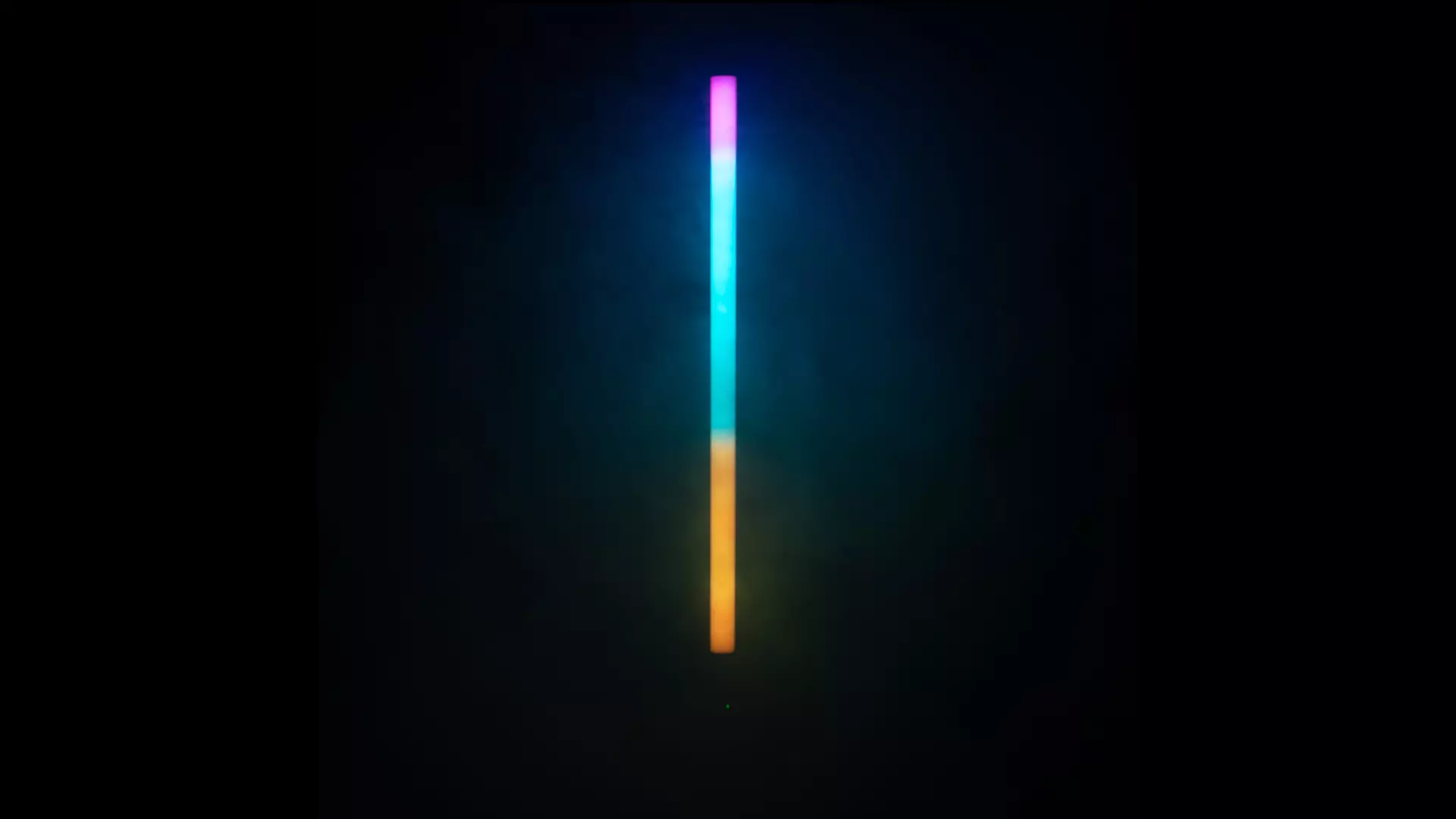

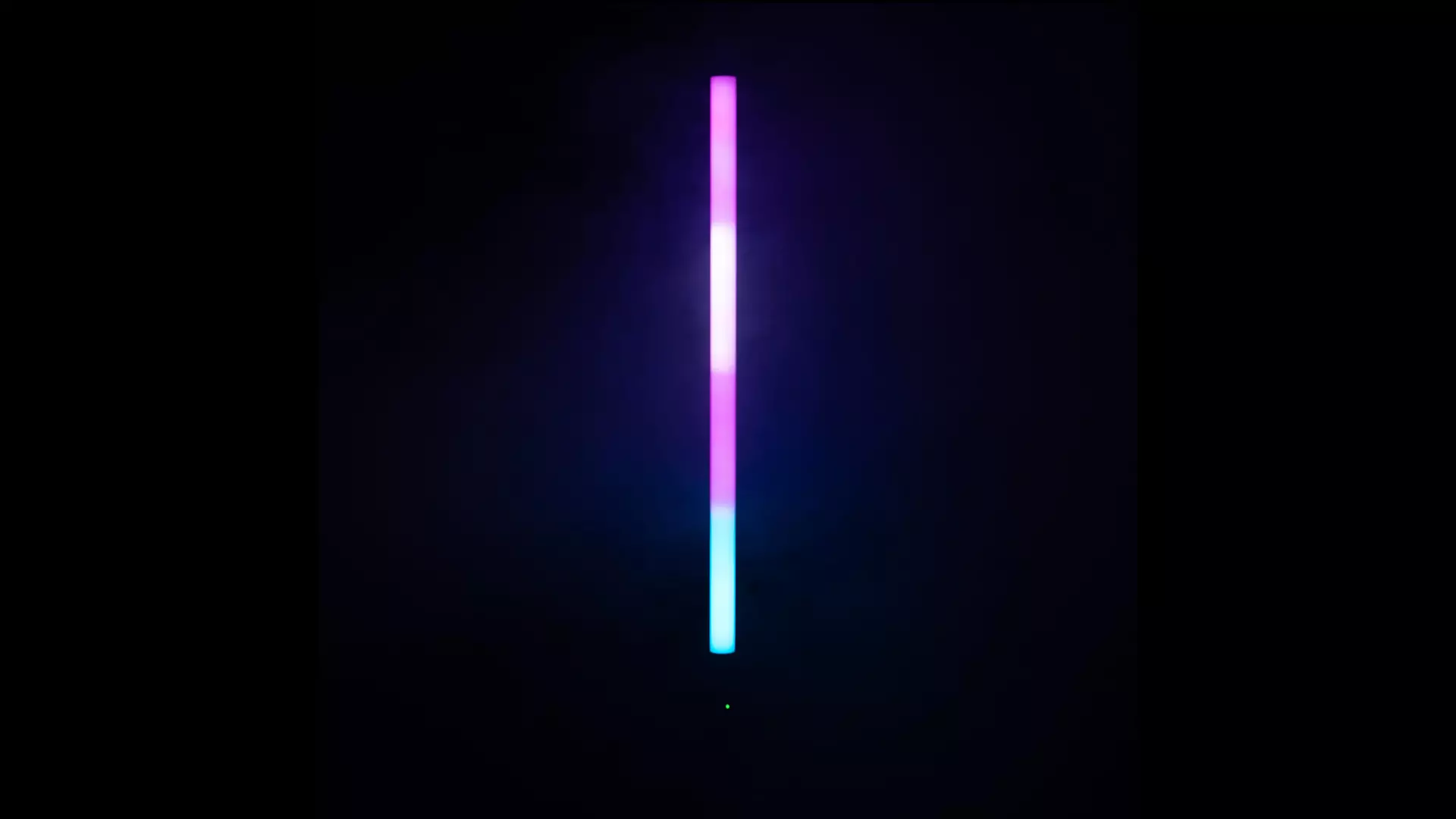

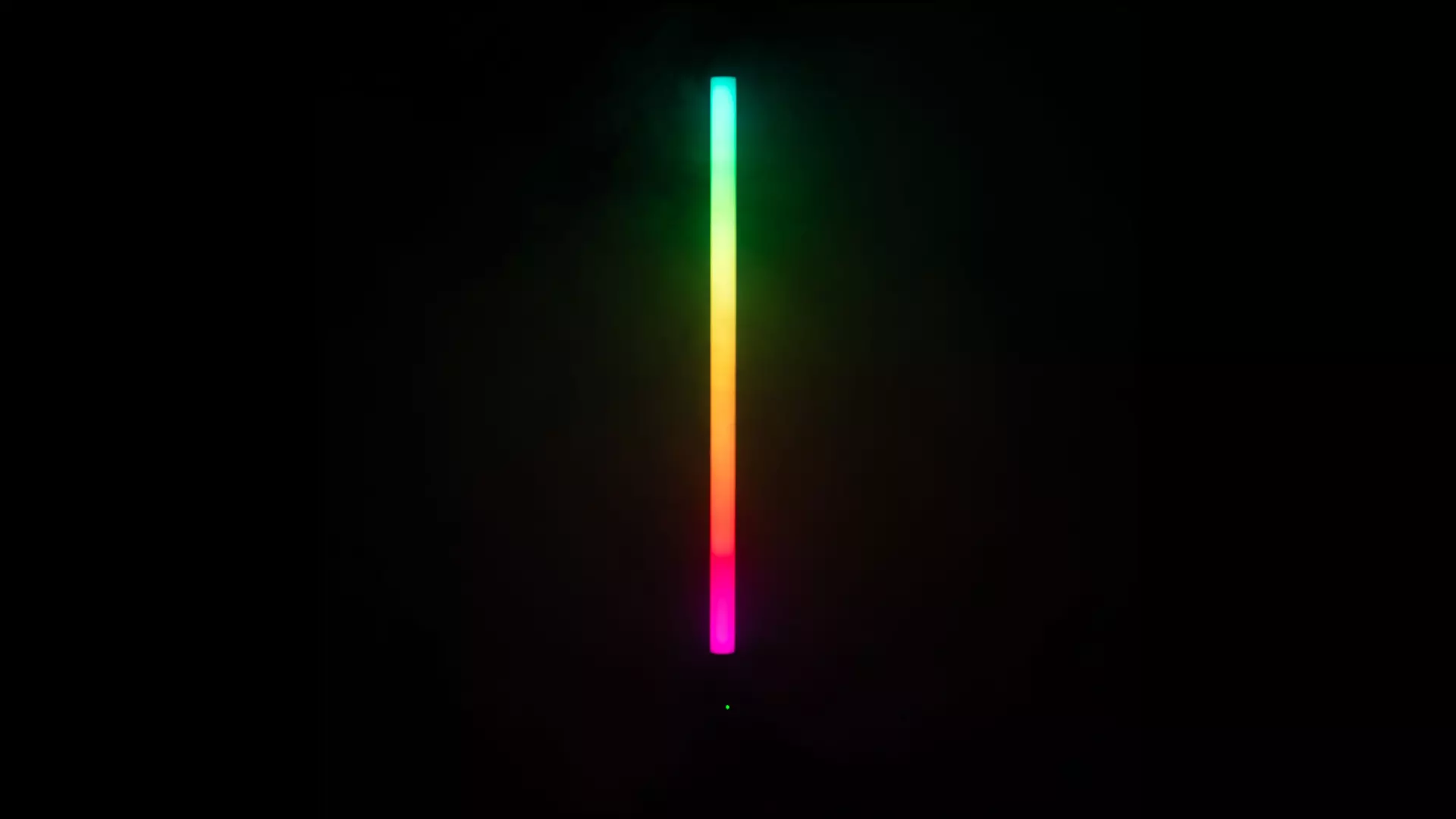

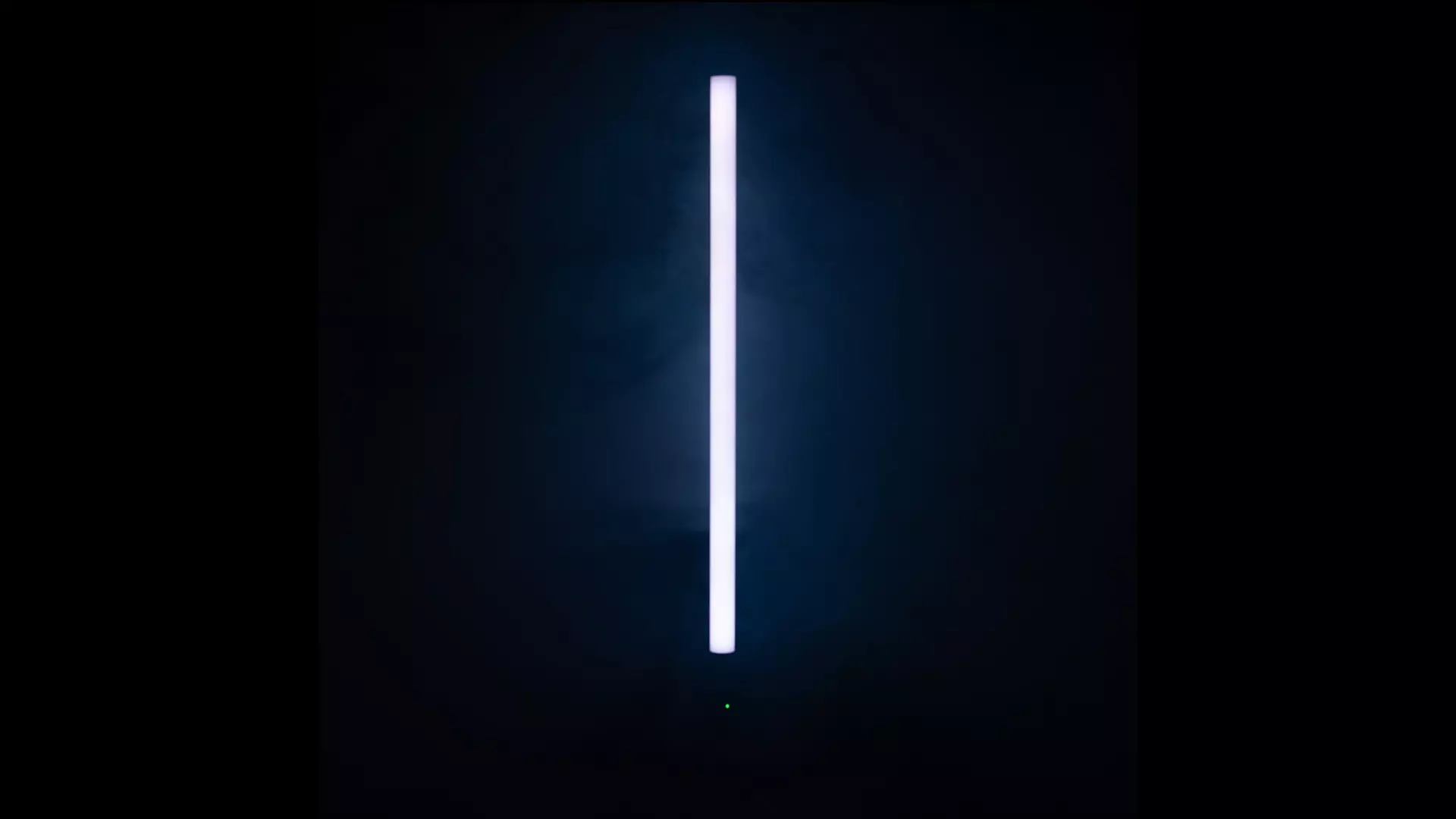

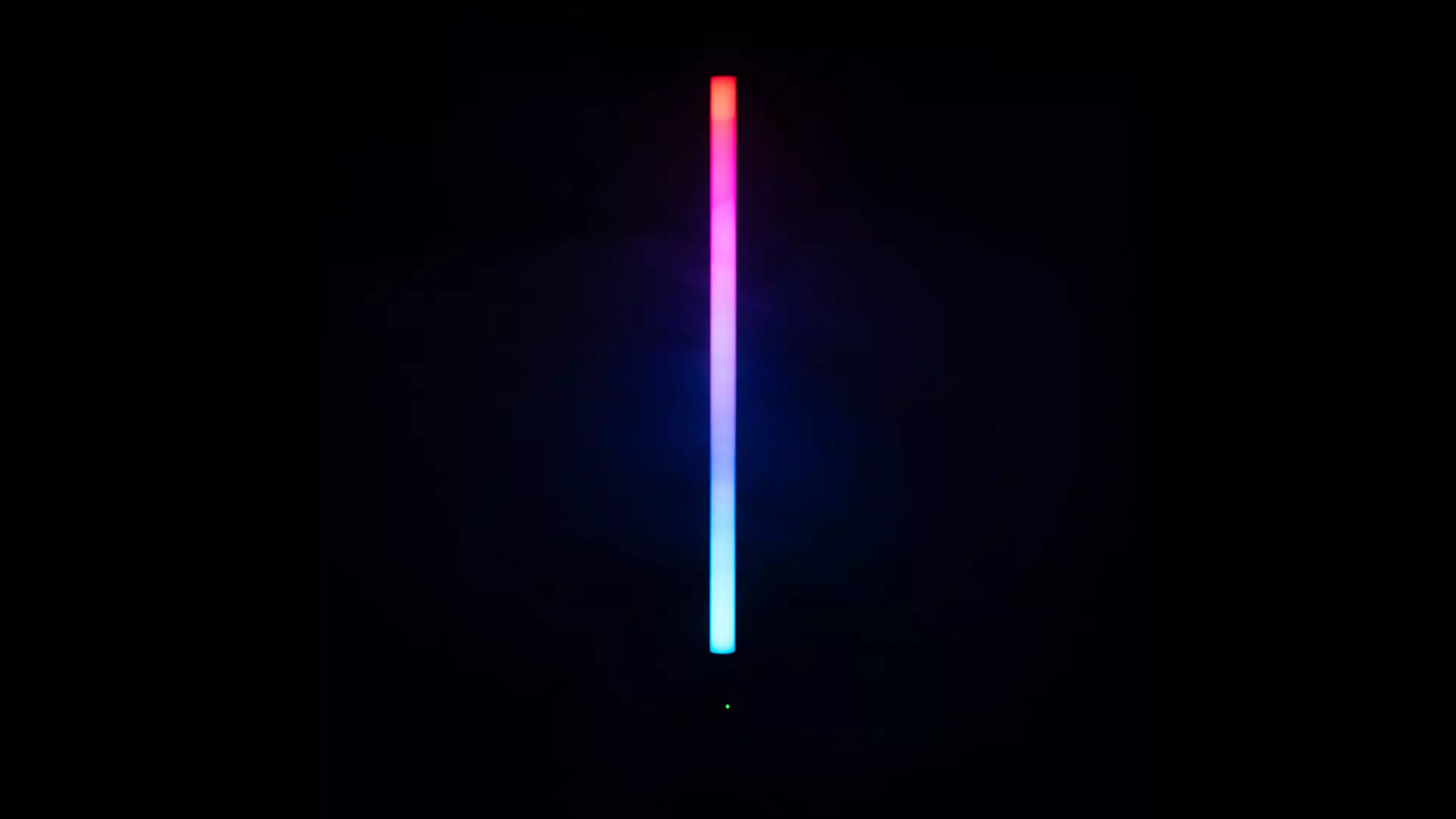

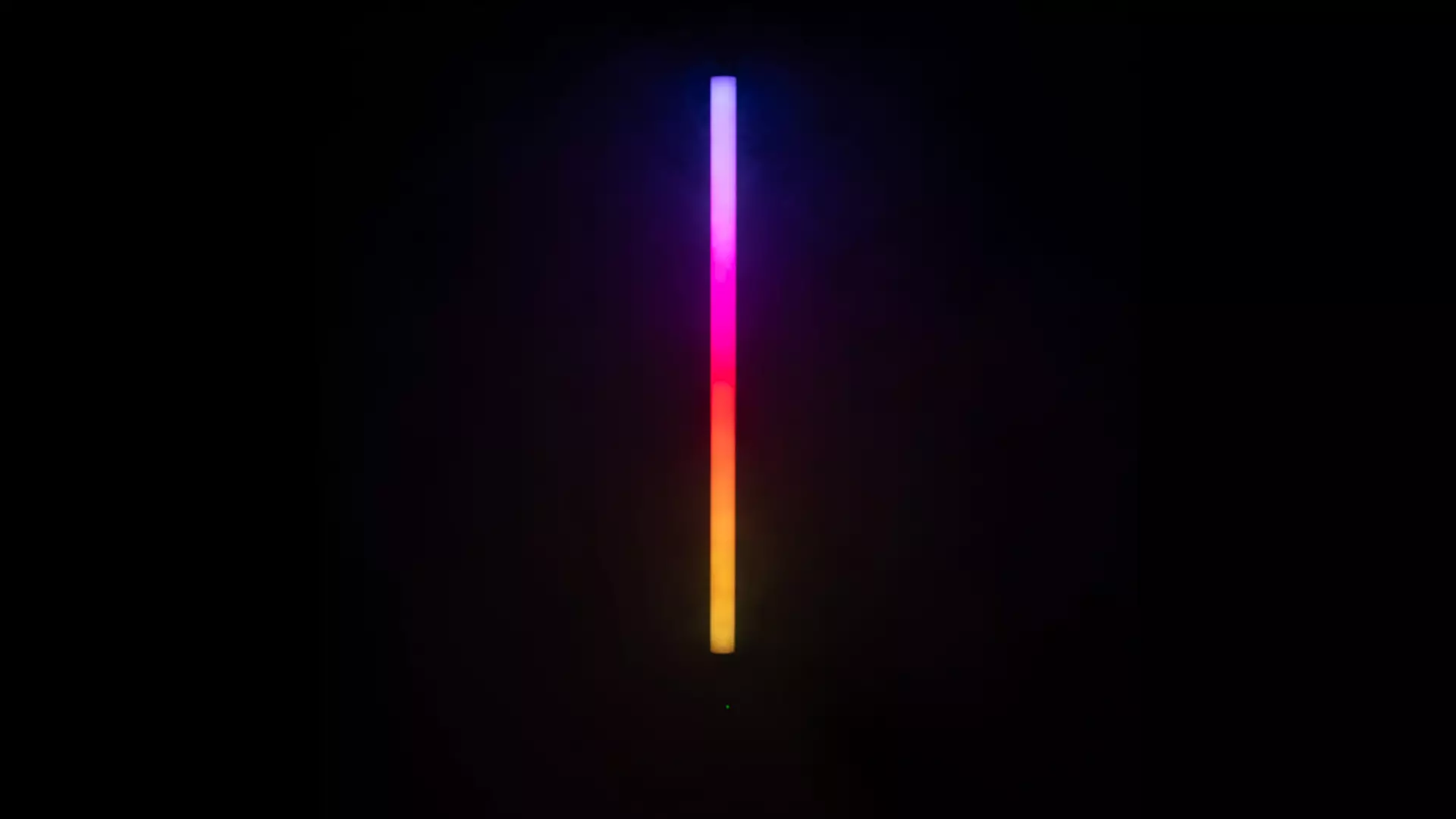

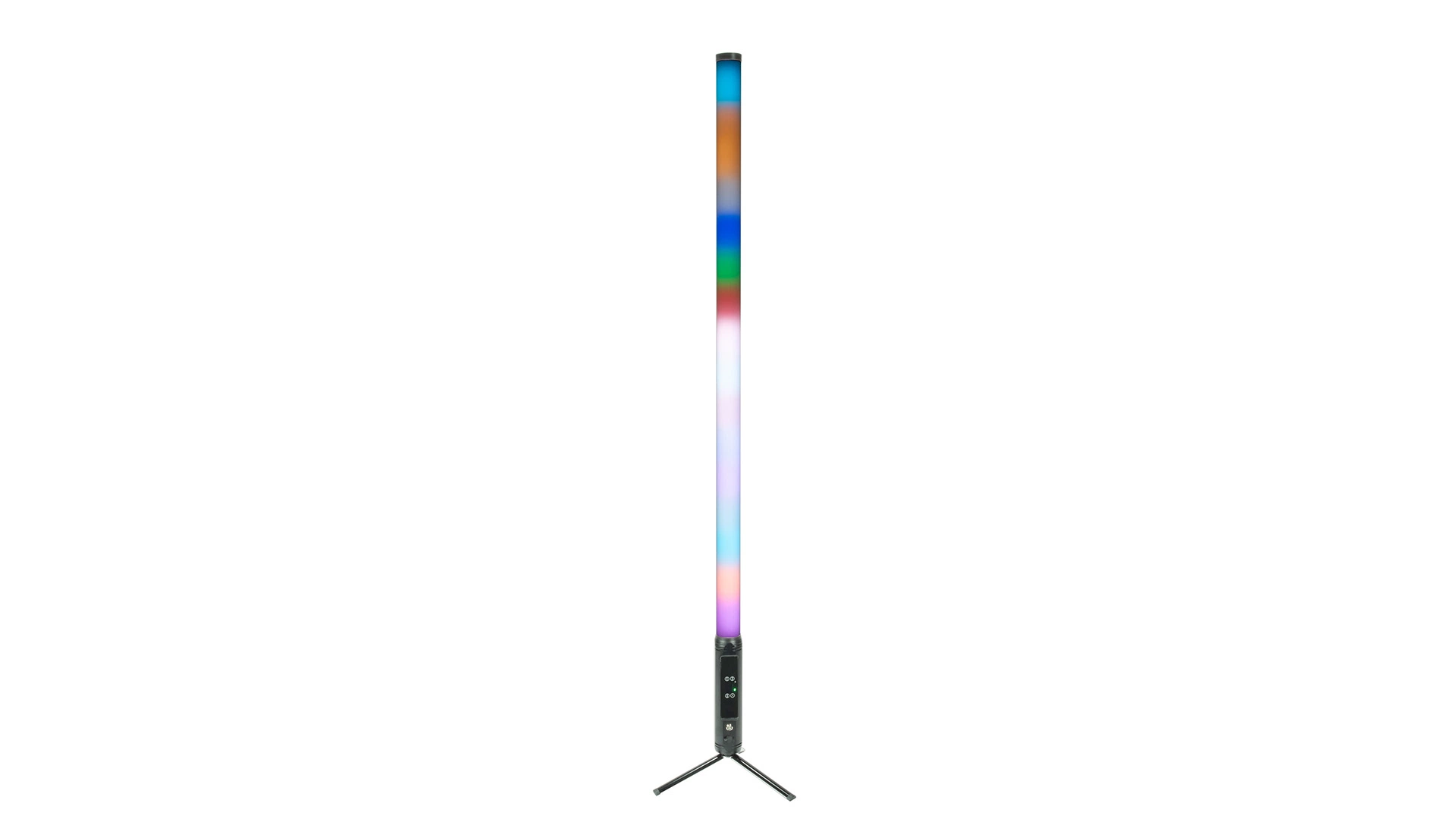

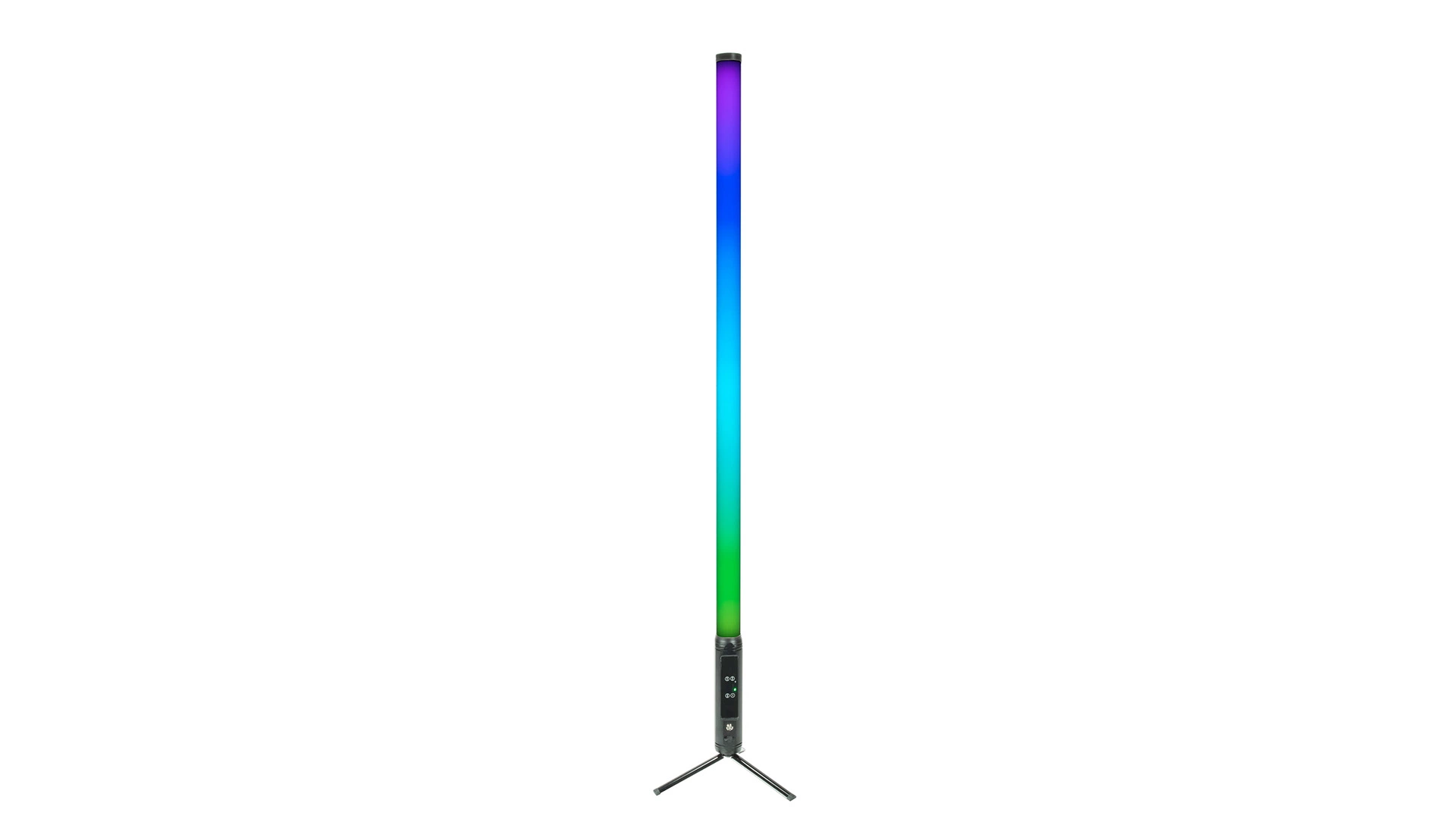

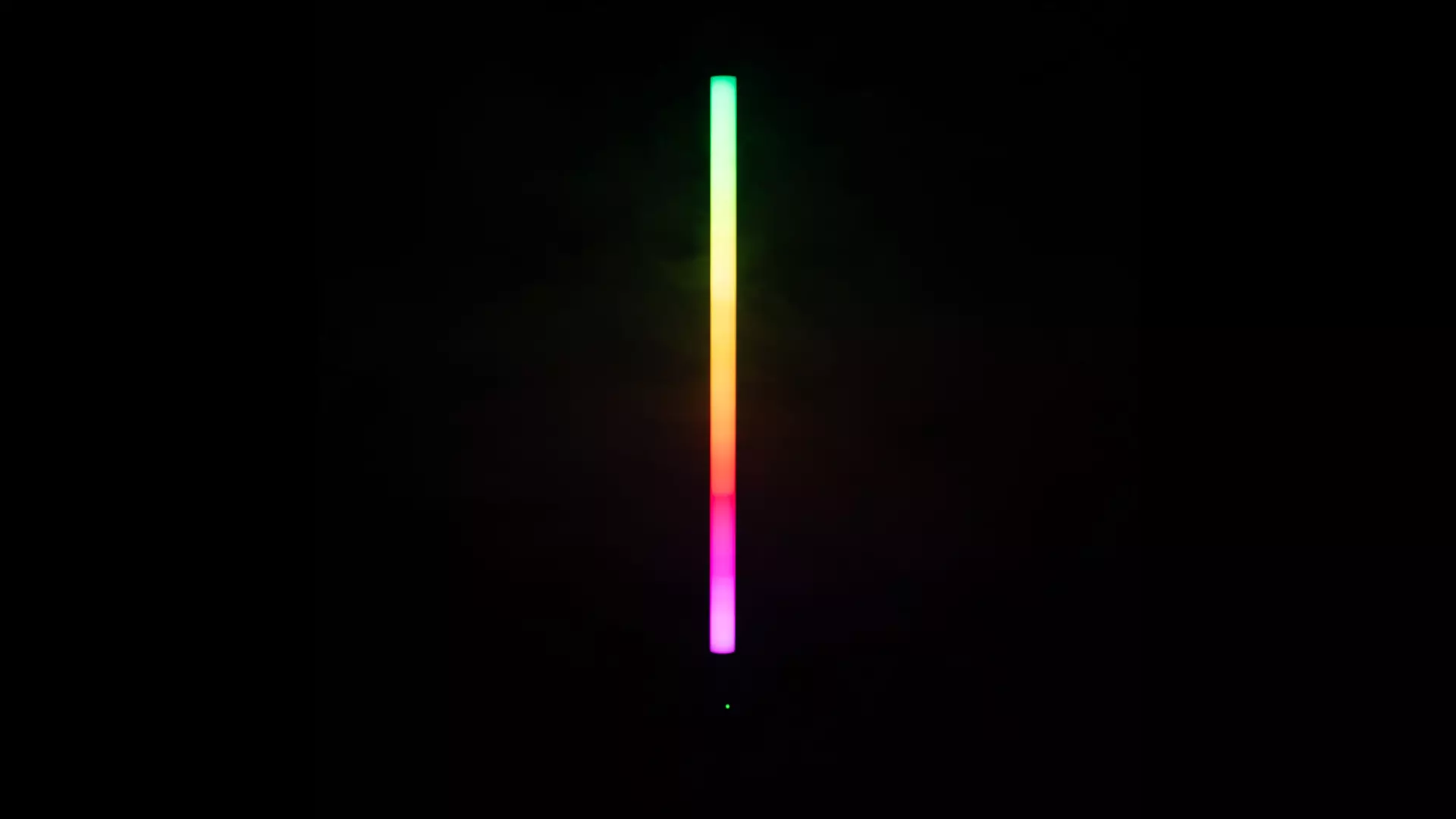

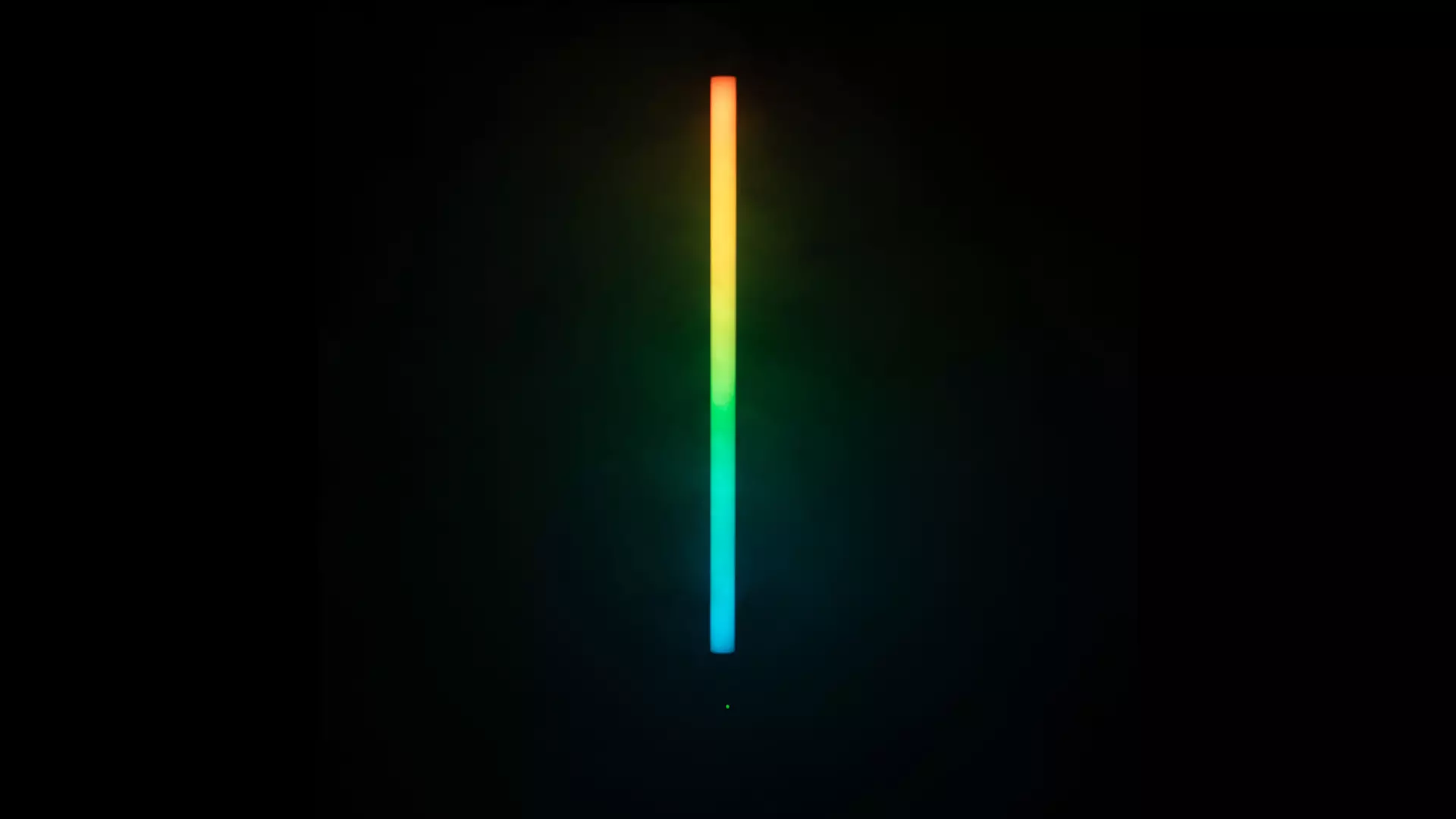

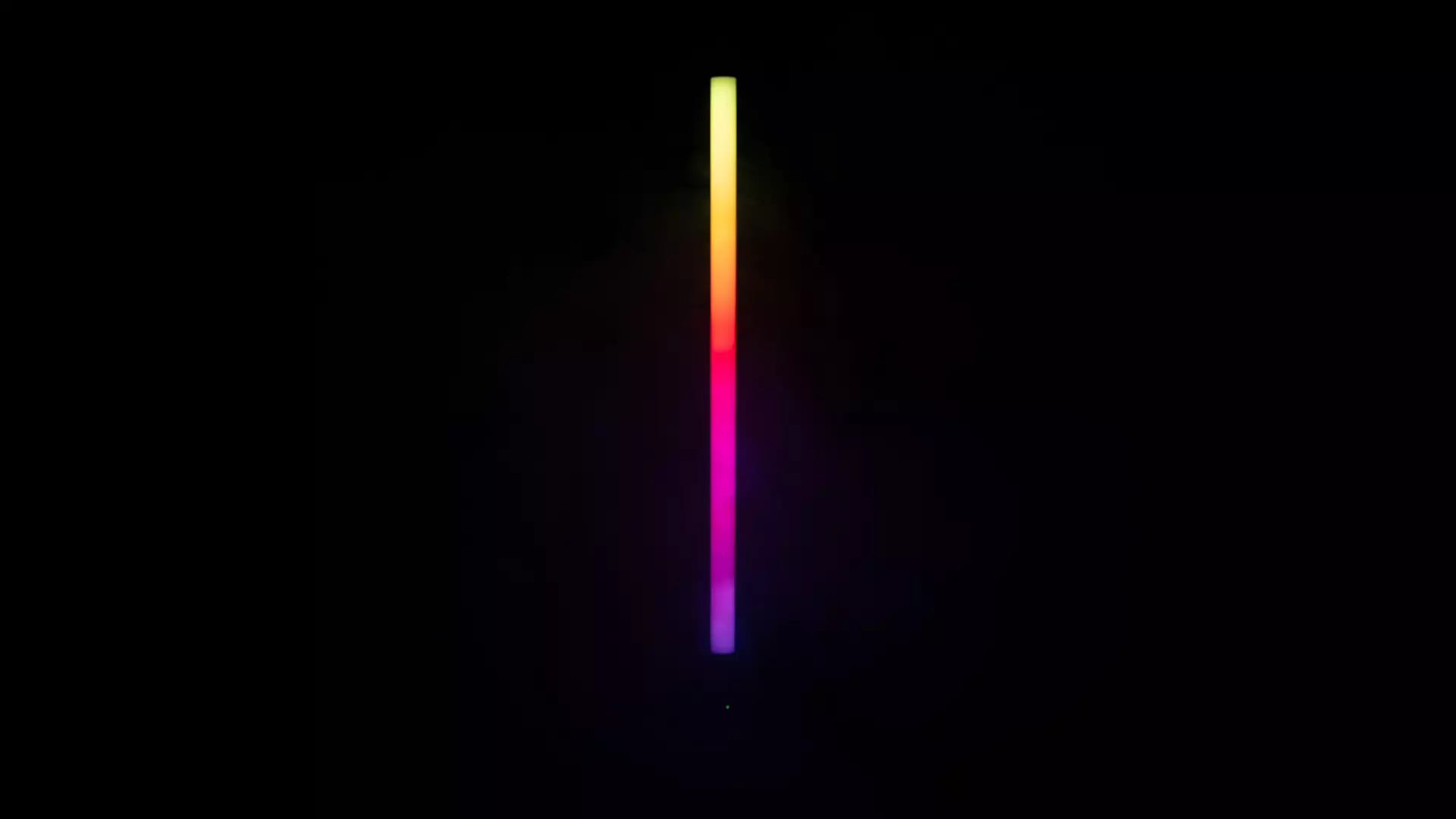

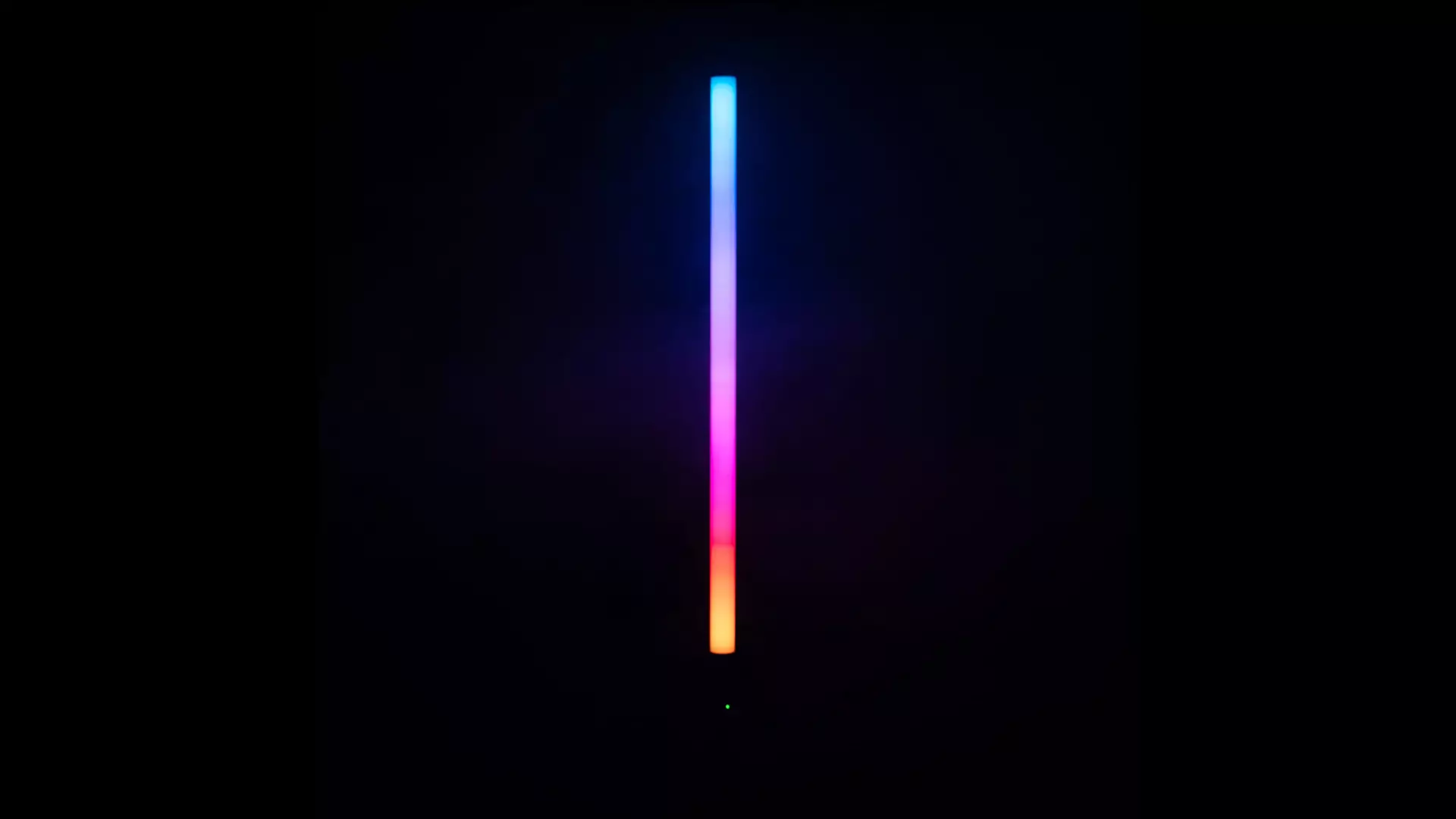

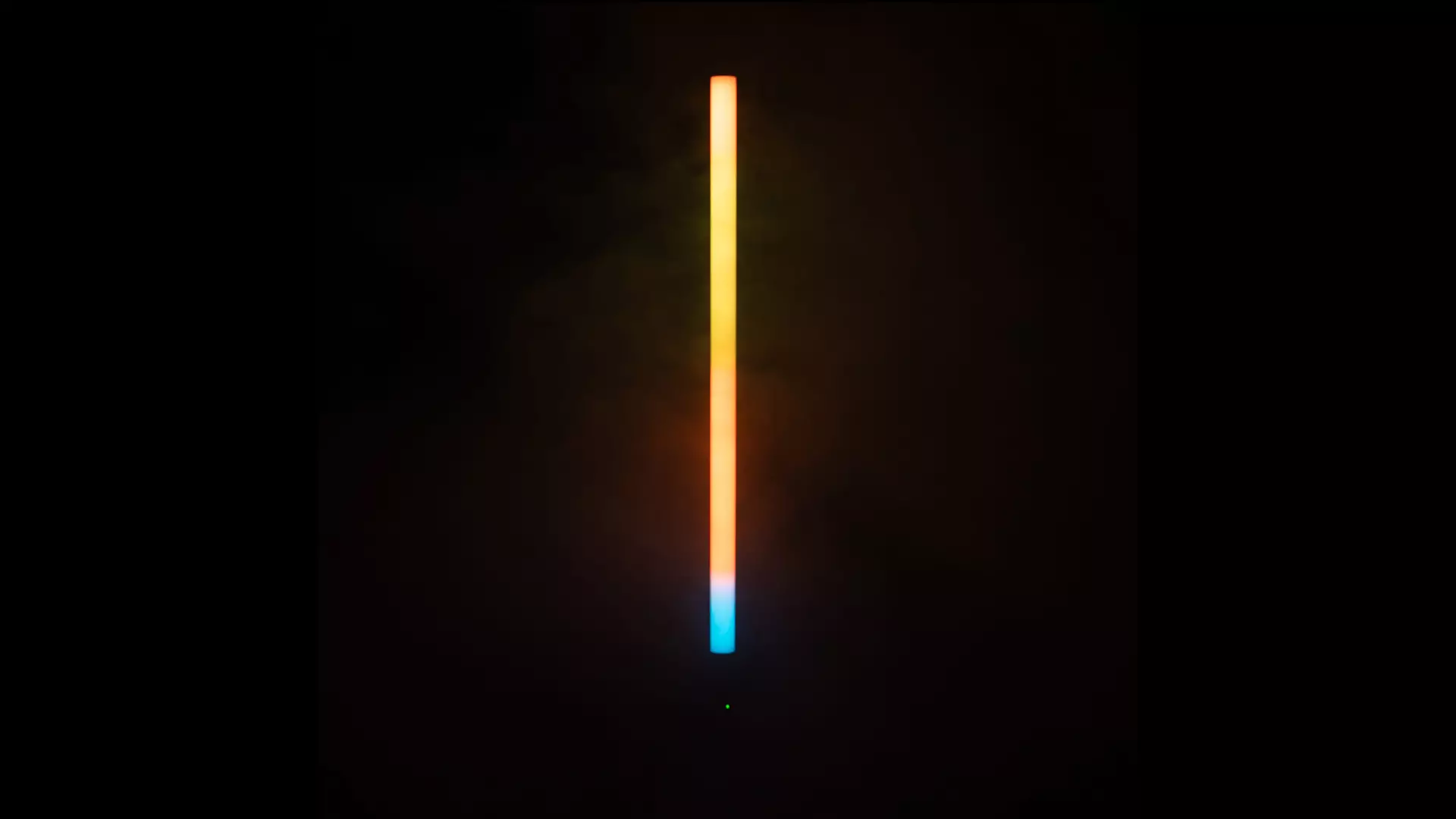

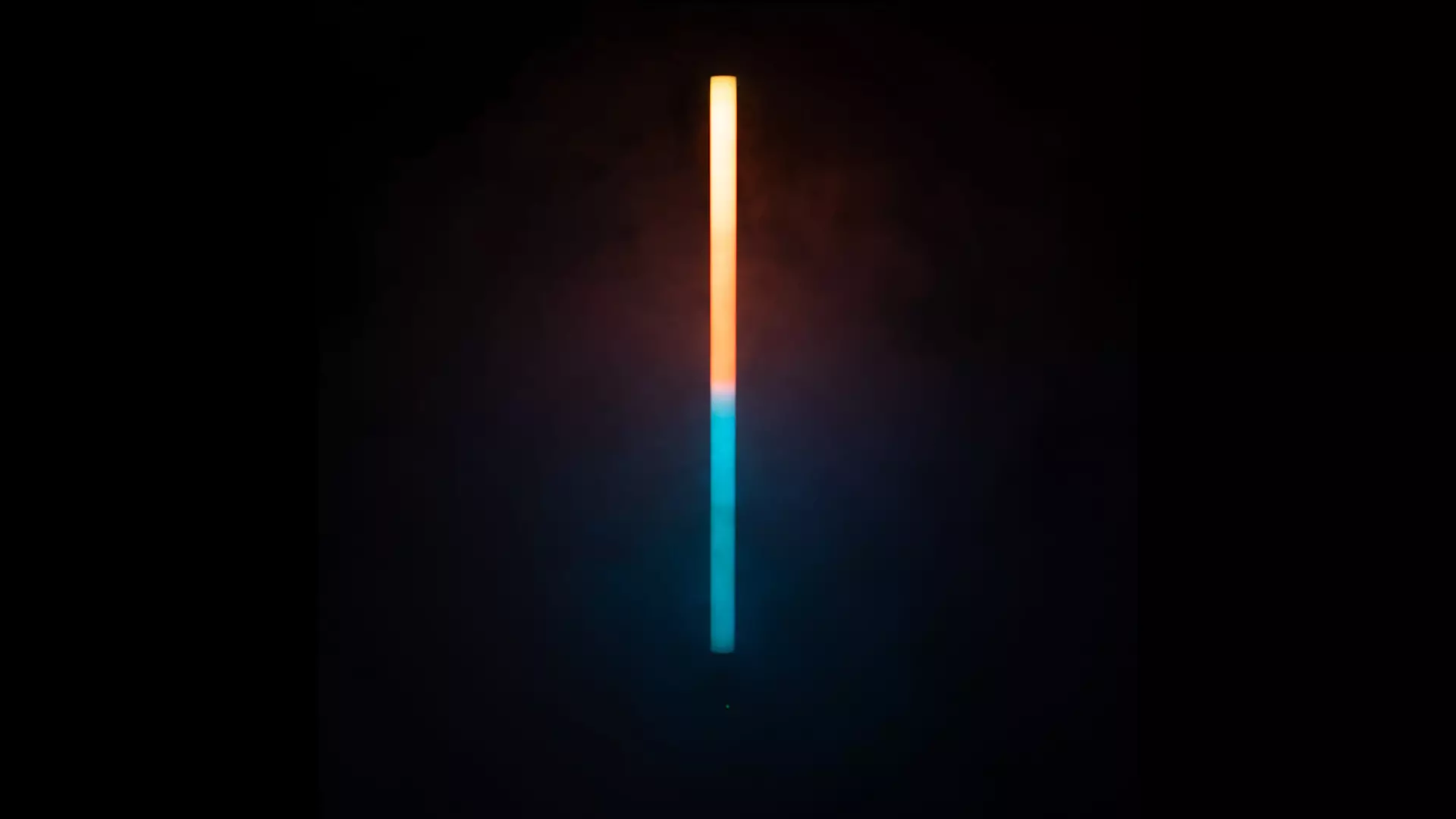

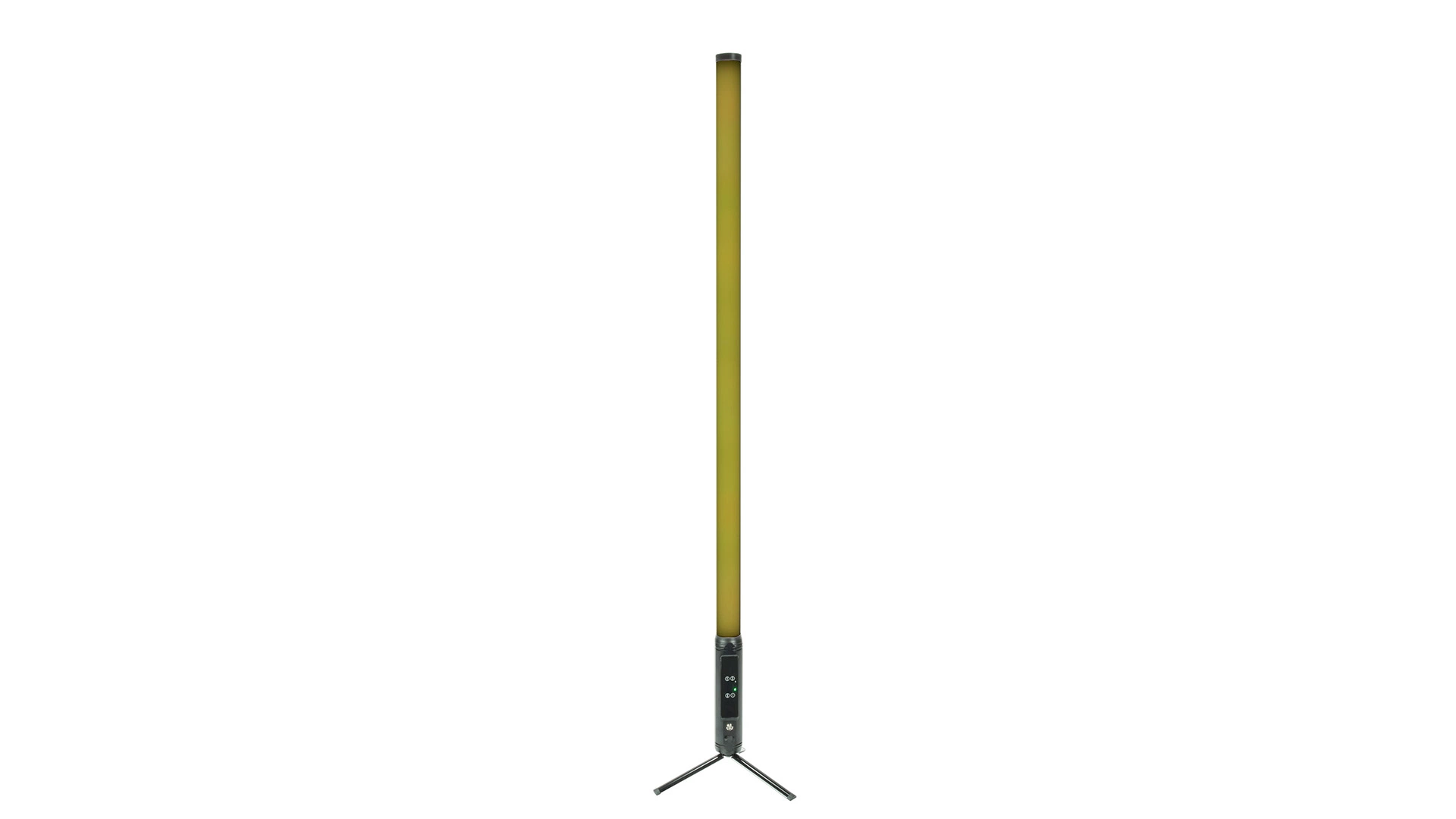

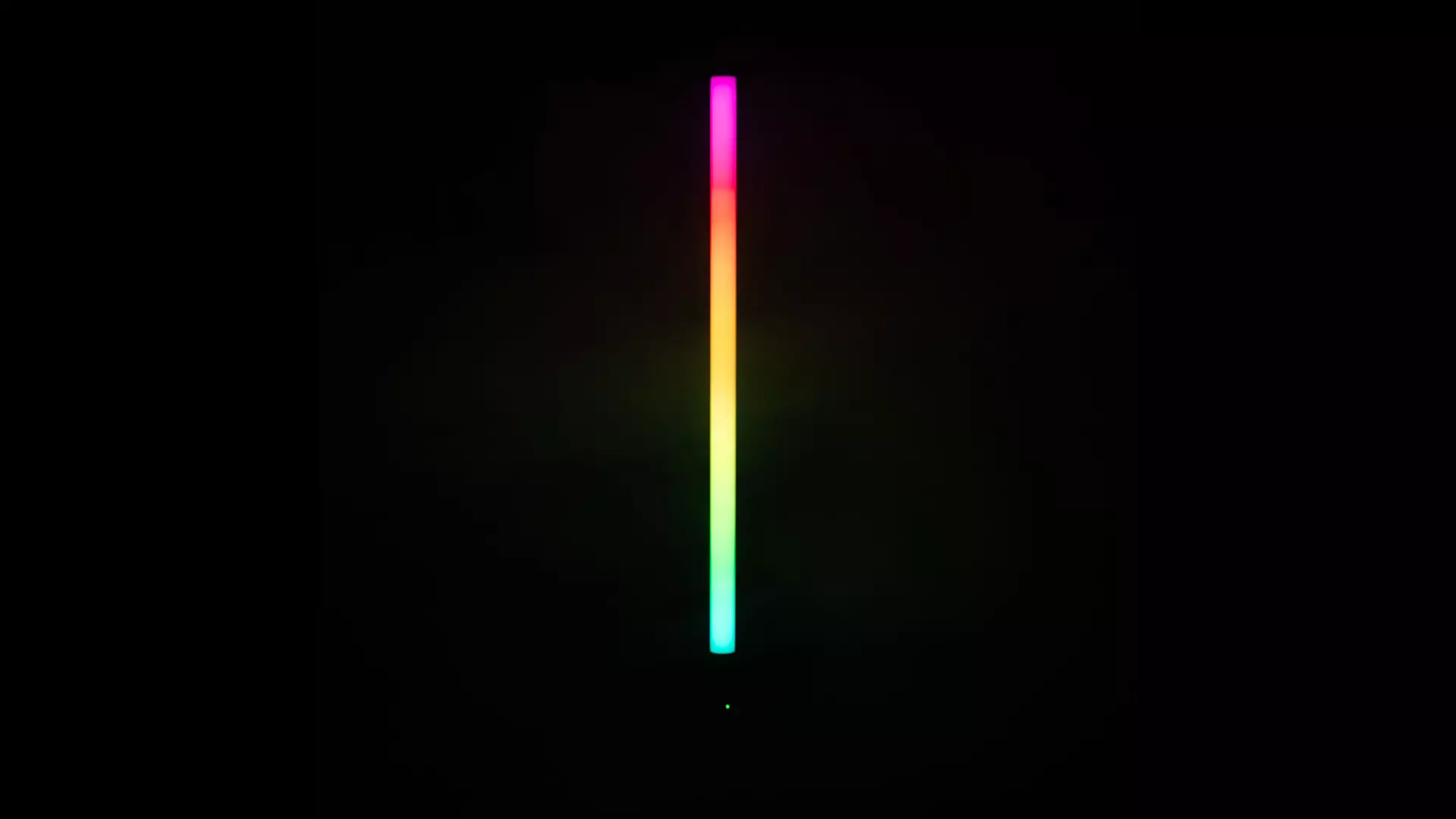

TubeFX 360 IP WDMX SET8 is a complete set of 8 devices that constitute multi-tasking, battery-powered lighting with an IP65 waterproof rating.TubeFX 360 IP WDMX is equipped with a high-quality 28W light source, emitting unlimited combinations of colors and effects, with smooth RGBWA color mixing.This device uses efficient battery technology based on lithium batteries (9600). Full charging of the batteries takes +/- 7 hours, which allows operation in constant light mode at maximum power up to 8 hours. And with variable light intensity, various modes and effects, this time can range from 1 to even 12 hours on the battery.Device height 143.5 cm, aluminum housing, stable foldable base, fixed lighting angle of an impressive 360⁰, many control modes: wireless DMX 512, Sound control, Auto control, Master-slave, IR, Wi-FI 2.4G. make it an excellent lighting product combining decorative and effective values.

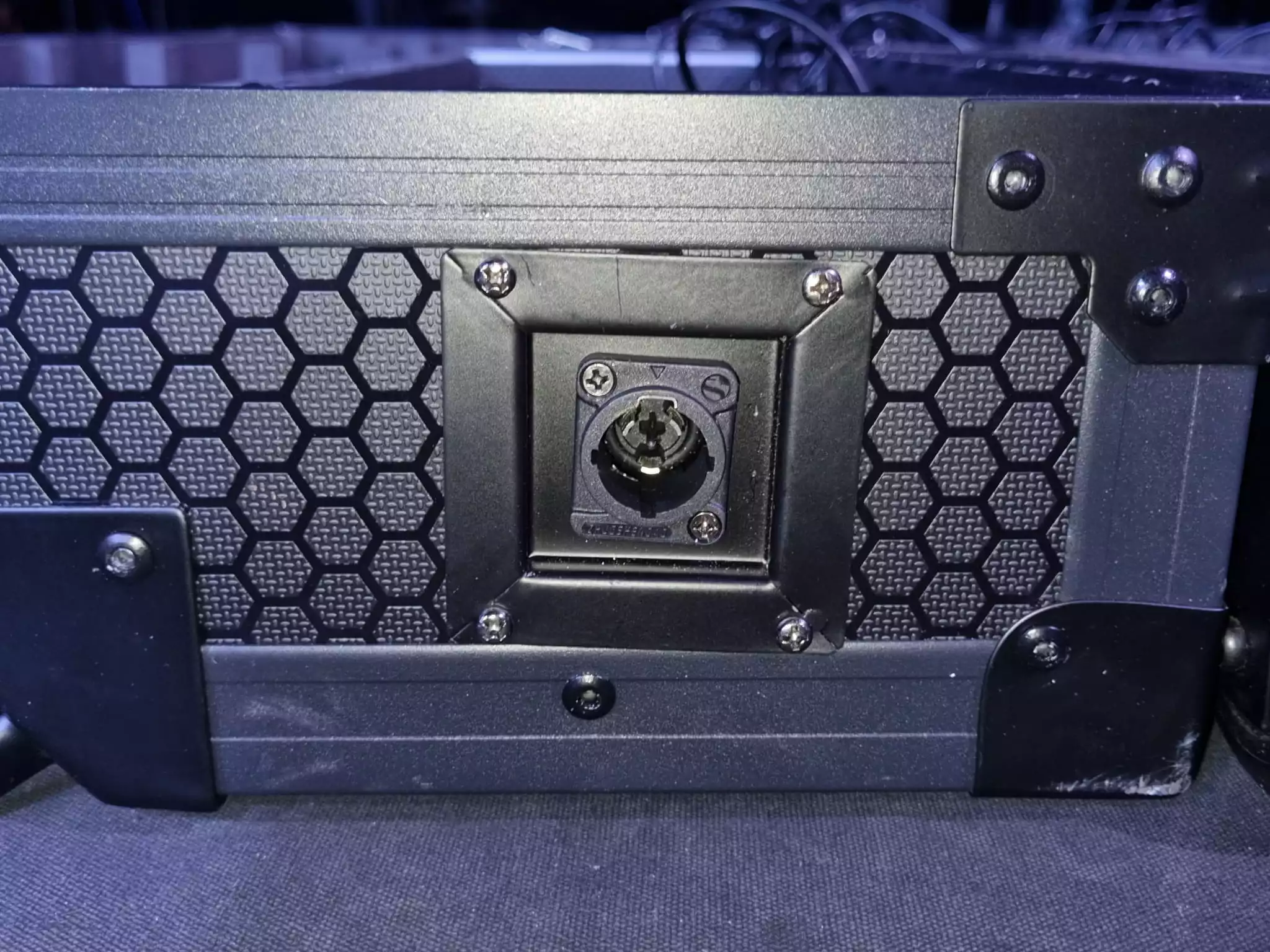

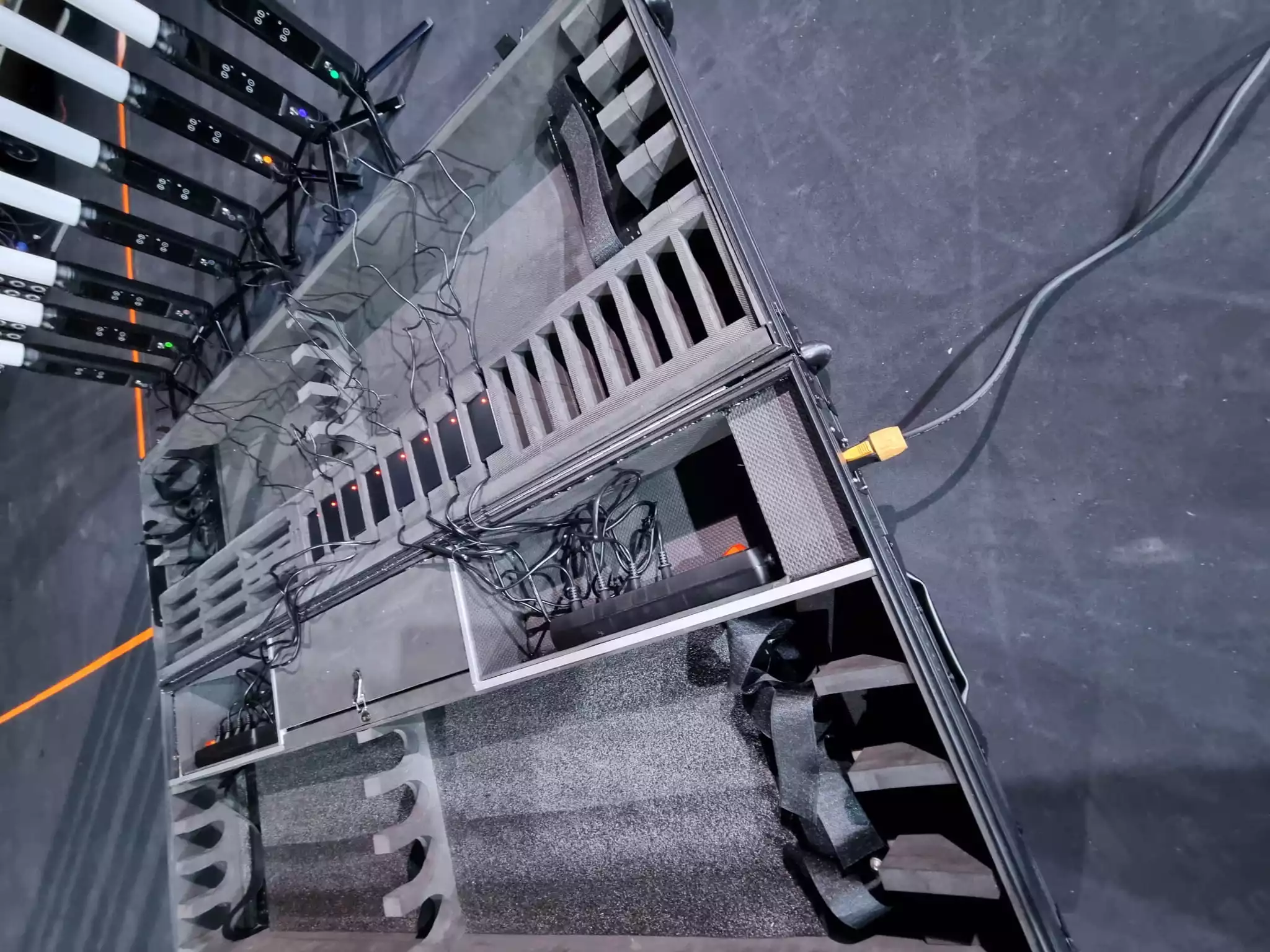

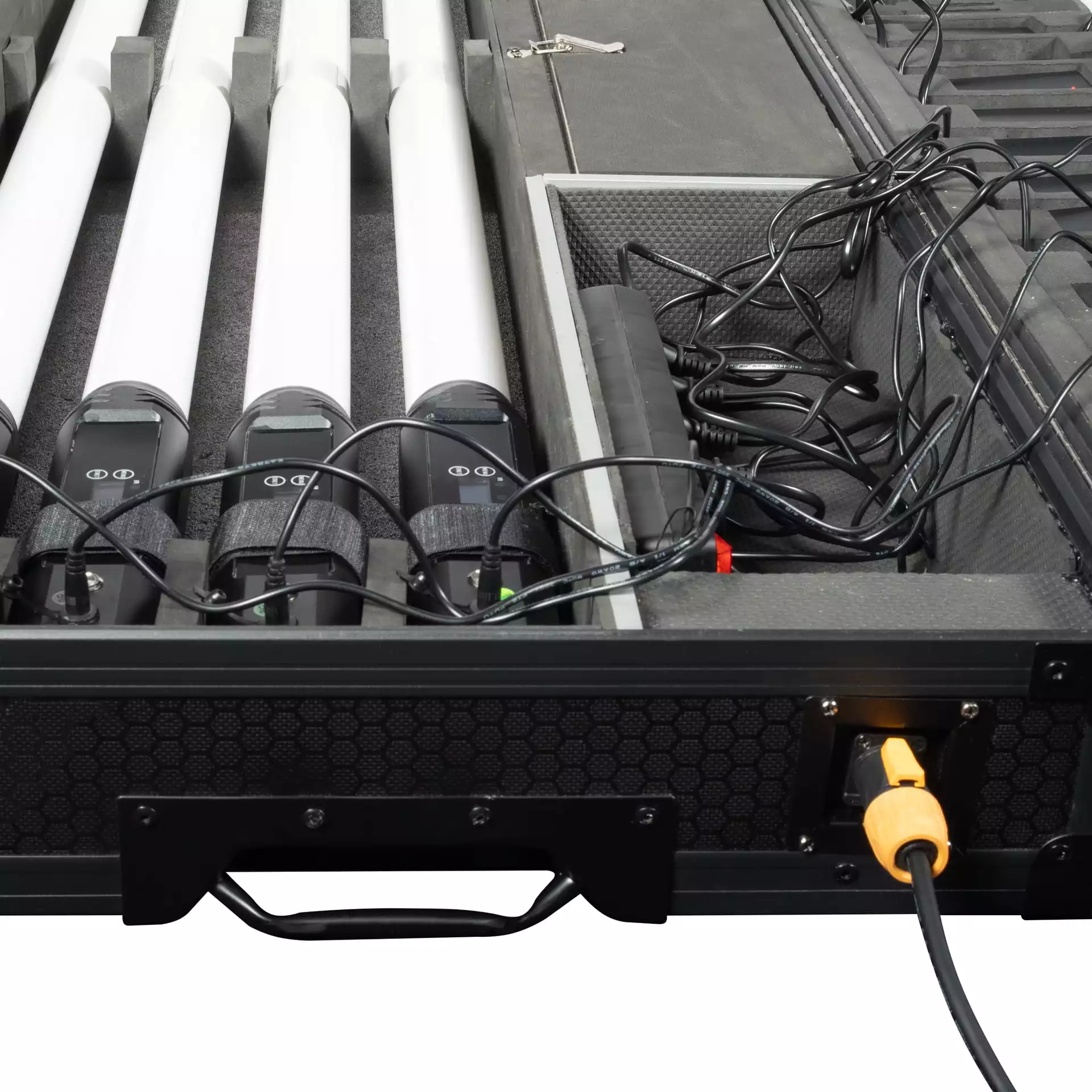

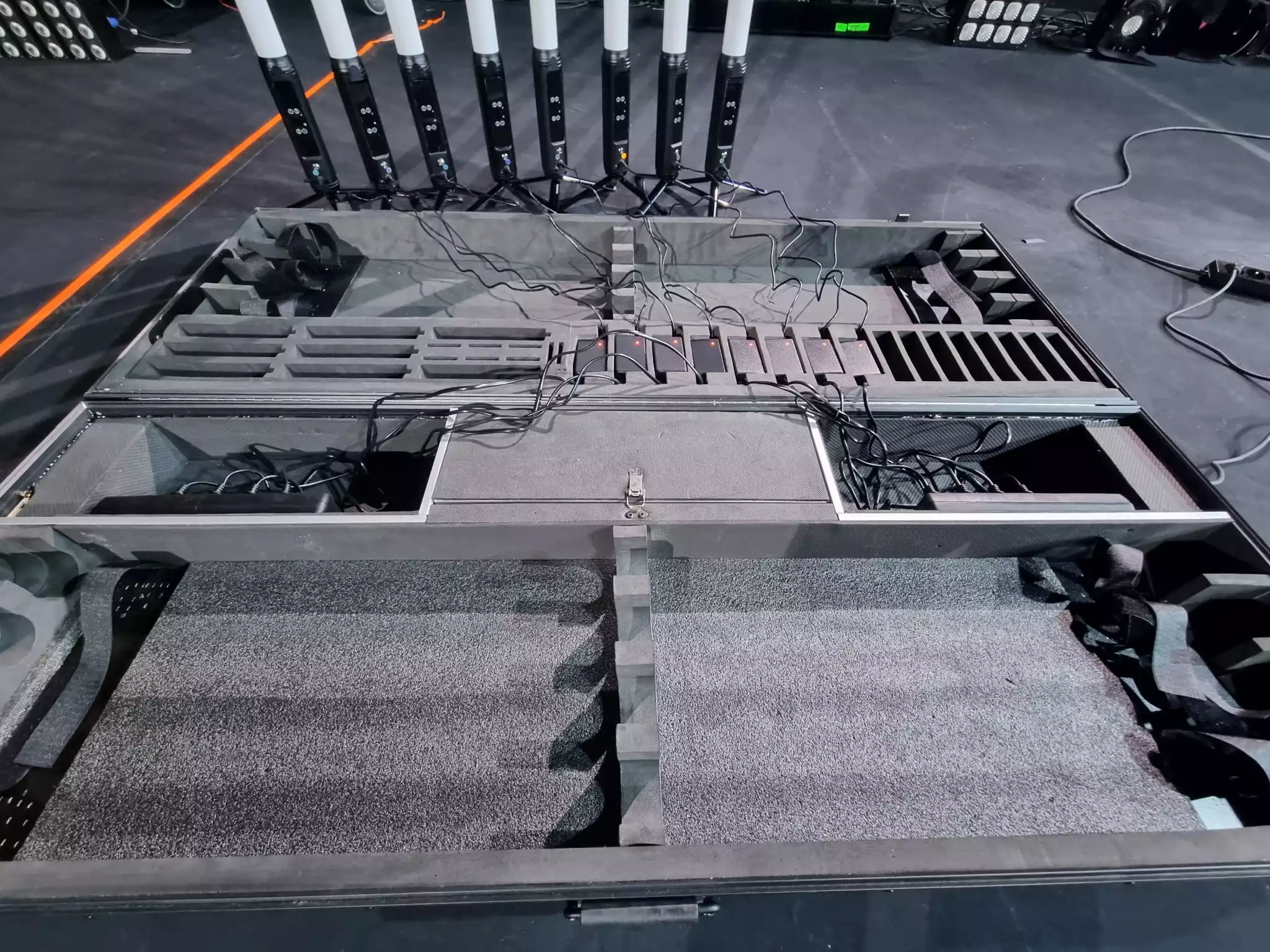

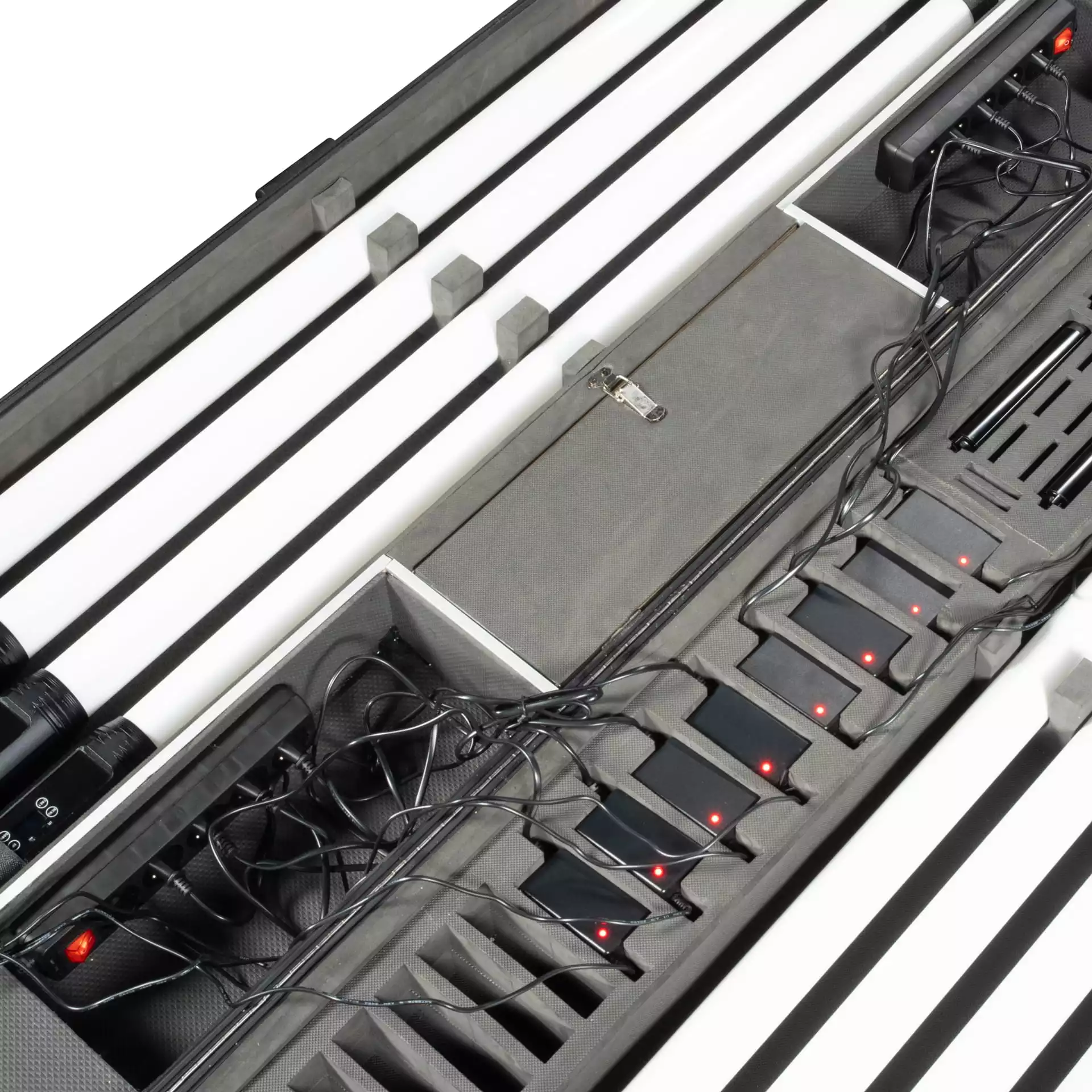

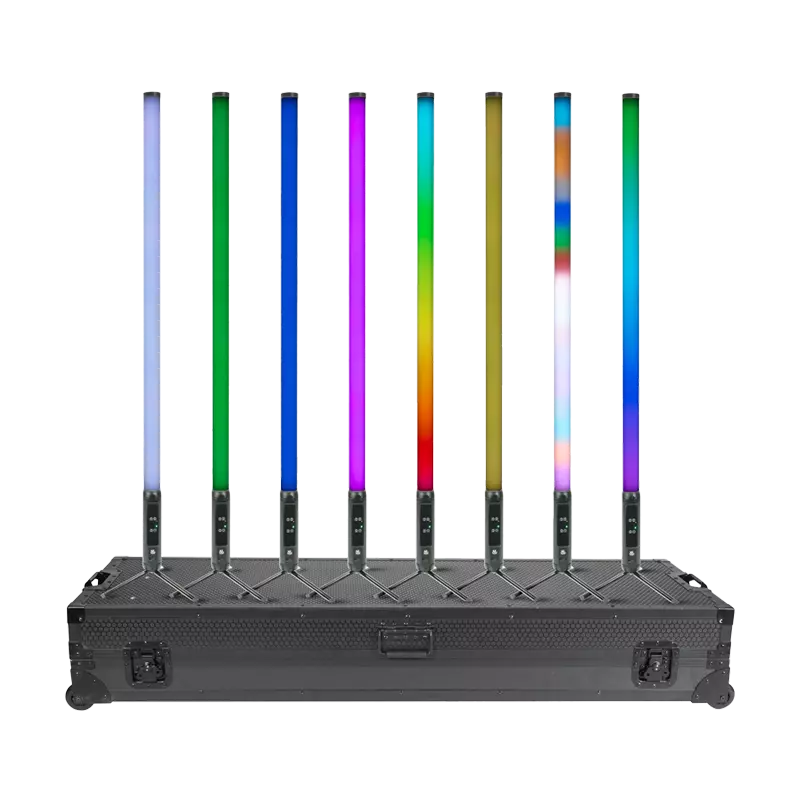

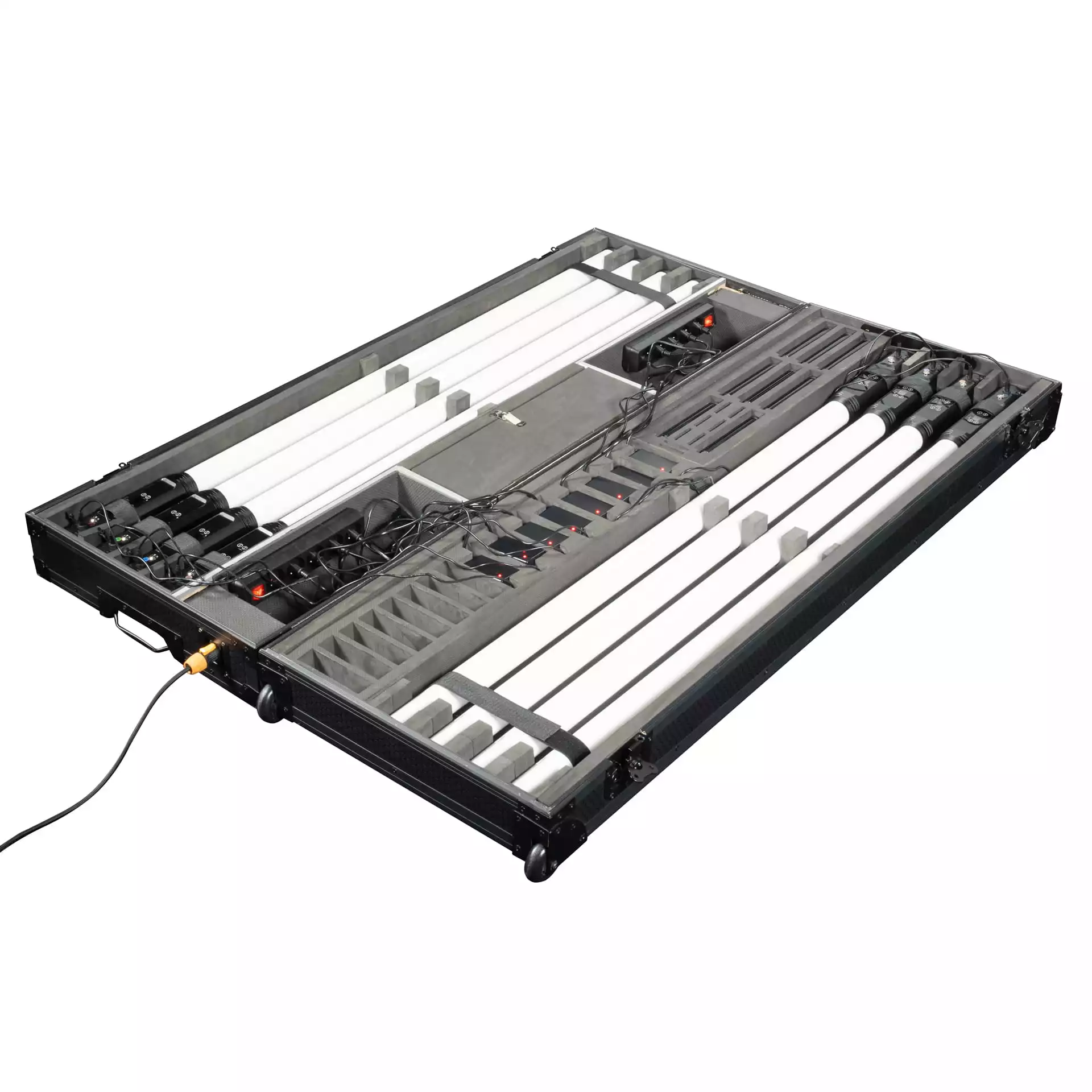

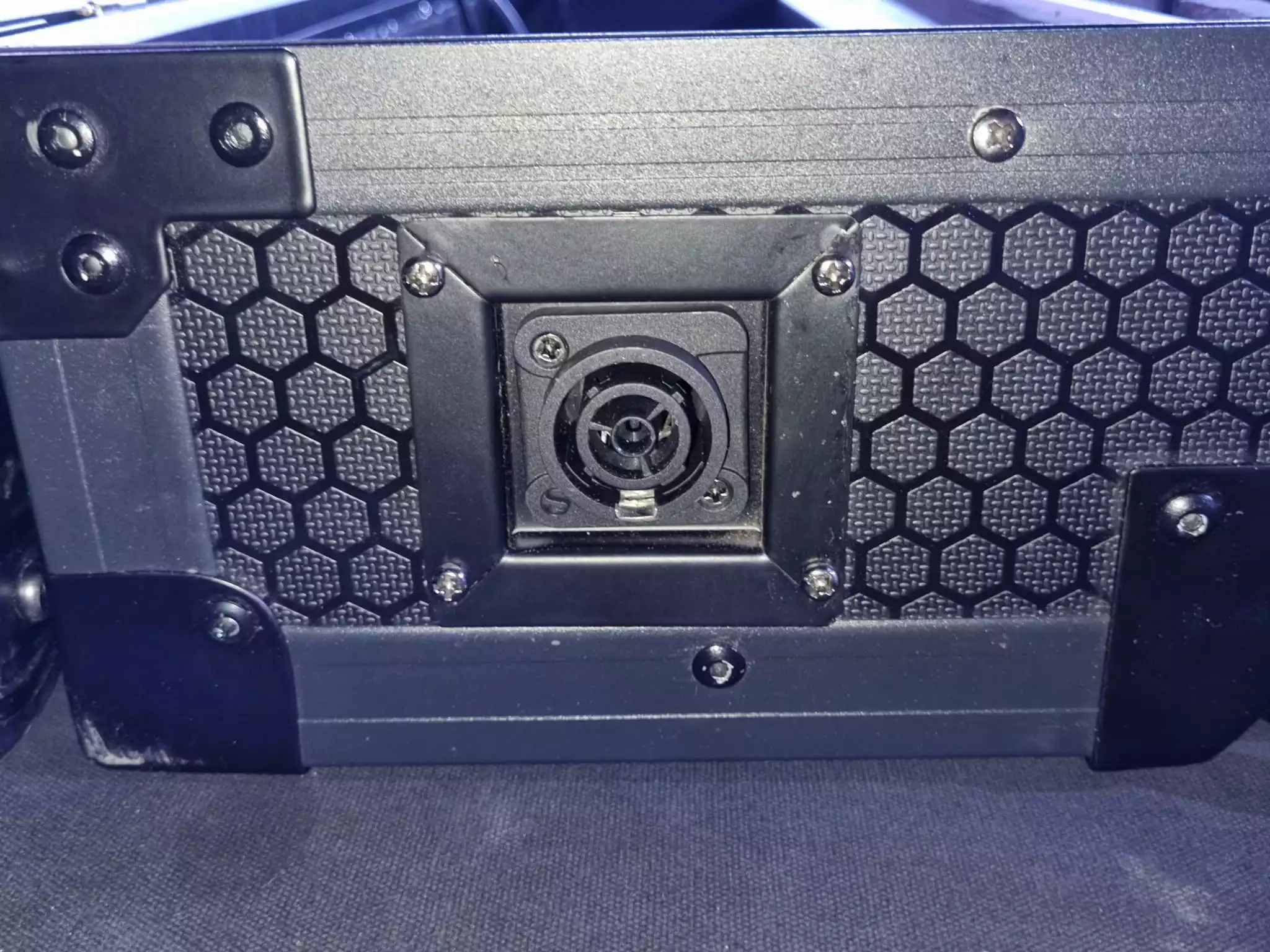

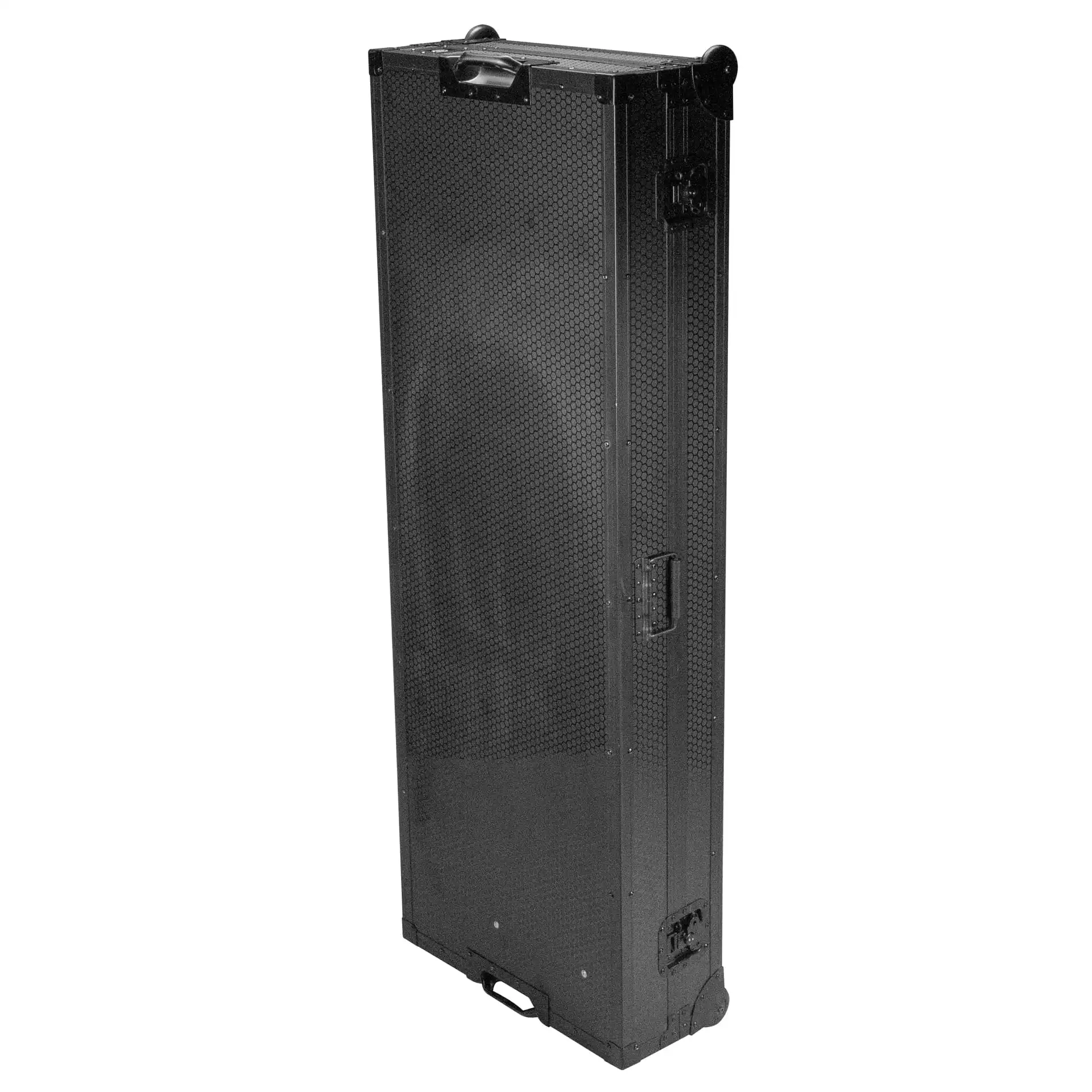

To meet customer expectations, we have prepared a special offer consisting of eight fully equipped devices in a massive transport box. Ask your flash-butrym representative for details:1) - 1x Case with built-in TrueCON IN/OUT socket F7300264,2) - 8x TubeFX 360 IP WDMX,3) - 2x Power strip,4) - 8x Power Supply,5) - 8x IR Remote Control,6) - 8x tripod / device base,7) - 1x TrueCON power cable (In).

Specification TubeFX 360 IP WDMX SET8

Power Source (AC)

Supply voltage 100-240V
Power consumption 28W
Power frequency 50-60Hz

Supply voltage (DC)

Battery 9600mAh lithium

Light source

Type LED (RGBWA)
Power (W) 28
Number of control sections 32 RGB
Number of control sections 32 LED (W)
Color temperature 1750-10000K
Color Rendering Index (CRI) 90

Color Mixing System

RGBWA 16 bit

Beam angle

Beam angle Stały (360 ⁰)

CTO

CTO smooth

Strobe - frequency

Frequency 1-20Hz
Pulsating Yes
Random Yes

DMX control

Number of modes 10
Number of channels 4-160

Modes of operation

W-DMX Yes
F-DMX Yes
Sound control Yes
Auto control Yes
Master-slave Yes
IR control Yes

User Interface

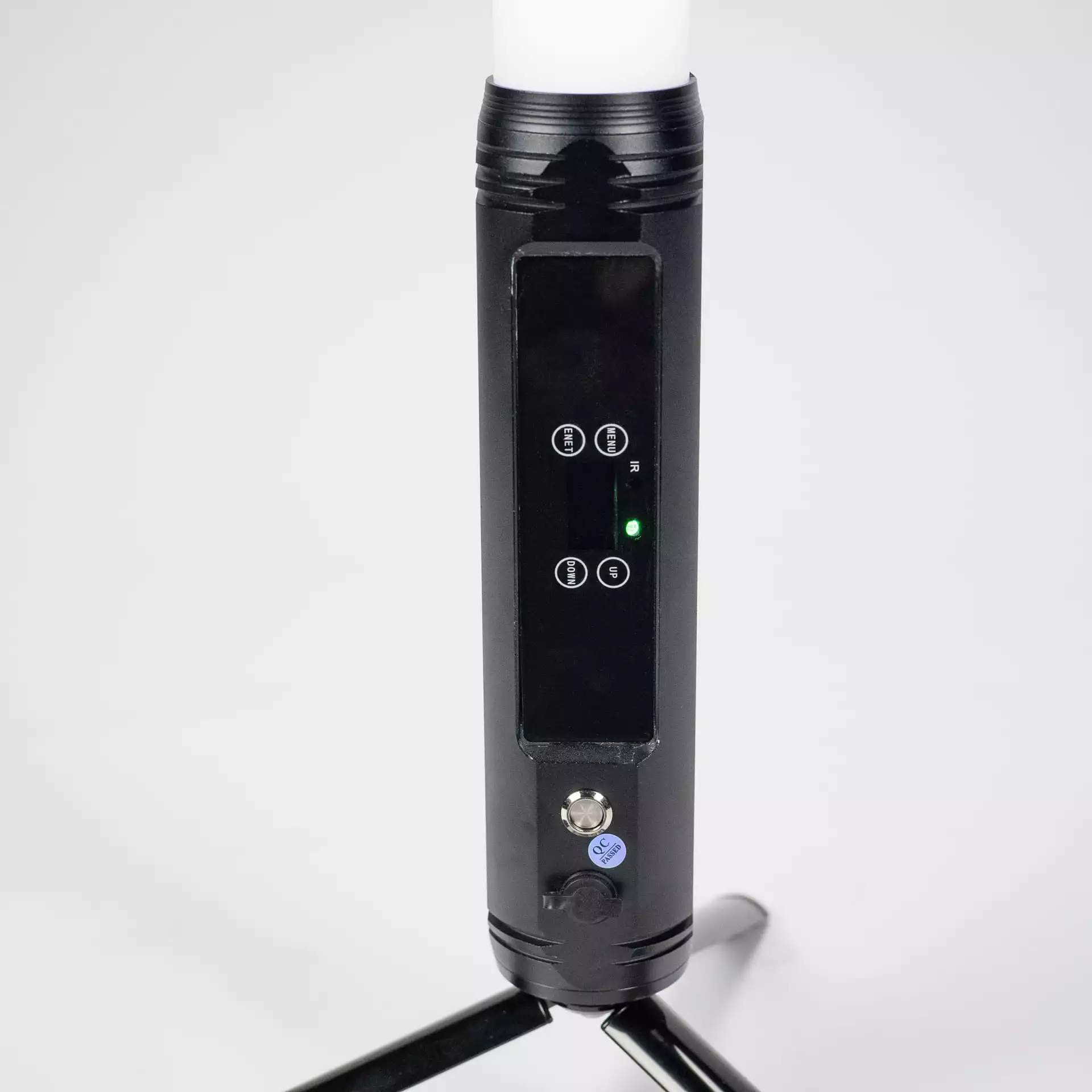

Touch display Yes

Connectors

AC IN TrueCon IP65
AC IN DC Power Supply
AC OUT TrueCon IP65

Physical parameters

IP protection level IP65

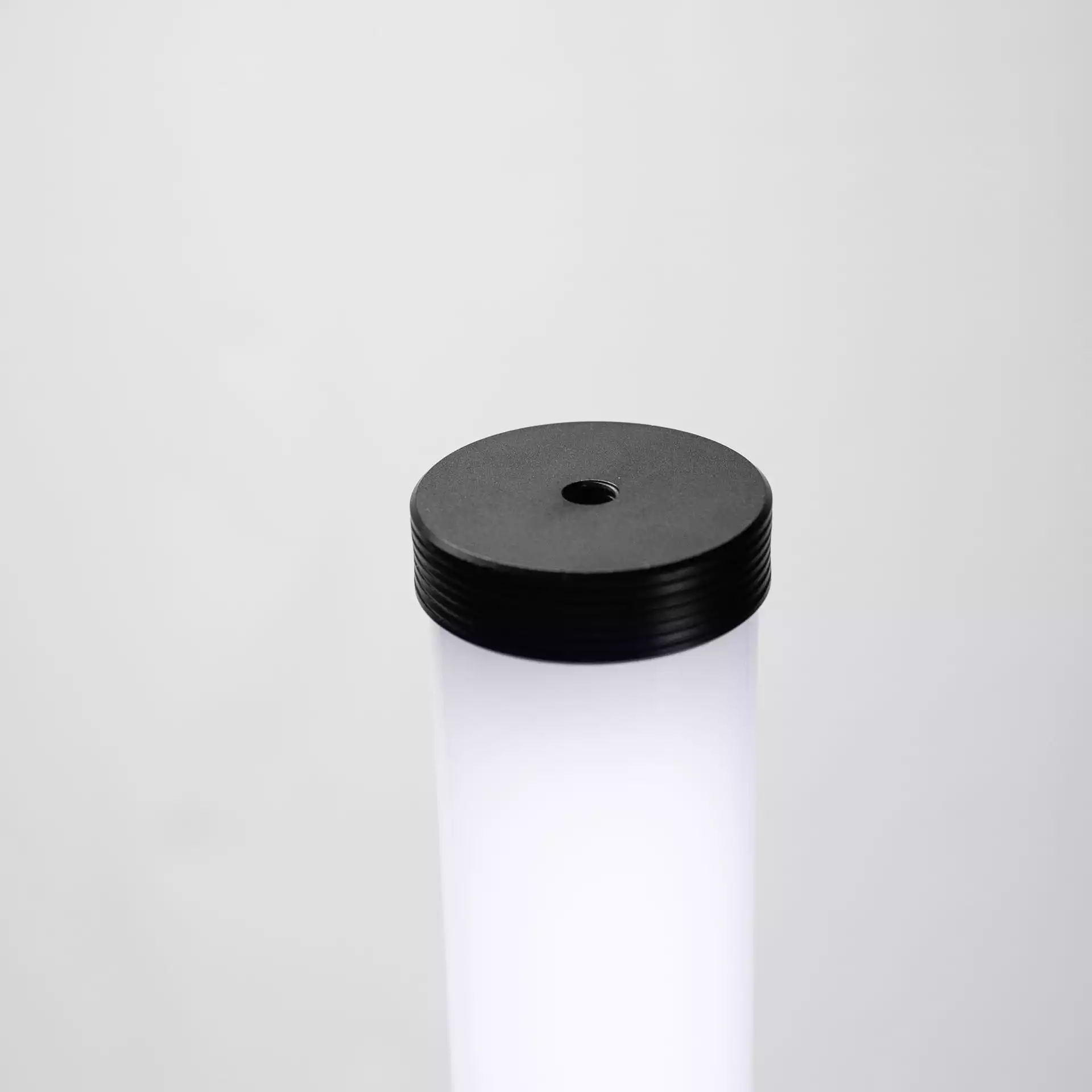

Housing type Aluminium
Housing type ABS
Fixing Mounting hole
Housing Color Black
Housing Color White
Cooling Passive
Length [cm] 143,5
CASE length [cm] 152
Width [cm] 5
CASE width [cm] 54,4
Height [cm] 6
CASE height [cm] 26,5
Weight [kg] 2
CASE weight [kg] 41,4

Contents of the package

Manual Yes
Wiring TrueCON
Device TubeFX 360 IP WDMX
Handle Yes
Remote control IR Yes
Power supply Yes

Package dimensions and weight

Package length [cm] 152
Package width [cm] 54.5
Package height [cm] 26.5
Weight with packaging [kg] 41.4
Type of packaging CASE

Instructions available TubeFX 360 IP WDMX SET8

Instrukcja PL for TubeFX 360 IP WDMX SET8
Instrukcja
Język: PL
Instrukcja EN for TubeFX 360 IP WDMX SET8
Manual
Language: EN

Driver fixtures/libraries available

Fixtury GDTF for TubeFX 360 IP WDMX SET8
Fixtury grandMA2 for TubeFX 360 IP WDMX SET8
Fixtury SSL2 for TubeFX 360 IP WDMX SET8
Fixtury Chamsys for TubeFX 360 IP WDMX SET8
Fixtury grandMA3 for TubeFX 360 IP WDMX SET8
Fixtury dot2 for TubeFX 360 IP WDMX SET8
Fixtury Avolites Titan for TubeFX 360 IP WDMX SET8

Documents available TubeFX 360 IP WDMX SET8

DMX Charts EN for TubeFX 360 IP WDMX SET8
DMX Charts EN
Data Sheet EN for TubeFX 360 IP WDMX SET8
Data Sheet EN

Dedicated accessories for product TubeFX 360 IP WDMX SET8

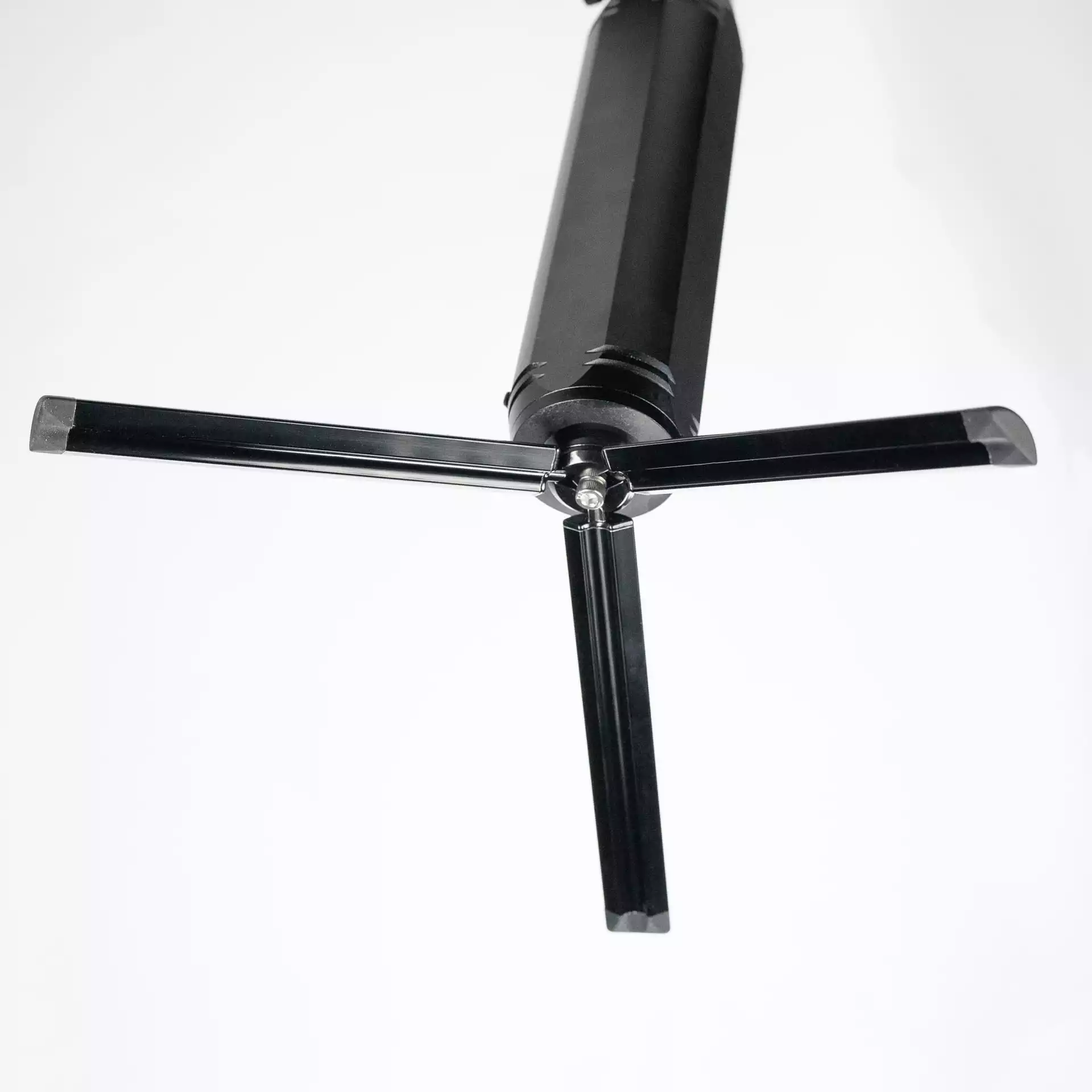

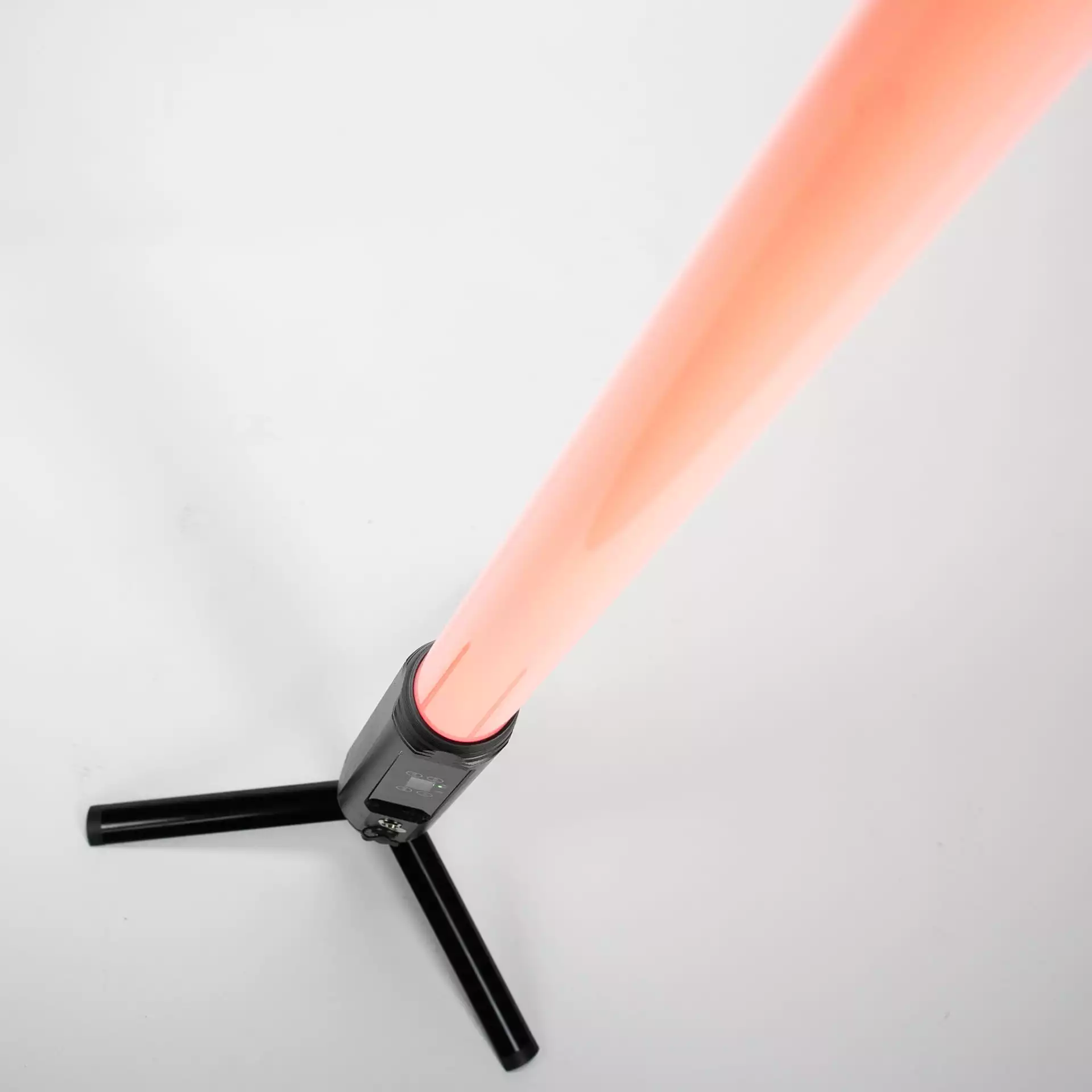

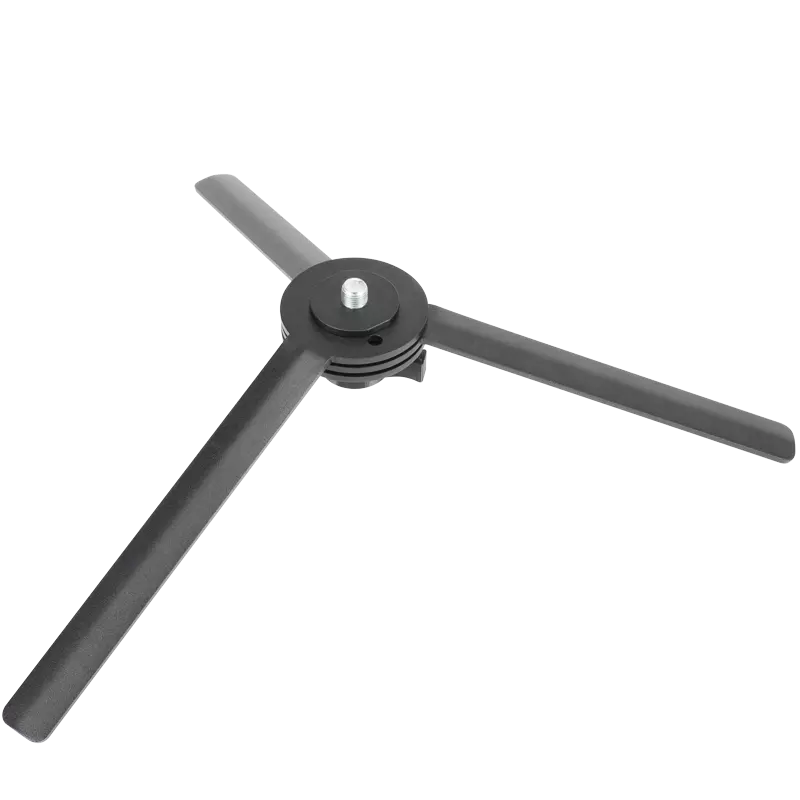

  • Tripod TubeFX 360
    Tripod TubeFX 360
    Series: ADDon
    Czarny statyw do urządzenia tubeFX 360 to wytrzymałe, metalowe akcesorium, które zapewnia stabilność i wszechstronność w użytkowaniu.
    See more

    Recommended products

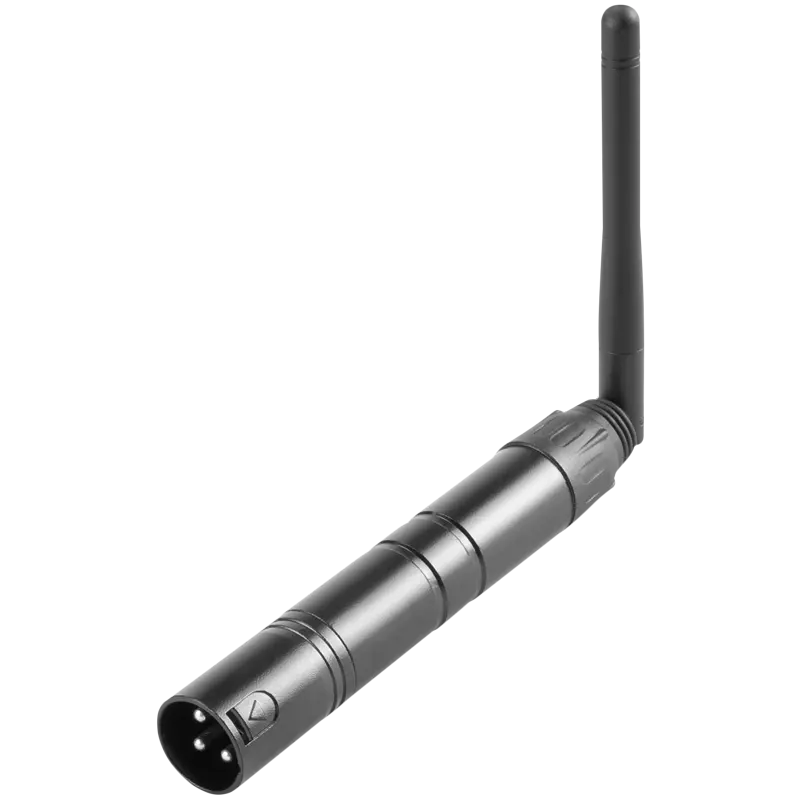

    • 2.4GHz WDMX TRCV +PWRSUPPLY
      2.4GHz WDMX TRCV +PWRSUPPLY
      Series: Connect
      2.4GHz WDMX TRCV +PWRSUPPLY to bezprzewodowy nadajnik DMX512 który przesyła sygnał pomiędzy sterownikiem DMX a urządzeniem wyposażonym w bezprzewodowy odbiornik
      See more
    • TableACCU IP WDMX

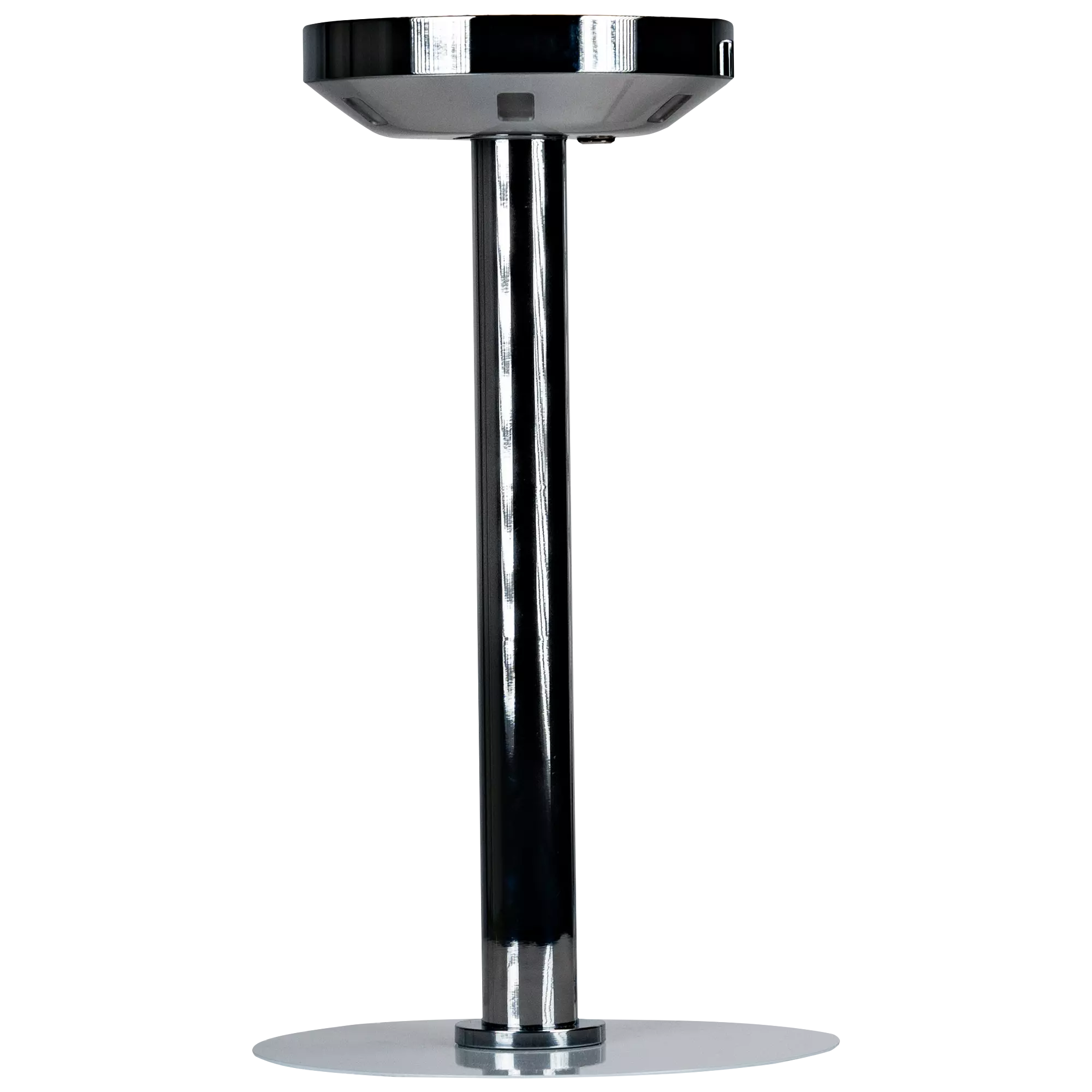

      TableACCU IP WDMX
