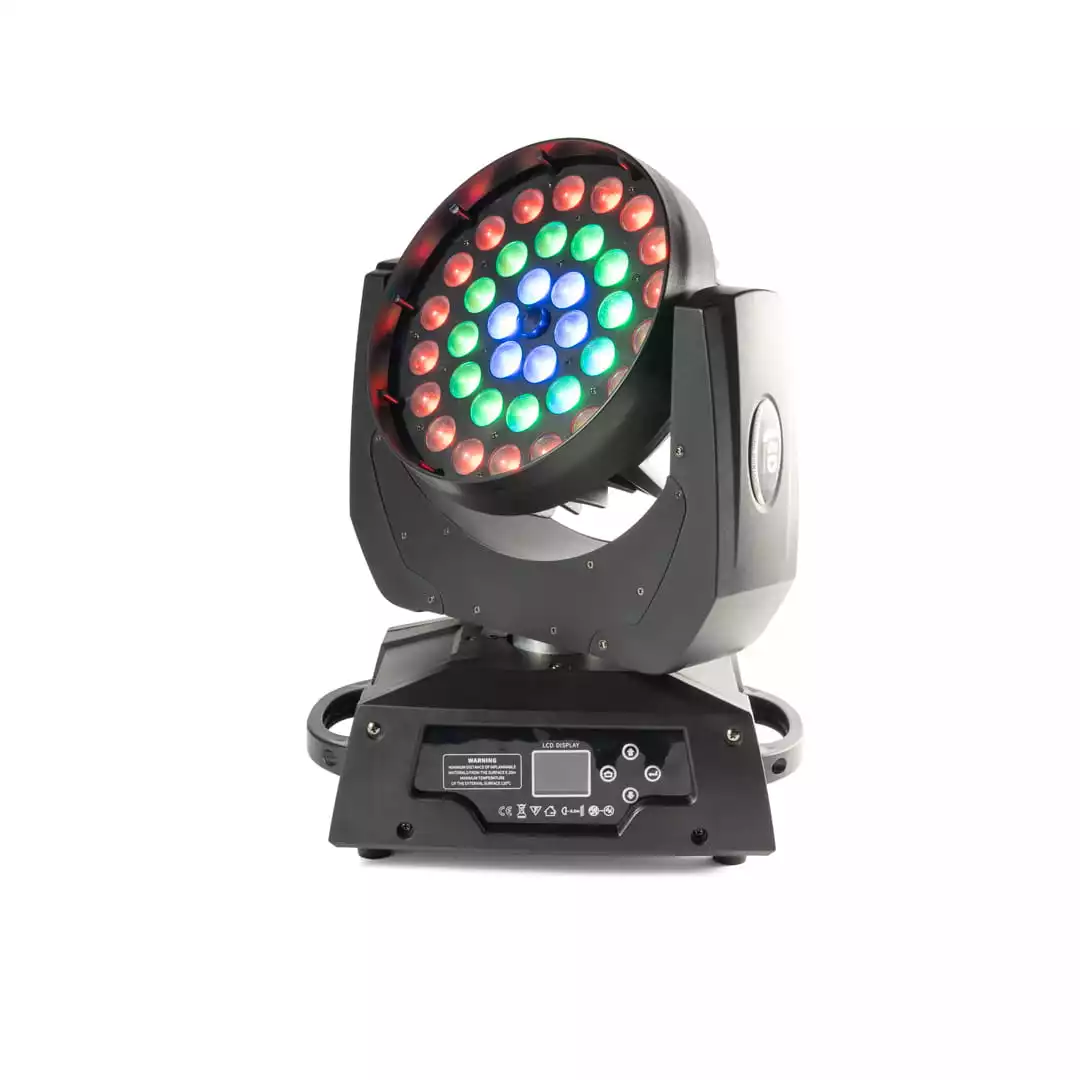

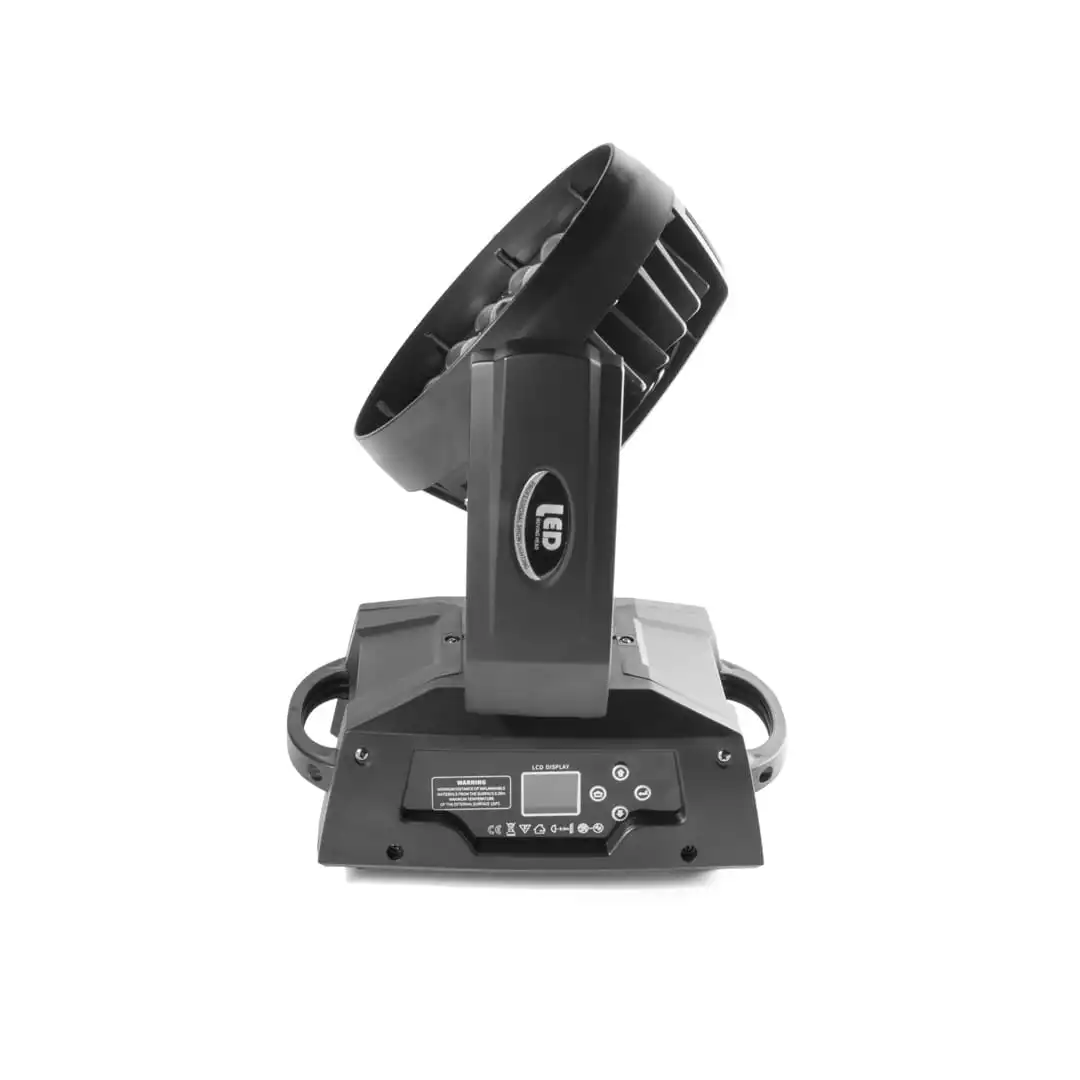

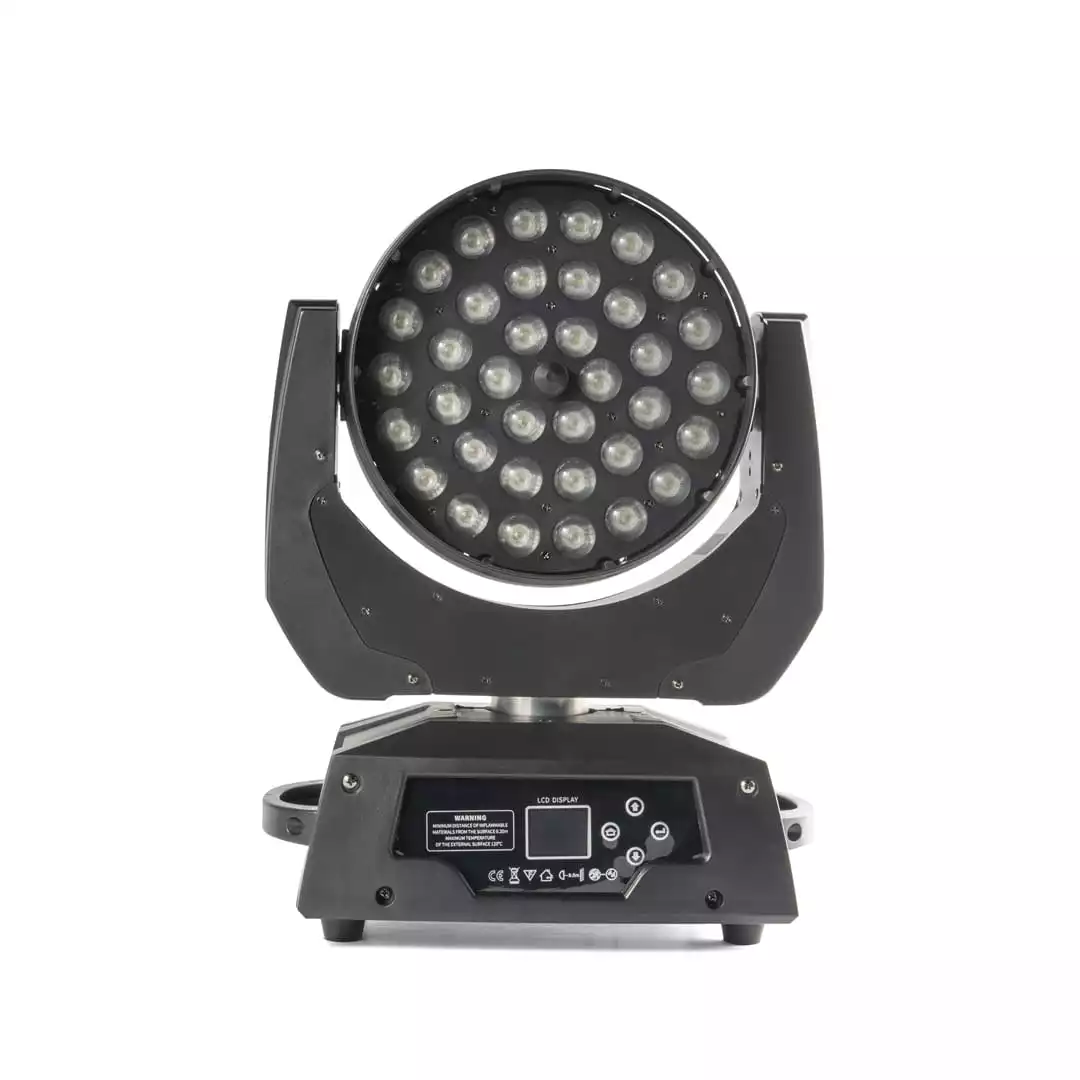

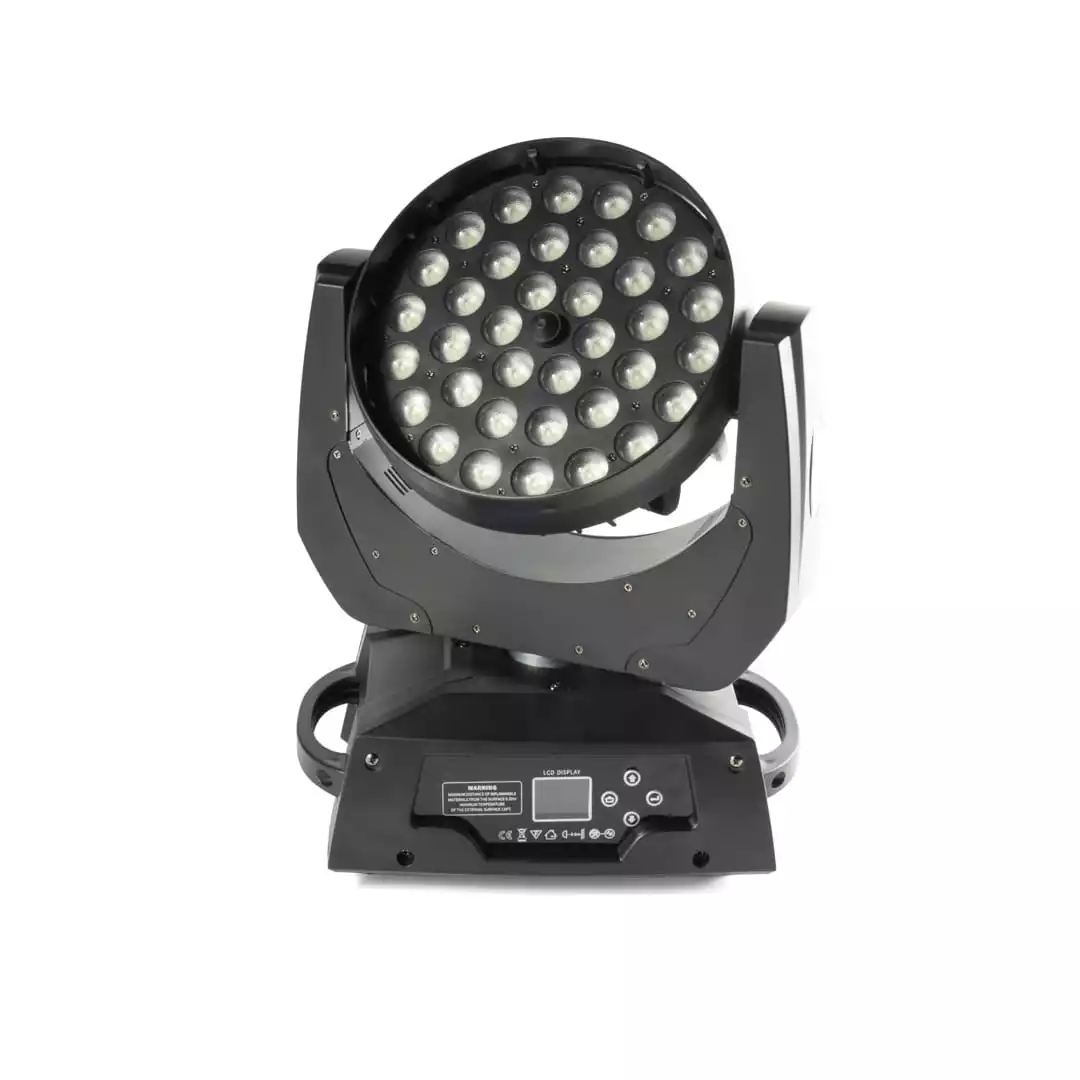

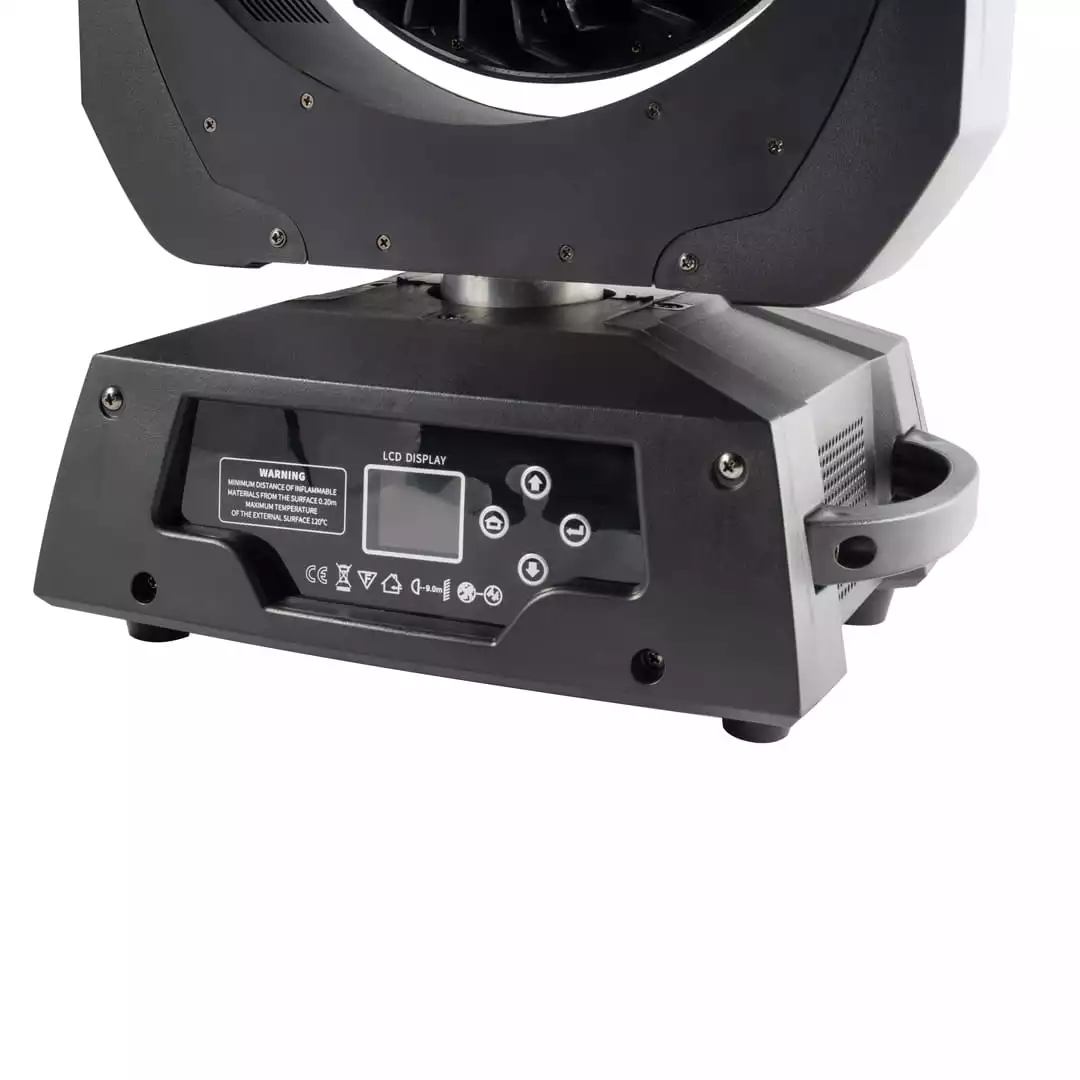

WASH LED 3610 ZOOM is a professional wash lighting fixture equipped with 36 × 10W RGBW 4-in-1 LEDs, delivering powerful output, saturated colors, and smooth color mixing. With a variable beam angle from 10° to 70°, the unit can produce both a tight, focused beam and a wide wash ideal for illuminating stages, objects, and backgrounds. The fixture offers smooth 0–100% dimming, 3 independent control sections, and operating modes DMX512, Auto, and Sound, giving the user full control over the visual output. The PAN 540° and TILT 270° movement range provides wide creative possibilities for dynamic lighting looks. Designed for stage, event, and club applications, the WASH LED 3610 ZOOM features active cooling for stable long-term operation and a color LCD display with an intuitive 4-button menu. Professional powerCON IN/OUT and 3-pin DMX IN/OUT connections ensure safe and reliable integration with any lighting system. The solid aluminum + ABS housing and IP20 rating make the fixture durable and dependable for everyday technical work. When purchasing 4 units, you receive a dedicated transport case that ensures safe storage and convenient transport of the fixtures and all accessories.
Power Source (AC) |
|
|---|---|
| Supply voltage | 100-240V |
| Power consumption | 210 |
| Power frequency | 50-60Hz |
Light source |
|
|---|---|
| Type | LED (RGBW) |
| Quantity | 36 |
| Power (W) | 10 |
| Number of control sections | 3 |
Color Mixing System |
|
|---|---|
| RGBW | 8 bit |
Dimming |
|
|---|---|
| Dimming | 8 bit |
ZOOM |
|
|---|---|
| ZOOM | Motorized (8 bit) |
Beam angle |
|
|---|---|
| Beam angle | Zmienny (10-70⁰) |
Strobe - frequency |
|
|---|---|
| Frequency | 1-20Hz |
DMX control |
|
|---|---|
| Number of modes | 2 |
| Number of channels | 16-24 |
Movement |
|
|---|---|
| Range PAN | 540⁰ |
| Range TILT | 270 ⁰ |
| Regulation | 8 bit |
Modes of operation |
|
|---|---|
| DMX512 | Yes |
| Sound control | Yes |
| Auto control | Yes |
| Master-slave | Yes |
User Interface |
|
|---|---|
| Physical buttons | Yes |
| Color display | Yes |

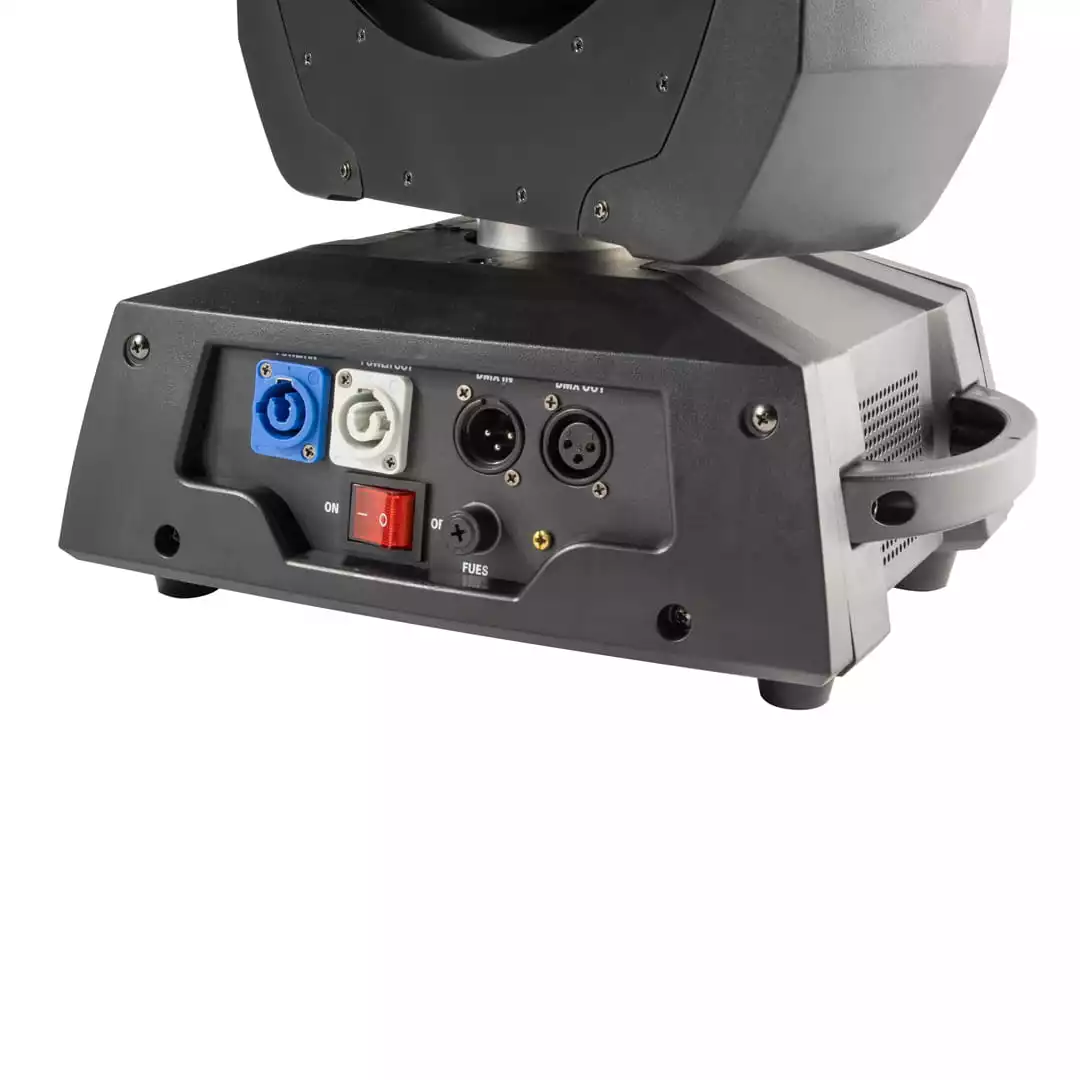

Connectors |
|
|---|---|
| AC IN | PowerCON |
| AC OUT | PowerCON |
| DMX IN | 3-pin XLR |
| DMX OUT | 3-pin XLR |
Physical parameters |
|
|---|---|
| IP protection level | IP20 |
| Housing type | ABS |

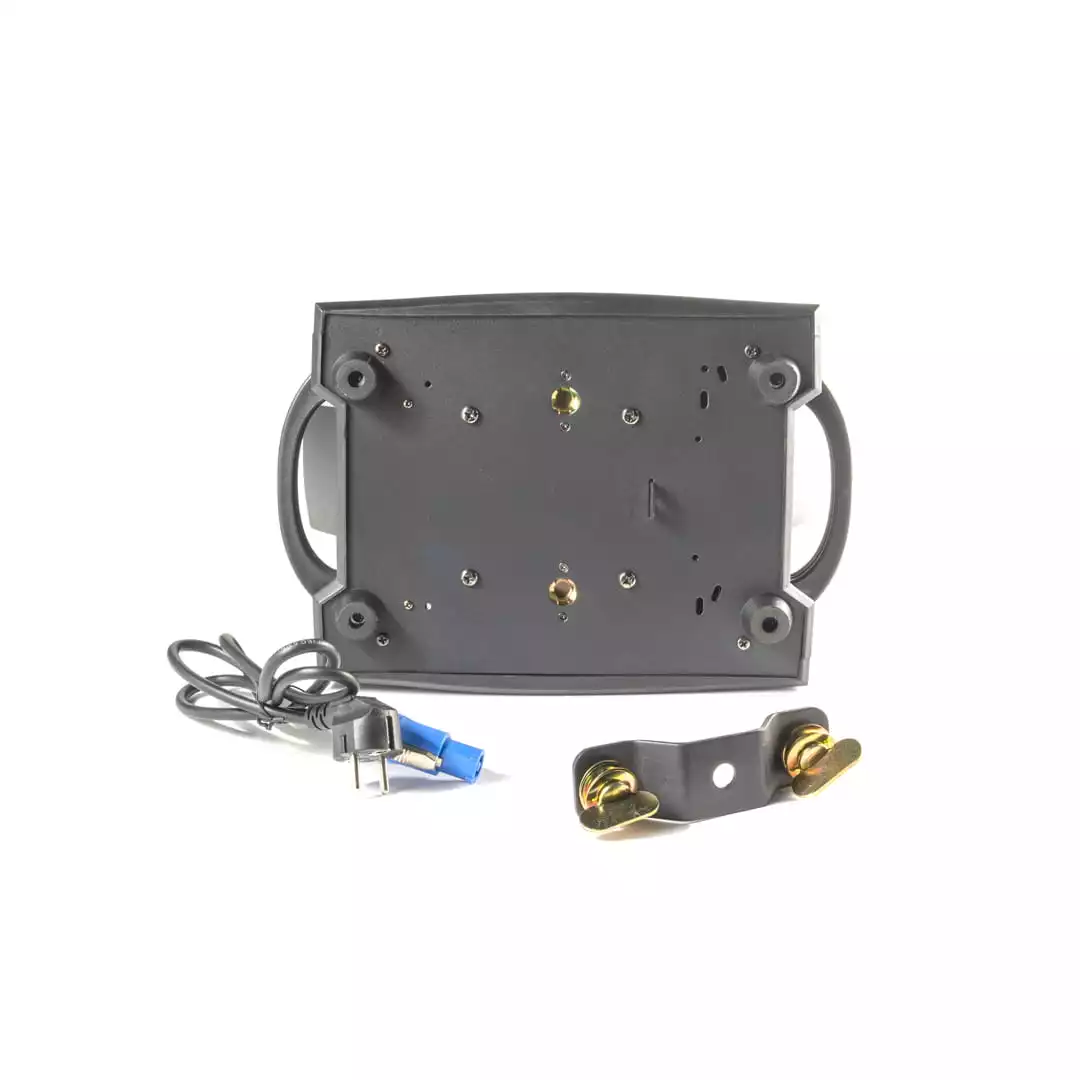

| Fixing | fastlock |
| Blockade (Pan) | No |
| Blockade (Tilt) | No |
| Housing Color | Black |

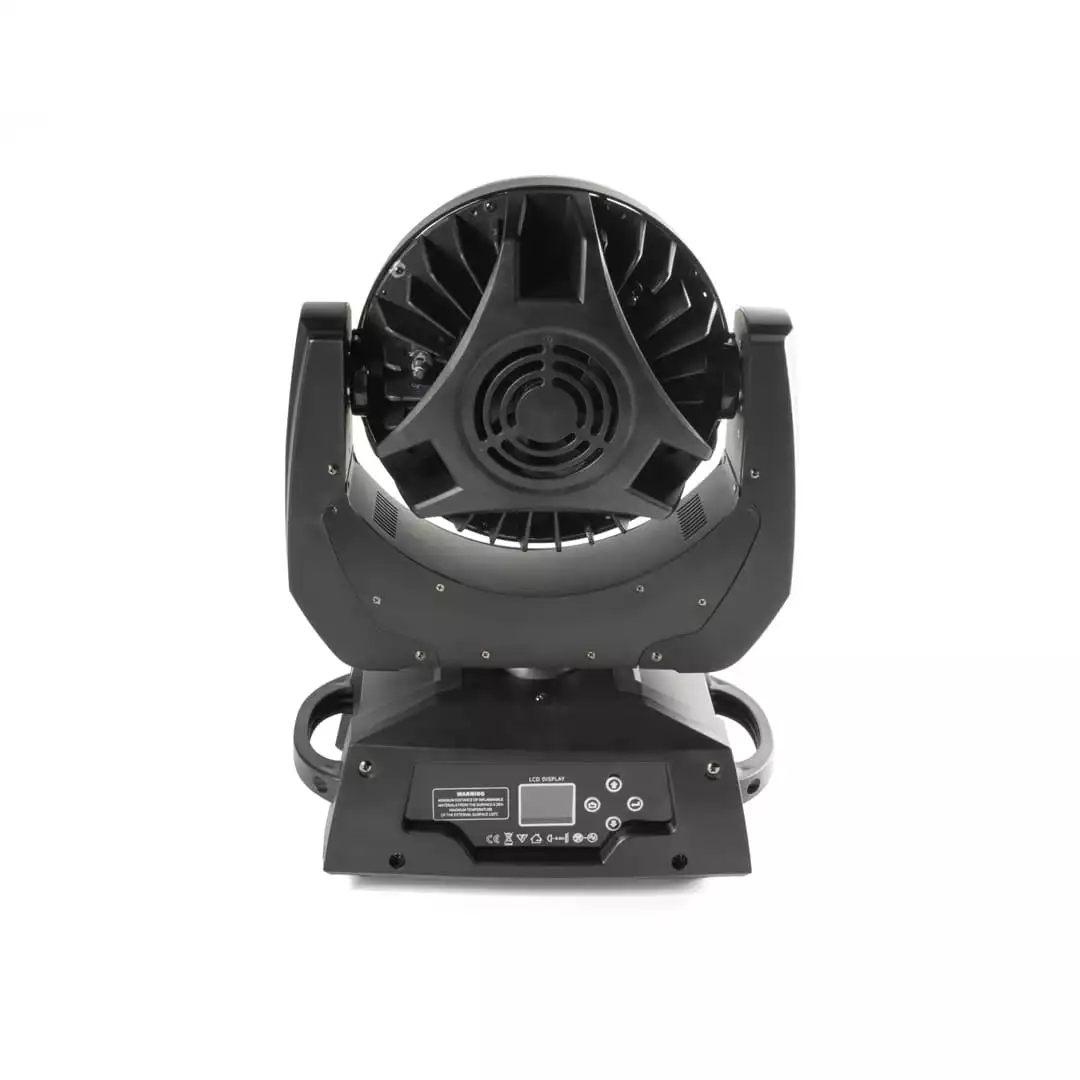

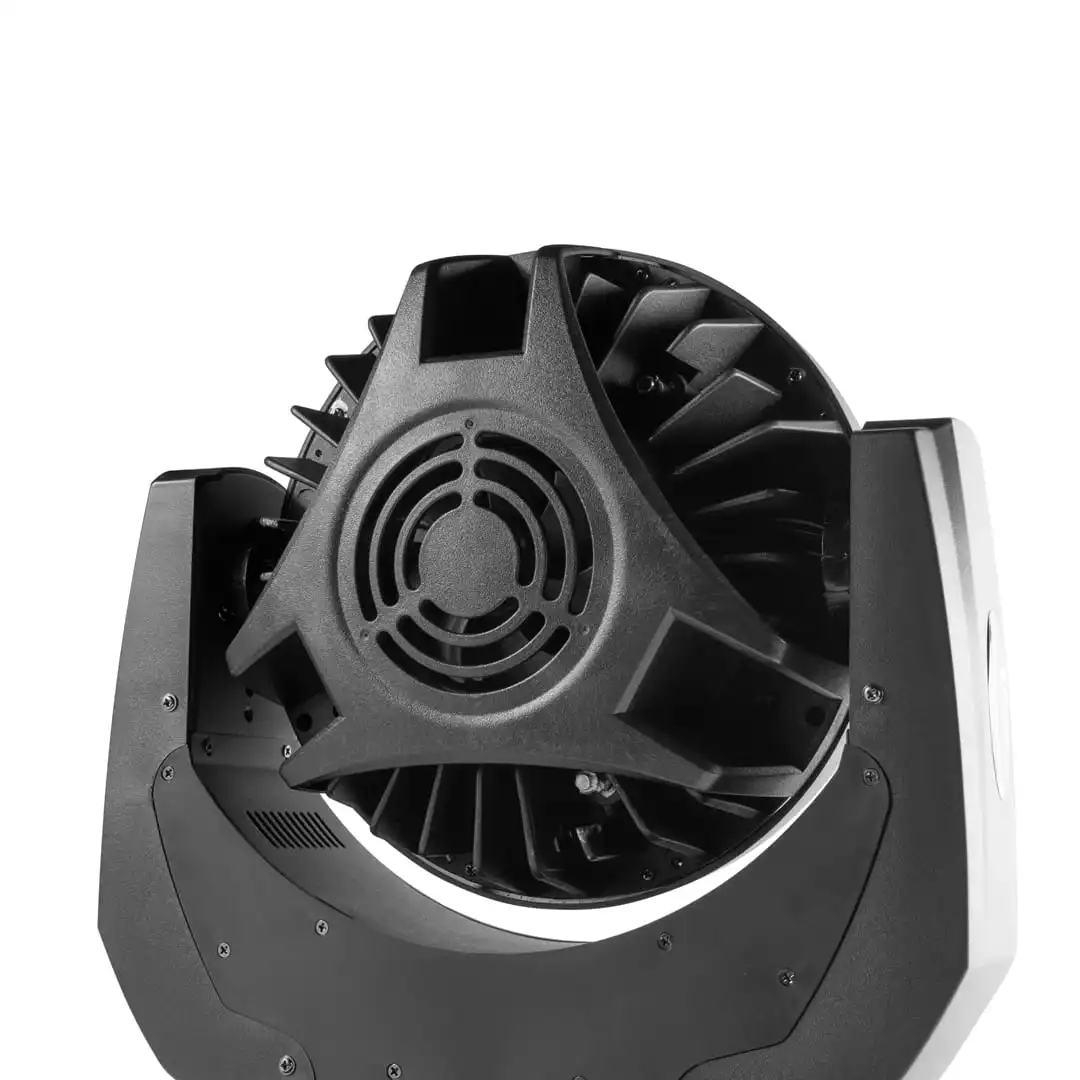

| Cooling | Active |
| Length [cm] | 34 |
| Width [cm] | 22 |
| Height [cm] | 44,5 |
| Weight [kg] | 8,2 |
Contents of the package |
|
|---|---|
| Manual | Yes |
| Wiring | PowerCON |
| Device | WASH LED 3610 v2209 |
