GOBO Projector 200 45°

GOBO Projector 200 45°

Main information:
» Product from category:

Exposition Lighting / GOBO projectors

» Product series:

EVENT

Product codes:
» Product code:

F7300262

EVENT
Check series
flash
fixtures:

To download fixtures from our database, enter your e-mail address. We will send the files to the e-mail address you provided. By entering the address, you accept statute.

Download now

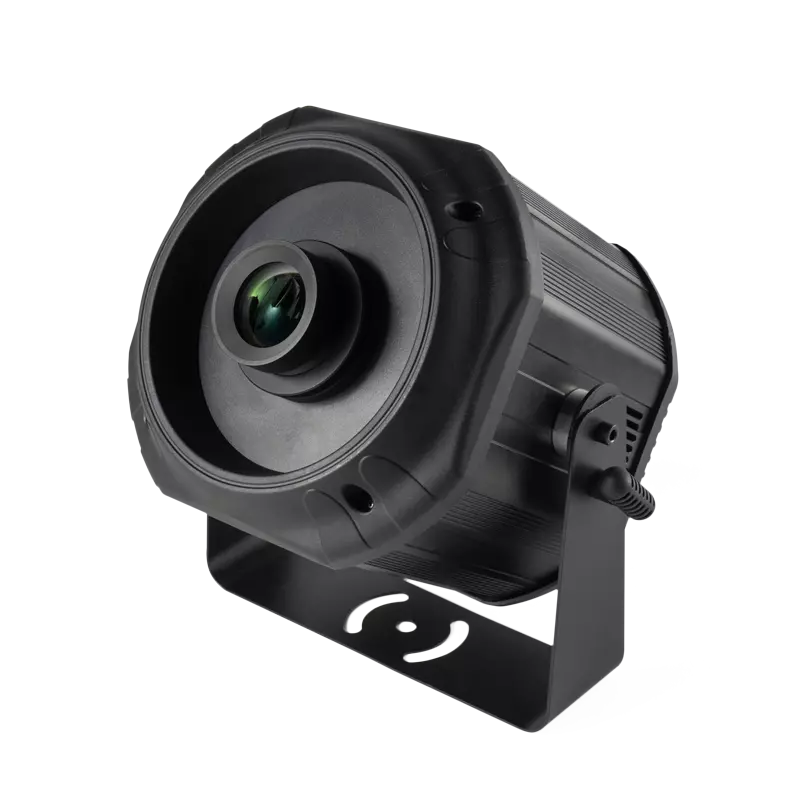

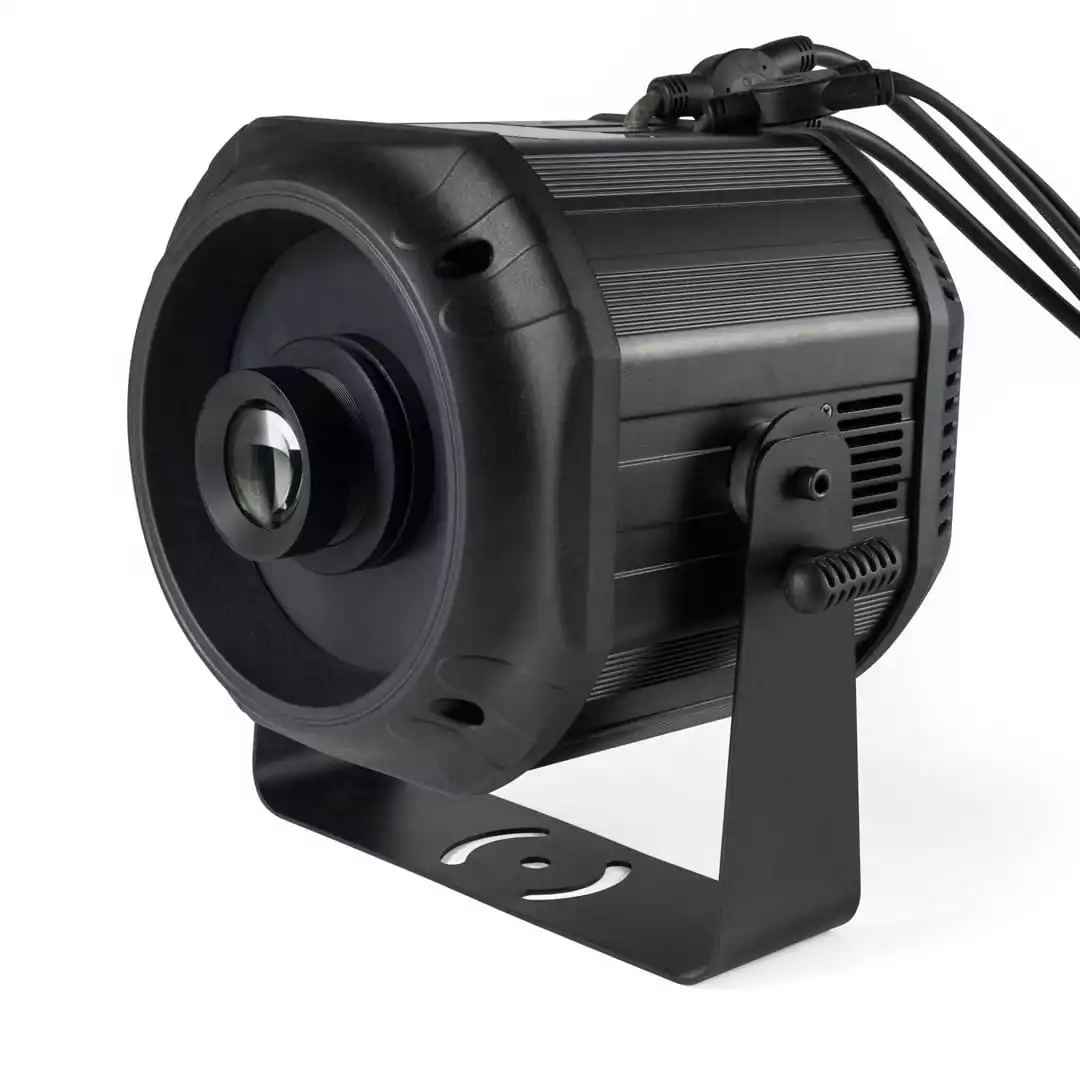

Product description GOBO Projector 200 45°

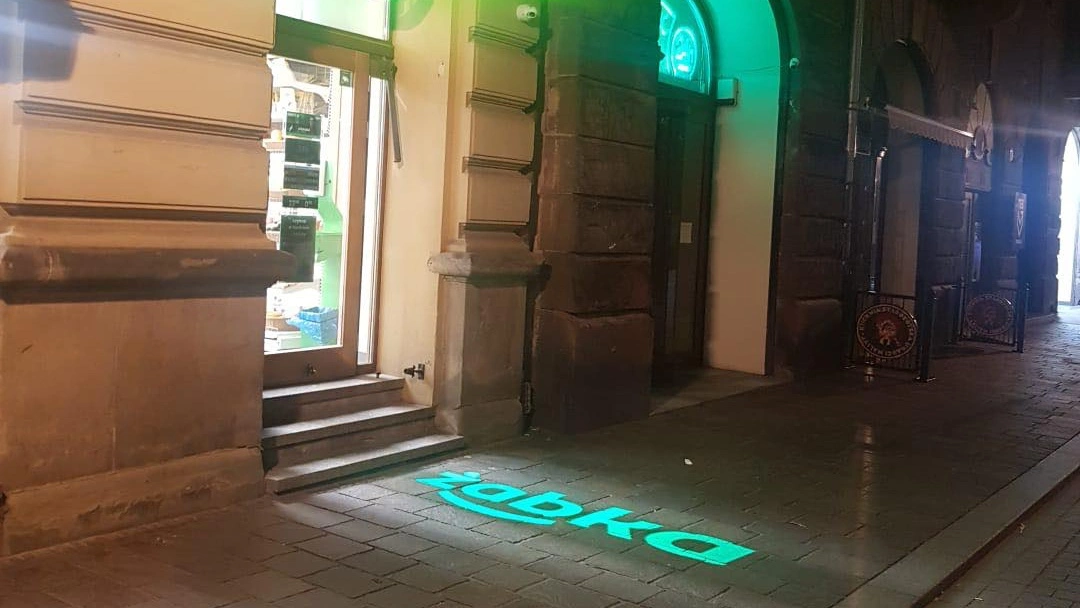

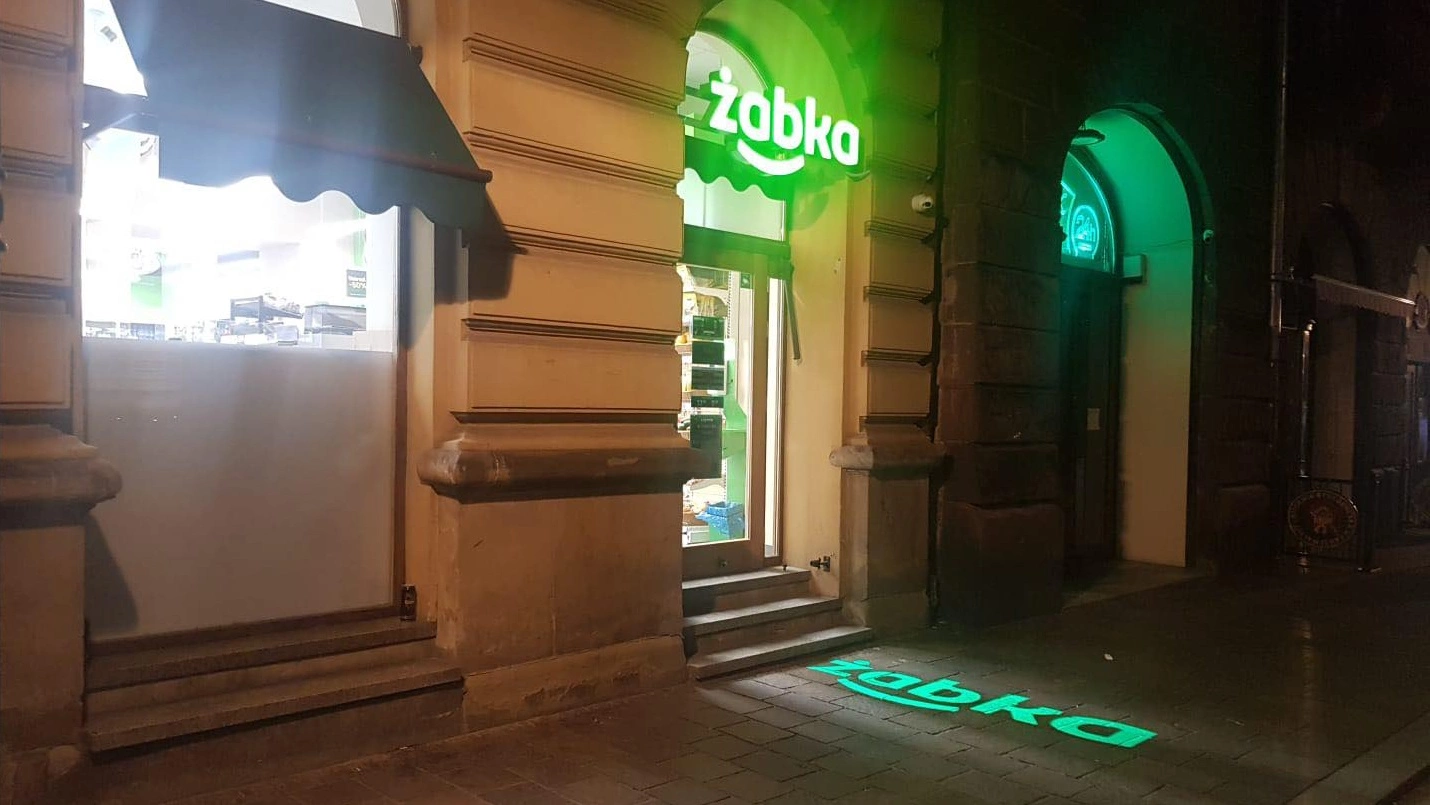

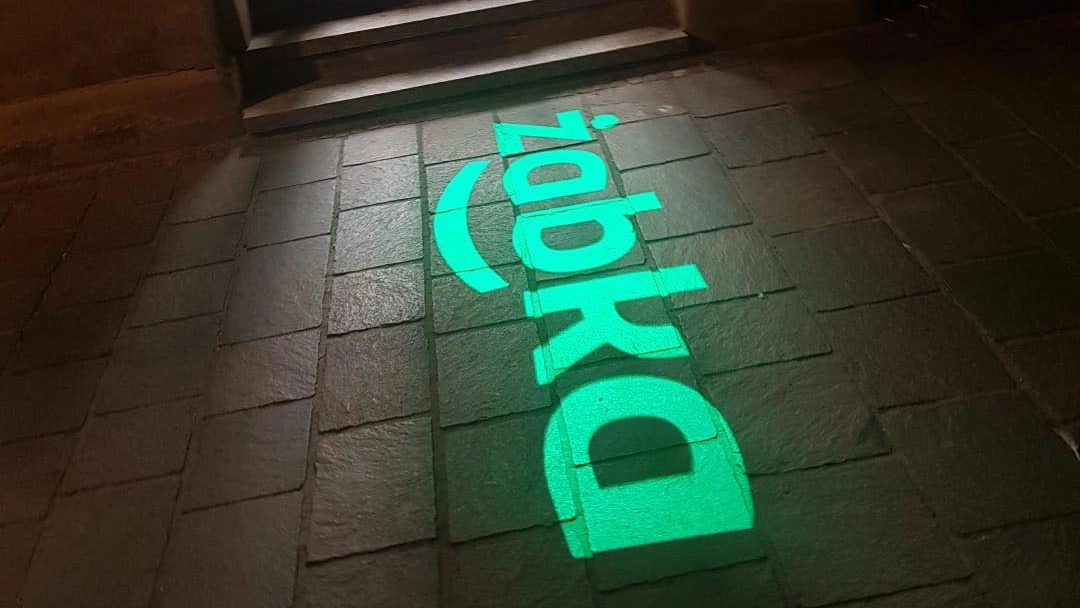

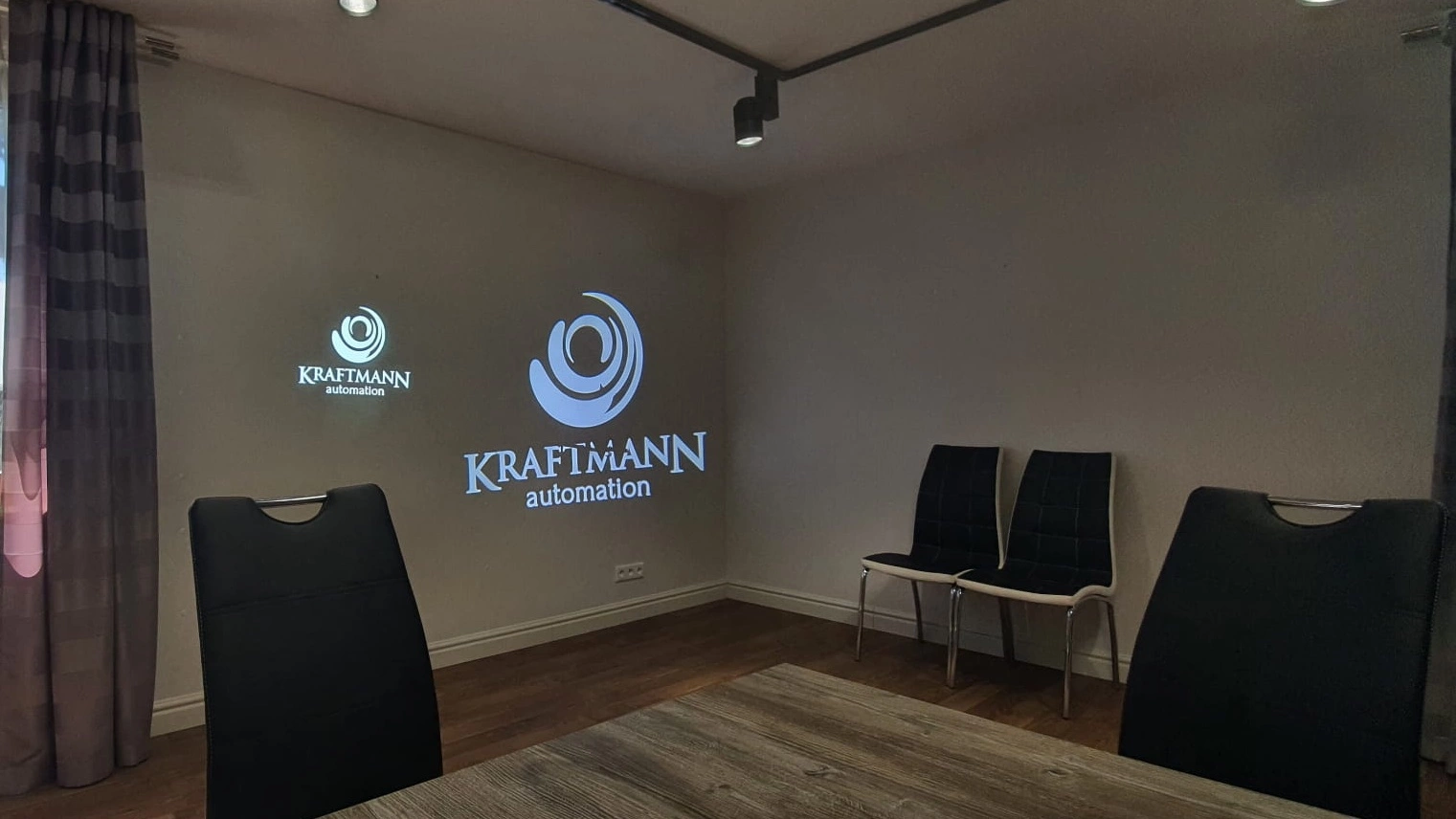

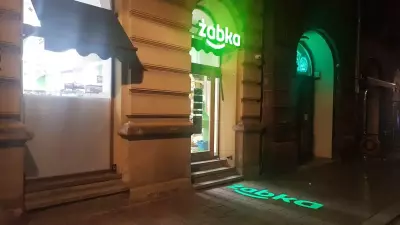

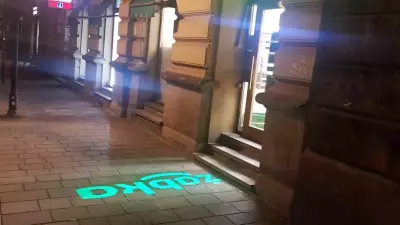

GOBO Projector 200 45° is a professional device with IP65 waterproof class, equipped with a 230W LED with a color temperature of 7000K. Used for projecting symbols (gobo) on surfaces, with the possibility of manual focus adjustment, lighting angle of 45° and up/down adjustment: 180°. This compact device also uses four gobo effects with variable speed and a replaceable slot, electronic positioning function, intelligent off-line automatic startup mode, protection against overheating of the light source, internal protection of the electronics against moisture and many operating modes.

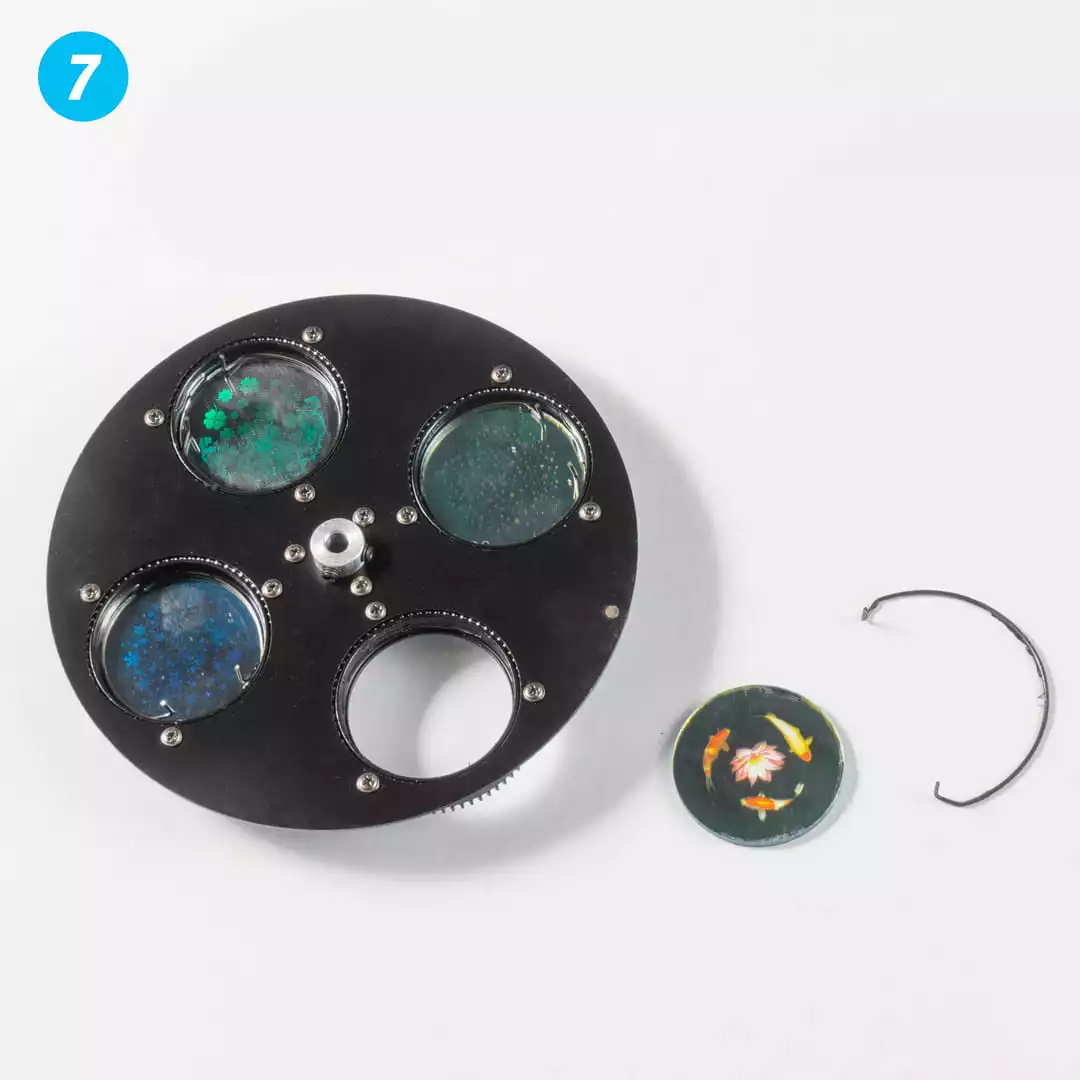

GOBO external diameter 37.2 mm, internal (working): 22 mm
GOBO Projector 200 45° - Password-protected device to prevent unauthorized access to the main menu. The default password is "Up and Down, Up and Down". Press "OK" to accept the password. (Up - down - up - down - ok).
When purchasing 2 devices, you receive a dedicated Case, enabling safe storage and transport of devices and accessories.

Specification GOBO Projector 200 45°

Power Source (AC)

Supply voltage 110-240V
Power consumption 250W
Power frequency 50-60Hz

Light source

Type LED
Quantity 1
Power (W) 230
Color temperature 6500K-7000K
Color Rendering Index (CRI) 65

ZOOM

ZOOM Fixed

Beam angle

Beam angle Stały (45 ⁰)

Focus adjustment - Focus

Focus adjustment - Focus Manual

CTO

CTO smooth

GOBO Wheel

Static 4
Rotary 4
Rotation 8 bit
Removable slot Yes

Strobe - frequency

Frequency 1-20Hz
Pulsating Yes
Random Yes

DMX control

Number of modes 1
Number of channels 6

Modes of operation

DMX512 Yes
Auto control Yes
Master-slave Yes

User Interface

Capacitive (touch) buttons Yes
Color display Yes

Connectors

AC IN Integrated
AC IN 3-pin hermetic connector
AC OUT 3-pin hermetic connector
DMX IN Hermetic 3-pin DMX connector
DMX OUT Hermetic 3-pin DMX connector

Physical parameters

IP protection level IP65
Housing type Aluminium
Housing type ABS
Housing type Glass
Fixing Integrated
Fixing Mounting hole
Housing Color Black
Cooling Active
Length [cm] 36
Width [cm] 36
Height [cm] 30
Weight [kg] 8,2

Contents of the package

Manual Yes
Device GOBO Projector 200 45°
Handle Yes

Package dimensions and weight

Package length [cm] 75
Package width [cm] 39
Package height [cm] 45
Weight with packaging [kg] 14

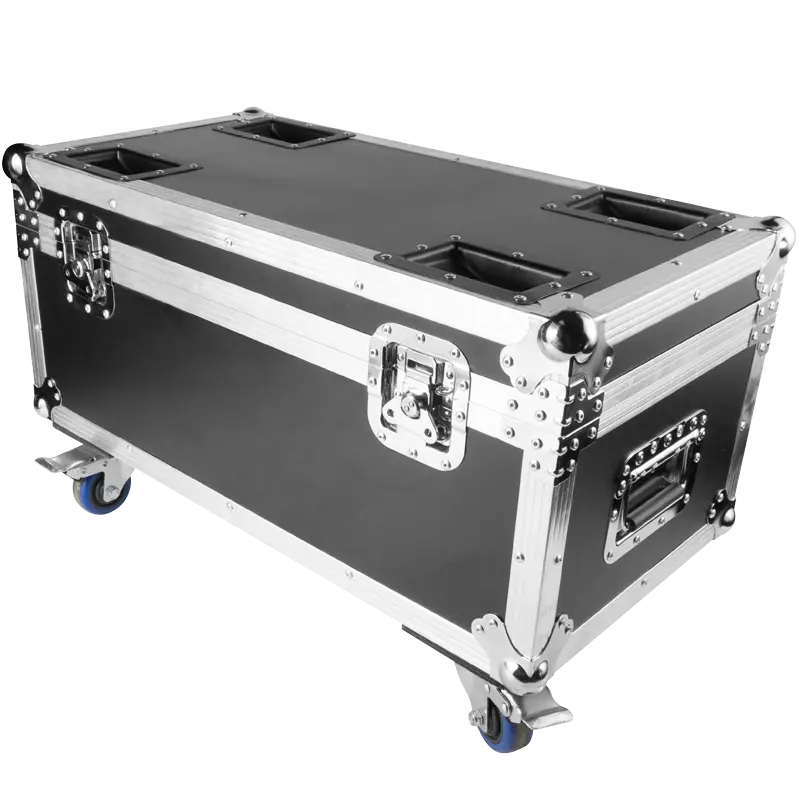

Type of packaging F0901938 CASE FOR 2x GOBO Projector 200 45°

Instructions available GOBO Projector 200 45°

Instrukcja PL for GOBO Projector 200 45°
Instrukcja
Język: PL
Instrukcja EN for GOBO Projector 200 45°
Manual
Language: EN

Driver fixtures/libraries available

Fixtury GDTF for GOBO Projector 200 45°
Fixtury grandMA2 for GOBO Projector 200 45°
Fixtury SSL2 for GOBO Projector 200 45°
Fixtury grandMA3 for GOBO Projector 200 45°
Fixtury dot2 for GOBO Projector 200 45°
Fixtury Avolites Titan for GOBO Projector 200 45°

Documents available GOBO Projector 200 45°

Data Sheet EN for GOBO Projector 200 45°
Data Sheet EN
