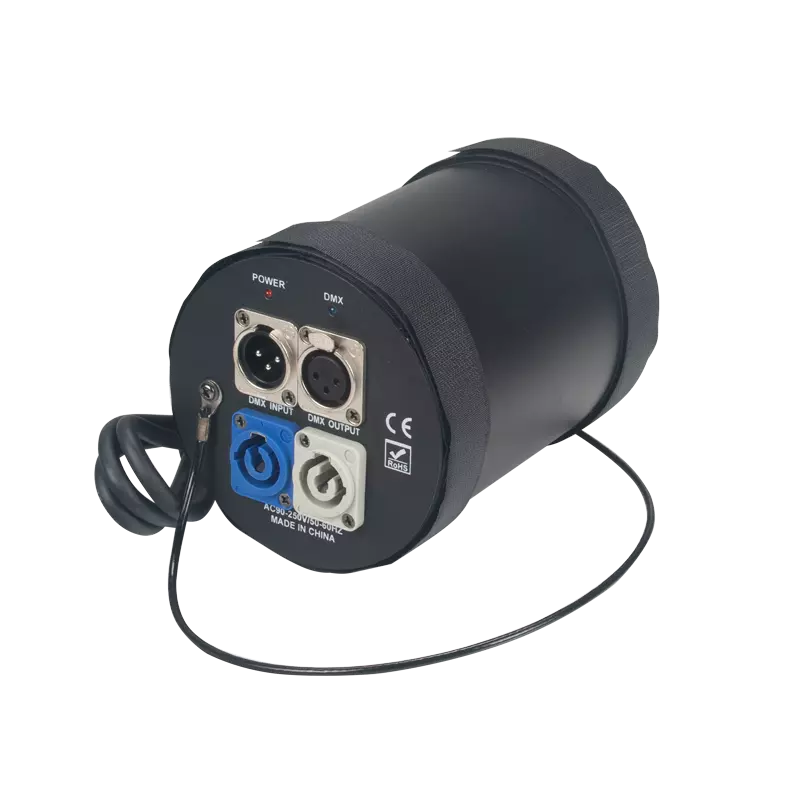

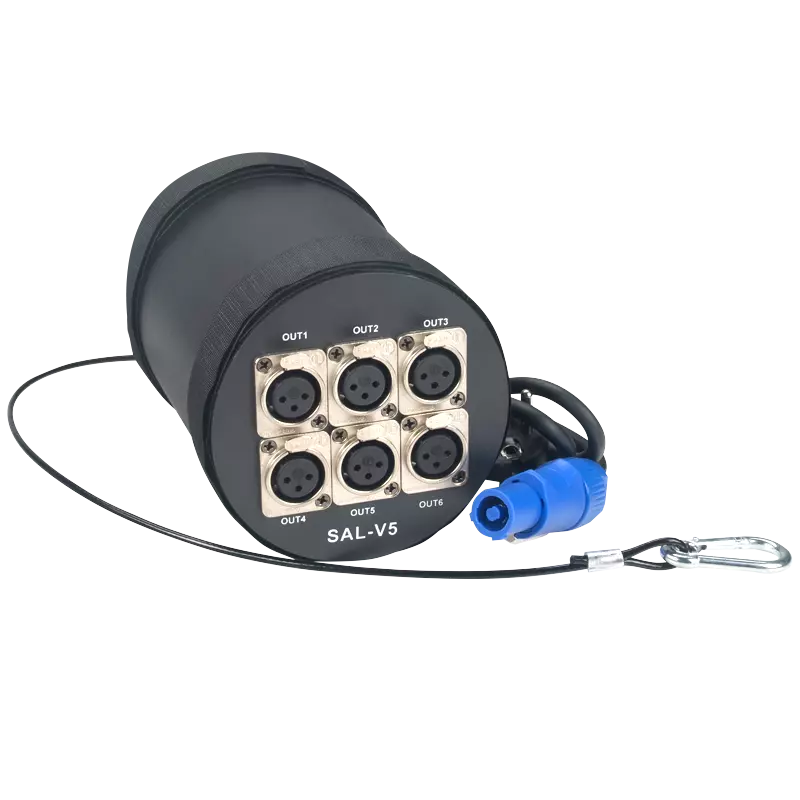

SPLITTER DMX BARREL is a compact device for large lighting installations, designed to configure DMX networks through a DMX input signal splitter and amplifier. The device uses 6 galvanically isolated outputs, DMX IN/OUT connected in parallel, a bright LED indicating the DMX/Power status, and two PowerCON IN/OUT sockets enabling the connection of many devices in series. Thanks to its compact size, black housing, safety rope and Velcro tape, you can easily mount this splitter in a stage structure.
Power Source (AC) |
|
|---|---|
| Supply voltage | 90-250V |
| Power consumption | 6W |
| Power frequency | 50-60Hz |
Modes of operation |
|
|---|---|
| DMX512 | Yes |
Connectors |
|
|---|---|
| AC IN | PowerCON |
| AC OUT | PowerCON |
| DMX IN | 3-pin XLR |
| DMX OUT | 3-pin XLR |
Physical parameters |
|
|---|---|
| IP protection level | IP20 |
| Housing type | Steel |
| Fixing | Integrated |
| Fixing | Security point |
| Housing color | Black |
| Cooling | Passive |
| Length [cm] | 17 |
| Width [cm] | 12 |
| Height [cm] | 12 |
| Weight [kg] | 1,4 |
Contents of the package |
|
|---|---|
| A kind of package | cardboard box |
| Manual | Yes |
| Wiring | PowerCON |
| Device | SPLITTER DMX BARREL |
| Handle | Integrated |
| Steel safety cable | Yes |
